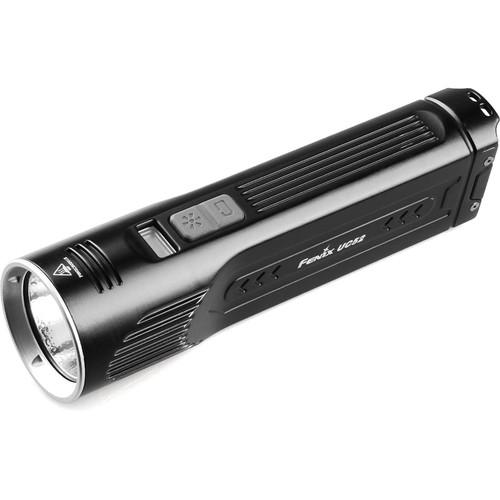

User Manual for Fenix Flashlight UC52 Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Fenix Flashlight UC52 Rechargeable LED Flashlight
- Product category: Handheld Flashlights Fenix Flashlight
- Brand: Fenix Flashlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fenix Flashlight Handheld Flashlights
|
User manual for the Fenix Flashlight UC52 Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fenix Flashlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fenix Flashlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fenix Flashlight product will considerably shorten its lifespan!
|
Product description Don't be fooled by the sleek, slim styling of the Fenix UC52 Rechargeable LED Flashlight – this is one powerful torch, with a maximum output of 3100 lumens. An OLED display shows the current output in lumens and the remaining runtime. The 7.2 VDC, 3500mAh built-in battery recharges by micro-USB, and the charging port is waterproof, even if the rubber cap is open. The light source is a Cree XHP70 LED; overheat protection circuitry and a die-cast aluminum housing control the heat generated by the emitter.Two side switches control the UC52's functions, one for on/off and one to cycle through the five output settings, the SOS and the disorienting, 1000-lumen self-defense strobe. Runtimes range from 42 minutes on Turbo to 82.5 hours on the Eco setting. IP68-rated water-resistant, the light can withstand submersion to 6.6' and is dustproof. - Performance
-
- Eco: 15 lumens
- Low: 100 lumens
- Med: 350 lumens
- High: 1000 lumens
- Turbo: 3100 lumens
- Cree XHP70 LED, rated for 50,000 hours
- Digitally regulated output maintains constant brightness
- Runtimes: 82.5 hours on Eco to 42 minutes on Turbo
- Switching
-
- Type: Dual push button
- Location: body
- Cycle through brightness settings with side switch
- Construction
-
- OLED display shows output in lumens & remaining runtime
- Die-cast aluminum alloy housing with stainless steel bezel ring
- Anti-reflection coated impact and scratch resistant tempered glass window
- Impact resistant to 3.3', IP68-rated submersible to 6.6'
- Reverse polarity protection
- Intelligent temperature control
- Digitally regulated output maintains constant brightness
- Lockout function prevents unintentional activation
In the Box Fenix Flashlight UC52 Rechargeable LED Flashlight Lanyard Nylon Holster Micro-USB Charging Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fenix Flashlight UC52 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFenix Flashlight UC52 Specs | | | Lumen Output | Minimum: 15 Lumens
Low: 100 Lumens
Medium: 350 Lumens
High: 1000 Lumens
Turbo: 3100 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 2.8 Hours
Medium: 8.3 Hours
Low: 27.5 Hours
Turbo: 42 Minutes
Minimum: 82.5 Hours | | Battery Type | 1 x Built-In Lithium-Ion | | Internal Battery Capacity | 3500 mAh | | Output Voltage | 7.2 VDC | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.7" / 43.2 mm | | Dimensions |
