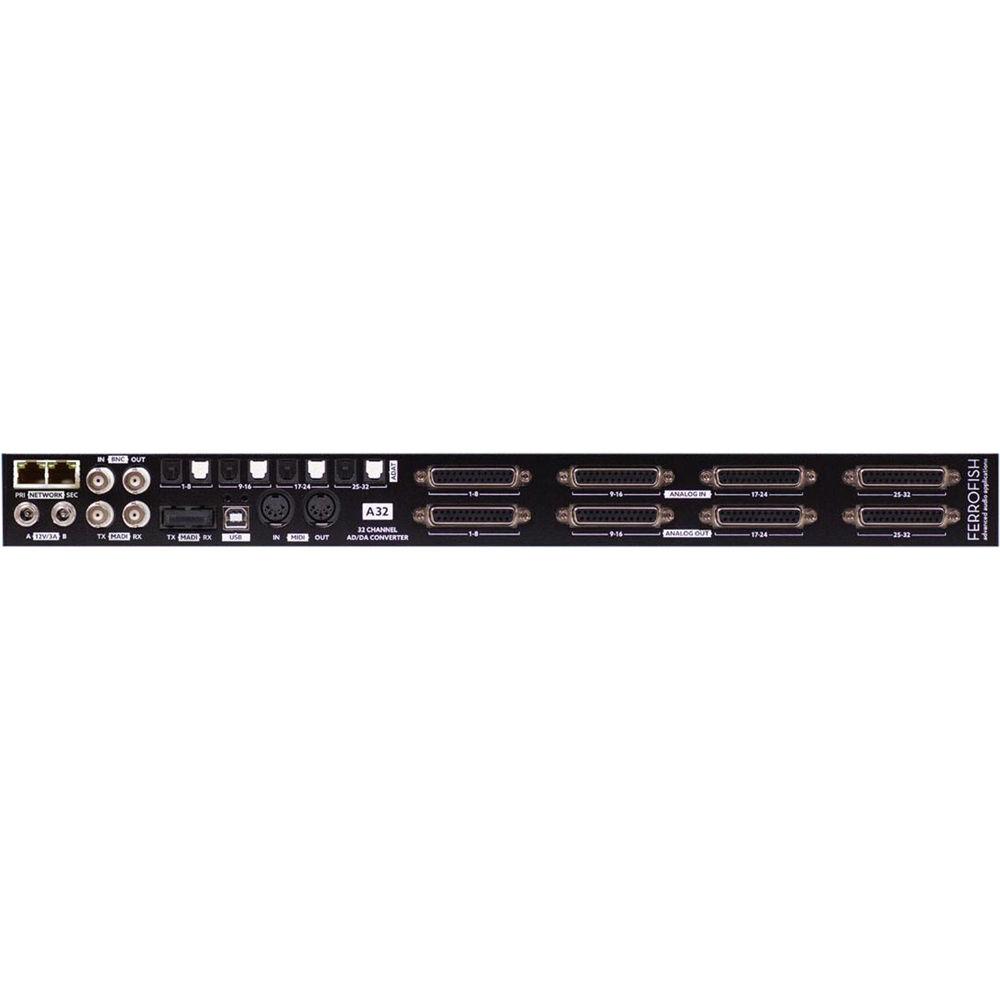

User Manual for Ferrofish 32 x 32 Channel AD DA Converter

Click to enlarge the picture
Ferrofish 32 x 32 Channel AD DA Converter Contents of the user manual for the Ferrofish 32 x 32 Channel AD
  • Product category: AD/DA Converters Ferrofish
  • Brand: Ferrofish
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ferrofish AD/DA Converters

Ferrofish 32 x 32 Channel AD DA Converter Ferrofish 32 x 32 Channel AD DA Converter
User manual for the Ferrofish 32 x 32 Channel AD contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ferrofish product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ferrofish user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ferrofish product will considerably shorten its lifespan!



Product description

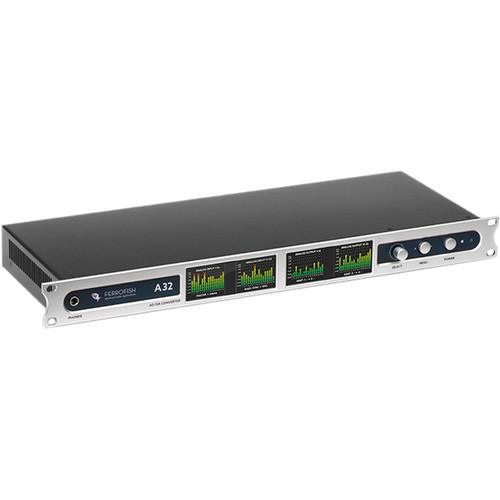

The 32 x 32 Channel AD/DA Converter from Ferrofish features 32 x 32 analog inputs and outputs, 64 x 64 Dante, 64 x 64 MADI, and 32 x 32 ADAT digital channels. Integrated FPGA and DSP enable routing of all channels to every I/O and creating submixes, which can be monitored by an integrated monitoring matrix featuring a headphones output at the front of the A32 DANTE. Four TFT screens show all analog input and output levels, while an intuitive one-knob control and an always-on help system make it easy to use. UPC: 040232831133 In the Box Ferrofish 32 x 32 Channel AD/DA Converter
  • Power Supply
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ferrofish 32 x 32 Channel AD DA Converter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ferrofish A32 DANTE Specs

    MADI I/O Optical (multimode) + coaxial interface
    64 channels @ 32 kHz, 44.1 kHz, 48 kHz
    32 channels @ 64 kHz, 88.2 kHz, 96 kHz
    32 channels @ 128 kHz, 176.4 kHz, 192 kHz (32 channels only when configured as the following: optical MADI sends and receives analog channels 1-16; coaxial MADI sends and receives analog channels 17-32)
    Latency: 3 samples
    ADAT I/O 4+4 optical interfaces
    32 channels @ 32 kHz, 44.1 kHz, 48 kHz
    16 channels @ 64 kHz, 88.2 kHz, 96 kHz
    N/A @ 128 kHz, 176.4 kHz, 192 kHz
    Latency: 3 samples
    S/PDIF ADAT 4 I/O can be reconfigured as S/PDIF
    Input has sample rate converter included (performance of SRC: -128 dB)
    Output follows A32 sample frequency
    Dante Interface 64 x 64 channel Brooklyn II board, 2 Ethernet connectors
    Wordclock BNC: 1 x input, 1 x output
    75 Ohms termination switchable for input
    MIDI I/O 2 x DIN5 jacks, for remote
    Conversion MIDI to MIDI over MADI possible
    A/D Converter 4 x CS5368 (Cirrus Logic)
    4 x DSub25 / Tascam
    Analog Switches: 20 dBu, 13 dBu, 4 dBu
    Digital Gain: 20 dBu, - 8 dBu, 1 dB steps
    Latency: @ 48 kHz: 12/fs, 0.25 ms, @ 96 kHz: 9/fs, 0.09 ms, @ 192 kHz: 5/fs, 0.03 ms
    OpAmps: RC4580 + OPA1664
    Level Indicator: TFT screen, 28 levels
    D/A Converter 4 x CS4365 (Cirrus Logic)
    4 x DSub25 / Tascam
    Analog Switches: 20 dBu, 13 dBu, 4 dBu
    Digital Gain: 20 dBu, - 8 dBu, 1 dB steps
    Latency: @ 48 kHz: 7.8/fs, 0.16 ms, @ 96 kHz: 5.4/fs, 0.06 ms, @ 192 kHz: 6.6/fs, 0.03 ms
    OpAmps: RC4580 + OPA1664
    Level Indicator: TFT screen, 28 levels
    USB USB 2.0 (remote, update)
    Headphone Independent stereo channel
    Select any mono or stereo source
    Select one of five mixes of all inputs and outputs
    Digital volume control
    Audio Processor Sharc DSP ADSP-21489 / 400 MHz
    Routing of all 128+128 channels
    Mixing to headphone output
    Independent mixing to selectable analog output pair
    DSP plugins
    PLL Digitally controlled PLL / jitter reduction system
    Output Jitter: 50 - 100 ps typical
    Internal Clock Temperature compensated oscillator with high accuracy
    Initial Accuracy: ±1.5 ppm
    Over Temperature Range: ±2.5 ppm
    Aging: ±1 ppm
    Power Supply 2 x input jacks with screw lock for redundant power, voltage supervision, warning message on screen when PSU input fails
    Internal resettable polyfuse
    1 x power supply included, 12 V, 3 A
    Temperature 41 to 113°F / 5 to 45°C
    Humidity <75%, non-condensing
    Depth 10.6" / 27 cm
    Weight 9 lb / 4.1 kg
    Package Weight 12.8 lb
    Box Dimensions (LxWxH) 24.5 x 14.8 x 4.1"
