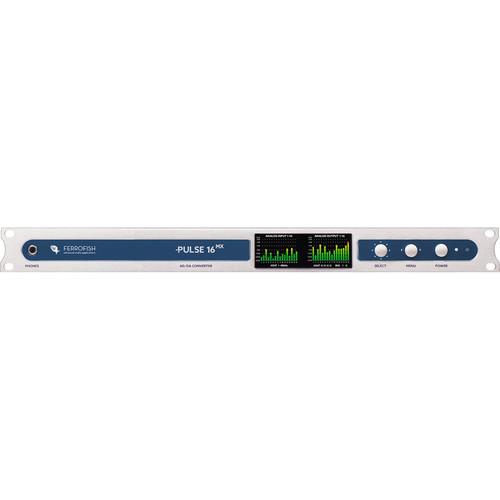

Product description The Ferrofish Pulse16 MX is a 1 RU rackmount 16-channel AD/DA converter offering analog, MADI, and ADAT I/O for tracking and mixing engineers in recording studios, houses of worship, broadcast trucks, and concert venues. With 24-bit / 192 kHz Cirrus Logic converters, a TCXO internal clock, and an active jitter-elimination circuit, it delivers accurate high-resolution audio. Interface a variety of equipment via the 16 balanced 1/4" TRS inputs/outputs, four ADAT optical inputs/outputs, and optical MADI I/O. The front-panel 1/4" headphone output features digitally controlled volume and an assignable mono or stereo source.BNC jacks provide wordclock I/O for proper synchronization with other digital equipment such as master clock generators, additional converters, and digital consoles. Remote control of the Pulse16 MX is possible through the MIDI 5-pin ports, which also support MIDI-over-MADI embedding and extracting. Display and modification of device settings, meters, and routing are achieved via the dual color TFT screens and three front-panel controls. The Pulse16 MX includes an external power supply and a MADI cable. - High-resolution Cirrus Logic A/D-D/A converters operate at up to 24-bits / 192 kHz
- TCXO (temperature-compensated oscillator) internal clock and active jitter reduction provide reliable clock stability
- BNC word clock I/O for synchronization with other digital equipment
- 16 balanced analog inputs/outputs on 1/4" TRS jacks
- Optical MADI I/O allows up to 64 channels of digital input and output
- Singlemode or multimode operation via SFP module
- Four TOSLINK optical inputs/outputs for up to 32 channels of ADAT I/O
- Remote control via MIDI 5-pin I/O
- Easy setup via dual color TFT screens and front-panel knob and buttons
- Digitally adjustable input and output levels in 1 dB steps
- Convenient signal monitoring via front-panel 1/4" headphone output
- Occupies 1 RU of rack space
In the Box Ferrofish Pulse16 MX Rackmount 16-Channel AD/DA, MADI & ADAT Converter 12V Power Supply MADI Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ferrofish Pulse16 MX Rackmount 16-Channel AD DA, MADI & ADAT Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFerrofish PULSE 16 MX Specs | Inputs | 16 x 1/4" TRS (Balanced Analog)
4 x TOSLINK optical (ADAT Digital)
1 x MADI-SFP optical (MADI Digital) | | Outputs | 16 x 1/4" TRS (Balanced Analog)
1 x 1/4" TRS Stereo Headphone (Unbalanced Analog)
4 x TOSLINK optical (ADAT Digital)
1 x MADI-SFP optical (MADI Digital) | | Word Clock I/O | 1 x BNC Input (75 Ohms)
1 x BNC Output (75 Ohms) | | MIDI I/O | 1 x 5-Pin DIN MIDI Input
1 x 5-Pin DIN MIDI Output | | ADC | 2 x Cirrus Logic CS5368 | | DAC | 2 x Cirrus Logic CS4365 | | Sample Rates | 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192 kHz | | Latency | ADC at 48 kHz: 7.8 samples / 0.16 ms
ADC at 96 kHz: 5.4 samples / 0.06 ms
ADC at 192 kHz: 6.6 samples / 0.03 ms
DAC at 48 kHz: 12 samples / 0.25 ms
DAC at 96 kHz: 9 samples / 0.09 ms
DAC at 192 kHz: 5 samples / 0.03 ms
ADAT/MADI: 2 samples | | Gain Range | Input/Output: -8 dBu to +20 dBu (Digital, in 1 dB Steps) | | Display | 2 x Color TFT | | PLL | Digitally Controlled PLL with Active Jitter Reduction | | Output Jitter | 50 to 100 ps typical | | Internal Clock | TCXO | | Clock Accuracy | Initial Accuracy: ± 1.5 ppm
Temperature Drift: ± 2.5 ppm
Aging: ± 1 ppm | | Temperature | 41 to 113°F / 5 to 45°C | | Humidity (Non-Condensing) | <75% | | Fuse | Internal Self-Resetting Polyfuse | | Power Requirement | 15 VA typical via 12 V, 3 A External Power Supply Unit | | Dimensions (W x H x D) | 19.0 x 1.8 x 7.5" / 48.3 x 4.4 x 19.0 cm (Including Jack Protrusions) | | Weight | 4.4 lb / 2 kg | | Compliance and Standards | EMC
RoHS 2
FCC Part 15 Class B |
