Product description

• P360 LED Light
  • P360 / P360EX + 3 Light Kits
  Ideal for on camera video work, the P360 LED Light from Fiilex has a variable color temperature of 3000-5600K and a high CRI (Color Rendering Index) rating of 90-95. The P360 employs a 50-diode Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a beam angle of 65 degrees. At only 1.6 lb with a 4" diameter form factor, the P360 is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC adapter, the P360 ships with a DC adapter and a set of four-way barndoors.
  Full Spectrum Color Tuning
  • The P360 has the ability to smoothly tune the spectrum of light producing any color temperature of white light with a high CRI of 90-95
  Ultra Efficient Light Source
  • The P360 draws only 90W, a fraction of comparable tungsten light sources. The LED source can last 10 to 15 years
  Compact, Lightweight, Ideal for Travel
  • Weighing in at 1.6 lb, the P360 is one of the lightest and most powerful light sources out there. The 12-28 VDC power input allows the P360 to be used with all major battery brands within the motion picture industry
  Additional Features
  • Dimming (10-100%)
  • Tunable color temperature: 3000-5600K
  • Full spectrum light quality without spikes
  • Single point dense matrix LED light source
  • Flicker-free at any frame rate
  • Cool to touch
  • Compatible with broadcast batteries
  Applications
  • Location lighting
  • Event lighting
  • Still photography
  • Chroma key
  Photometrics
  • Full Flood at 3000K
    53 fc/572 lux at 5.0' (1.5m) with beam diameter of 6.0' (2.0m) and field diameter of 14' (4.0m)
    15 fc/163 lux at 10' (3.0m) with a beam diameter of 12.5' (4.0m) and field diameter of 28' (8.5m)
    7.5 fc/81 lux at 15.0' (4.6m) with a beam diameter of 19' (6.0m) and field diameter of 42' (13m)
    Full Flood at 5600K
    60 fc/650 lux at 5.0' (1.5m) with a beam diameter of 6.0' (2.0m) and field diameter of 14' (4.0m)
    17 fc/185 lux at 10' (3.0m) with a beam diameter of 12.5' (4.0m) and field diameter of 28' (8.5 m)
    8.5 fc/92 lux at 15' (4.6m) with a beam diameter of 19' (6.0m) and field diameter of 42' (13m)
    Spot at 3000K with Optional 2" Fresnel Lens
    139 fc/1501 lux at 5.0' (1.5m) with a beam diameter of 2.6' (0.8m) and field diameter of 5.3' (1.6m)
    40 fc/427 lux at 10' (3.0m) with a beam diameter of 5.0' (1.6m) and field diameter of 11' (3.0m)
    20 fc/211 lux at 15' (4.6m) with a beam diameter of 8.0' (2.4m) and field diameter of 16' (5.0m)
    Spot at 5600K with Optional 2" Fresnel Lens
    176 fc/1891 lux at 5.0' (1.5m) with a beam diameter of 2.6' (0.8m) and field diameter of 5.3' (1.6m)
    50 fc/538 lux at 10' (3.0m) with a beam diameter of 5.0' (1.6m) and field diameter of 11' (3.0m)
    25 fc/266 lux at 15' (4.6m) with a beam diameter of 8.0' (2.4m) and field diameter of 16' (5.0m)
  UPC: 654367099704

• Set 4-Way Barndoors

• AC Adapter

• DC Adapter

• Limited 2-Year Warranty

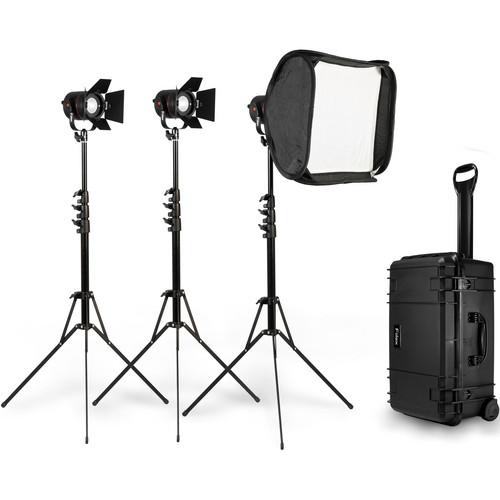

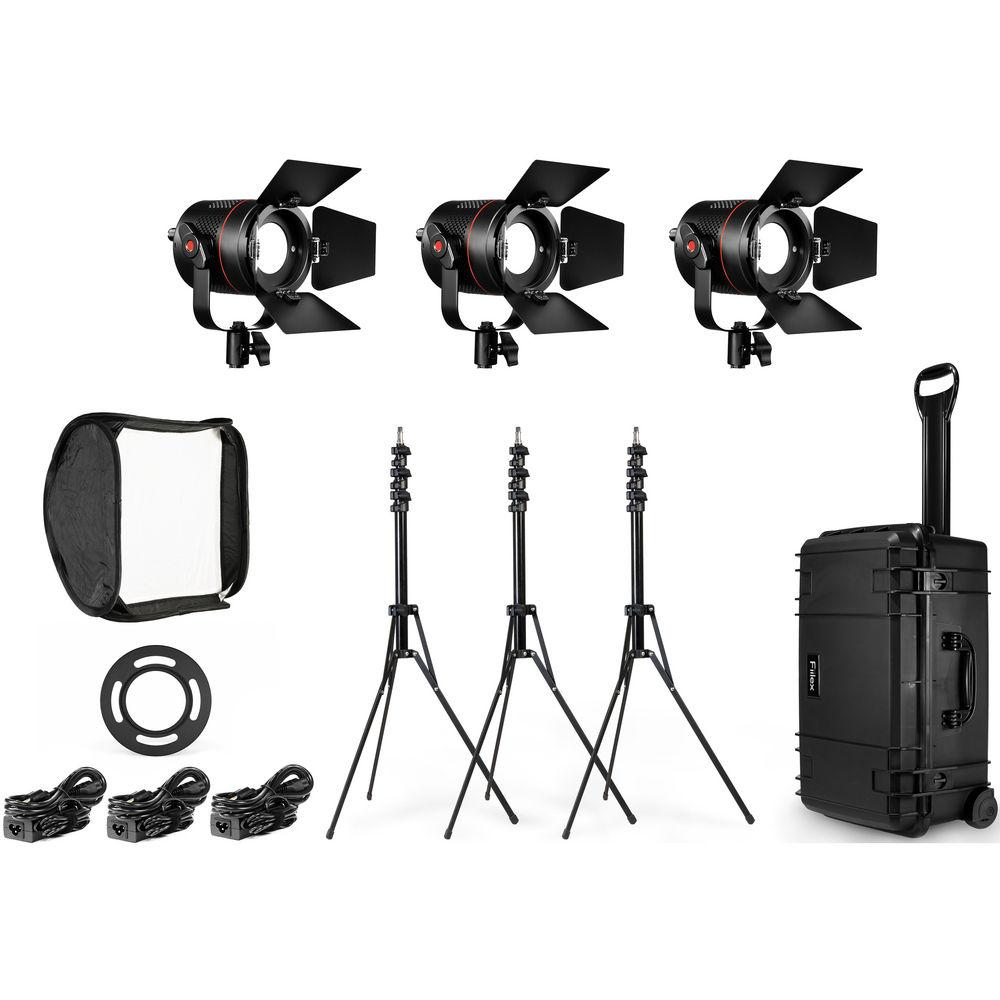

Also Includes

• 12x16" Softbox
• Speedring for Softbox
• 3 x AC/DC Power Adapter
• 3 x Light Stand (7')
• 3 x Four-Way Barndoor Set

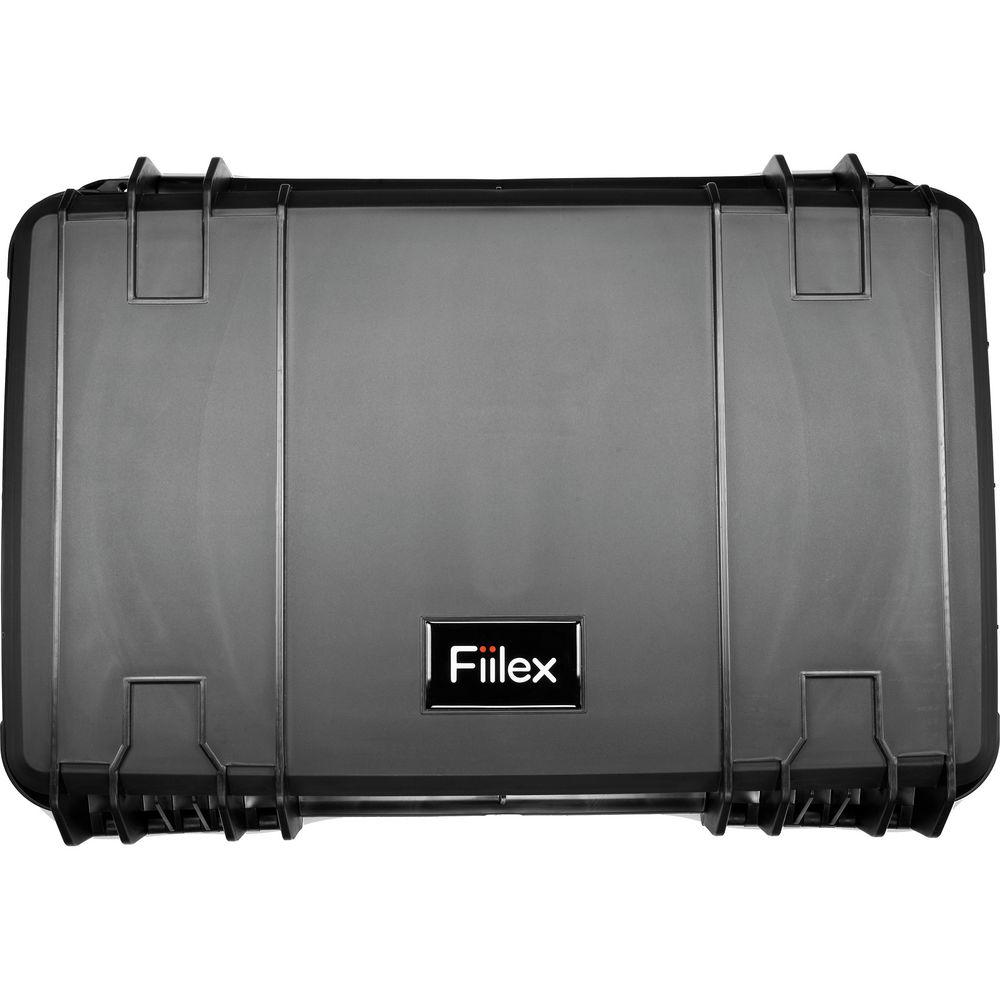

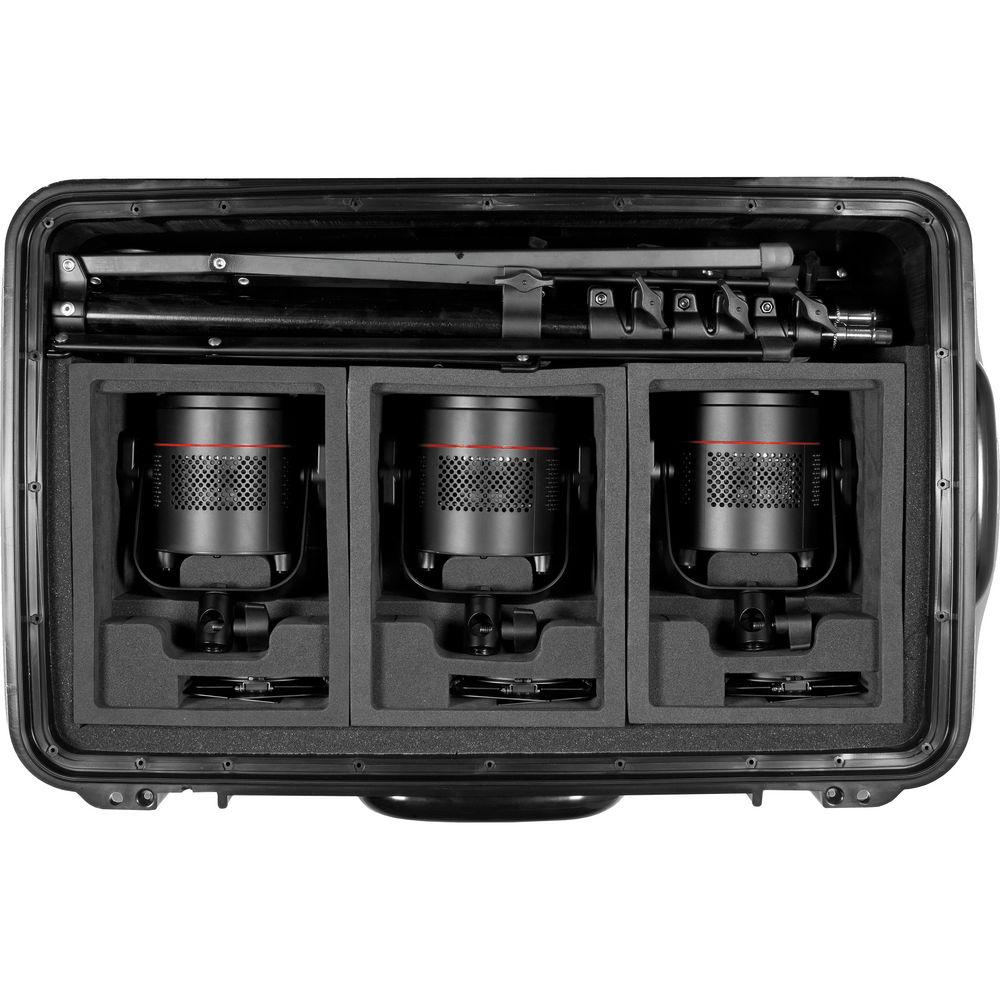

• Wheeled Case with Plastic Non-Corrosive Flip-Locks
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P360 LED Light

  Beam Angle	65°
  Color Temperature	3000 to 5600K
  Color Accuracy Standard	CRI 93 at 5600K CRI 94 at 3000K TLCI 97 at 5600K TLCI 95 at 3000K
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Fixture Dimensions	4.0 x 4.0 x 4.7" / 10.2 x 10.2 x 12.0 cm
  Fixture Weight	1.6 lb / 0.74 kg

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	90 W

  IP Rating	IP24
  Operating Temperature	32 to 104°F / 0 to 40°C

  Box Dimensions (LxWxH)	13.0 x 7.65 x 5.95"
