Fiilex H181 Q8 Travel LED Fresnel

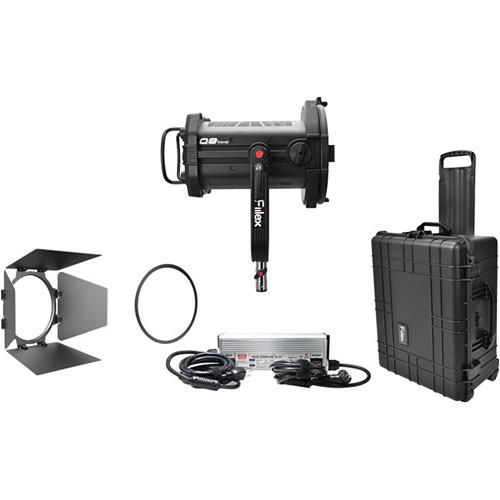

User Manual for Fiilex H181 Q8 Travel LED Fresnel Kit

• Product category: LED Lights Fiilex
• Brand: Fiilex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fiilex LED Lights

Product description

• Q8 Travel Bi-Color LED Fresnel Light The Q8 Travel Bi-Color LED Fresnel Light from Fiilex is a highly versatile, powerful fixture that's a valuable tool in the studio or on the road. The 8" Fresnel has an expansive spot-to-flood beam angle range of 12 to 60 degrees allowing sharp-shadow, high-contrast sunlight effects at the spot setting or filling a silk at the flood setting. The Q8 has a wide color temperature range that's variable from 2800 to 6500K, without the inconvenience of filters. The CRI rating is typically 97, indicating an accurate rendition of color. As a further refinement, the green/magenta hue is tunable to +/-0.25. The fixture is dimmable from 0-100% saving you the hassle of jockeying it back and forth for the correct light intensity. All of these changes can be made locally on the fixture and viewed on the unit's LCD screen, but they can also be made remotely from a console via DMX. You can also daisy chain several lights together and make DMX adjustments from a single "master" Q8. The Q8 is ready for worldwide use thanks a 100-240 VAC power adapter that can be mounted on a light stand section using the included clamp. Finally, with its IP24 water-resistant rating, your shoot won't be cancelled due to inclement weather.
  Benefits
  • 340W power draw
  • Focus/flood range of 12-60°
  • Smooth dimming down to 0%
  • Flicker-free at any frame rate
  • IP24 Rating (water-resistant)
  • Tunable CCT (2800-6500K)
  • Hue control (

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Q8 Travel Bi-Color LED Fresnel Light

  Beam Angle	12 to 60°
  Color Temperature	2800 to 6500K
  Color Accuracy Standard	CRI 97
  Cooling System	Fan
  Dimming	Yes, 0 to 100%
  Display	LCD
  Photometrics	60° at 5600K: 53 fc / 573 lux at 9.8' / 3 m 12° at 5600K: 597 fc / 6430 lux at 9.8' / 3 m
  Expected Lamp Life	42,000 Hours
  Fixture Dimensions	14.1 x 12.3 x 17.2" / 35.8 x 31.2 x 43.7 cm (Including Yoke)
  Fixture Weight	16.2 lb / 7.35 kg (Including Yoke)

  DMX Connector	5-Pin XLR, RJ45

  Lens Diameter	8" / 20.32 cm
  Lens Type	Fresnel

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX
  Number of DMX Channel Modes	3

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	48 to 54 VDC
  Power Source	AC Adapter
  Max Power Consumption	340 W

  Cable Length	6' / 1.83 m

  Power Supply Weight	5.7 lb / 2.59 kg

  IP Rating	IP24
  Operating Temperature	32 to 104°F / 0 to 40°C

  Box Dimensions (LxWxH)	24.0 x 16.4 x 13.3"

• Barndoor for Q8 LED Light

  Material of Construction	Aluminum
  Dimensions	9.44 x 9.44 x 0.66" / 240 x 240 x 17 mm
  Weight	1.34 lb / 609 g

  Box Dimensions (LxWxH)	12.8 x 10.5 x 1.6"

• Gel Holder for Q8

  Material of Construction	Steel
  Compatibility	Q8 Travel and Q8 Junior LED lights P360EX, P360, P200, P180E LED lights
  Dimensions	Outer Diameter 7.77"/ 197 mm Inner Diameter 7.09" / 180 mm Thickness: 0.11"/ 2.7 mm
  Weight	2.1 oz / 60 g
