User Manual for Fiilex K151 Travel Kit Click to enlarge the picture
Contents of the user manual for the Fiilex K151 Travel Kit
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
 |
User manual for the Fiilex K151 Travel Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|

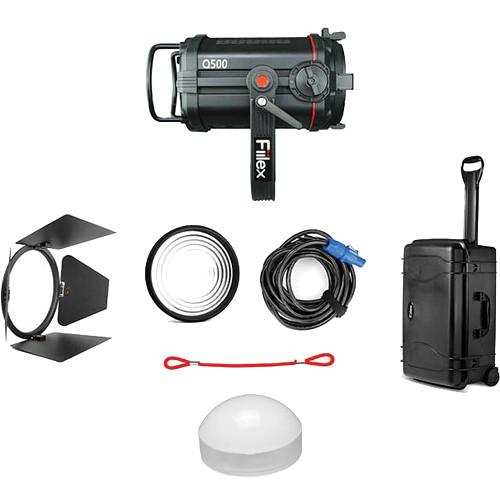

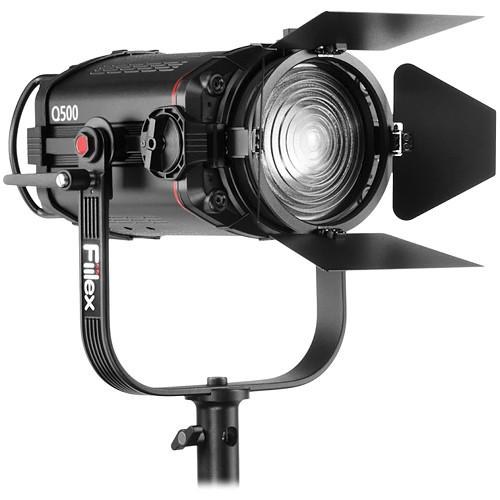

Product description The Fiilex K151 Travel Kit provides users with a 750W equivalent Q500 light head along with a variety of accessories, including the dome diffuser, and a rolling travel case. It is a powerful single-point light with a variable color temperature form 2800-6500K and an adjustable beam angle from 50-27° with the 5" glass fresnel lens. Additionally, barndoors, a 20' powerCON cable, and a cord tie are bundled in the kit. - Q500-AC 5" Fresnel LED Light The Q500-AC 5" Fresnel LED Light from Fiilex is a highly versatile, powerful studio light that you can take on the road whenever necessary. The Q500 outputs the equivalent of a 750W tungsten fixture while drawing only 185W, resulting in low running costs and extended run times when battery-powered. Output is variable from 5-100% while color temperature can be adjusted from 2,800 to 6,500K. You can even tweak the hue with +/- 0.25 magenta/green control. Adjustments can be made locally or remotely via onboard DMX and settings can be monitored on the bright LCD display.The included 100-240 VAC power adapter allows worldwide use. The light also ships with a set of 4-way barndoors and detachable Fresnel lens.
- High Output
- The Q500 produces an impressive 750W equivalent tungsten output while only using 185W. It's flicker-free at any frame rate, and can be dimmed from 5-100% with smooth transitioning. The Q500 has an adjustable beam angle 50-27°
- Ambient Light Matching and More
- The Q500 is color-tunable between 2800-6500K, and has Hue Control of ± 0.25 Magenta/Green so you can quickly correct for different light temperatures, camera sensor bias, or even adjust for different skin tones
- Built-in DMX Control

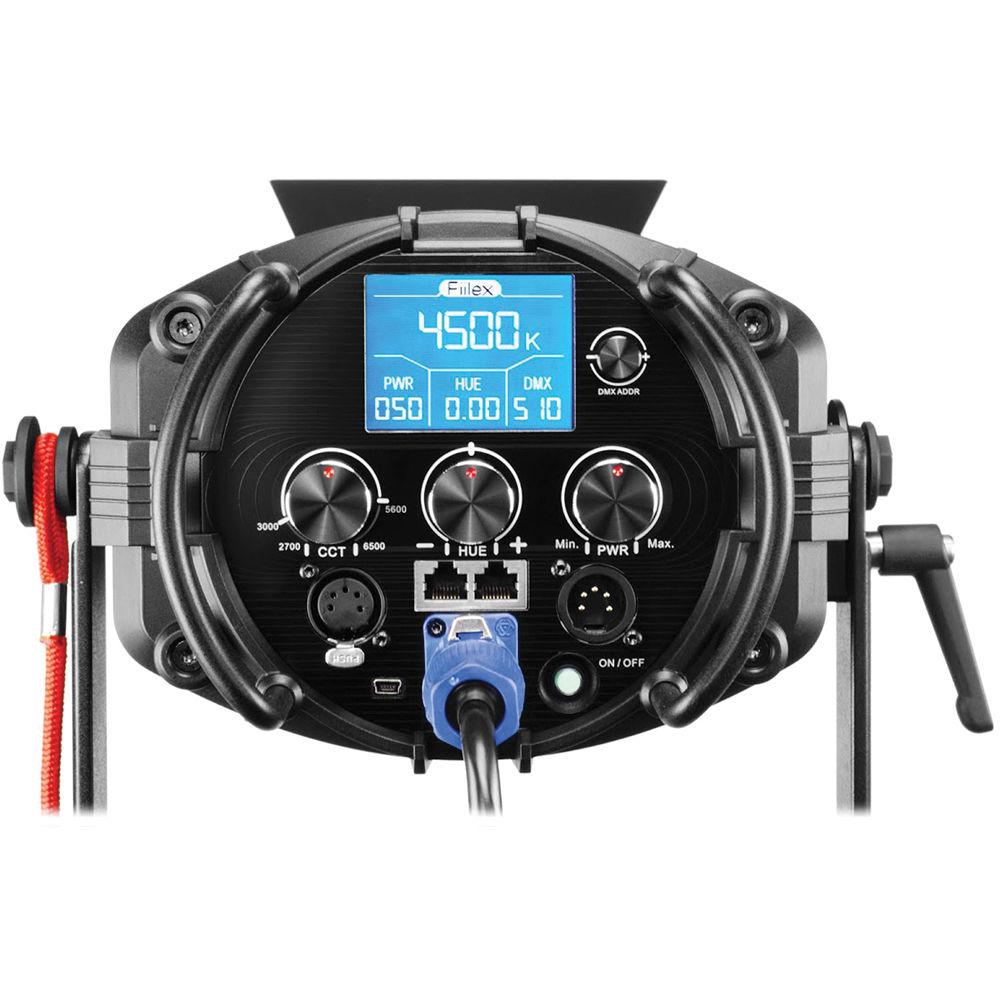

- The Q500 features built-in DMX control (512 Addresses), an LCD display, 5-pin XLR in/out, and RJ45 in/out. You can adjust the light's settings locally or remotely from the comfort of your control board
- Features
-
- High CRI of >93
- Full spectrum light quality - no spikes
- Dimming: 5-100%
- Solid state technology - no bulbs to replace
- Does not emit UV light/radiation
UPC: 092145336885 - Dome Diffuser for P360/EX and V70 LED Lights The Dome Diffuser for P360/EX and V70 LED Lights from Fiilex is designed to attach to the magnetic mounts on the front of the P360 or P360EX lights. It is also compatible with the V70 viewing lamp. The dome increases the beam angle and softens the light. Dome diffusers spread the beam angle, diffuse, and soften the light's output. It can be combined with other light modifiers such as softboxes and beauty dishes. UPC: 654367099872

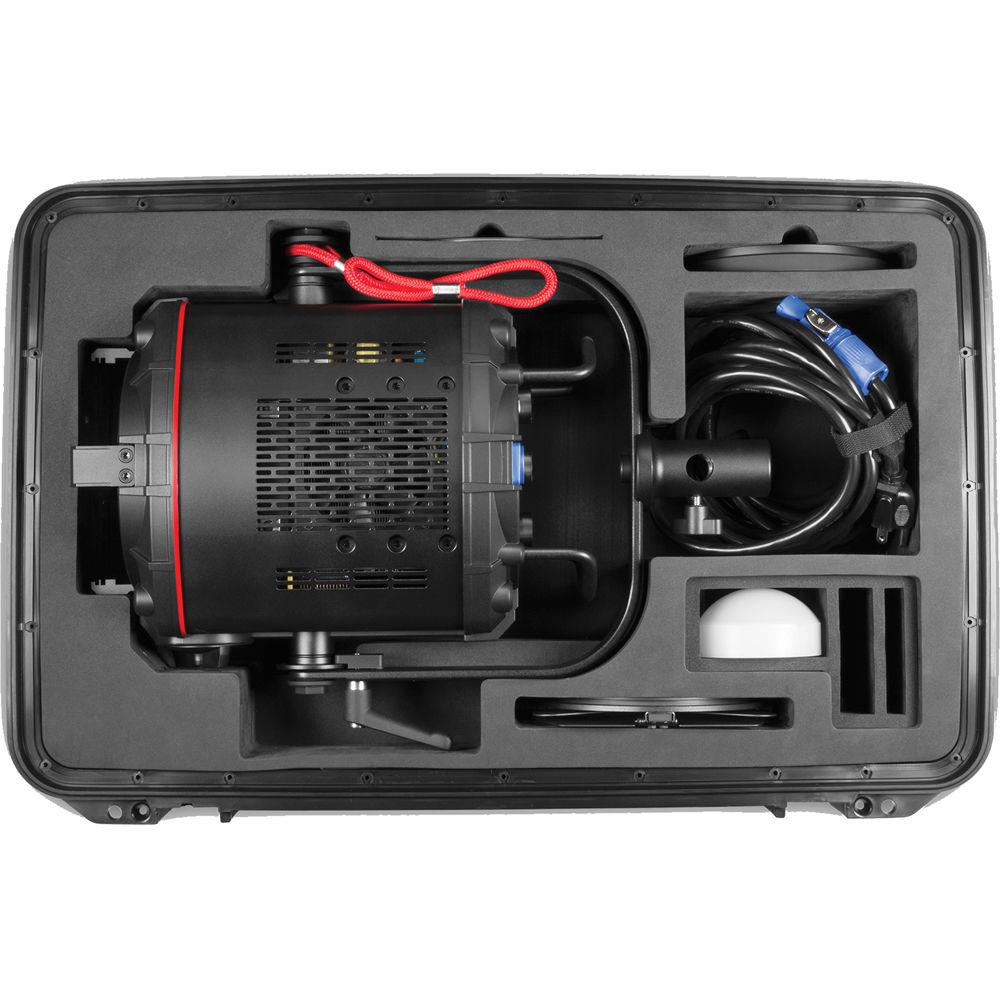

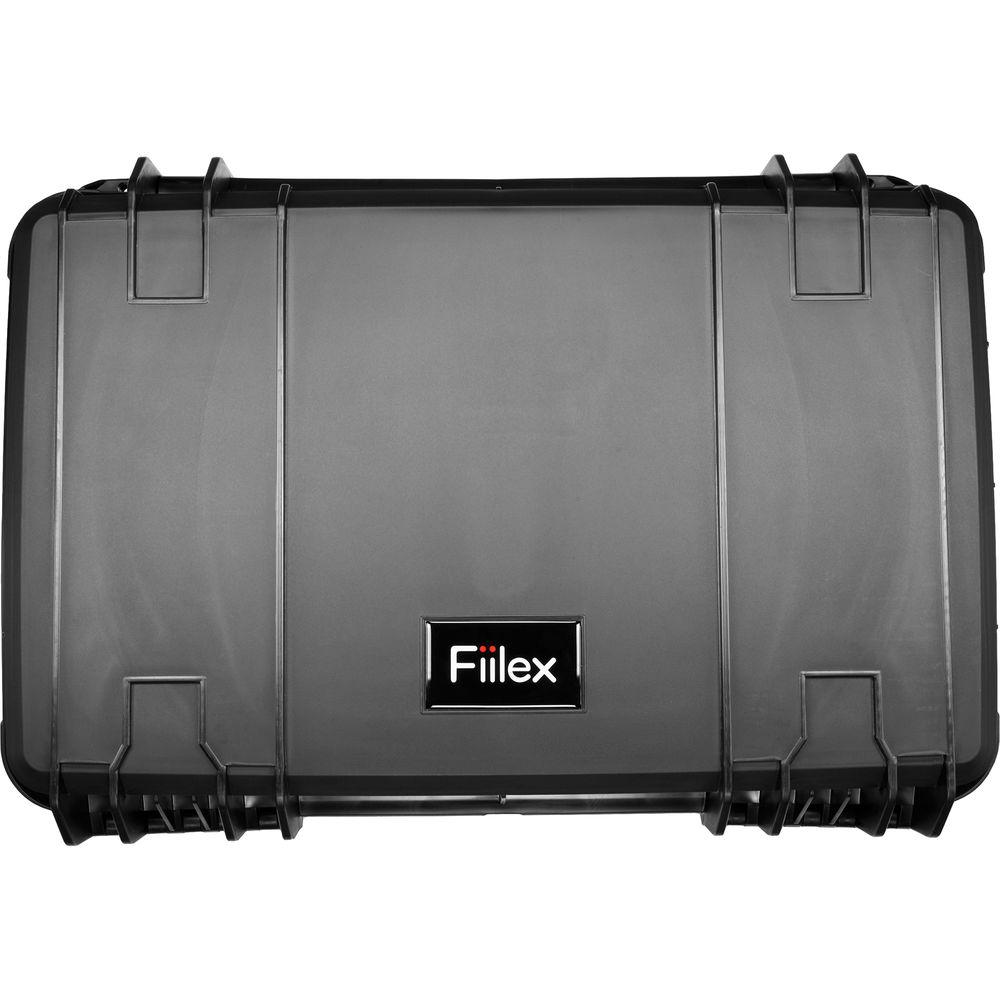

- Wheeled Travel Case for K Series Kits The Wheeled Travel Case for K Series Kits from Fiilex is a hard rolling case with padded compartmented interior, fold-down handle, non-corrosive latches, built-in accessory pouch and a telescoping pull handle. At 24 x 16 x 10" it complies most airlines' carry-on requirements and will fit in most overhead compartments. The case will hold 4 light stands and up to three P360/P360EXs, up to six P180EXs and similar sized Fiilex lights in various combinations. UPC: 654367099926
In the Box Bundle Items Q500-AC 5" Fresnel LED Light zcdxbttzzsx Dome Diffuser for P360/EX and V70 LED Lights Wheeled Travel Case for K Series Kits - Limited Lifetime Warranty
User Manual , LED Light PDF 847.9kbzcdxbttzzsx Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex K151 Travel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Q500-AC 5" Fresnel LED Light
| | | Beam Angle | 27 to 50° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 93 | | Cooling System | Passive | | Dimming | Yes, 5 to 100% | | Display | None | | Expected Lamp Life | 42,000 Hours | | Fixture Dimensions | 12.0 x 9.0 x 6.8" / 30.5 x 23.0 x 17.2 cm
12.0 x 12.8 x 15.0" / 30.5 x 32.5 x 38.0 cm (Including Yoke) | | Fixture Weight | 12 lb / 5.5 kg | | | | DMX Connector | 5-Pin XLR, RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 185 W | | | | Cable Type | Unspecified to | | | | IP Rating | IP20 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Box Dimensions (LxWxH) | 20.787 x 16.142 x 12.441" | - Dome Diffuser for P360/EX and V70 LED Lights
| Material | Plastic | | Diameter | 3.0" (7.6 cm) | | | | Box Dimensions (LxWxH) | 4.95 x 3.8 x 2.45" | - Wheeled Travel Case for K Series Kits
| | | Closure Type | Latch | | Carry and Transport Options | Handle
Telescoping Handle | | Casters | 2 | | Material of Construction | Polymer | | Exterior Dimensions (W x H x D) | 24 x 16 x 10" / 61 x 40.6 x 25.6 cm | | | | Box Dimensions (LxWxH) | 25.0 x 17.5 x 11.8" |
