User Manual for Fiilex K201 Classic 2-Light Interview Travel Kit Click to enlarge the picture
Contents of the user manual for the Fiilex K201 Classic 2-Light Interview Travel
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
 |
User manual for the Fiilex K201 Classic 2-Light Interview Travel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|

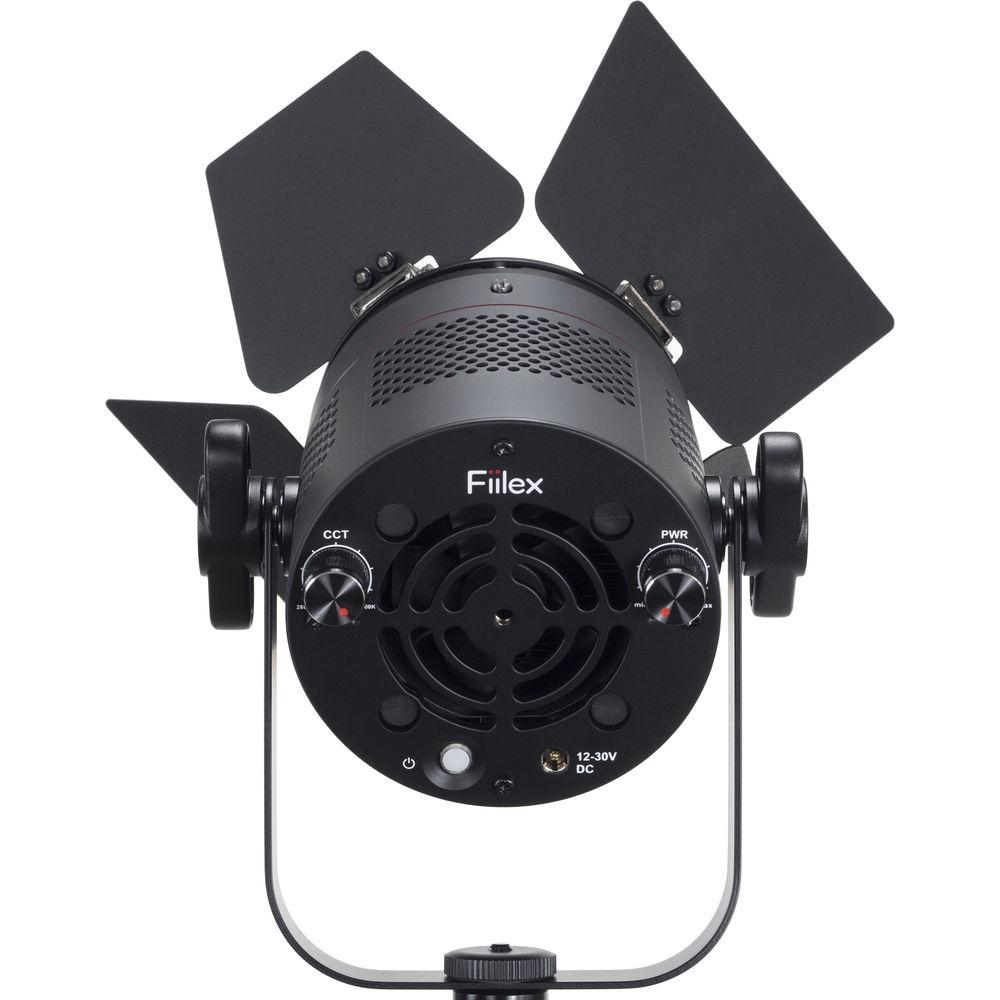

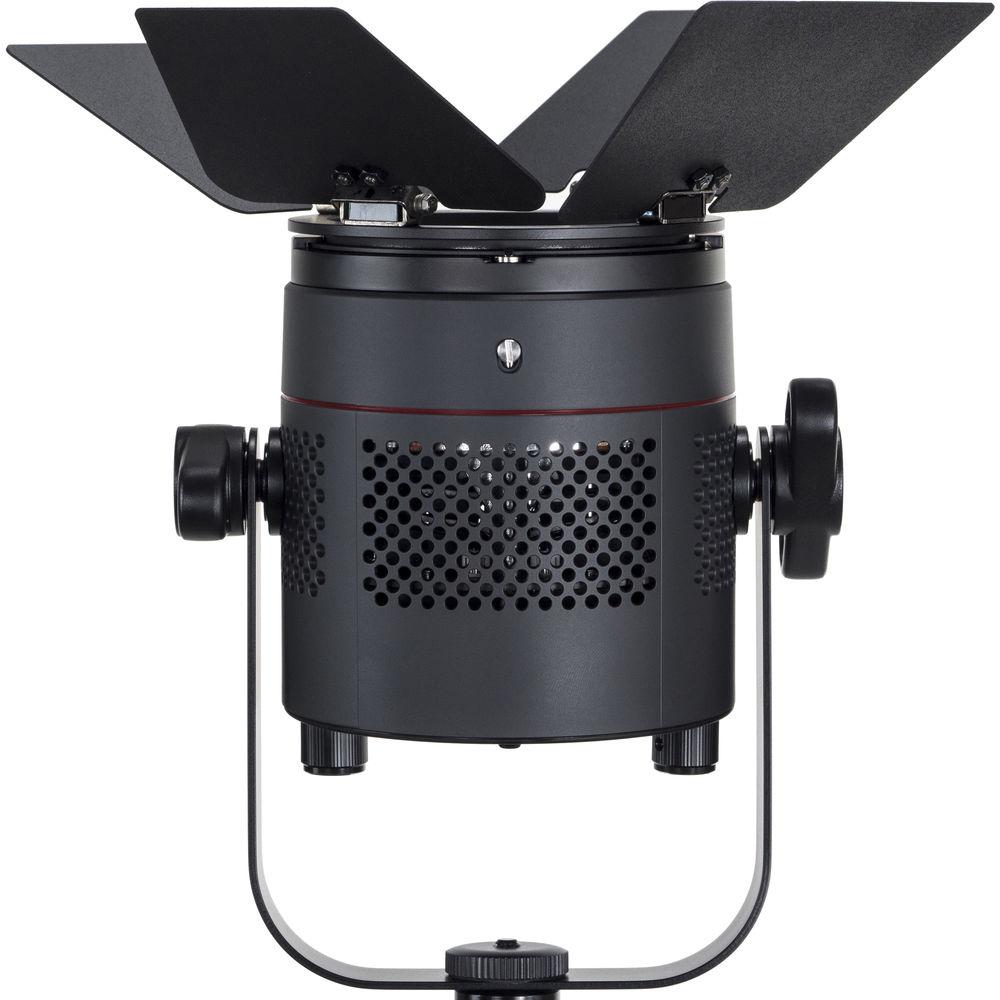

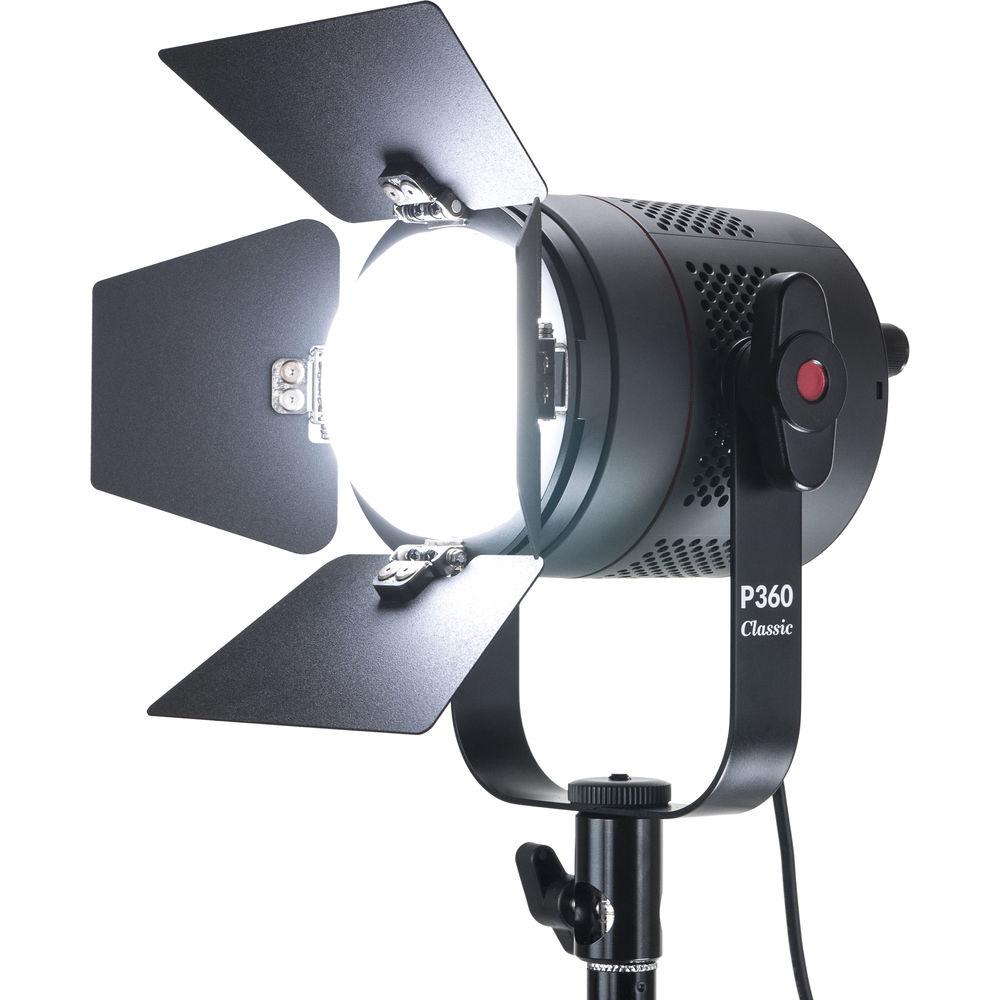

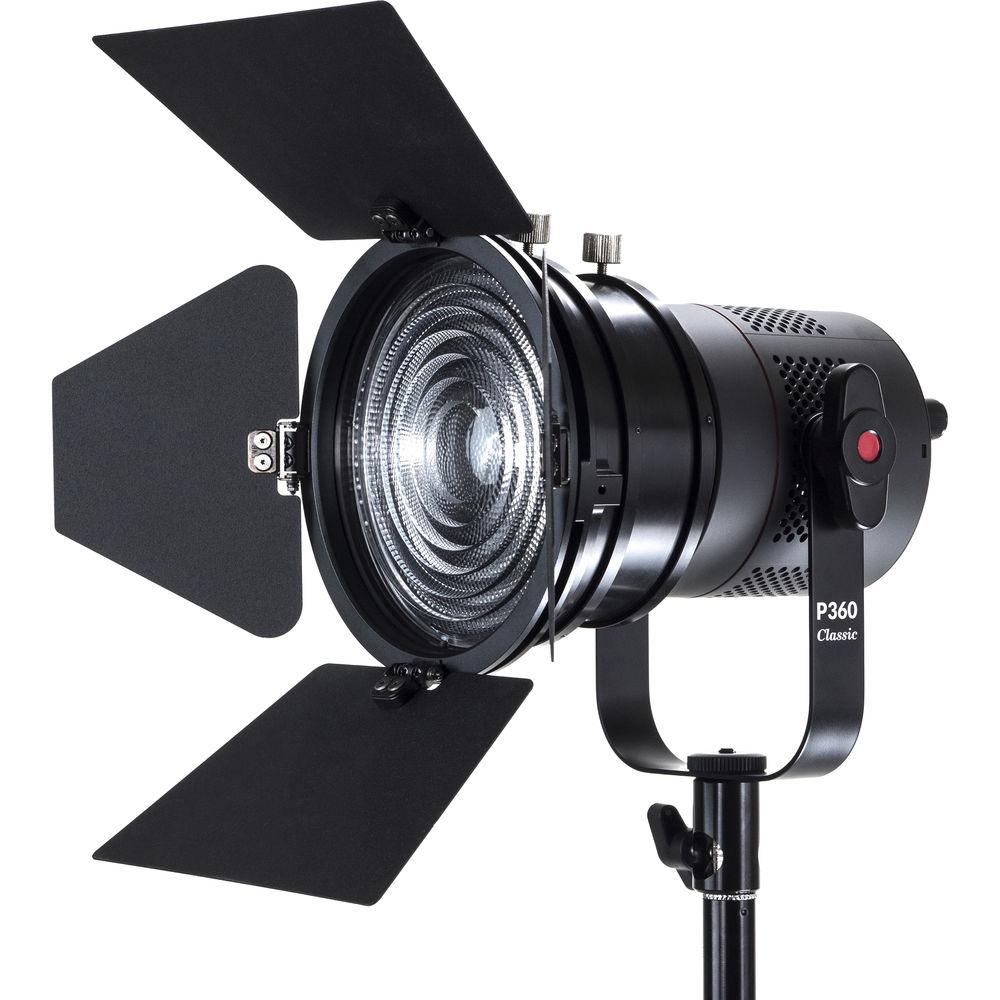

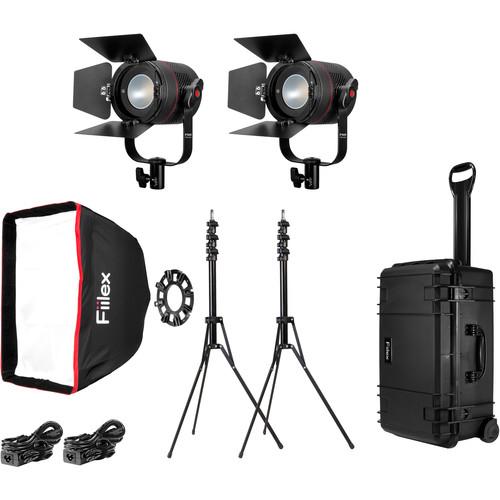

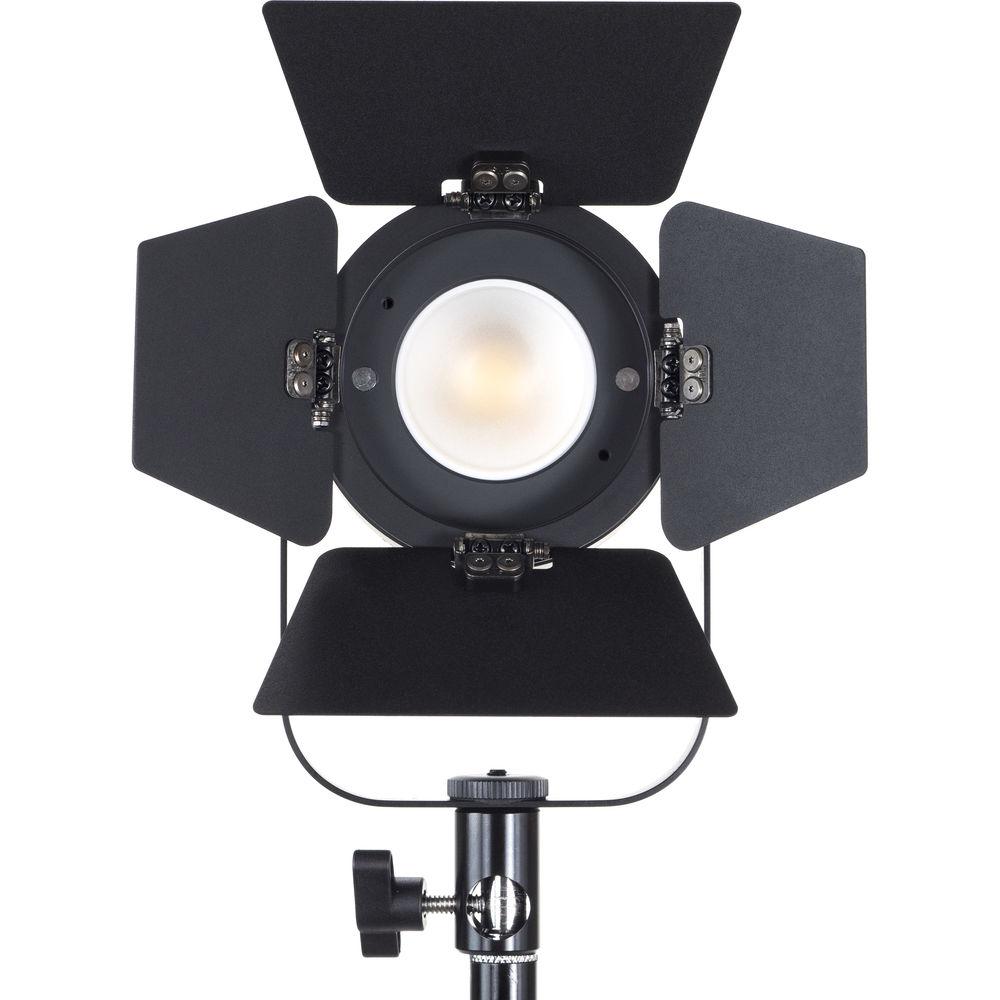

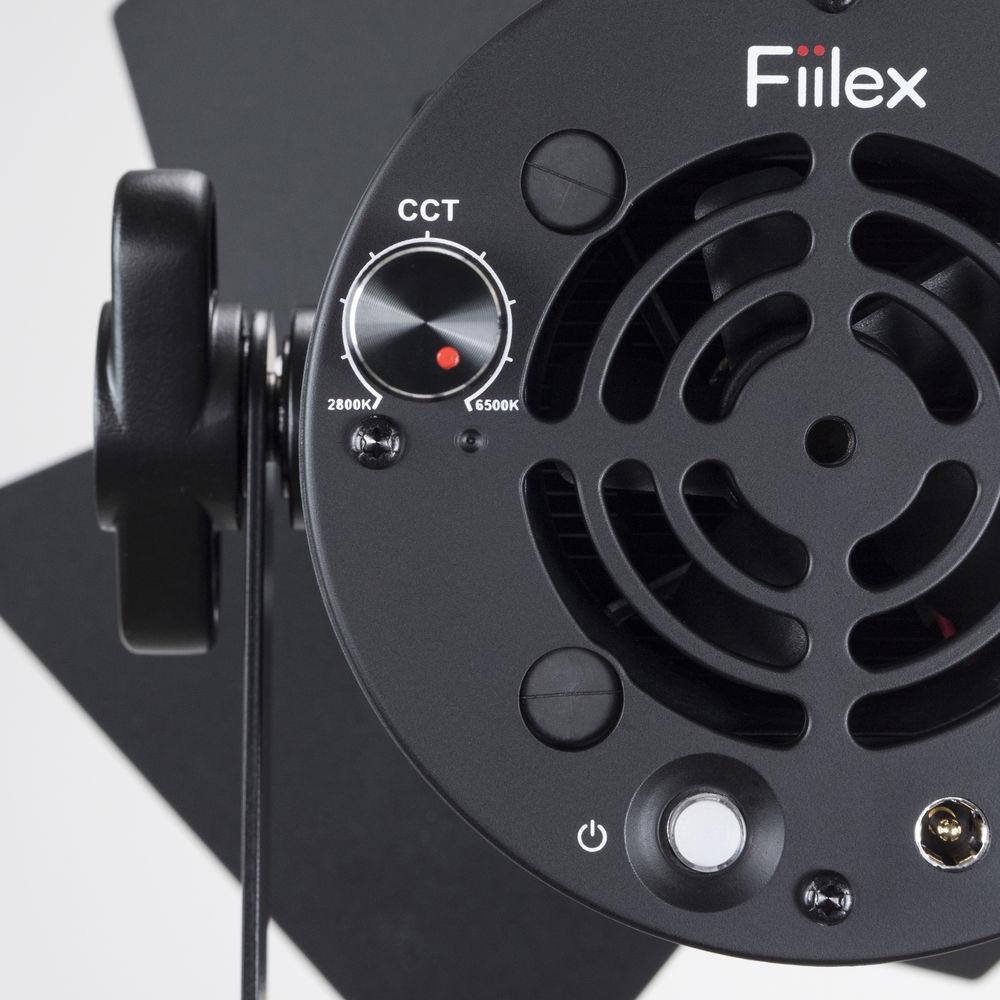

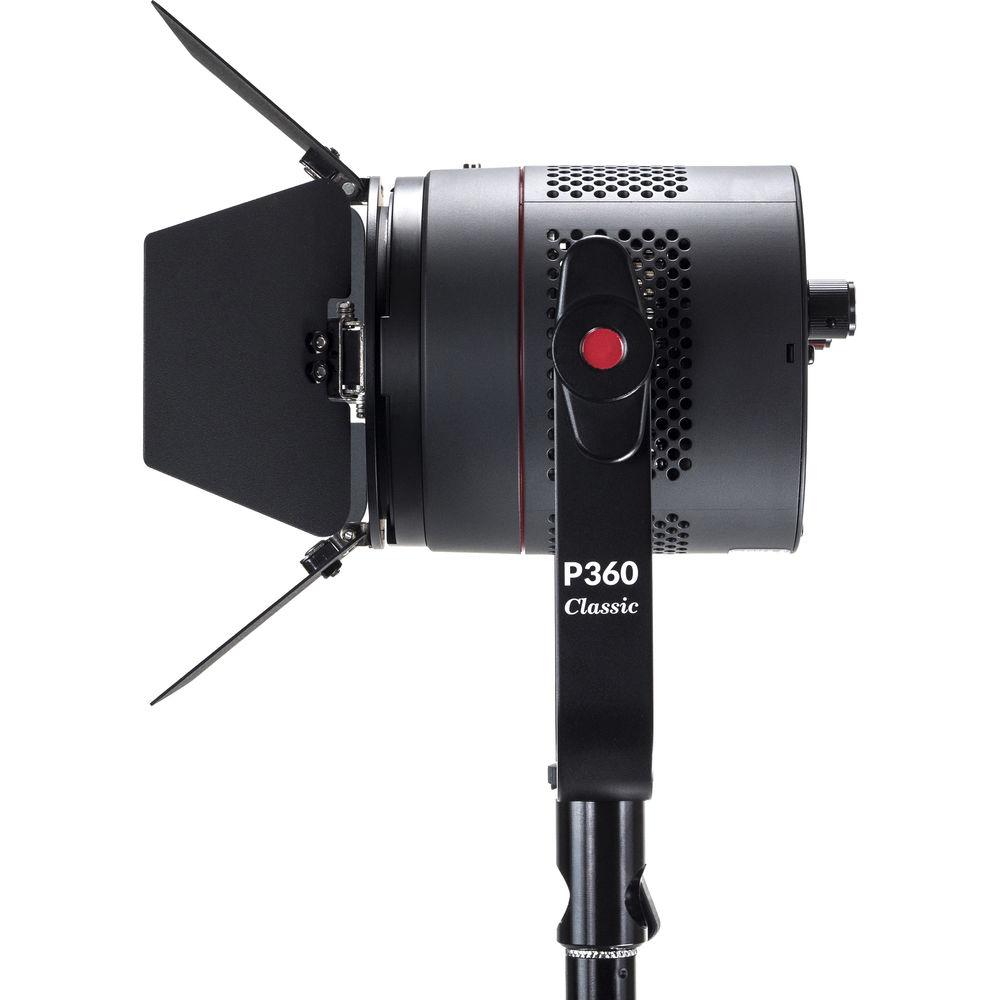

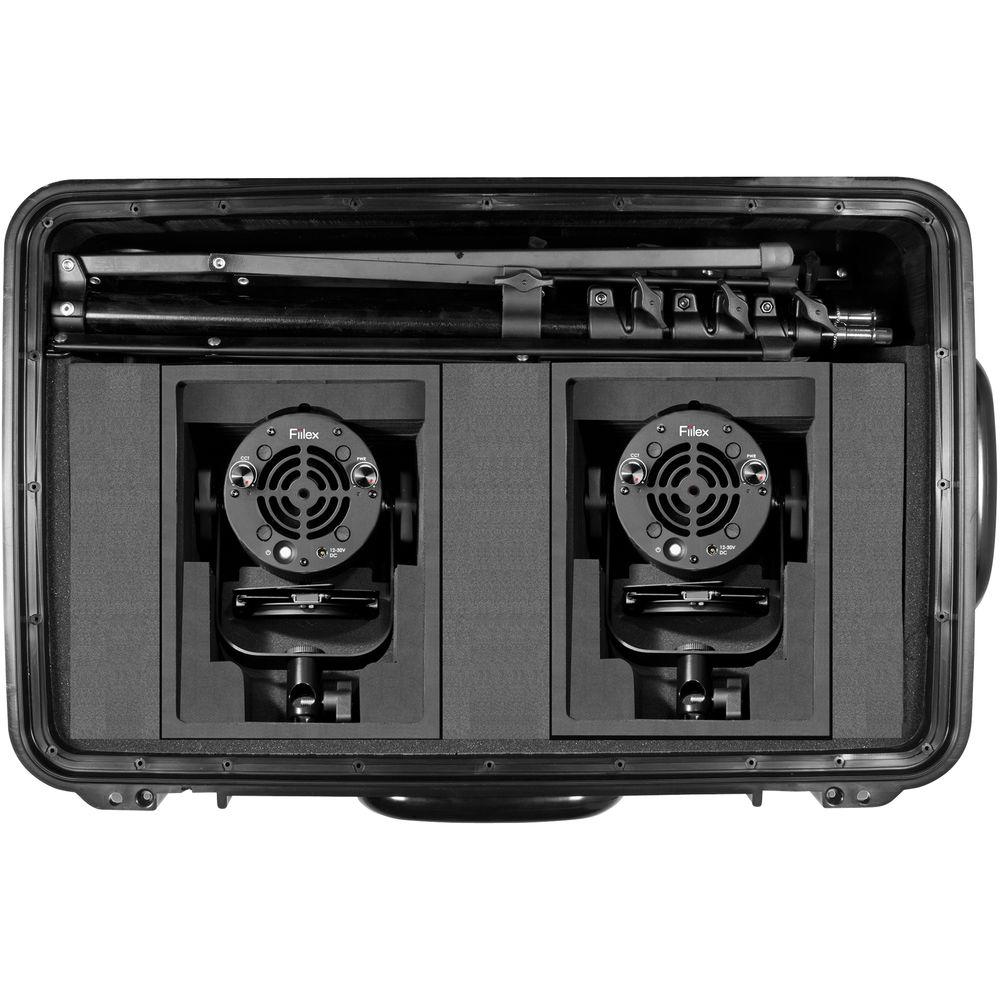

Product description Made for location work, the K201 Classic 2-Light Travel Kit from Fiilex has everything you'll need to take studio-quality lighting on the road. The kit contains two P360 Classic lights with barndoors and AC adapters. Two light stands are included, as is a 12 x 16" softbox with speedring to soften the output. A hard, wheeled travel case is included for storage and transport. - P360 Classic LED Light Ideal for on-camera video work, the P360 Classic LED Light from Fiilex has an expanded variable color temperature range compared with its predecessor of 2800 to 6500K and a high CRI/TLCI rating of 93/96 at 5600K, indicating an accurate rendition of color. The P360 Classic employs a 50-diode Dense Matrix LED array that could fit on a dime and renders a brighter flicker-free output than its predecessor with a beam angle of 65 degrees. At only 1.8 lb with an 8.1 x 5.8 x 4.8" form factor, the P360 Classic is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low current draw which translates to low running costs and long running times. Besides the AC adapter, the P360 Classic ships with a set of 4-way barndoors.
- Photometrics
- Without Lens: 65-Degrees at 3000K
432 lux / 194 fc @ 3.3' (1.0 m)
48 lux / 22 fc @ 9.8' (3.0 m)
17 lux / 8 fc @ 16.4' (5.0 m)
Without Lens: 65 Degrees at 5600K
603 lux / 271 fc @ 3.3' (1.0 m)
67 lux / 30 fc @ 9.8' (3.0 m)
24 lux / 11 fc @ 16.4' (5.0 m) UPC: 092145341940 - Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
- Features
-
- Compact design
- Quick setup
- Fits in Custom Fiilex Rolling Travel Case
- 5/8" Stud with 1/4"-20 thread
UPC: 092145336946 - Wheeled Travel Case for K Series Kits The Wheeled Travel Case for K Series Kits from Fiilex is a hard rolling case with padded compartmented interior, fold-down handle, non-corrosive latches, built-in accessory pouch and a telescoping pull handle. At 24 x 16 x 10" it complies most airlines' carry-on requirements and will fit in most overhead compartments. The case will hold 4 light stands and up to three P360/P360EXs, up to six P180EXs and similar sized Fiilex lights in various combinations. UPC: 654367099926
- Extra Small Softbox Kit for P-Series Lights (12 x 16") Dedicated to Fiilex P-series lights, the 12 x 16" Extra Small Softbox Kit was created to offer photographers and videographers a soft, flattering lighting solution with manageable contrast. The kit comes with the softbox, complete with inner and outer baffle, and a P-series speed ring. Additionally, a carrying bag is also included to store and protect the entire kit. UPC: 092145340158
In the Box Bundle Items 2 x P360 Classic LED Light tcdceefczdybdftadvwsz - 90W AC Adapter for P360, P200 and P180E LED Lights
- 4-Way Barndoors for P360 and P360EX LED Lights
2 x Reverse Leg Light Stand (7') Wheeled Travel Case for K Series Kits - Limited Lifetime Warranty
Extra Small Softbox Kit for P-Series Lights (12 x 16") tcdceefczdybdftadvwsz - Extra Small Softbox (12 x16")
User Manual PDF 665.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex K201 Classic 2-Light Interview Travel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P360 Classic LED Light
| | | Beam Angle | 65° | | Color Temperature | 6500K | | Color Accuracy Standard | CRI 93 at 5600K
CRI 94 at 3000K
TLCI 96 at 5600K
TLCI 96 at 3000K | | Cooling System | Fan | | Dimming | Yes, 20 to 100% (Continuous) | | Display | None | | Fixture Dimensions | Overall: 8.1 x 5.8 x 4.8" / 20.6 x 14.7 x 12.2 cm | | Fixture Weight | 1.83 lb / 0.83 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 30 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 90 W | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Box Dimensions (LxWxH) | 12.9 x 7.4 x 6.0" | - Reverse Leg Light Stand (7')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 84" / 213.3 cm | | Collapsed Height | 21" / 53 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Material | Aluminum | | Weight | 2.5 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 22.3 x 3.2 x 3.2" | - Wheeled Travel Case for K Series Kits
| | | Closure Type | Latch | | Carry and Transport Options | Handle
Telescoping Handle | | Casters | 2 | | Material of Construction | Polymer | | Exterior Dimensions (W x H x D) | 24 x 16 x 10" / 61 x 40.6 x 25.6 cm | | | | Box Dimensions (LxWxH) | 25.0 x 17.5 x 11.8" | - Extra Small Softbox Kit for P-Series Lights (12 x 16")
| | | Box Dimensions (LxWxH) | 21.8 x 10.1 x 3.6" |
