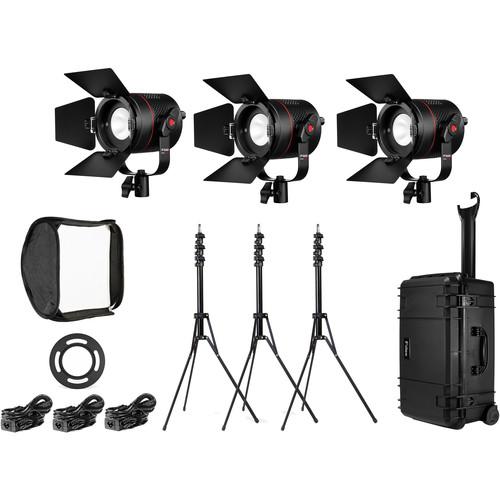

Product description The comprehensive K301PP P360 Pro Plus 3-Light LED Interview Travel Kit from Fiilex is a solid core setup that allows you to power the lights via AC voltage or with an optional battery. The kit includes 3 variable-color P360 Pro Plus LED lights with DMX and Hue control, each with 4-way barndoors, an AC/DC power adapter, and a 7' reverse-folding light stand. A 12 x 16" softbox is included to soften the light output, and it all fits in the kit's hard Rolling Travel Case. - P360 Pro Plus LED Light Building on the strong foundation of the popular P360, the P360 Pro Plus LED Light from Fiilex has a variable color temperature of 2800-6500K and a high CRI (Color Rendering Index) rating of >95. The P360 Pro Plus employs a Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a native beam angle of 65 degrees. Optional Fresnel lenses are available to tighten the beam angle.At only 1.85 lb with a 4.8" diameter, the P360 Pro Plus is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC/DC adapter, the P360 Pro Plus ships with a set of four-way barndoors to further control the beam spread.
- Benefits
-
- Tunable CCT (2800 - 6500K)
- Hue Control (±.25 Green)
- 400W tungsten output equivalent, only 90W draw
- Water resistant (IP24)
- Dimming (0 -100%)
- High CRI of >95 at any color temperature
- Does not emit UV light/radiation
- Broadband full spectrum LED source
- OLED display for easy setup
- Single Point Dense Matrix LED light source
- Flicker-free
- Lightweight, compact and easy for travel
- Cool to the touch
- Compatible with broadcast batteries
- Designed in USA, assembled in USA/Taiwan
- Photometrics
- At 3000K, 65° (Standard)
186 fc/1999 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
21 fc/222 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
7.0 fc/80 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1m)
At 5600K, 65° (Standard)
258 fc/2773 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
29 fc/308 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
10 fc/111 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1 m) UPC: 092145341964 - Extra Small Softbox (12 x16") The 12 x16" Extra Small Softbox from Fiilex offers photographers and videographers a soft, flattering lighting solution with manageable contrast. The softbox comes complete with inner and outer baffle and a storage bag. Its reflective silver interior maximizes output. UPC: 092145340189
- Speed Ring for P-Series Lights The Speed Ring for P-Series Lights from Fiilex is compatible with the P200 with color blender, P360, and P360EX lights. The slim-design speed ring will fit any standard 4- or 8-pole softbox and can rotate 360° to position the light.
- Compatible with the P200 with color blender, P360, and P360EX lights
- Fits 4-pole and 8-pole standard softboxes
UPC: 092145340226 - Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
- Features
-
- Compact design
- Quick setup
- Fits in Custom Fiilex Rolling Travel Case
- 5/8" Stud with 1/4"-20 thread
UPC: 092145336946 In the Box Bundle Items 3 x P360 Pro Plus LED Light tuyxtqabyyfvazbbufrwxe - 4-Way Barndoors for P360 and P360EX LED Lights
- 90W AC Adapter for P360, P200 and P180E LED Lights
Extra Small Softbox (12 x16") Speed Ring for P-Series Lights 3 x Reverse Leg Light Stand (7')

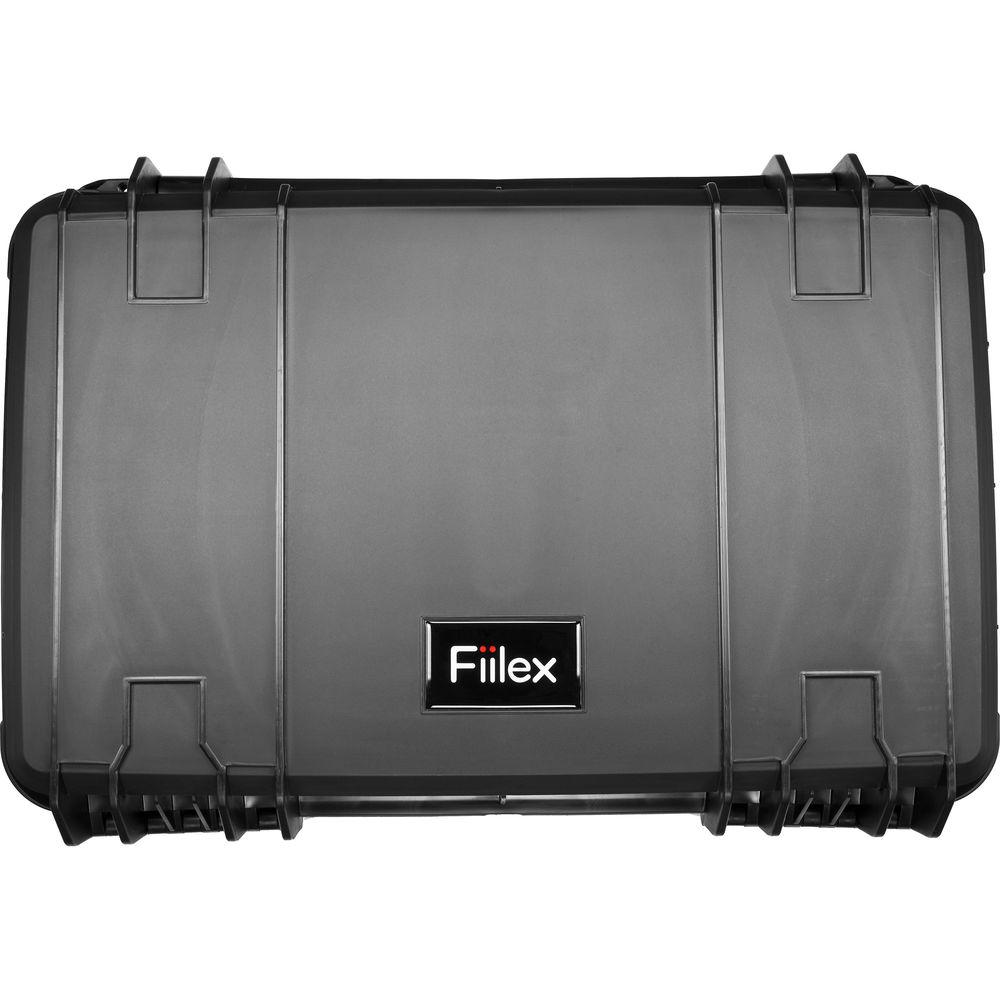

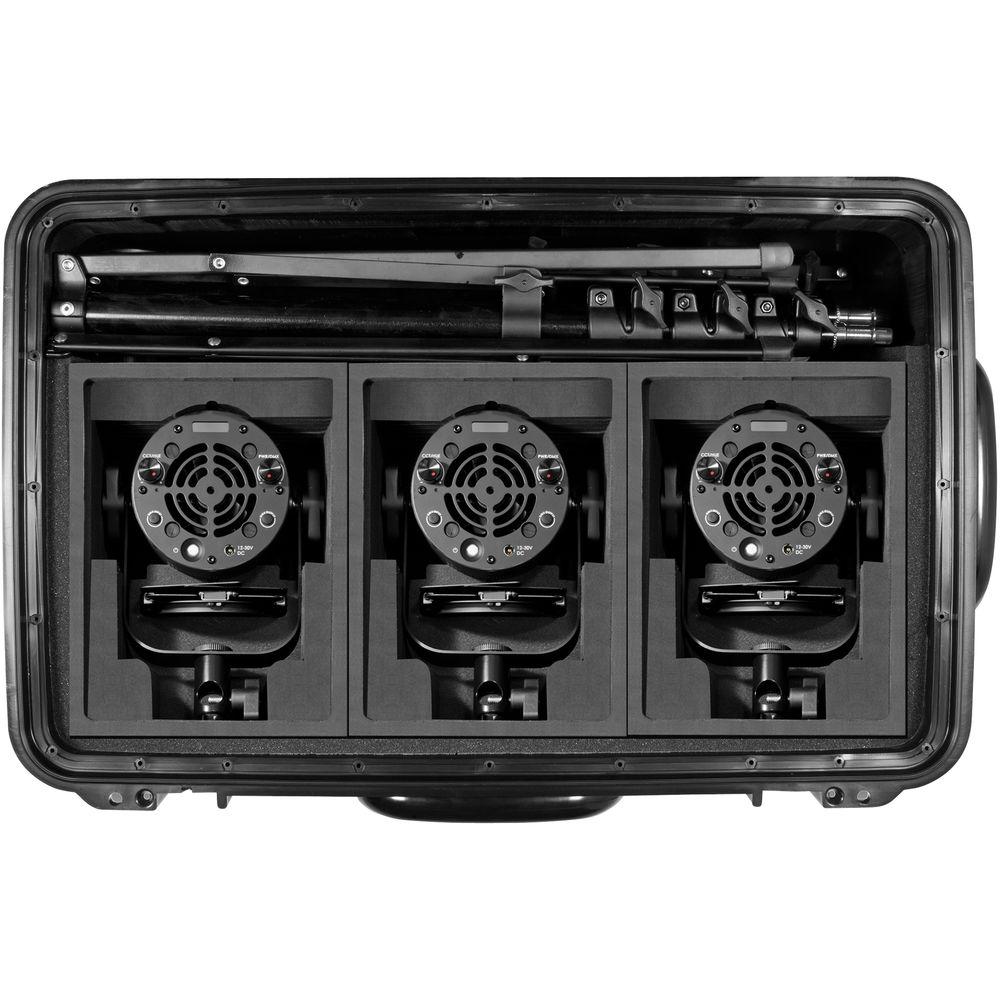

Also Includes - Rolling Hard Travel Case
- Limited Lifetime Warranty on Case
Data Sheet PDF 43mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex K301PP P360 Pro Plus 3-Light LED Interview Travel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P360 Pro Plus LED Light
| Light Source | Dense Matrix LED array | | Display | OLED | | Color Range | 2800 to 6500K continuous tuning
± 0.25 Green Hue Control | | CRI | 95 | | Beam Angle | 65° (Native)
Optional Fresnel lens | | Cooling | Advanced Vapor Cooling System | | Operating Voltage | 100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out)
Input Voltage: 12-30 VDC
Input Port: 5.5 x 2.5 mm DC jack | | Tungsten Equivalent | 400 W tungsten fixture | | Power Consumption | 90 W max. | | Dimming | 0-100% | | DMX | 3 Channels : Intensity, CCT, Hue
Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078) | | Mount | Light stand mount (attached), 1/4"-20 female socket | | IP Rating | IP24 | | Operating Temperature | 32 - 104°F (0 - 40%deg;C) | | Dimensions | 8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm) | | Weight | 1.85 lb (0.84 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 7.55 x 5.95" | - Extra Small Softbox (12 x16")
| Size | 12 x16" (30.5 x 40.6 cm) | | Shape | Rectangle | | Interior | Silver | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | Yes | | | | Box Dimensions (LxWxH) | 21.5 x 10.25 x 3.25" | - Speed Ring for P-Series Lights
| Compatible Lighting | Fiilex | | Compatible Softbox Shape | Strip | | Number of Mounting Holes | 8 | | Material | Aluminum | | Weight | 0.4 lb / 185 g | | | | Box Dimensions (LxWxH) | 8.95 x 7.1 x 1.6" | - Reverse Leg Light Stand (7')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 84" / 213.3 cm | | Collapsed Height | 21" / 53 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Material | Aluminum | | Weight | 2.5 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 22.3 x 3.2 x 3.2" |
