Product description

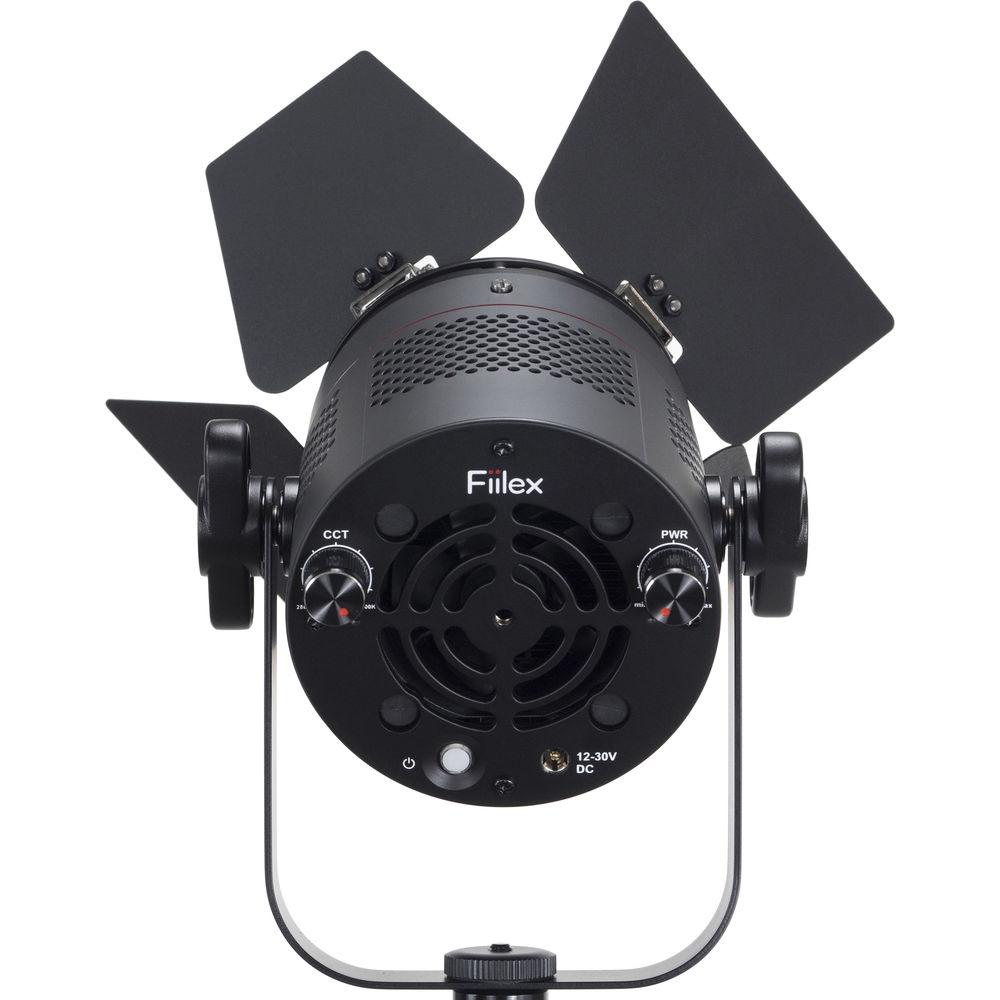

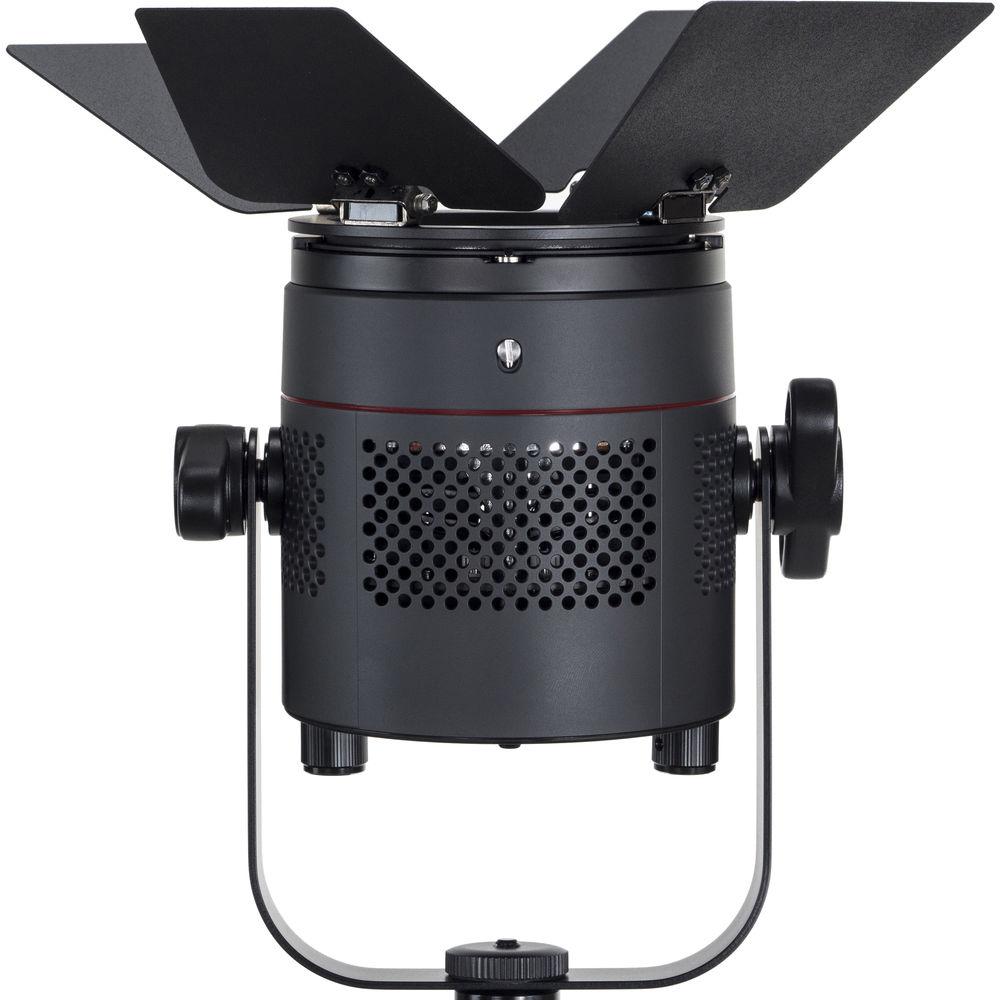

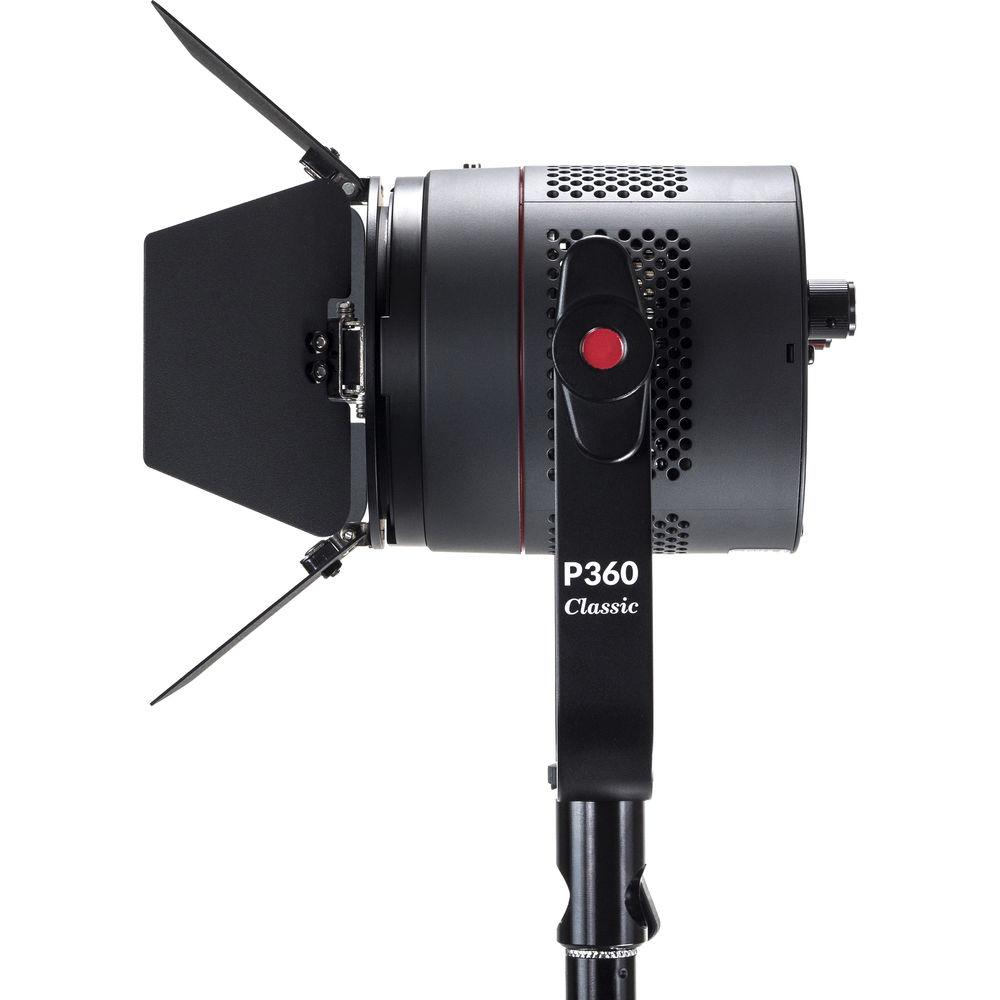

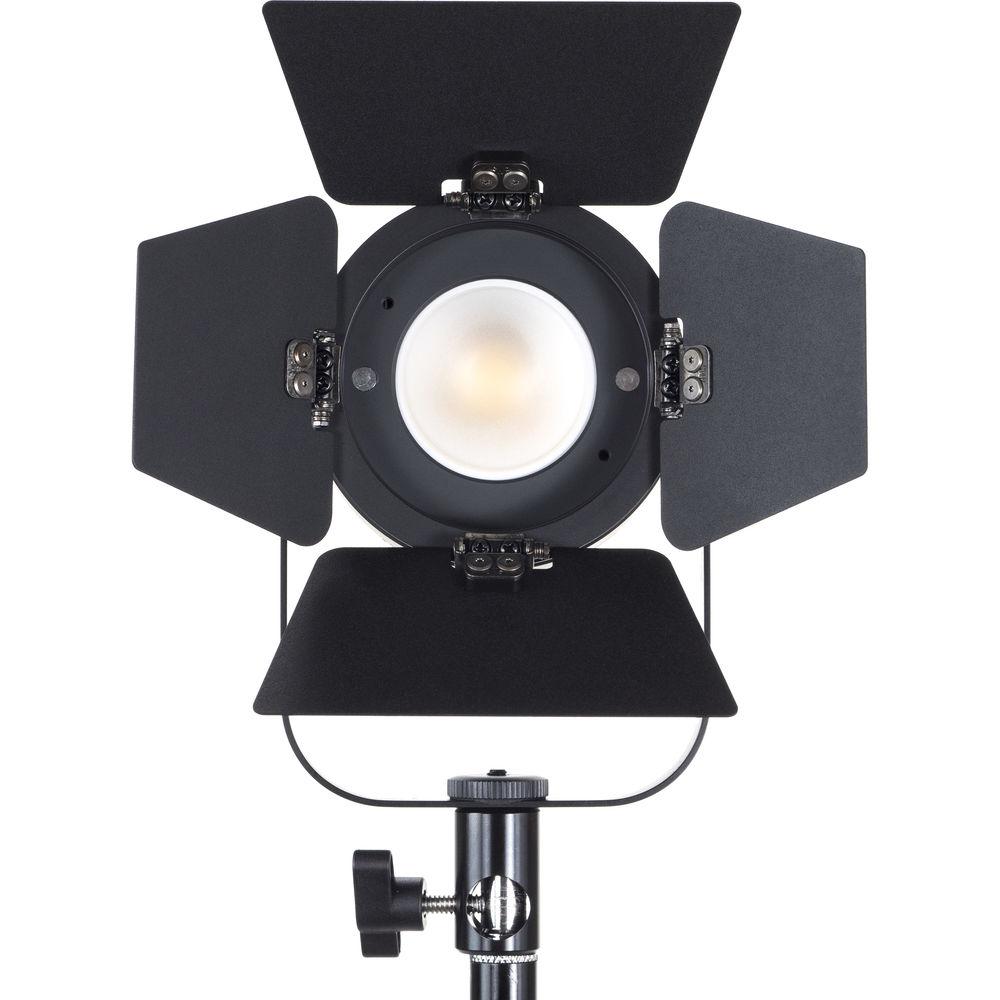

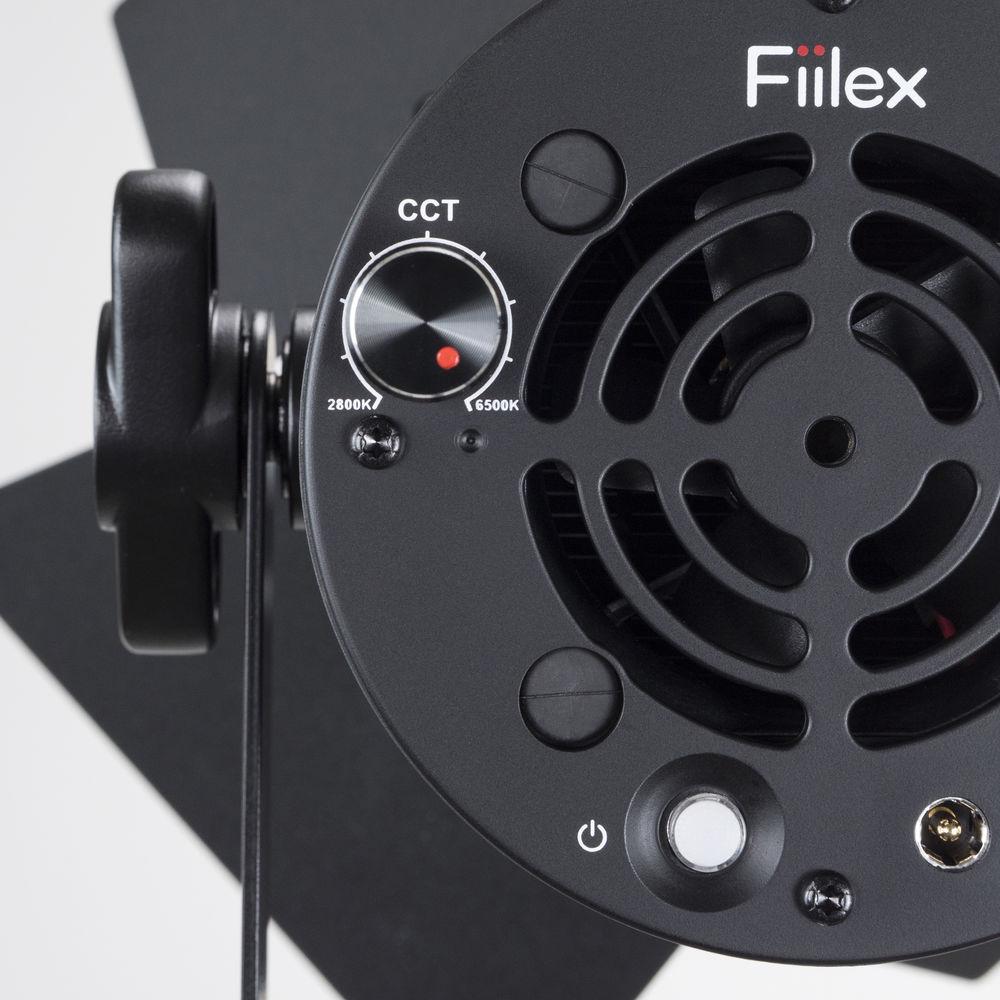

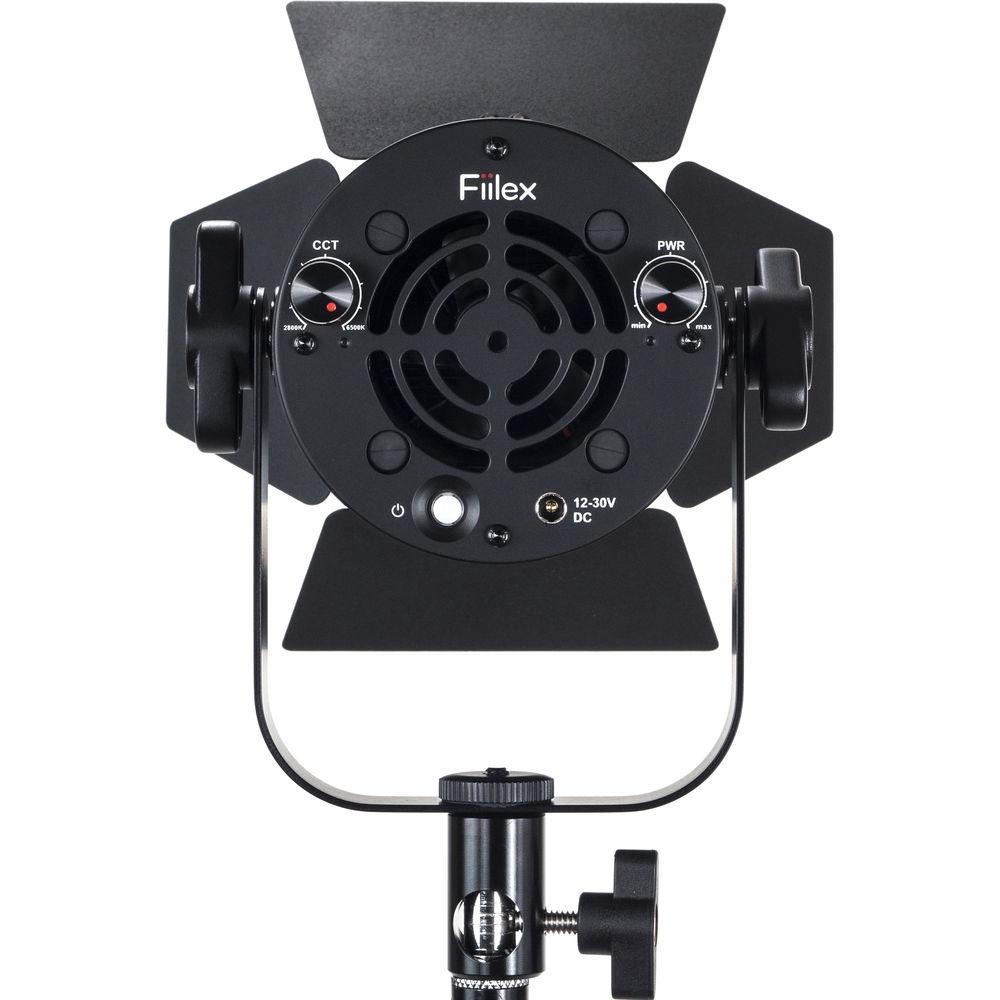

• P360 Classic LED Light Ideal for on-camera video work, the P360 Classic LED Light from Fiilex has an expanded variable color temperature range compared with its predecessor of 2800 to 6500K and a high CRI/TLCI rating of 93/96 at 5600K, indicating an accurate rendition of color. The P360 Classic employs a 50-diode Dense Matrix LED array that could fit on a dime and renders a brighter flicker-free output than its predecessor with a beam angle of 65 degrees. At only 1.8 lb with an 8.1 x 5.8 x 4.8" form factor, the P360 Classic is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low current draw which translates to low running costs and long running times. Besides the AC adapter, the P360 Classic ships with a set of 4-way barndoors.
  Photometrics
  • Without Lens: 65-Degrees at 3000K
    432 lux / 194 fc @ 3.3' (1.0 m)
    48 lux / 22 fc @ 9.8' (3.0 m)
    17 lux / 8 fc @ 16.4' (5.0 m)
    Without Lens: 65 Degrees at 5600K
    603 lux / 271 fc @ 3.3' (1.0 m)
    67 lux / 30 fc @ 9.8' (3.0 m)
    24 lux / 11 fc @ 16.4' (5.0 m)
  UPC: 092145341940

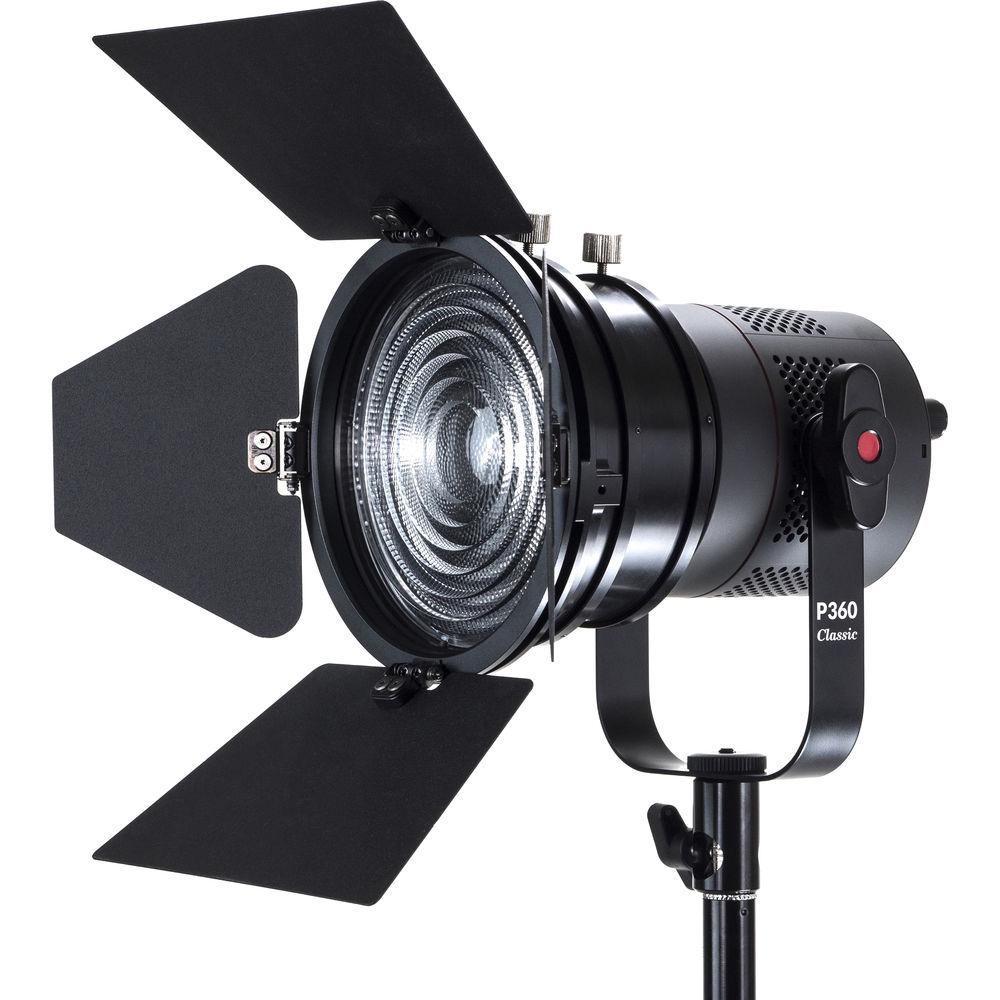

• 5" Fresnel Zoom Lens with Barndoors for P360-Series LED Lights The 5" Fresnel Zoom Lens with Barndoors for P360-Series LED Lights from Fiilex contains a 5" Fresnel lens and a set of 4-way barndoors that fit on the P360 without an adapter. The addition of the lens converts the P360's 65-degree beam angle to a tight 14-degree spot, while intensifying the output 8 times. UPC: 092145341995
• Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
  Features
  • Compact design
  • Quick setup
  • Fits in Custom Fiilex Rolling Travel Case
  • 5/8" Stud with 1/4"-20 thread
  UPC: 092145336946
• Wheeled Travel Case for K Series Kits The Wheeled Travel Case for K Series Kits from Fiilex is a hard rolling case with padded compartmented interior, fold-down handle, non-corrosive latches, built-in accessory pouch and a telescoping pull handle. At 24 x 16 x 10" it complies most airlines' carry-on requirements and will fit in most overhead compartments. The case will hold 4 light stands and up to three P360/P360EXs, up to six P180EXs and similar sized Fiilex lights in various combinations. UPC: 654367099926

• 90W AC Adapter for P360, P200 and P180E LED Lights

• 4-Way Barndoors for P360 and P360EX LED Lights

• Limited 1-Year Warranty

• 4-Way Barndoors

• 5" Fresnel Lens

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P360 Classic LED Light

  Beam Angle	65°
  Color Temperature	6500K
  Color Accuracy Standard	CRI 93 at 5600K CRI 94 at 3000K TLCI 96 at 5600K TLCI 96 at 3000K
  Cooling System	Fan
  Dimming	Yes, 20 to 100% (Continuous)
  Display	None
  Fixture Dimensions	Overall: 8.1 x 5.8 x 4.8" / 20.6 x 14.7 x 12.2 cm
  Fixture Weight	1.83 lb / 0.83 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 30 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	90 W

  IP Rating	IP24
  Operating Temperature	32 to 104°F / 0 to 40°C

  Box Dimensions (LxWxH)	12.9 x 7.4 x 6.0"

• 5" Fresnel Zoom Lens with Barndoors for P360-Series LED Lights

  Material	Aluminum, glass
  Compatibility	P360, P360 Pro, P360 Pro Plus, P360EX
  Beam Angle	Spot: 14°
  Dimensions	Lens Diameter: 5.0" (12.7 cm)

  Box Dimensions (LxWxH)	8.9 x 7.1 x 4.6"

• Reverse Leg Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	84" / 213.3 cm
  Collapsed Height	21" / 53 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	22.3 x 3.2 x 3.2"

• Wheeled Travel Case for K Series Kits

  Closure Type	Latch
  Carry and Transport Options	Handle Telescoping Handle
  Casters	2
  Material of Construction	Polymer
  Exterior Dimensions (W x H x D)	24 x 16 x 10" / 61 x 40.6 x 25.6 cm

  Box Dimensions (LxWxH)	25.0 x 17.5 x 11.8"
