User manual
Fiilex K411 Classic 4-Light Interview Travel

User Manual for Fiilex K411 Classic 4-Light Interview Travel Kit

• Product category: LED Lights Fiilex
• Brand: Fiilex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fiilex LED Lights

Product description

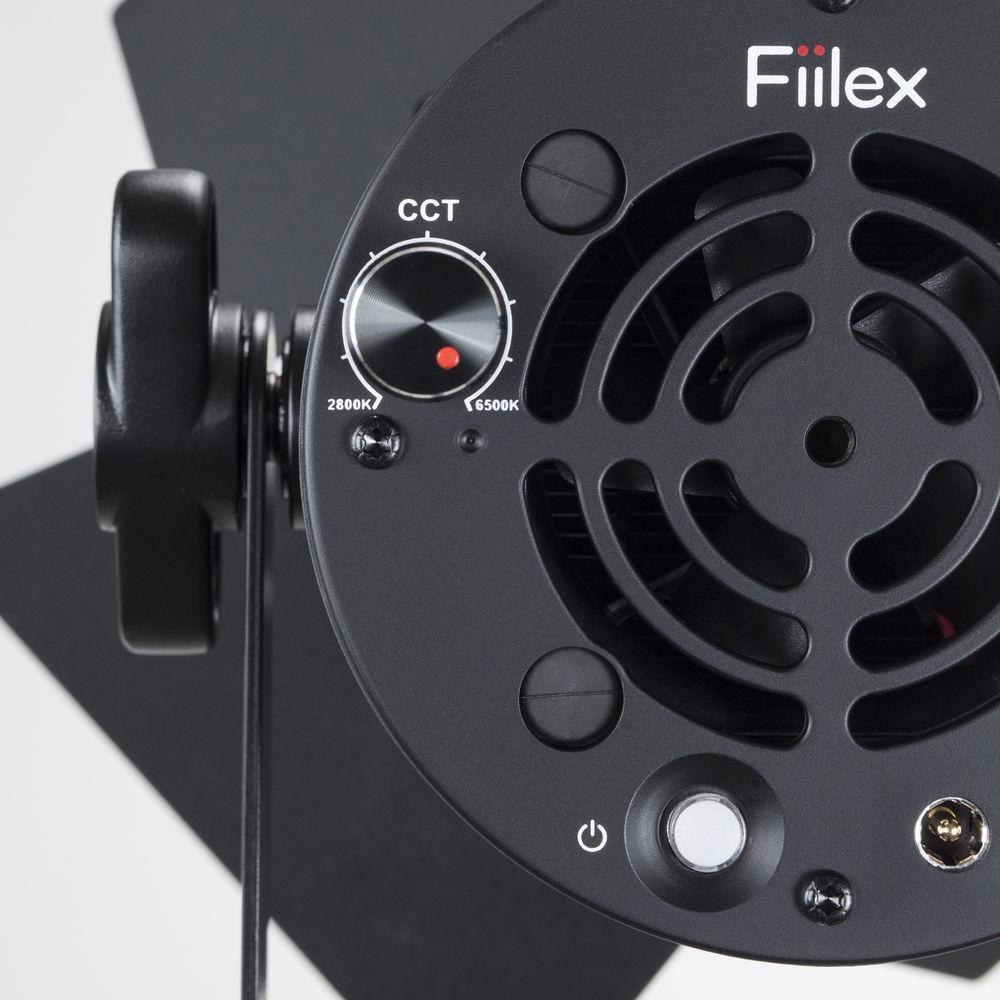

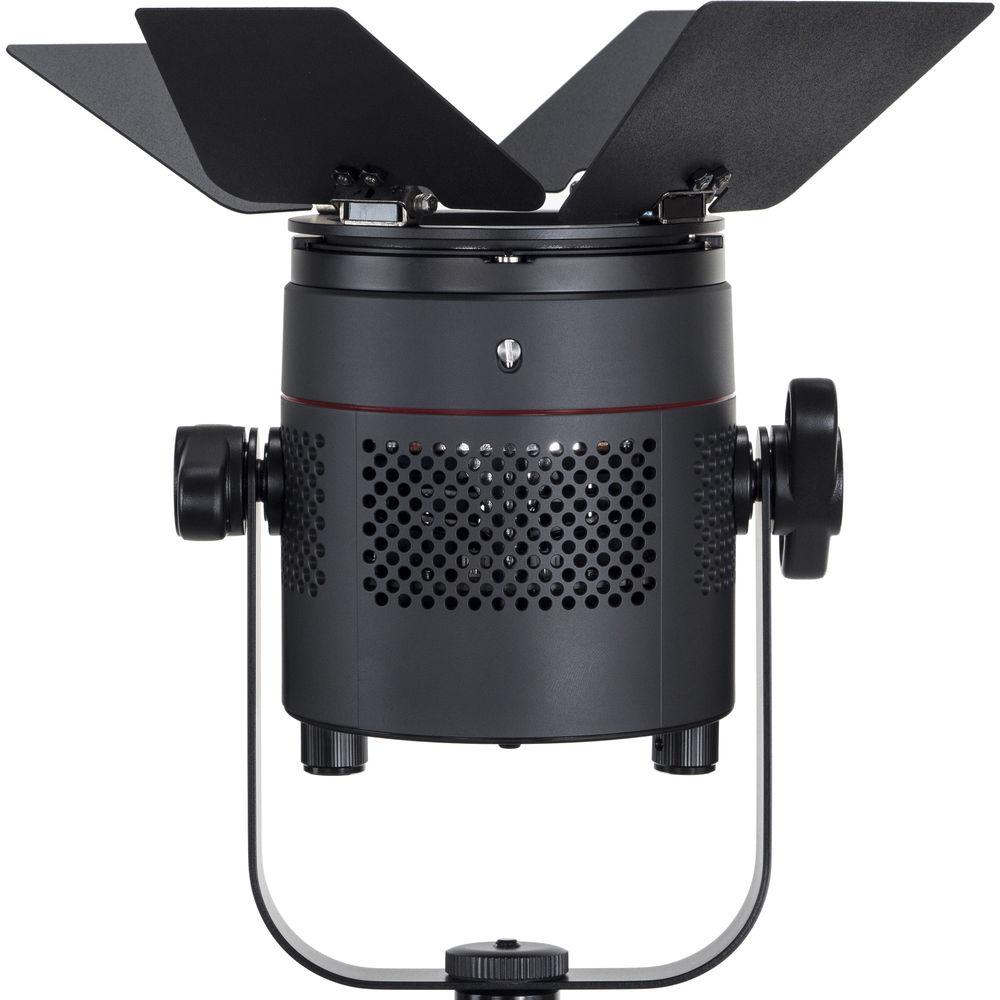

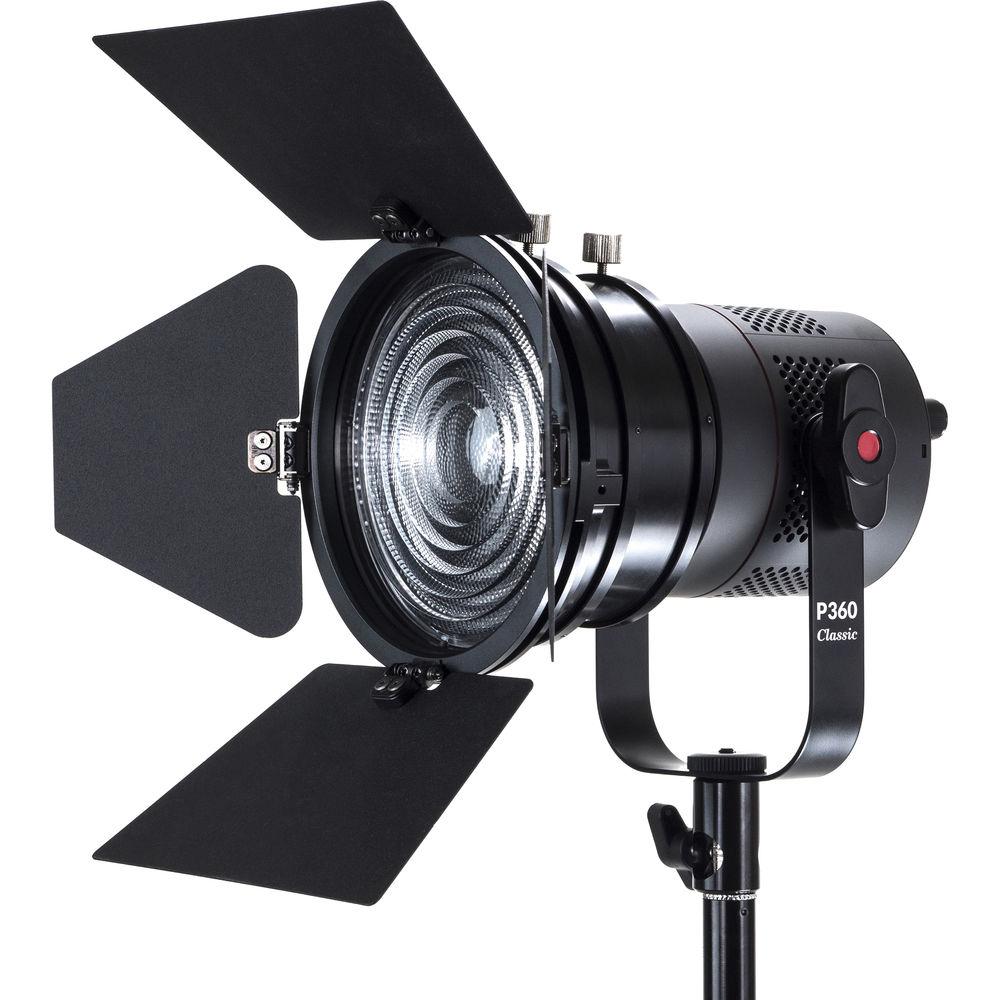

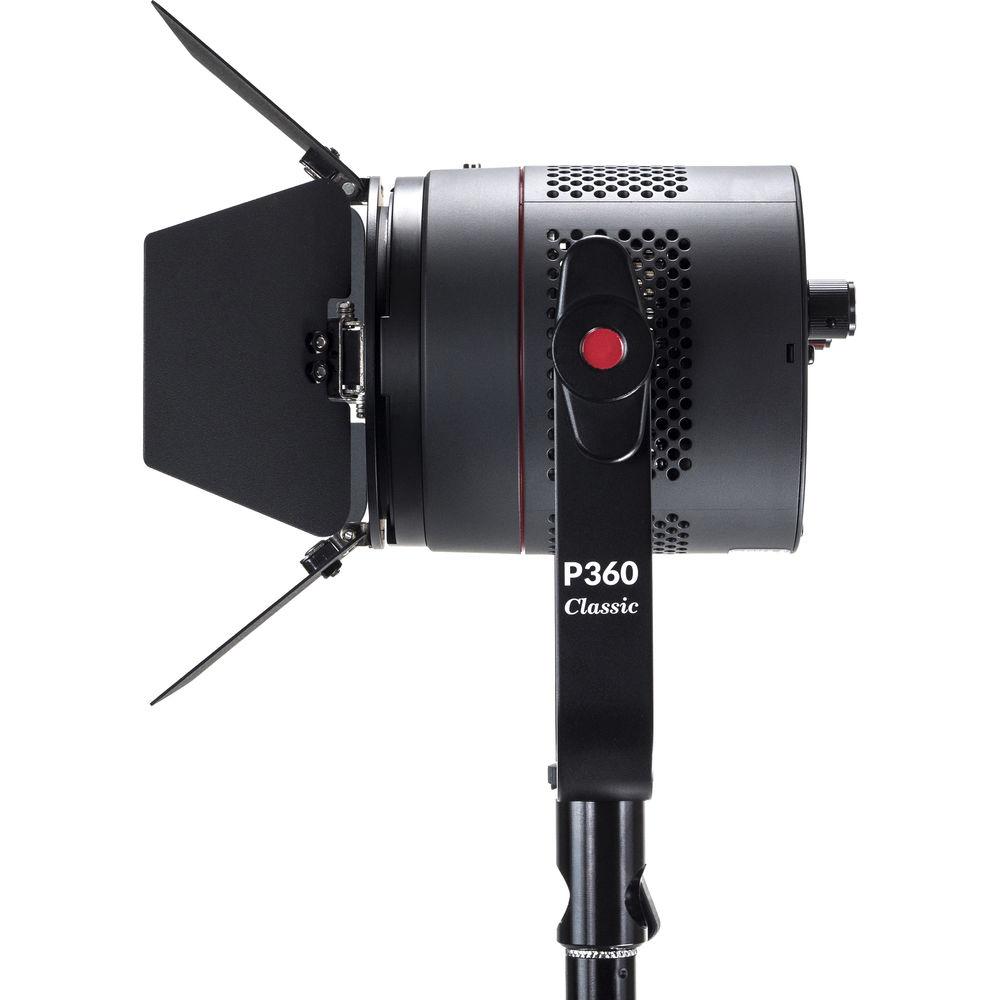

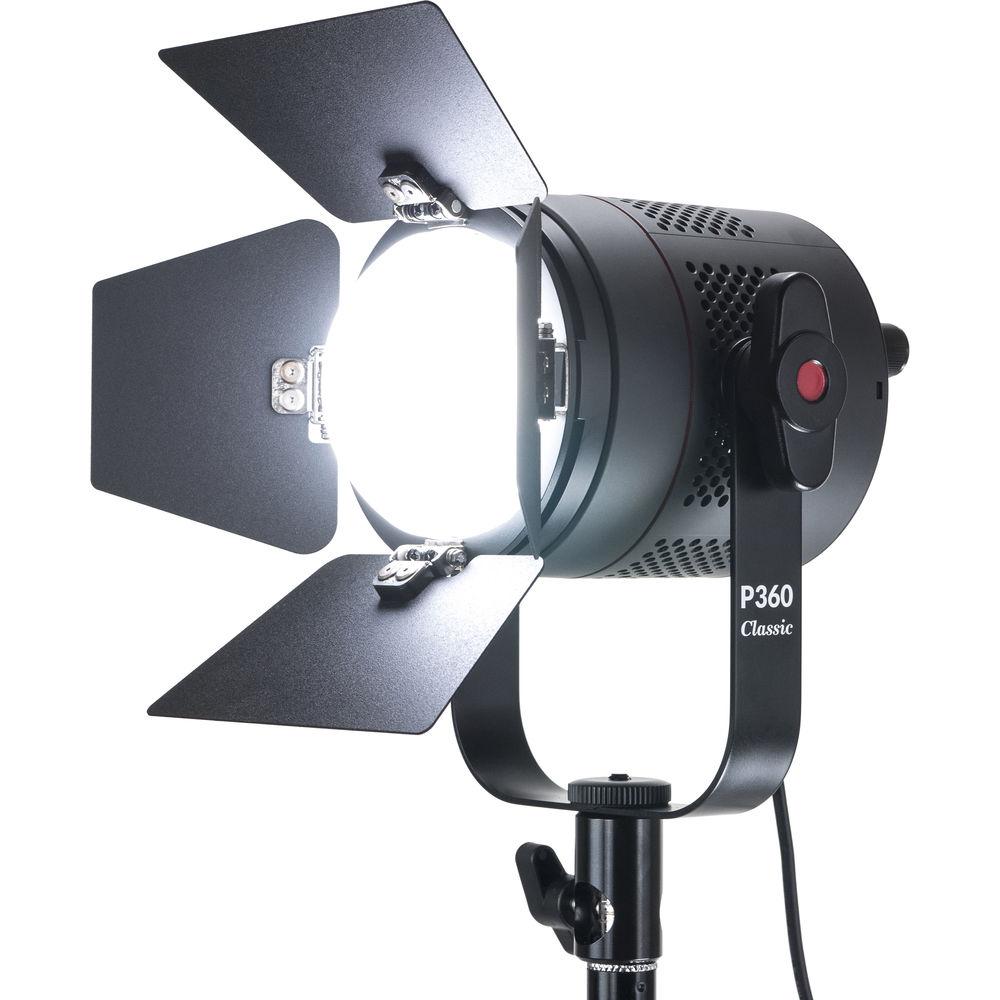

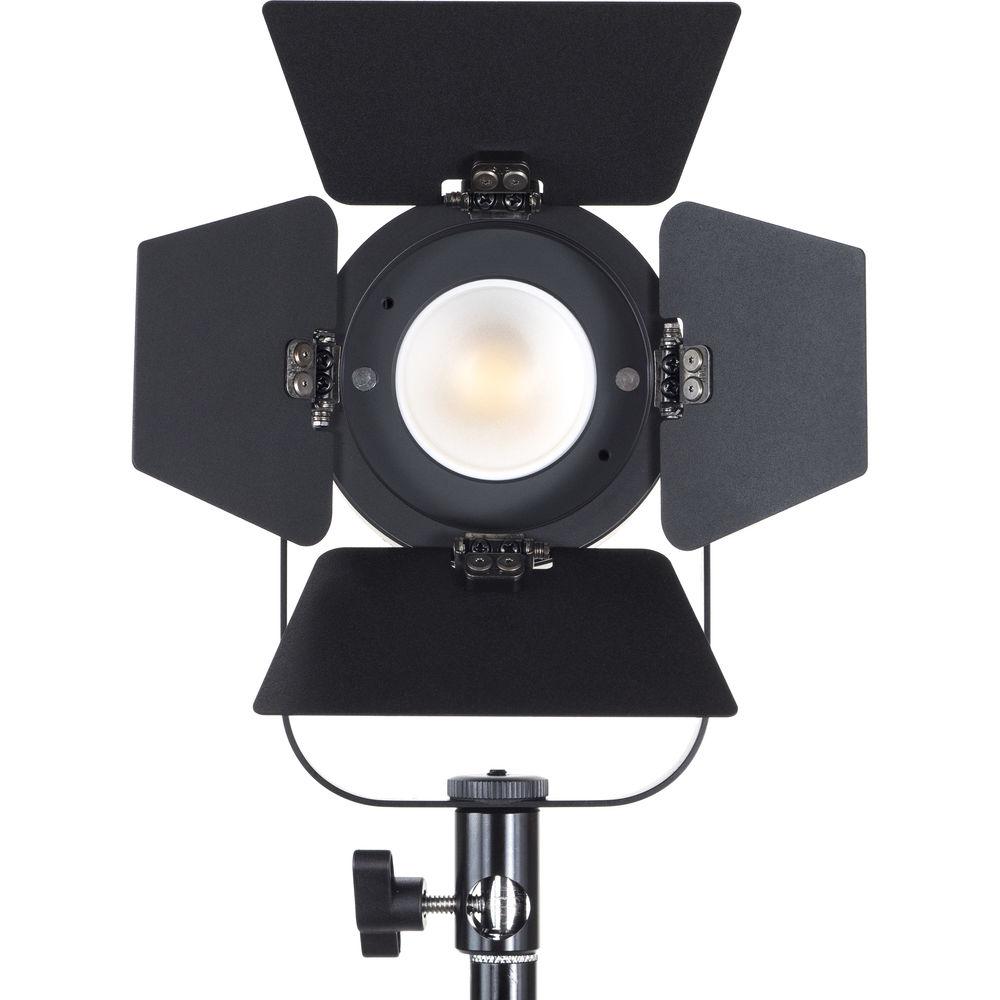

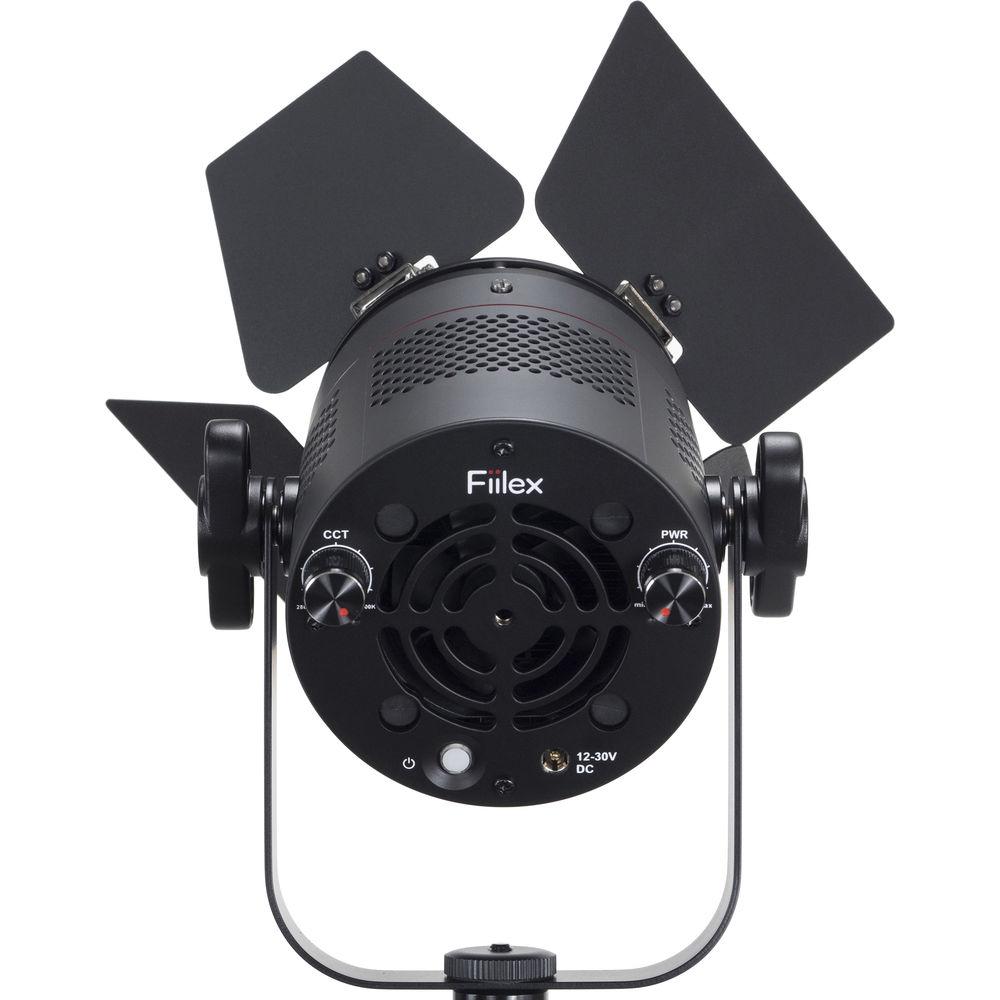

• P360 Classic LED Light Ideal for on-camera video work, the P360 Classic LED Light from Fiilex has an expanded variable color temperature range compared with its predecessor of 2800 to 6500K and a high CRI/TLCI rating of 93/96 at 5600K, indicating an accurate rendition of color. The P360 Classic employs a 50-diode Dense Matrix LED array that could fit on a dime and renders a brighter flicker-free output than its predecessor with a beam angle of 65 degrees. At only 1.8 lb with an 8.1 x 5.8 x 4.8" form factor, the P360 Classic is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low current draw which translates to low running costs and long running times. Besides the AC adapter, the P360 Classic ships with a set of 4-way barndoors.
  Photometrics
  • Without Lens: 65-Degrees at 3000K
    432 lux / 194 fc @ 3.3' (1.0 m)
    48 lux / 22 fc @ 9.8' (3.0 m)
    17 lux / 8 fc @ 16.4' (5.0 m)
    Without Lens: 65 Degrees at 5600K
    603 lux / 271 fc @ 3.3' (1.0 m)
    67 lux / 30 fc @ 9.8' (3.0 m)
    24 lux / 11 fc @ 16.4' (5.0 m)
  UPC: 092145341940
• P180E On-Camera LED Light Ideal for on-camera video work, the P180E LED Light from Fiilex has a variable color temperature of 3000-5600K and a high CRI (Color Rendering Index) rating of 92. The P180E employs an LED array that renders bright, flicker-free output with variable beam angles of 36-50 degrees. At only 1.2 lb with a 2.9" diameter form factor, the P180E is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-24 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC adapter, the P180 ships with a DC adapter, a set of 4-way barndoors, and a cold shoe mount for on-camera use.
  Full Spectrum Color Tuning
  • The P180E has the ability to smoothly tune the spectrum of light producing any color temperature of white light with a high CRI of 92
  Ultra Efficient Light Source
  • No heat, no gels, no sweat. The P180E only draws 40 watts, yet gives an equivalent tungsten power output of nearly 250W. Low draw means longer run times and lamp life measured in years rather than hours
  Water Resistant Design
  • Built to overcome ever-changing field conditions, the P180E has an IP-24 Rating and can withstand an impressive amount of exposure to direct streams of water such as rain, splashes, and misting. The optional Rain Shield gives the P180 an IP-25 rating for even further weather protection in severe conditions
  Super Compact Design
  • The P180E is one of the smallest professional lights on the market allowing the creation of a miniature three light kit that is roughly the size of a child's lunchbox
  Additional Features
  • Highly portable specular LED light
  • Dimming (10-100%)
  • Tunable color temperature: 3000-5600K
  • Broadband full spectrum LED source
  • CRI 92 over all color temperatures
  • Single point dense matrix LED light source
  • Flicker-free at any frame rate
  • Cool to touch
  • Simple to use magnetic accessory mount
  • IP-24 water resistant (IP-25 with rain shield)
  • On and off capability out of box
  • Compatible with broadcast batteries
  Applications
  • On-camera ENG shooting
  • Accent lighting
  • Outdoor usage
  • Event lighting
  • Chroma key
  Photometrics
  • Full Flood at 3000K
    40 fc/433 lux @ 5.0' (1.5 m) with beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
    12 fc/128 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
    6.0 fc/63 lux @ 15.0' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
    Full Flood At 5600K
    56 fc/590 lux @ 5.0' (1.5 m) with a beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
    17 fc/185 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
    8.6 fc/93 lux @ 15' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
    Spot at 3000K
    68 fc/732 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
    19 fc/203 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0 m)
    9.0 fc/96 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0)
    Spot at 5600K
    83 fc/892 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
    23 fc/247 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0)
    11 fc/116 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0 m)
  UPC: 092145336892
• Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
  Features
  • Compact design
  • Quick setup
  • Fits in Custom Fiilex Rolling Travel Case
  • 5/8" Stud with 1/4"-20 thread
  UPC: 092145336946

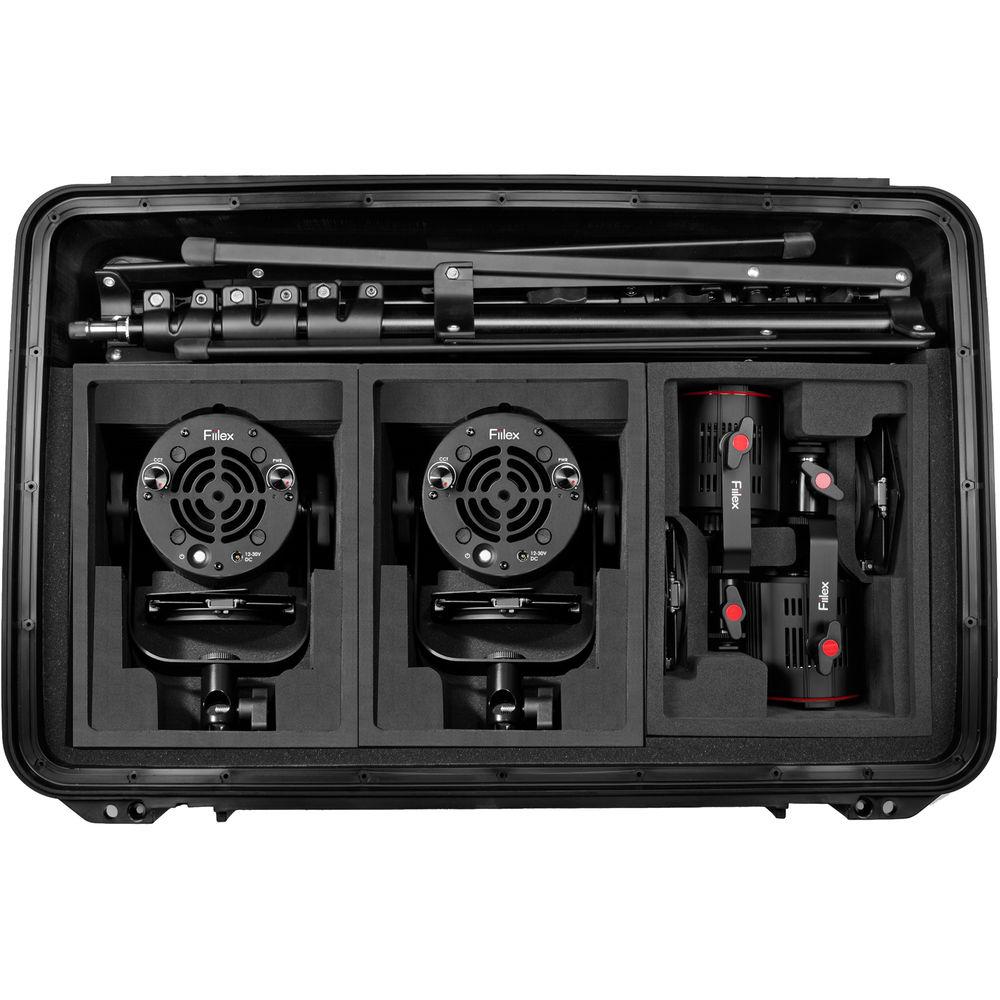

• Wheeled Travel Case for K Series Kits The Wheeled Travel Case for K Series Kits from Fiilex is a hard rolling case with padded compartmented interior, fold-down handle, non-corrosive latches, built-in accessory pouch and a telescoping pull handle. At 24 x 16 x 10" it complies most airlines' carry-on requirements and will fit in most overhead compartments. The case will hold 4 light stands and up to three P360/P360EXs, up to six P180EXs and similar sized Fiilex lights in various combinations. UPC: 654367099926
• On-Camera Coldshoe with Mini Stud for P180E The On-Camera Coldshoe with Mini Stud for P180E LED light is a spare or replacement for the one that ships with the light. This accessory allows you to mount the P180E on a compatible camera, UPC: 092145337011
• Extra Small Softbox Kit for P-Series Lights (12 x 16") Dedicated to Fiilex P-series lights, the 12 x 16" Extra Small Softbox Kit was created to offer photographers and videographers a soft, flattering lighting solution with manageable contrast. The kit comes with the softbox, complete with inner and outer baffle, and a P-series speed ring. Additionally, a carrying bag is also included to store and protect the entire kit. UPC: 092145340158

• 90W AC Adapter for P360, P200 and P180E LED Lights

• 4-Way Barndoors for P360 and P360EX LED Lights

• Limited 1-Year Warranty

• Set 4-Way Barndoors

• AC Adapter

• DC Adapter

• Cold Shoe Mount

• Instruction Manual

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited Lifetime Warranty

• Extra Small Softbox (12 x16")

• Speed Ring For Softbox

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P360 Classic LED Light

  Beam Angle	65°
  Color Temperature	6500K
  Color Accuracy Standard	CRI 93 at 5600K CRI 94 at 3000K TLCI 96 at 5600K TLCI 96 at 3000K
  Cooling System	Fan
  Dimming	Yes, 20 to 100% (Continuous)
  Display	None
  Fixture Dimensions	Overall: 8.1 x 5.8 x 4.8" / 20.6 x 14.7 x 12.2 cm
  Fixture Weight	1.83 lb / 0.83 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 30 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	90 W

  IP Rating	IP24
  Operating Temperature	32 to 104°F / 0 to 40°C

  Box Dimensions (LxWxH)	12.9 x 7.4 x 6.0"

• P180E On-Camera LED Light

  Color Temperature	3000 to 5600K
  Color Accuracy Standard	CRI 92
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Fixture Dimensions	2.9 x 2.9 x 3.8" / 74.0 x 74.0 x 96.0 mm
  Fixture Weight	1.2 lb / 0.5 kg

  Fixture Mount	5/8" Receiver
  Mount via Included Adapter	Shoe Mount
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 24 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP24
  Operating Temperature	-22 to 104°F / -30 to 40°C

  Box Dimensions (LxWxH)	13.1 x 11.5 x 6.5"

• Reverse Leg Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	84" / 213.3 cm
  Collapsed Height	21" / 53 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	22.3 x 3.2 x 3.2"

• Wheeled Travel Case for K Series Kits

  Closure Type	Latch
  Carry and Transport Options	Handle Telescoping Handle
  Casters	2
  Material of Construction	Polymer
  Exterior Dimensions (W x H x D)	24 x 16 x 10" / 61 x 40.6 x 25.6 cm

  Box Dimensions (LxWxH)	25.0 x 17.5 x 11.8"

• On-Camera Coldshoe with Mini Stud for P180E

  Box Dimensions (LxWxH)	5.1 x 3.85 x 2.05"

• Extra Small Softbox Kit for P-Series Lights (12 x 16")

  Box Dimensions (LxWxH)	21.8 x 10.1 x 3.6"
