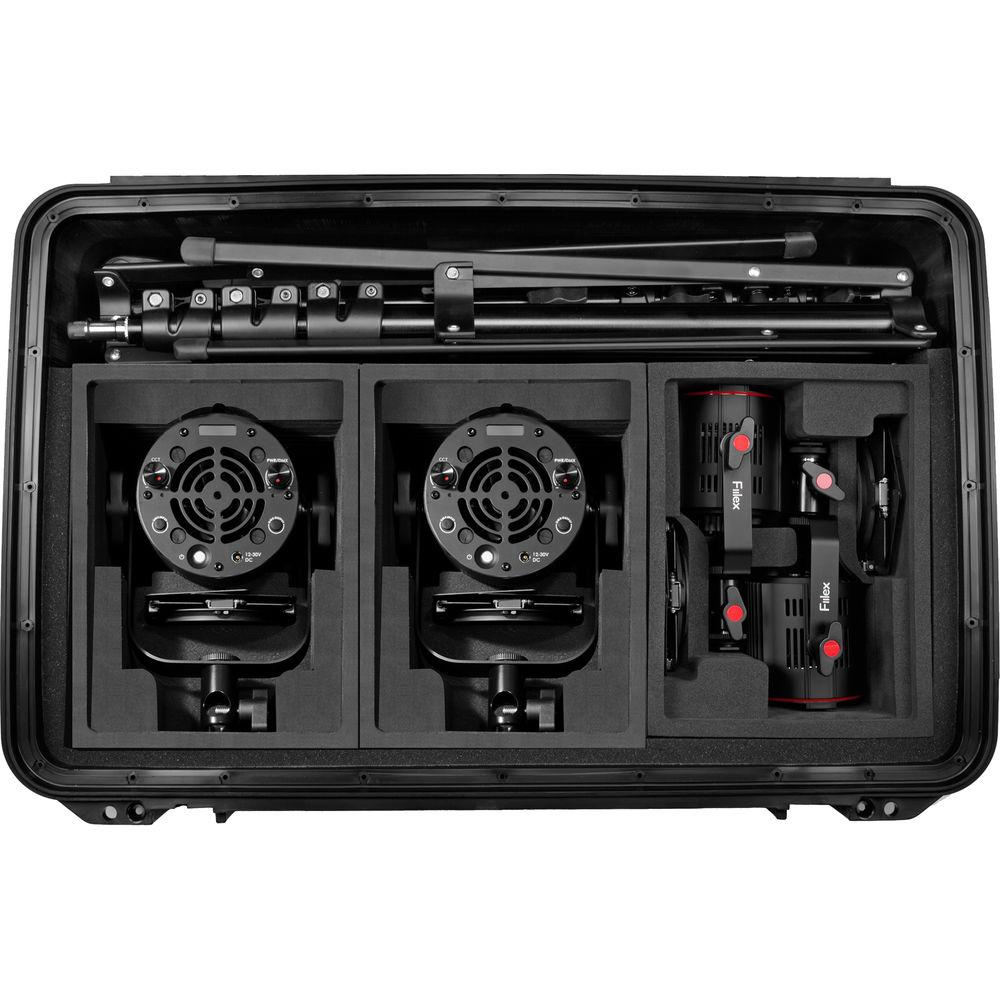

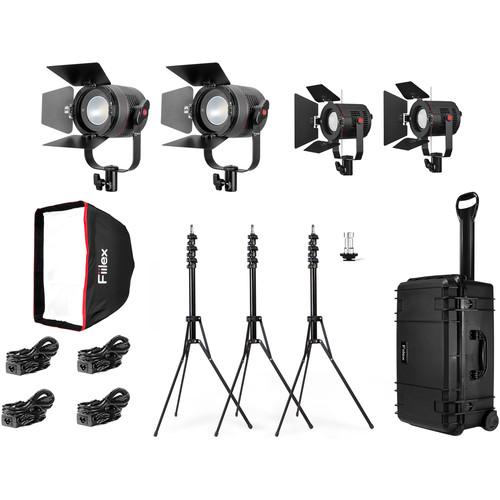

Fiilex K411P 4-Light LED Travel Kit

User Manual for Fiilex K411P 4-Light LED Travel Kit

• Product category: LED Lights Fiilex
• Brand: Fiilex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fiilex LED Lights

Product description

• P360 Pro LED Light Building on the strong foundation of the popular P360, the P360 Pro Plus LED Light from Fiilex has a variable color temperature of 2800-6500K and a high CRI (Color Rendering Index) rating of >95. The P360 Pro Plus employs a Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a native beam angle of 65 degrees. Optional Fresnel lenses are available to tighten the beam angle.At only 1.85 lb with a 4.8" diameter, the P360 Pro Plus is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC/DC adapter, the P360 Pro Plus ships with a set of four-way barndoors to further control the beam spread.
  Benefits
  • • Tunable CCT (2800 - 6500K)
    • 400W tungsten output equivalent, only 90W draw
    • Water resistant (IP24)
    • Dimming (0 -100%)
    • High CRI of >93 at any color temperature
    • Does not emit UV light/radiation
    • Broadband full spectrum LED source
    • OLED display for easy setup
    • Single Point Dense Matrix LED light source
    • Flicker-free
    • Lightweight, compact and easy for travel
    • Cool to the touch
    • Compatible with broadcast batteries
    • Designed in USA, assembled in USA/Taiwan
  Photometrics
  • At 3000K, 65° (Standard)
    194 fc/2086 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
    22 fc/232 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
    8.0 fc/83 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1 m)
    At 5600K, 65° (Standard)
    271 fc/2012 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
    30 fc/324 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
    11 fc/116 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1 m)
  UPC: 092145341957
• P180E On-Camera LED Light Ideal for on-camera video work, the P180E LED Light from Fiilex has a variable color temperature of 3000-5600K and a high CRI (Color Rendering Index) rating of 92. The P180E employs an LED array that renders bright, flicker-free output with variable beam angles of 36-50 degrees. At only 1.2 lb with a 2.9" diameter form factor, the P180E is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-24 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC adapter, the P180 ships with a DC adapter, a set of 4-way barndoors, and a cold shoe mount for on-camera use.
  Full Spectrum Color Tuning
  • The P180E has the ability to smoothly tune the spectrum of light producing any color temperature of white light with a high CRI of 92
  Ultra Efficient Light Source
  • No heat, no gels, no sweat. The P180E only draws 40 watts, yet gives an equivalent tungsten power output of nearly 250W. Low draw means longer run times and lamp life measured in years rather than hours
  Water Resistant Design
  • Built to overcome ever-changing field conditions, the P180E has an IP-24 Rating and can withstand an impressive amount of exposure to direct streams of water such as rain, splashes, and misting. The optional Rain Shield gives the P180 an IP-25 rating for even further weather protection in severe conditions
  Super Compact Design
  • The P180E is one of the smallest professional lights on the market allowing the creation of a miniature three light kit that is roughly the size of a child's lunchbox
  Additional Features
  • Highly portable specular LED light
  • Dimming (10-100%)
  • Tunable color temperature: 3000-5600K
  • Broadband full spectrum LED source
  • CRI 92 over all color temperatures
  • Single point dense matrix LED light source
  • Flicker-free at any frame rate
  • Cool to touch
  • Simple to use magnetic accessory mount
  • IP-24 water resistant (IP-25 with rain shield)
  • On and off capability out of box
  • Compatible with broadcast batteries
  Applications
  • On-camera ENG shooting
  • Accent lighting
  • Outdoor usage
  • Event lighting
  • Chroma key
  Photometrics
  • Full Flood at 3000K
    40 fc/433 lux @ 5.0' (1.5 m) with beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
    12 fc/128 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
    6.0 fc/63 lux @ 15.0' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
    Full Flood At 5600K
    56 fc/590 lux @ 5.0' (1.5 m) with a beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
    17 fc/185 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
    8.6 fc/93 lux @ 15' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
    Spot at 3000K
    68 fc/732 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
    19 fc/203 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0 m)
    9.0 fc/96 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0)
    Spot at 5600K
    83 fc/892 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
    23 fc/247 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0)
    11 fc/116 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0 m)
  UPC: 092145336892
• Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
  Features
  • Compact design
  • Quick setup
  • Fits in Custom Fiilex Rolling Travel Case
  • 5/8" Stud with 1/4"-20 thread
  UPC: 092145336946
• Extra Small Softbox Kit for P-Series Lights (12 x 16") Dedicated to Fiilex P-series lights, the 12 x 16" Extra Small Softbox Kit was created to offer photographers and videographers a soft, flattering lighting solution with manageable contrast. The kit comes with the softbox, complete with inner and outer baffle, and a P-series speed ring. Additionally, a carrying bag is also included to store and protect the entire kit. UPC: 092145340158
• On-Camera Coldshoe with Mini Stud for P180E The On-Camera Coldshoe with Mini Stud for P180E LED light is a spare or replacement for the one that ships with the light. This accessory allows you to mount the P180E on a compatible camera, UPC: 092145337011

• 4-Way Barndoors for P360 and P360EX LED Lights

• 90W AC Adapter for P360, P200 and P180E LED Lights

• Limited 2-Year Warranty

• Set 4-Way Barndoors

• AC Adapter

• DC Adapter

• Cold Shoe Mount

• Instruction Manual

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Extra Small Softbox (12 x16")

• Speed Ring For Softbox

Also Includes

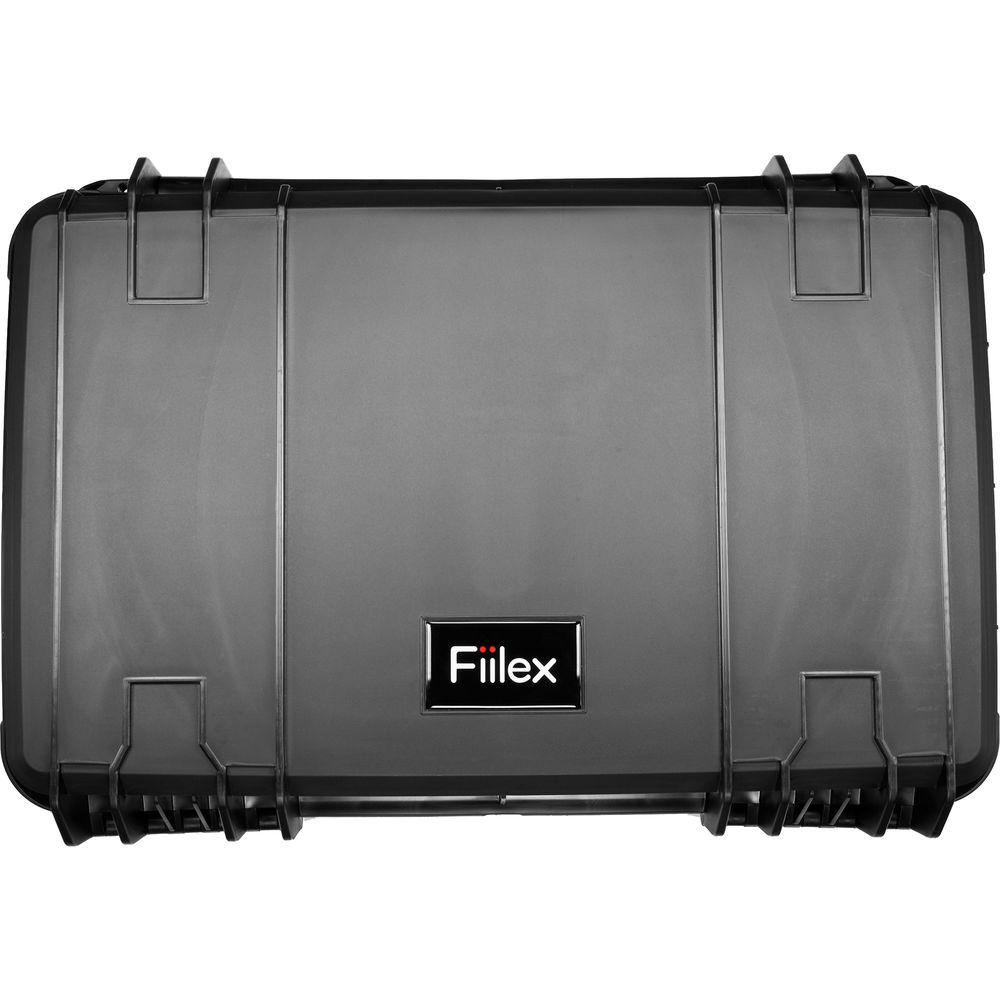

• Hard Rolling Travel Case
• Limited 2-Year Warranty on Equipment
• Limited Lifetime Warranty on Case

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Fiilex K411P 4-Light LED Travel Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Fiilex K411P 4-Light LED Travel Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Fiilex K411P 4-Light LED Travel Kit (PDF file, 0.56 MB)

Technical parameters

• P360 Pro LED Light

  Light Source	Dense Matrix LED array
  Display	OLED
  Color Range	2800 to 6500K continuous tuning
  CRI	93
  Beam Angle	65° (Native) Optional Fresnel lens
  Cooling	Advanced Vapor Cooling System
  Operating Voltage	100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out) Input Voltage: 12-30 VDC Input Port: 5.5 x 2.5 mm DC jack
  Tungsten Equivalent	400 W tungsten fixture
  Power Consumption	90 W max.
  Dimming	0-100%
  DMX	2 Channels : Intensity, CCT Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078)
  Mount	Light stand mount (attached), 1/4"-20 female socket
  IP Rating	IP24
  Operating Temperature	32 - 104°F (0 - 40%deg;C)
  Dimensions	8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm)
  Weight	1.85 lb (0.84 kg)

  Box Dimensions (LxWxH)	13.0 x 7.5 x 5.8"

• P180E On-Camera LED Light

  Color Temperature	3000 to 5600K
  Color Accuracy Standard	CRI 92
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Fixture Dimensions	2.9 x 2.9 x 3.8" / 74.0 x 74.0 x 96.0 mm
  Fixture Weight	1.2 lb / 0.5 kg

  Fixture Mount	5/8" Receiver
  Mount via Included Adapter	Shoe Mount
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 24 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP24
  Operating Temperature	-22 to 104°F / -30 to 40°C

  Box Dimensions (LxWxH)	13.1 x 11.5 x 6.5"

• Reverse Leg Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	84" / 213.3 cm
  Collapsed Height	21" / 53 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	22.3 x 3.2 x 3.2"

• Extra Small Softbox Kit for P-Series Lights (12 x 16")

  Box Dimensions (LxWxH)	21.8 x 10.1 x 3.6"

• On-Camera Coldshoe with Mini Stud for P180E

  Box Dimensions (LxWxH)	5.1 x 3.85 x 2.05"
