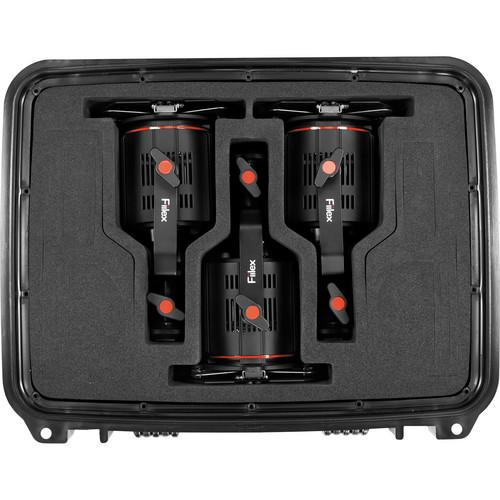

User Manual for Fiilex M381 3-Light P180E LED Compact Kit Click to enlarge the picture
Contents of the user manual for the Fiilex M381 3-Light P180E LED Compact
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
|
User manual for the Fiilex M381 3-Light P180E LED Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|
Product description The M381 3-Light P180E LED Compact Kit from Fiilex is built around the weather-resistant variable color, variable beam angle P180E LED light. The kit includes three P180Es for a combined total of approximately 650 tungsten equivalent watts, along with AC and DC power adapters and four-way barndoors for each light. The kit also includes a zippered accessory pouch, and a carry-on friendly, molded case.Ideal for on-camera video work, the P180E 40W LED Light has a variable color temperature of 3,000-5,600K and a high CRI (Color Rendering Index) rating of 92. The P180E employs an LED array that renders bright, flicker-free output with variable beam angles of 36-50 degrees.At only 1.2 lb with a 2.9" diameter form factor, the P180E is an ideal location light that can be powered by the included 100-240VAC power adapter or by optional 12-24VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC adapter, the P180E ships with a DC adapter and, a set of four-way barndoors and a cold shoe mount for on-camera use. - P180E On-Camera LED Light Ideal for on-camera video work, the P180E LED Light from Fiilex has a variable color temperature of 3000-5600K and a high CRI (Color Rendering Index) rating of 92. The P180E employs an LED array that renders bright, flicker-free output with variable beam angles of 36-50 degrees. At only 1.2 lb with a 2.9" diameter form factor, the P180E is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-24 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC adapter, the P180 ships with a DC adapter, a set of 4-way barndoors, and a cold shoe mount for on-camera use.
- Full Spectrum Color Tuning
- The P180E has the ability to smoothly tune the spectrum of light producing any color temperature of white light with a high CRI of 92
- Ultra Efficient Light Source
- No heat, no gels, no sweat. The P180E only draws 40 watts, yet gives an equivalent tungsten power output of nearly 250W. Low draw means longer run times and lamp life measured in years rather than hours
- Water Resistant Design
- Built to overcome ever-changing field conditions, the P180E has an IP-24 Rating and can withstand an impressive amount of exposure to direct streams of water such as rain, splashes, and misting. The optional Rain Shield gives the P180 an IP-25 rating for even further weather protection in severe conditions
- Super Compact Design
- The P180E is one of the smallest professional lights on the market allowing the creation of a miniature three light kit that is roughly the size of a child's lunchbox
- Additional Features
-
- Highly portable specular LED light
- Dimming (10-100%)
- Tunable color temperature: 3000-5600K
- Broadband full spectrum LED source
- CRI 92 over all color temperatures
- Single point dense matrix LED light source
- Flicker-free at any frame rate
- Cool to touch
- Simple to use magnetic accessory mount
- IP-24 water resistant (IP-25 with rain shield)
- On and off capability out of box
- Compatible with broadcast batteries
- Applications
-
- On-camera ENG shooting
- Accent lighting
- Outdoor usage
- Event lighting
- Chroma key
- Photometrics
- Full Flood at 3000K
40 fc/433 lux @ 5.0' (1.5 m) with beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
12 fc/128 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
6.0 fc/63 lux @ 15.0' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
Full Flood At 5600K
56 fc/590 lux @ 5.0' (1.5 m) with a beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
17 fc/185 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
8.6 fc/93 lux @ 15' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
Spot at 3000K
68 fc/732 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
19 fc/203 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0 m)
9.0 fc/96 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0)
Spot at 5600K
83 fc/892 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
23 fc/247 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0)
11 fc/116 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0 m) UPC: 092145336892 In the Box Bundle Items 3 x P180E On-Camera LED Light dcrwzcyvyysxyvrczt
Also Includes - Zippered Accessory Pouch
- Hard Carry Case
- Lifetime Warranty on Case
User Manual-P180E PDF 542.9kbdcrwzcyvyysxyvrczt Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex M381 3-Light P180E LED Compact Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P180E On-Camera LED Light
| | | Color Temperature | 3000 to 5600K | | Color Accuracy Standard | CRI 92 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Fixture Dimensions | 2.9 x 2.9 x 3.8" / 74.0 x 74.0 x 96.0 mm | | Fixture Weight | 1.2 lb / 0.5 kg | | | | Fixture Mount | 5/8" Receiver | | Mount via Included Adapter | Shoe Mount | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | IP Rating | IP24 | | Operating Temperature | -22 to 104°F / -30 to 40°C | | | | Box Dimensions (LxWxH) | 13.1 x 11.5 x 6.5" |
