Product description

• P100 On-Camera LED Video Light
  • P100
  The P100 On-Camera LED Video Light, from Fiilex, is a specular LED light offering a high CRI of >90 at any color temperature across a continuously adjustable range of 3000K-5600K. It also features a variable beam angle adjustable from 54° flood to 30° spot by a rotating ring on the front similar to the focus ring of a lens. Brightness is adjustable to and from 0% without a switch-off pause. An on/off switch will let you power the light on and off while maintaining your settings. Three points of adjustability will allow you to quickly fine-tune the light in changing environments and will serve useful in shooting narrative, documentary-style projects, news, and events.

  The specular aspect of the light owes to the innovative layout of the LEDs called Dense Matrix LED, designed by Fiilex's parent company DiCon Fiberoptics. Whereas in traditional LED lights LEDs are spread out and each one is wrapped individually, the P100 densely packs all of its LEDs into an area the size of a small coin and covers them with one reflective lens, and light outputs as if from a single point source. At the same time, a metal carrier dissipates heat away from the core to prevent the LEDs from prematurely aging and dying as a result of being packed so closely.

  The light powers by an included, two hour, proprietary lithium-ion battery or included AC adapter. The AC adapter is also the charger for the battery and shows the charge state via an indicator light. You can also connect optional brick batteries via a DC input.

  The light features a 1/4"-20 thread on the bottom and also includes a cold shoe with a mini ball head.
  Features
  • • 100W equivalent output - 12W draw
    • Color temperature range: 3,000-5,600K
    • High CRI >92
    • Full spectrum light quality - no spikes
    • Dimming: 100-10%
    • Adjustable beam angle: 54° - 30°
    • Flicker-free at any frame rate
    • Patented Dense Matrix LED technology
    • Solid state technology - no bulbs to replace
    • Does not emit UV light or radiation
    • Can be used on/off camera
    • Lightweight, compact, easy for travel
• P100 Accessory Mount The Fiilex P100 Accessory Mount is a magnetic mounting system for the Fiilex P100 LED Video Light. It fits tightly onto the focus ring of the P100 and allows you to magnetically attach the Fiilex Dome Diffuser or Gel Holder to two magnetic mounts on the front. The attachment to the focus ring is by tension mount.
• AC Adapter & Charger for P100 Video Light (US Plug) The Fiilex AC Adapter & Charger for P100, with US plug, is a two-prong power supply unit for the Fiilex P100 "Brick" on-camera light. It allows you to both charge the light's battery and provide continuous power after the battery is fully charged.
• Dome Diffuser for P360/EX and V70 LED Lights The Dome Diffuser for P360/EX and V70 LED Lights from Fiilex is designed to attach to the magnetic mounts on the front of the P360 or P360EX lights. It is also compatible with the V70 viewing lamp. The dome increases the beam angle and softens the light. Dome diffusers spread the beam angle, diffuse, and soften the light's output. It can be combined with other light modifiers such as softboxes and beauty dishes. UPC: 654367099872
• Cold Shoe with Mini Ball Head for P100 The Fiilex Cold Shoe with Mini Ball Head for P100 is a spare or replacement for the one that ships with the P100 LED light. The shoe allows camera mounting while the Mini Ball Head helps direct the light's beam.
• Half Yoke for P100 The Fiilex Half Yoke for P100 allows the P100 LED light to be used on a light stand instead of being mounted directly on-camera. The half yoke attaches to standard light stands via a 17mm mount and attaches to the P100 via a 1/4"-20 stud. It is constructed from steel for maintained durability and rigidity. UPC: 092145337240

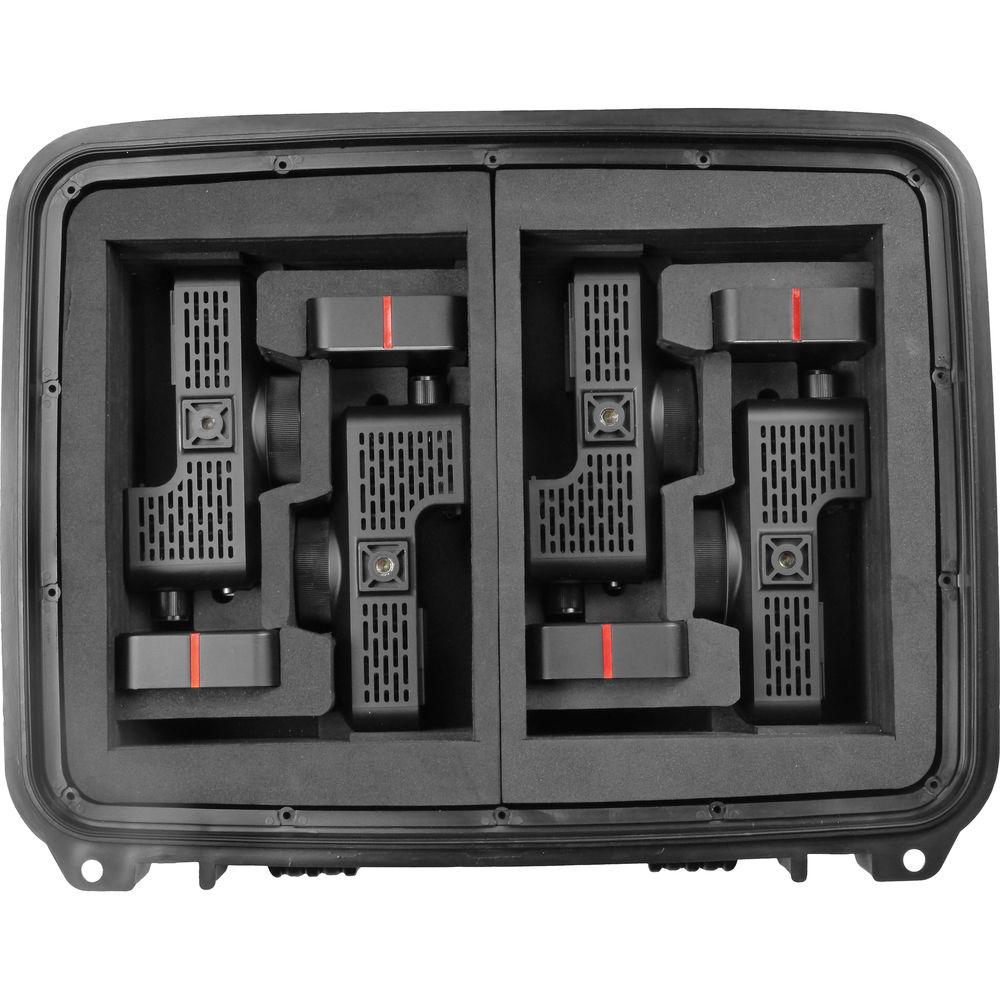

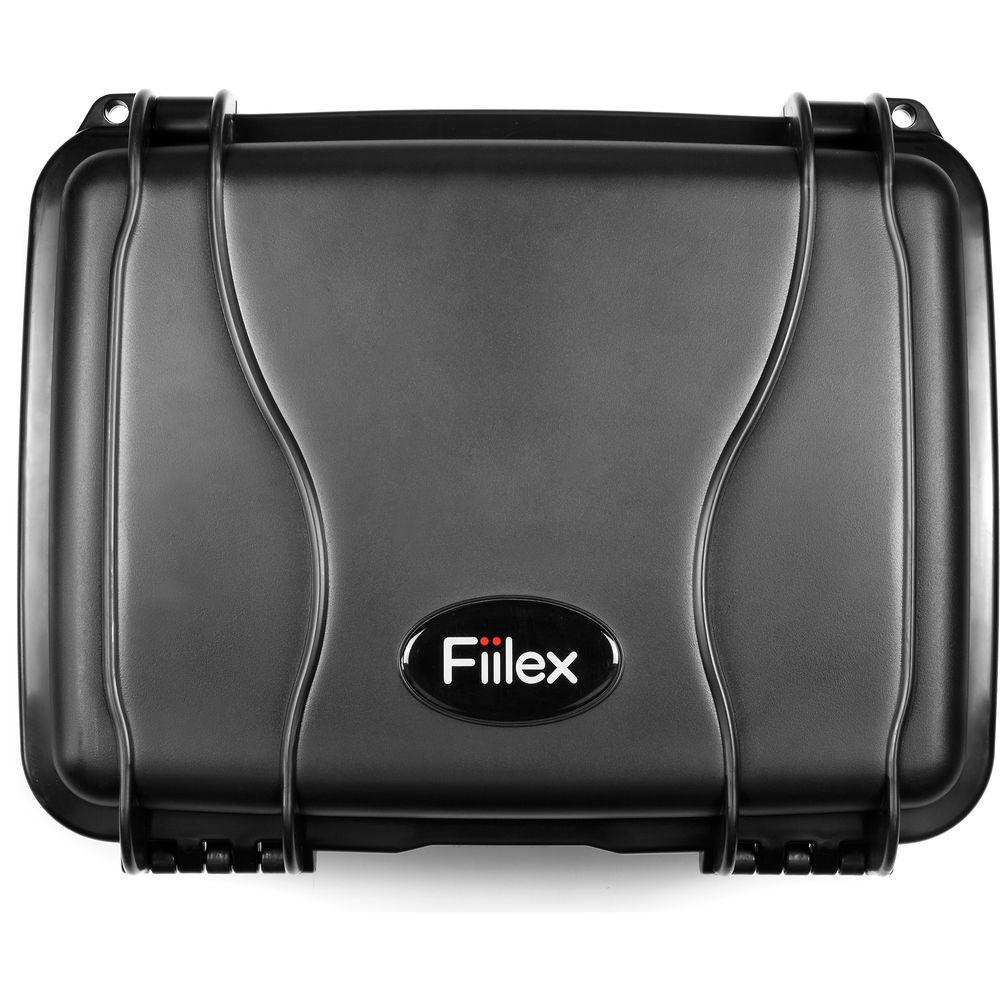

• Travel Case for P180E and P100 Kits The Travel Case for P180E and P100 Kits from Fiilex is a hard carrying case with foam interior, fold-down handle, non-corrosive latches and a built-in accessory pouch. At 14.9 x 12.1 x 6.9", it complies with airline carry-on requirements and will fit in most overhead compartments and under seats. The case will hold three P180E or P100 heads

• Rechargeable Battery

• AC/DC Power Adapter (Wall Charger)

• Cold Shoe with Mini Ball Head

• User Manual

• Limited 1-Year Warranty

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited Lifetime Warranty from Seahorse (Manufacturer)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P100 On-Camera LED Video Light

  Light Source	Dense Matrix LED
  Thermal Design	Passive cooling system (without fan)
  Color Temperature	Continuous from 3000K to 5600K
  Beam Angle	Adjustable from 54° flood to 30° spot
  Brightness	In flood mode: @ 3 ft (91 cm), 54° beam: 229 lux @ 3000K, 335 lux @ 5600K @ 6 ft (1.83 m), 54° beam: 65 lux @ 3000K, 80 lux @ 5600K @ 9 ft (2.74 m), 54° beam: 33 lux @ 3000K, 54 lux @ 5600K In spot mode: @ 3 ft (91 cm), 30° beam: 300 lux @ 3000K, 468 lux @ 5600K @ 6 ft (1.83 m), 30° beam: 97 lux @ 3000K, 134 lux @ 5600K @ 9 ft (2.74 m), 30° beam: 54 lux @ 3000K, 72 lux @ 5600K
  Dimming	0 - 100%
  CRI	>90
  Mount Type	1/4"-20 thread on the bottom; cold shoe with mini ball head included
  Power Source	Included AC adapter: 100 - 240 V AC, 50-60 Hz (In) / 12 V DC, 12 W (Out) Included battery: Li-ion / rechargeable / 11.1 V 2600 mAh / 29 Wh Lasts approximately two hours at maximum light output
  Power Consumption	12 W max
  Input	10 to 16 V DC
  Operating Temperature	32 to 104°F (0 to 40°C)
  Dimensions	5.8 x 2.8 x 2.8" (14.7 x 7.1 x 7.1 cm)
  Weight	With yoke included: .59 lb (0.27 kg)

  Box Dimensions (LxWxH)	11.3 x 7.7 x 3.9"

• P100 Accessory Mount

  Diameter

  3.1" (7.9 cm)

  Box Dimensions (LxWxH)	4.7 x 3.8 x 1.4"

• AC Adapter & Charger for P100 Video Light (US Plug)

  AC Input Power	100 to 240 VAC, 50 Hz
  Output Voltage	12 VDC

  Box Dimensions (LxWxH)	4.8 x 3.9 x 2.0"

• Dome Diffuser for P360/EX and V70 LED Lights

  Material	Plastic
  Diameter	3.0" (7.6 cm)

  Box Dimensions (LxWxH)	4.95 x 3.8 x 2.45"

• Cold Shoe with Mini Ball Head for P100

  Bottom Mount	1 x Accessory Foot
  Top Mount	1 x 1/4"-20 Male

• Half Yoke for P100

  Mount Types	1/4"-20 stud (to P100 light) 17 mm light stand mount
  Construction	Steel
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	7.5 x 3.3 x 2.6"

• Travel Case for P180E and P100 Kits

  Closure Type	Latch
  Carry and Transport Options	Handle
  Material of Construction	Polymer
  Exterior Dimensions (W x H x D)	14.9 x 12.1 x 6.9" / 37.8 x 30.8 x 17.5 cm
