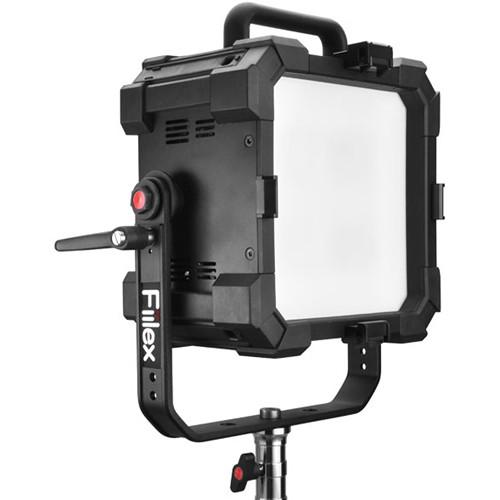

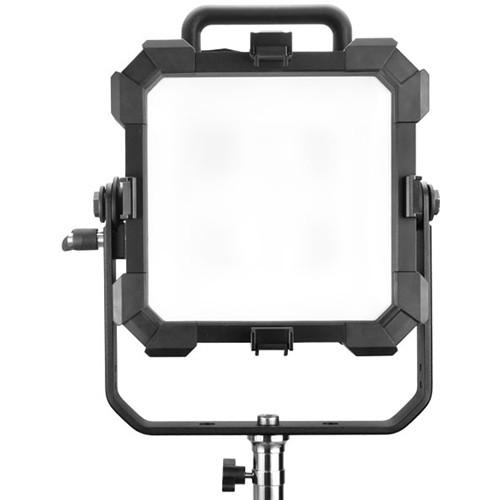

User Manual for Fiilex Matrix II RGBW Bi-Color Cinematic Quad-Source LED Punch Light Click to enlarge the picture
Contents of the user manual for the Fiilex Matrix II RGBW Bi-Color Cinematic
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
 |
User manual for the Fiilex Matrix II RGBW Bi-Color Cinematic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|

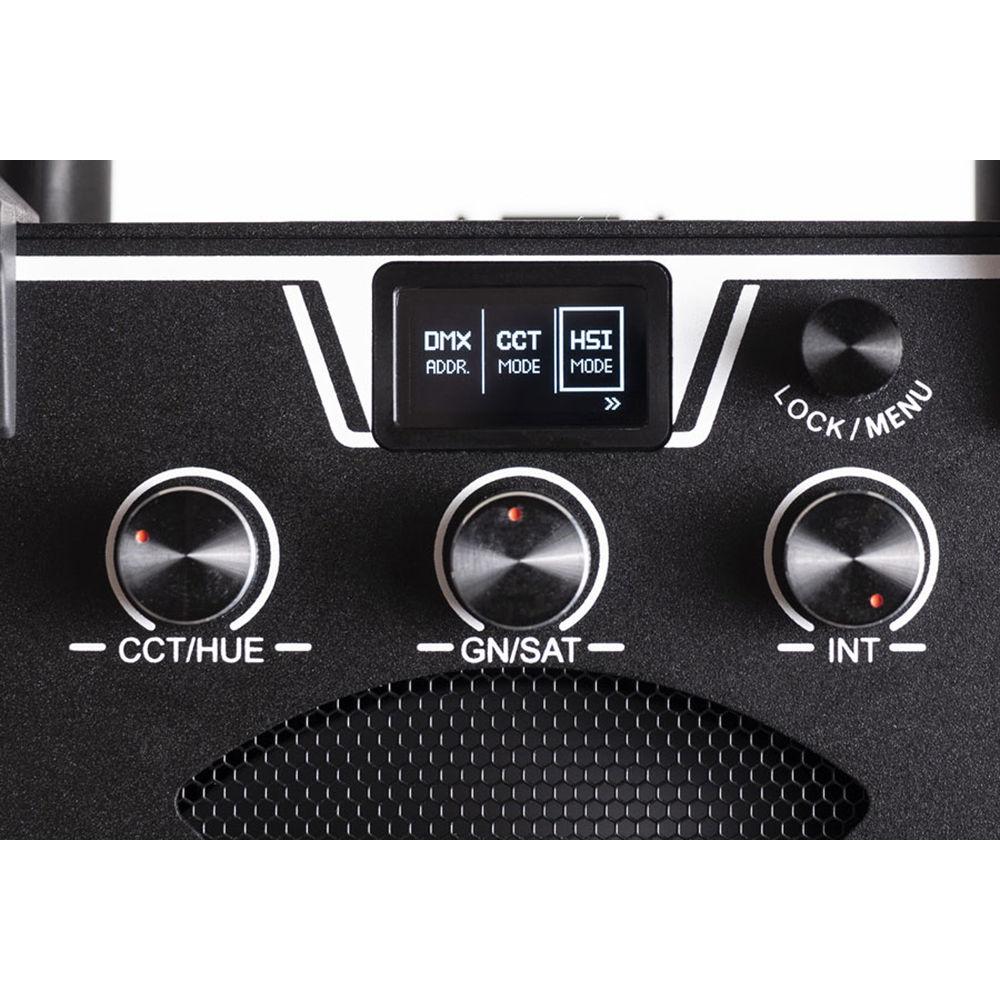

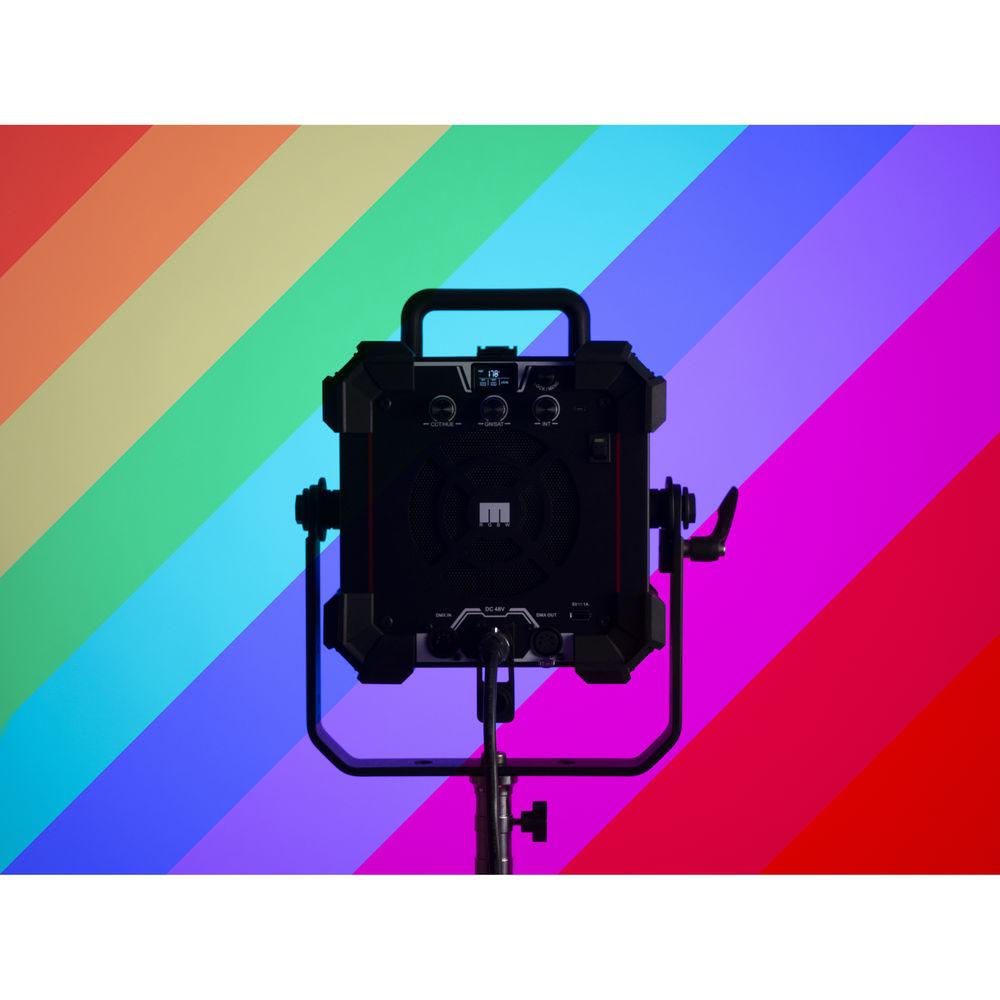

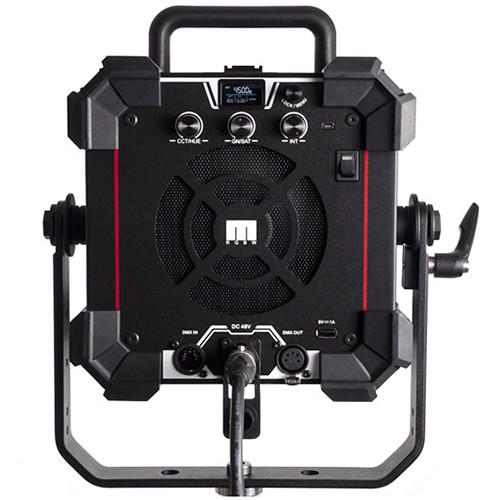

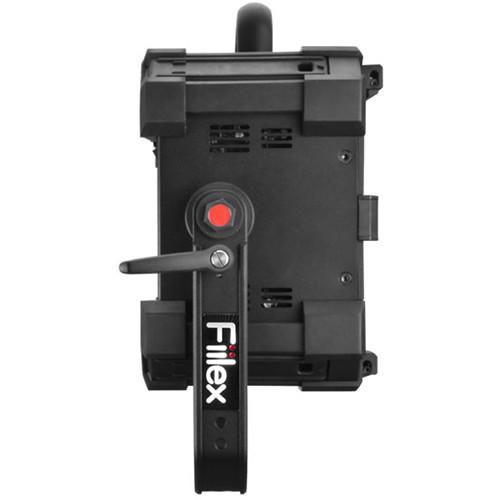

Product description The Fiilex Matrix II RGBW Bi-Color Cinematic Quad-Source LED Punch Light is an advanced 6.7 x 12.2 x 16.5" light source that employs red, green, blue, and white LEDs that give it the ability to render literally millions of colors, while investing it with an expansive color temperature range of 2800 to 10,000K and a high CRI rating of 93. Other controls include +/-0.25 magenta/green adjustment as well as 0-100% flicker-free dimming. These settings can be made locally on the fixture or remotely on a console via onboard DMX. The fixture also has a USB port for updating firmware and for powering wireless DMX antennas. The Matrix II has wide 99-degree beam coverage that can be shaped with optional barndoors or a 31-degree Fresnel lens that adds "punch" to the output for selective lighting or long-throw work. One of the benefits of LED use is cool, comfortable running temperature coupled with high output and low power consumption, and while the Matrix II consumes just 340 W, it outputs the equivalent of a 1000W tungsten soft light. The fixture has an Advanced Vapor (fan) Cooling System and a yoke with a combination 1 1/8" Junior pin and 5/8" Baby receiver. The Matrix II is ready for worldwide use thanks to its 100 to 240 VAC power supply, but it can also run on optional 48V batteries when mains current is unavailable. - Benefits
-

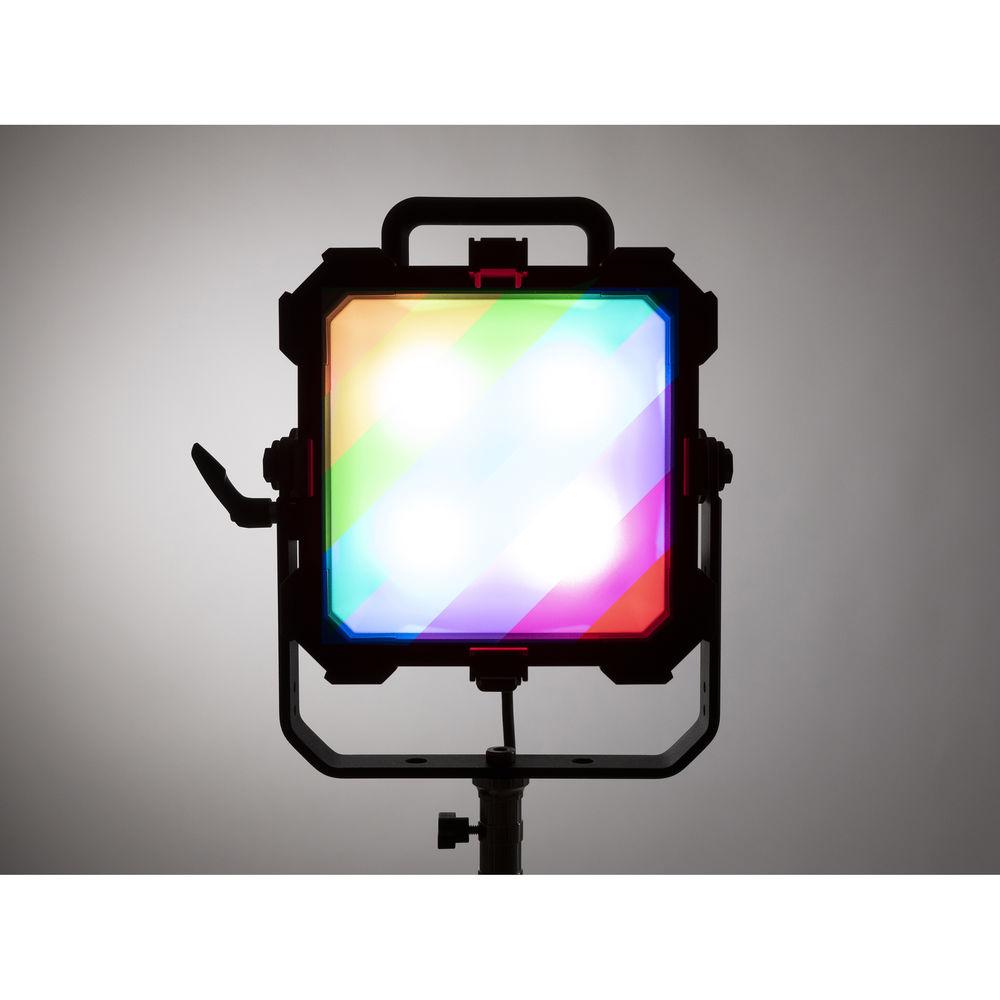

- Full RGBW control
- Custom multi-wavelength LED groups deliver rich, bright color
- Wide 99° beam, or 31° optional Fresnel accessory for added punch
- Smooth dimming down to 0% without flicker
- RDM/DMX512
- 5V/1A USB powers wireless DMX
- IP-24 weather resistant
- XLR power input compatible with 48V battery power
- Future-proof: ability to upgrade firmware in the field
- Compatible with industry-standard softboxes and octabanks via speed ring accessory
- Lightweight (9.7 lb) vs. comparable fixtures
- High-durability aluminum housing and rugged exterior
- Single light kit falls within most airline checked bag weight limits
UPC: 092145342978 In the Box Fiilex Matrix II RGBW Bi-Color Cinematic Quad-Source LED Punch Light AC Adapter Clamp Mount Cord Tie Limited 1-Year Warranty Data Sheet PDF 692.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex Matrix II RGBW Bi-Color Cinematic Quad-Source LED Punch Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex Matrix II RGBW Specs | | | Beam Angle | 99° | | Color Temperature | 2800 to 10,000K | | Color Accuracy Standard | CRI 93 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Housing Material | Aluminum | | Photometrics | 99° at 3200K:
148 fc / 1592.5 lux at 9.84' / 3 m
99° at 5600K:
154 fc / 1657 lux at 9.84' / 3 m | | Fixture Dimensions | Flood: 6.7 x 12.2 x 16.5" / 17.0 x 31.0 x 41.9 cm | | Fixture Weight | 9.7 lb / 4.40 kg (Including Yoke) | | | | Battery Plate | None | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 340 W | | | | Power Supply Weight | 5.7 lb / 2.59 kg | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 22.45 lb | | Box Dimensions (LxWxH) | 24.4 x 16.1 x 13.0" |
