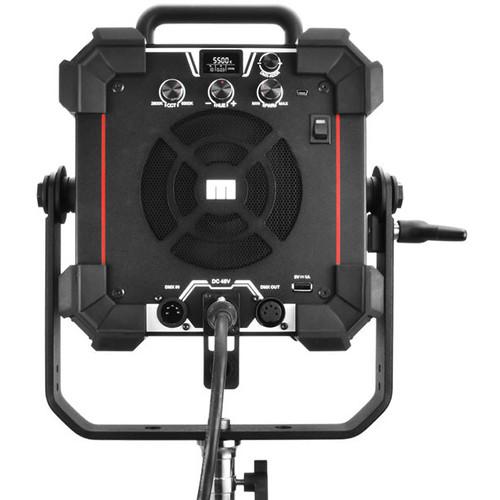

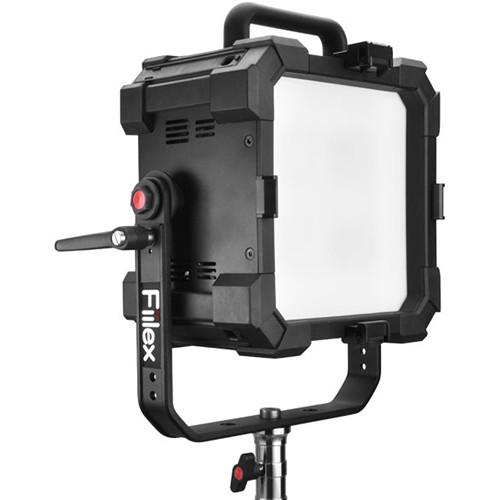

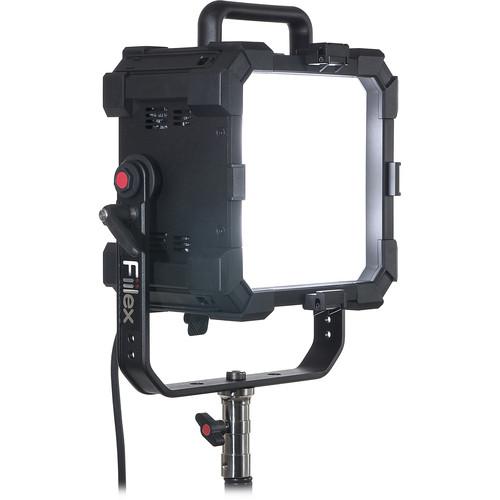

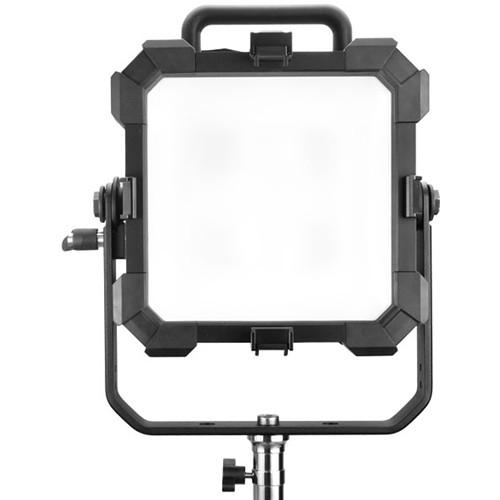

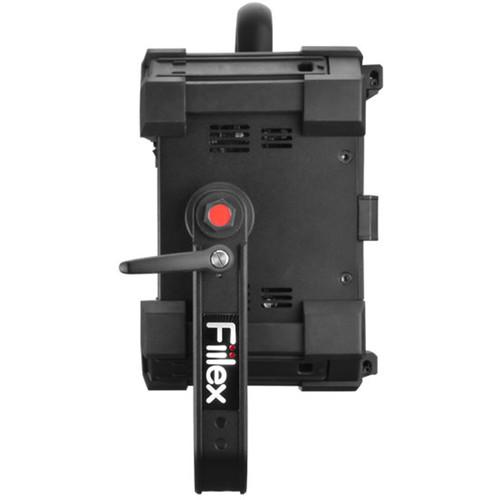

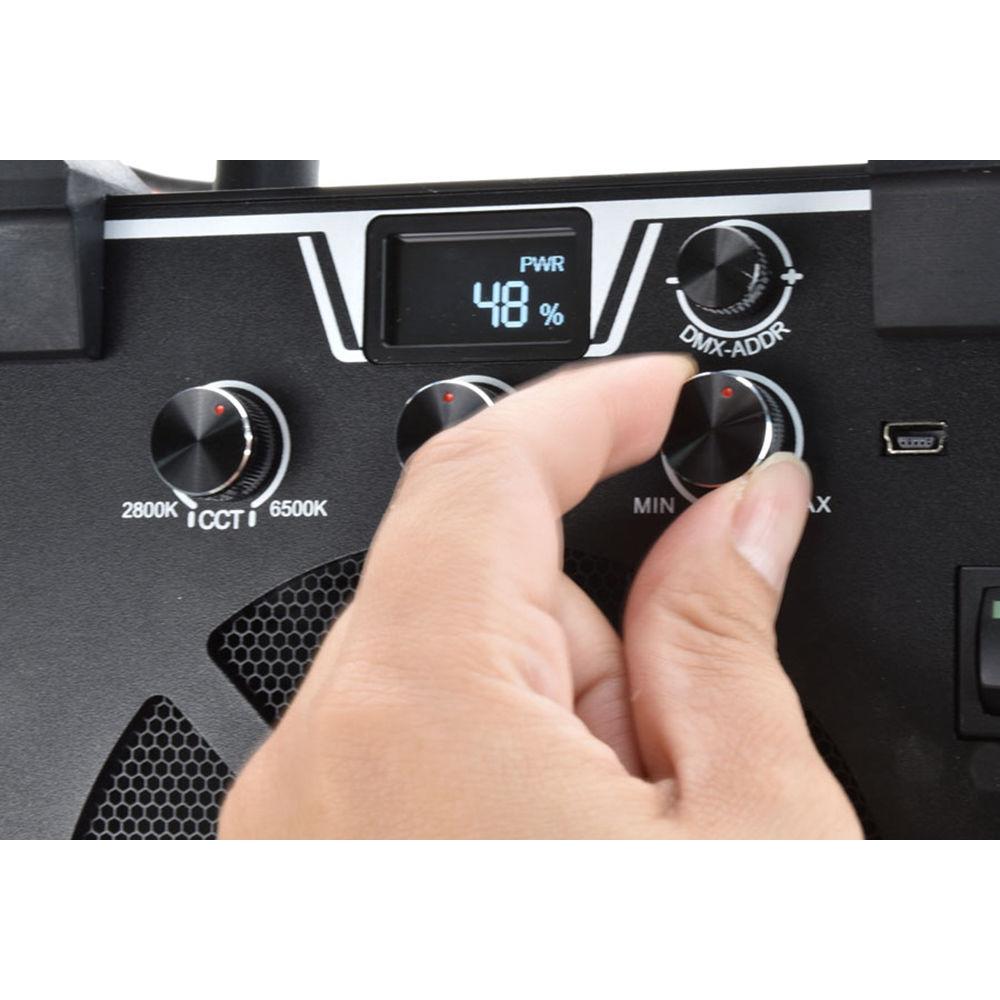

Product description The Fiilex Matrix II Tunable White Bi-Color Cinematic Quad-Source LED Punch Light is an advanced 6.7 x 12.2 x 16.5" light source that uses Quad 75W DiCon Dense Matrix LEDs to render an expansive color temperature range of 2800 to 6500K while maintaining a high CRI rating of 96, an indicator of an accurate color rendition. Other controls include +/-0.25 magenta/green adjustment as well as 0-100% flicker-free dimming. These settings can be made locally on the fixture or remotely on a console via onboard DMX. The fixture also has a USB port for updating firmware and for powering wireless DMX antennas. The Matrix II has wide 99-degree beam coverage that can be shaped with optional barndoors or a 31-degree Fresnel lens that adds "punch" to the output for selective lighting or long-throw work. One of the benefits of LED use is cool, comfortable running temperature coupled with high output and low power consumption, and while the Matrix II consumes just 340 W, it outputs the equivalent of a 1000W tungsten soft light. The fixture has an Advanced Vapor (fan) Cooling System and a yoke with a combination 1 1/8" Junior pin and 5/8" Baby receiver. The Matrix II is ready for worldwide use thanks to its 100 to 240 VAC power supply, but it can also run on optional 48V batteries when mains current is unavailable. - Benefits
-
- Quad 75W DiCon Dense Matrix LED
- Tunable Color: 2800-6500K,
|
Upload User Manual
Have you got an user manual for the Fiilex Matrix II Tunable White Bi-Color Cinematic Quad-Source LED Punch Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex Matrix II Tunable Specs | | | Beam Angle | 99° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 96 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Housing Material | Aluminum | | Photometrics | 99° at 3200K:
117 fc / 1258.9 lux at 9.84' / 3 m
99° at 5600K:
155 fc / 1667.8 lux at 9.84' / 3 m | | Fixture Dimensions | Flood: 6.7 x 12.2 x 16.5" / 17.0 x 31.0 x 41.9 cm | | Fixture Weight | 9.7 lb / 4.40 kg (Including Yoke) | | | | Battery Plate | None | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 340 W | | | | Power Supply Weight | 5.7 lb / 2.59 kg | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 22.45 lb | | Box Dimensions (LxWxH) | 24.3 x 16.4 x 13.1" |
