User Manual for Fiilex - P101 Battery-Powered LED Light Click to enlarge the picture
Contents of the user manual for the Fiilex - P101 Battery-Powered LED Light
- Product category: On Camera Lights Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others On Camera Lights
|
User manual for the Fiilex - P101 Battery-Powered LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

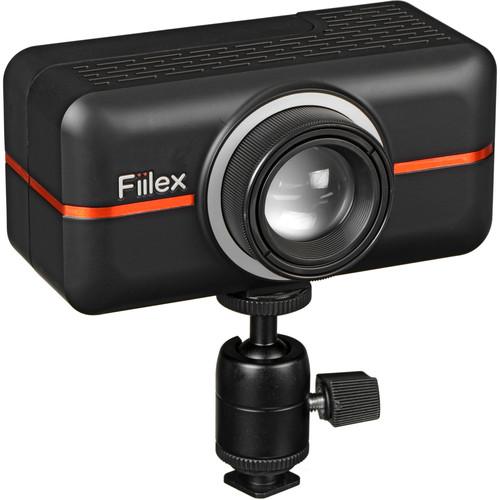

Product description An asset on-camera or off, the Fiilex P101 Battery-Powered LED Light, also called the "Brick", was originally designed for use as an "eye light" to add sparkle to the eyes and slightly illuminate the area around the eyes for effect. It soon became obvious that this was much more than a specialized product. The fixture has a host of features that make it very handy on set, beginning with its diminutive 5.8 x 2.8 x 2.8" form factor and light 0.59 lb weight. It also has variable beam spread from 26 to 50 degrees for flexible coverage.The P101 features Dynamic Color Tunability technology that allows color temperature adjustment from a warm 3000K to daylight 5600K balance, while maintaining a CRI/TLCI rating of 93/96 without color shift. The light is dimmable from 0-100%, without flicker. The P101 is ready for worldwide use thanks to its 100-240 VAC power supply/charger, but it will also give you two hours run time on the included Li-ion rechargeable battery. Unlike its predecessor, the P100, the battery on the P101 charges inside the unit, and is removable and swappable with a previously charged battery. (Batteries from the P100 are not compatible with the P101). The P101 comes with a battery, charger/power supply, and a cold shoe with mini ball head for flexibility when mounted on a camera. - Handheld Color Tuning
- The P101 has Dynamic Color Tunability, allowing it to produce any color temperature of white light between 3000 and 5600K (tungsten/daylight), with an impressively high Color Reproduction Index (CRI) of 92. It is designed for travelers, event shooters, and creative image makers in need of high-quality specular light in a portable and unobtrusive form. Ideal for adjusting lighting to match the surrounding environment, or add warmth to a scene.
- Light in the Palm of Your Hand
- This high CRI, 100W light is a well of possibilities. With a form factor designed for most surfaces, the P101 can be utilized for many different situations such as a catch light, an on-camera light, or even a three-point lighting setup. With batteries that last up to two hours, you'll find that the P101 is the ideal companion for image makers on the move.
- "The Brick"
- The P101 is a powerhouse of a light in a small package—a 12W professional LED light that will fit just about anywhere. The P101 has a focusable lens to adjust the beam angle, and side dials to dim the light and change color temperature.
UPC: 092145339770 In the Box Fiilex - P101 Battery-Powered LED Light Rechargeable Battery Cold Shoe with Mini Ball Head AC/DC Power Adapter (Wall Charger) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex - P101 Battery-Powered LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex P100 Specs | Light Source | Dense Matrix LED | | Cooling | Passive cooling system (without fan) | | Color Temperature | Continuous from 3000 to 5600K | | Beam Angle | 26 - 50° | | Photometrics | 50° Flood:
At 3000K: 3.0 fc/34 lux at 9.8' (3.0 m) with beam diameter of 8.1' (2.5 m)
At 5600K: 4.0 fc/43 lux at 9.8' (3.0 m) with beam diameter of 8.1' (2.5 m)
26° Spot:
At 3000K: 5.0 fc/54 lux at 9.8' (3.0 m) with beam diameter of 4.3' (1.3 m)
At 5600K: 6.0 fc/65 lux at 9.8' (3.0 m) with beam diameter of 4.3' (1.3 m) | | Dimming | 0 - 100% | | CRI / TLCI | At 3000K: 93/96
At 5600K: 90/93 | | Mount Type | 1/4"-20 female thread
Cold shoe with mini ball head | | Power | With AC Adapter: 100 - 240 VAC, 50/60 Hz (Input), 12 VDC, 12 W (output)
Rechargeable Li-Ion Battery: 11.1 V 2600 mAh, 29 Wh
Run Time: 2 hours | | Power Consumption | 12 W max | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.8 x 2.8 x 2.8" (14.7 x 7.1 x 7.1 cm) | | Weight | 0.59 lb (0.27 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 11.5 x 7.5 x 3.7" |
