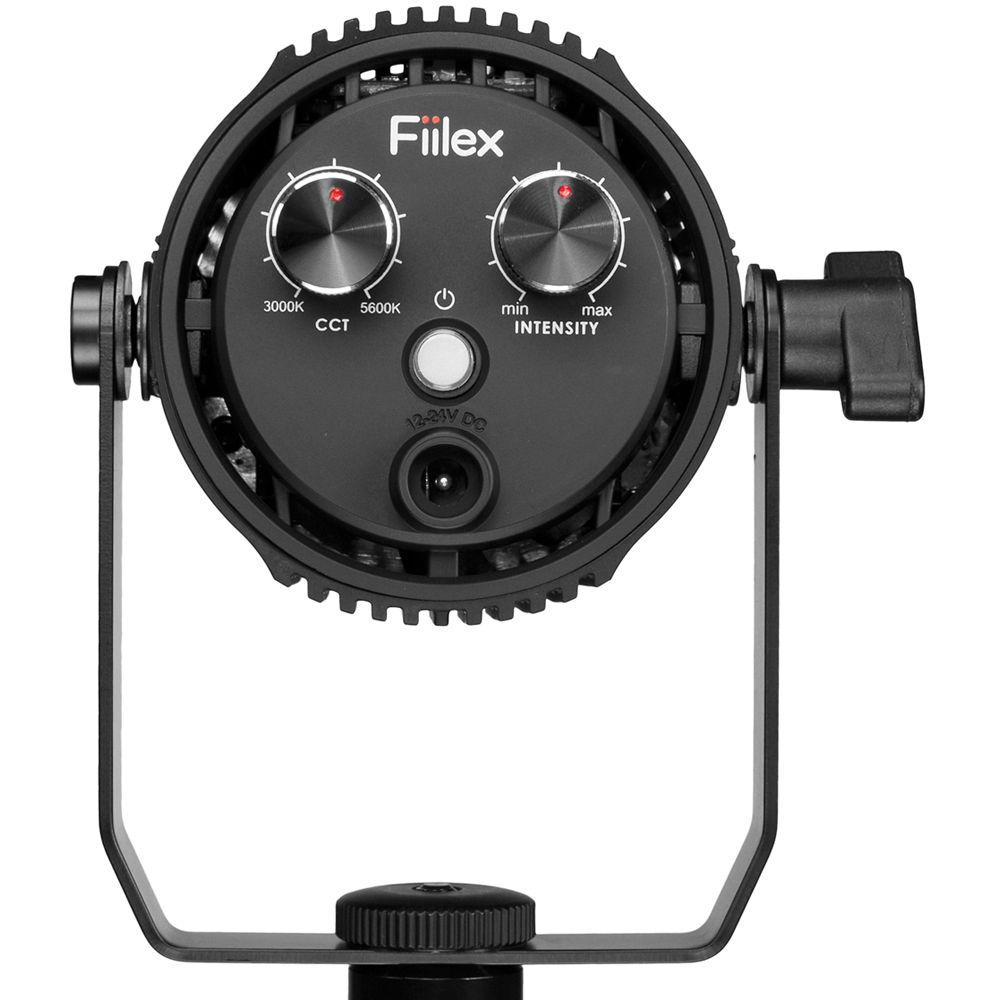

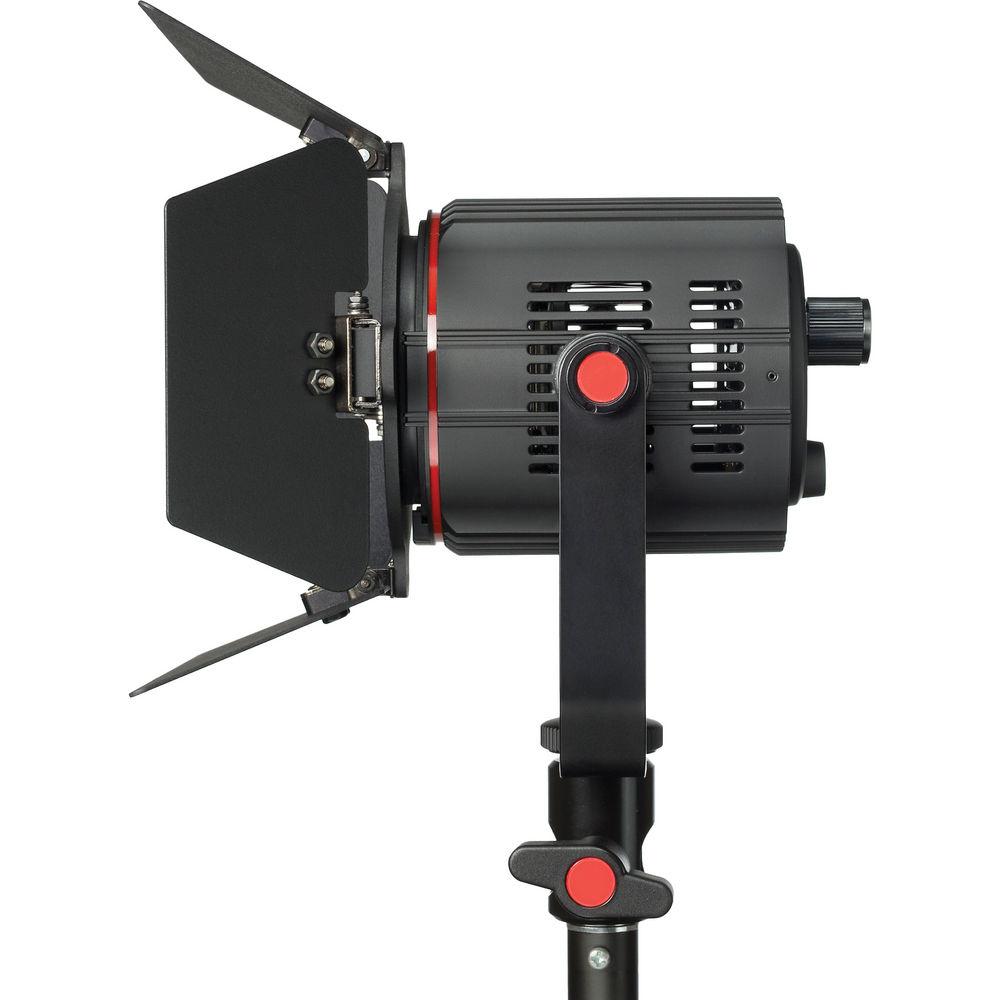

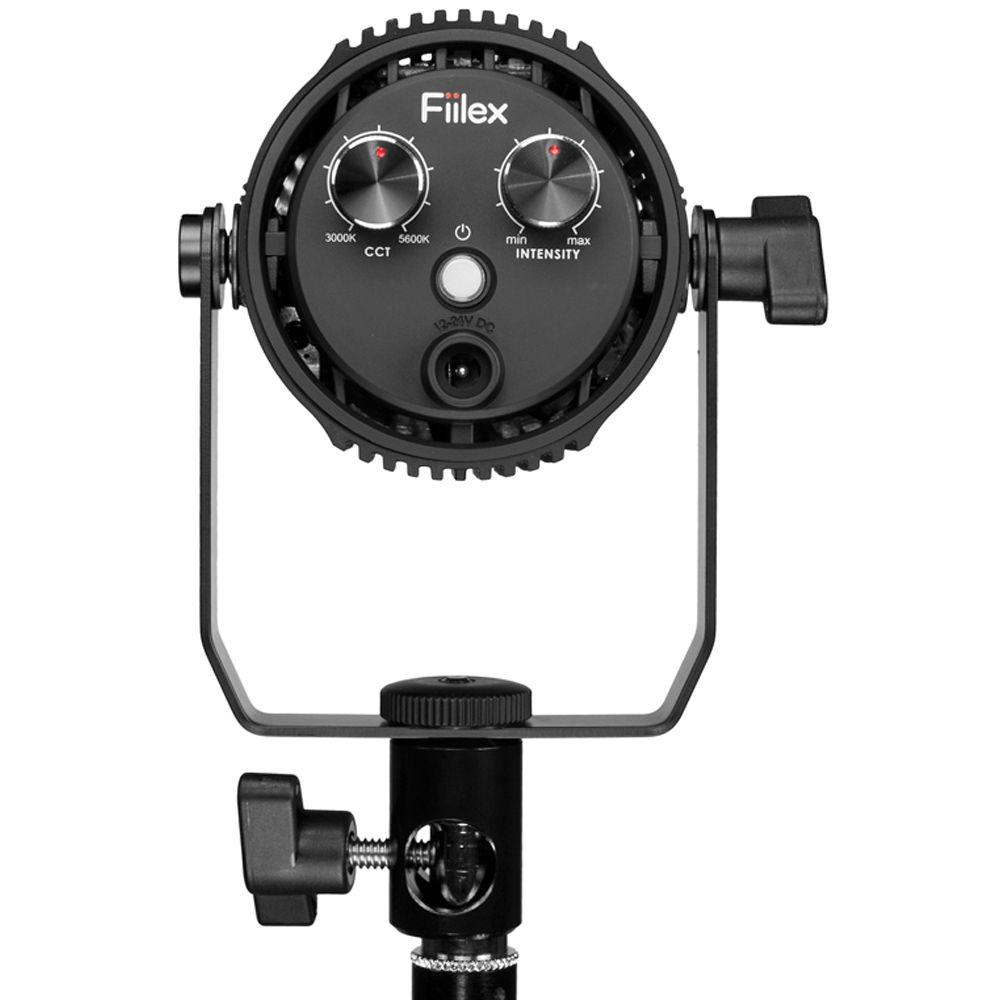

Fiilex P180E On-Camera LED Light

User Manual for Fiilex P180E On-Camera LED Light

• Product category: LED Lights Fiilex
• Brand: Fiilex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fiilex LED Lights

Product description

• P180 - ENG Lighting

Full Spectrum Color Tuning
• The P180E has the ability to smoothly tune the spectrum of light producing any color temperature of white light with a high CRI of 92

Ultra Efficient Light Source
• No heat, no gels, no sweat. The P180E only draws 40 watts, yet gives an equivalent tungsten power output of nearly 250W. Low draw means longer run times and lamp life measured in years rather than hours

Water Resistant Design
• Built to overcome ever-changing field conditions, the P180E has an IP-24 Rating and can withstand an impressive amount of exposure to direct streams of water such as rain, splashes, and misting. The optional Rain Shield gives the P180 an IP-25 rating for even further weather protection in severe conditions

Super Compact Design
• The P180E is one of the smallest professional lights on the market allowing the creation of a miniature three light kit that is roughly the size of a child's lunchbox

Additional Features
• Highly portable specular LED light
• Dimming (10-100%)
• Tunable color temperature: 3000-5600K
• Broadband full spectrum LED source
• CRI 92 over all color temperatures
• Single point dense matrix LED light source
• Flicker-free at any frame rate
• Cool to touch
• Simple to use magnetic accessory mount
• IP-24 water resistant (IP-25 with rain shield)
• On and off capability out of box
• Compatible with broadcast batteries

Applications
• On-camera ENG shooting
• Accent lighting
• Outdoor usage
• Event lighting
• Chroma key

Photometrics
• Full Flood at 3000K
  40 fc/433 lux @ 5.0' (1.5 m) with beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
  12 fc/128 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
  6.0 fc/63 lux @ 15.0' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
  Full Flood At 5600K
  56 fc/590 lux @ 5.0' (1.5 m) with a beam diameter of 6.0' (2.0 m) and field diameter of 14' (4.0 m)
  17 fc/185 lux @ 10' (3.0 m) with a beam diameter of 12.5' (4.0 m) and field diameter of 28' (8.5 m)
  8.6 fc/93 lux @ 15' (4.6 m) with a beam diameter of 19' (6.0 m) and field diameter of 42' (13 m)
  Spot at 3000K
  68 fc/732 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
  19 fc/203 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0 m)
  9.0 fc/96 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0)
  Spot at 5600K
  83 fc/892 lux @ 5.0' (1.5 m) with a beam diameter of 2.6' (0.8 m) and field diameter of 5.3' (1.6 m)
  23 fc/247 lux @ 10' (3.0 m) with a beam diameter of 5.0' (1.6 m) and field diameter of 11' (3.0)
  11 fc/116 lux @ 15' (4.6 m) with a beam diameter of 8.0' (2.4 m) and field diameter of 16' (5.0 m)
