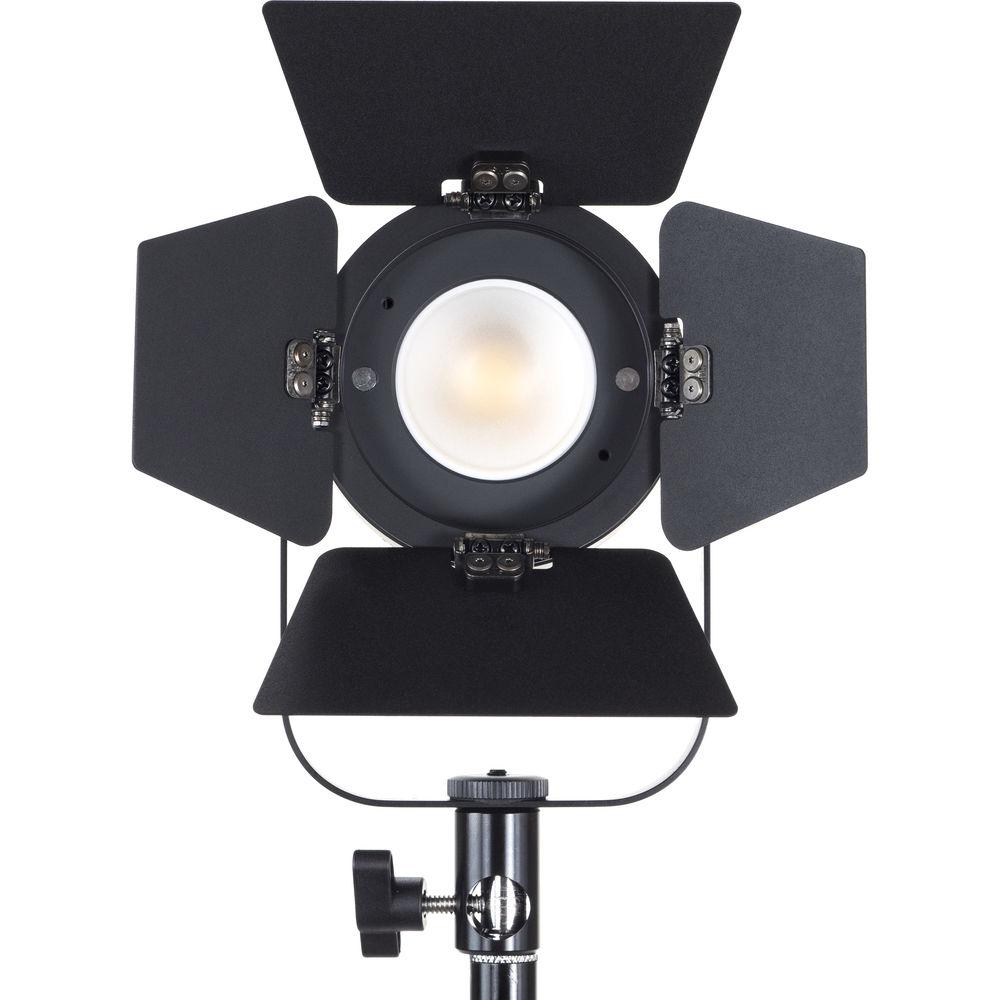

User Manual for Fiilex P360 Classic LED Light Click to enlarge the picture
Contents of the user manual for the Fiilex P360 Classic LED Light
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
 |
User manual for the Fiilex P360 Classic LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|

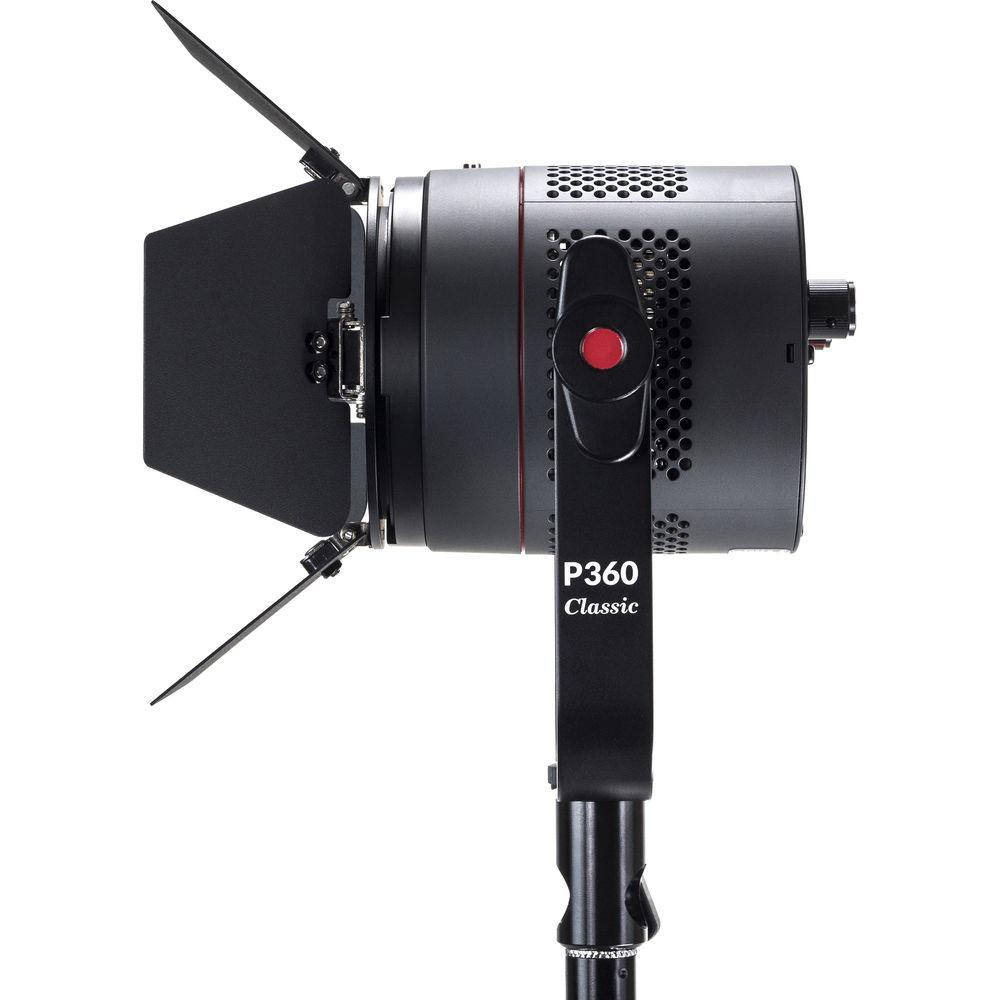

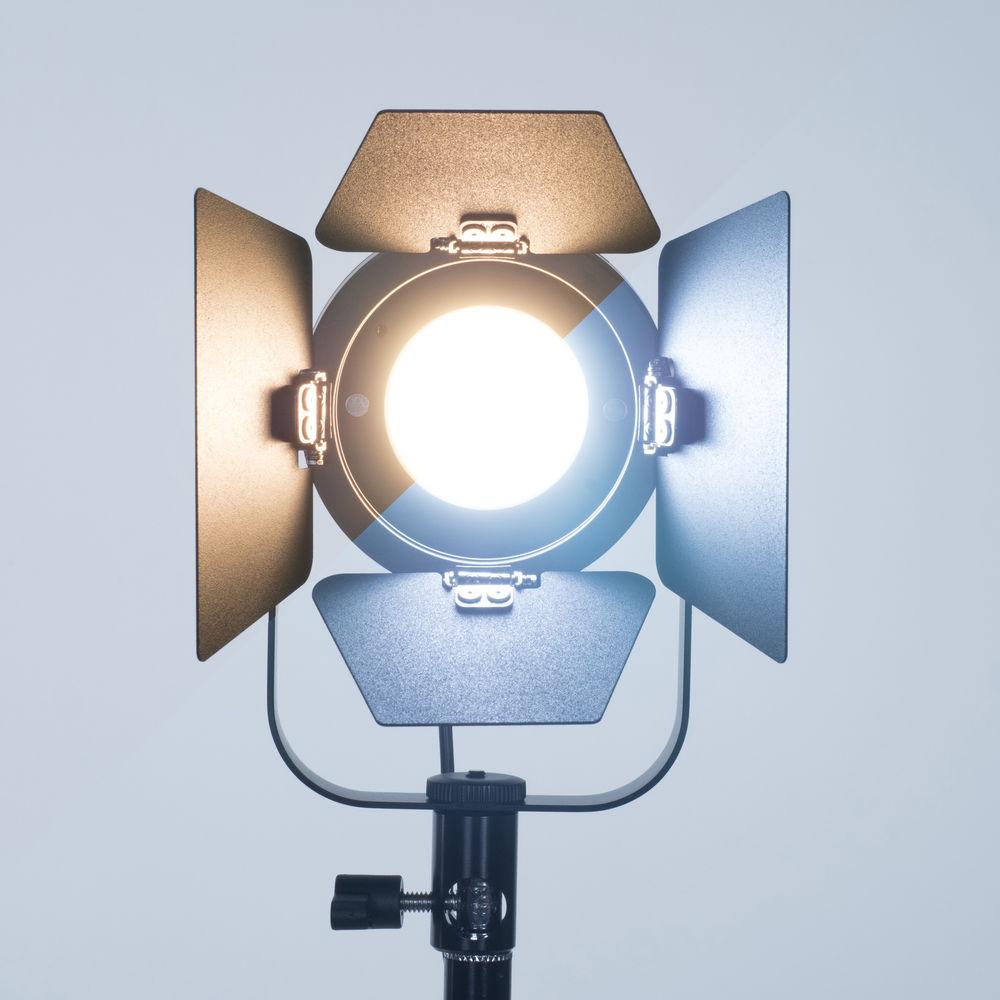

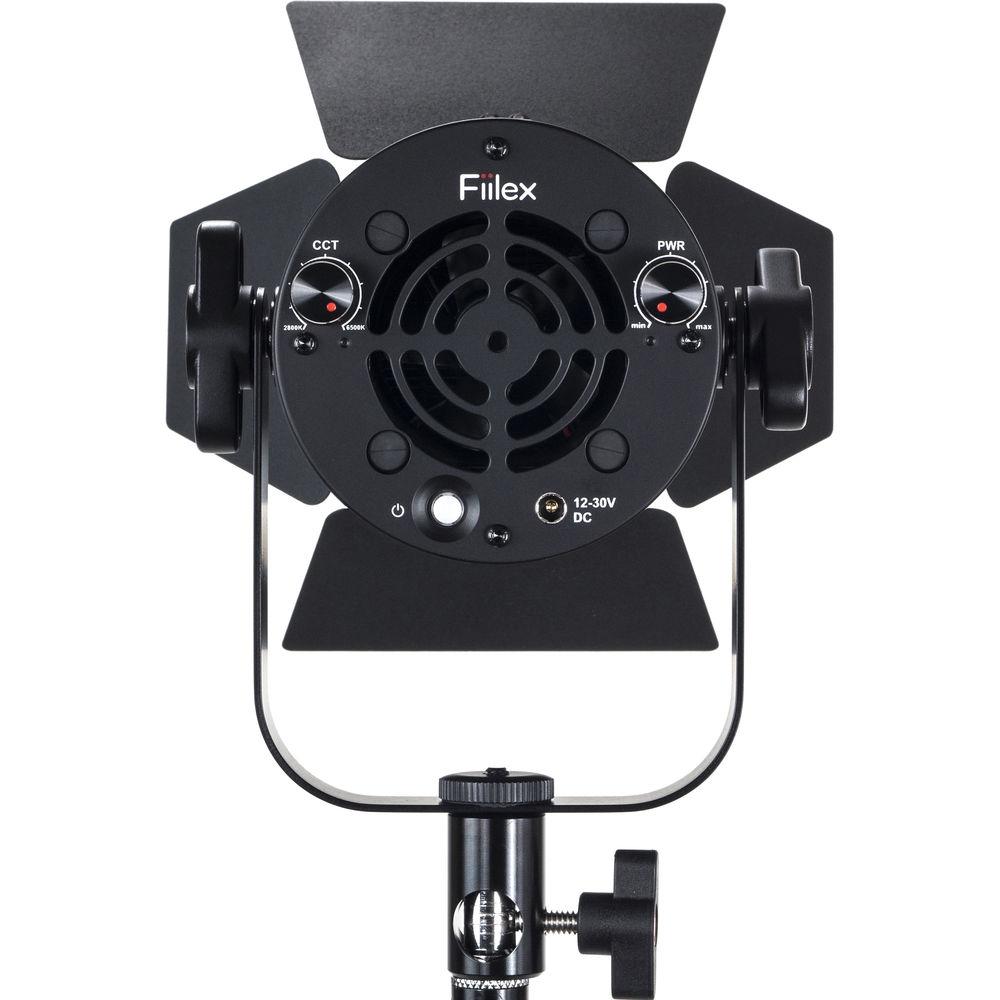

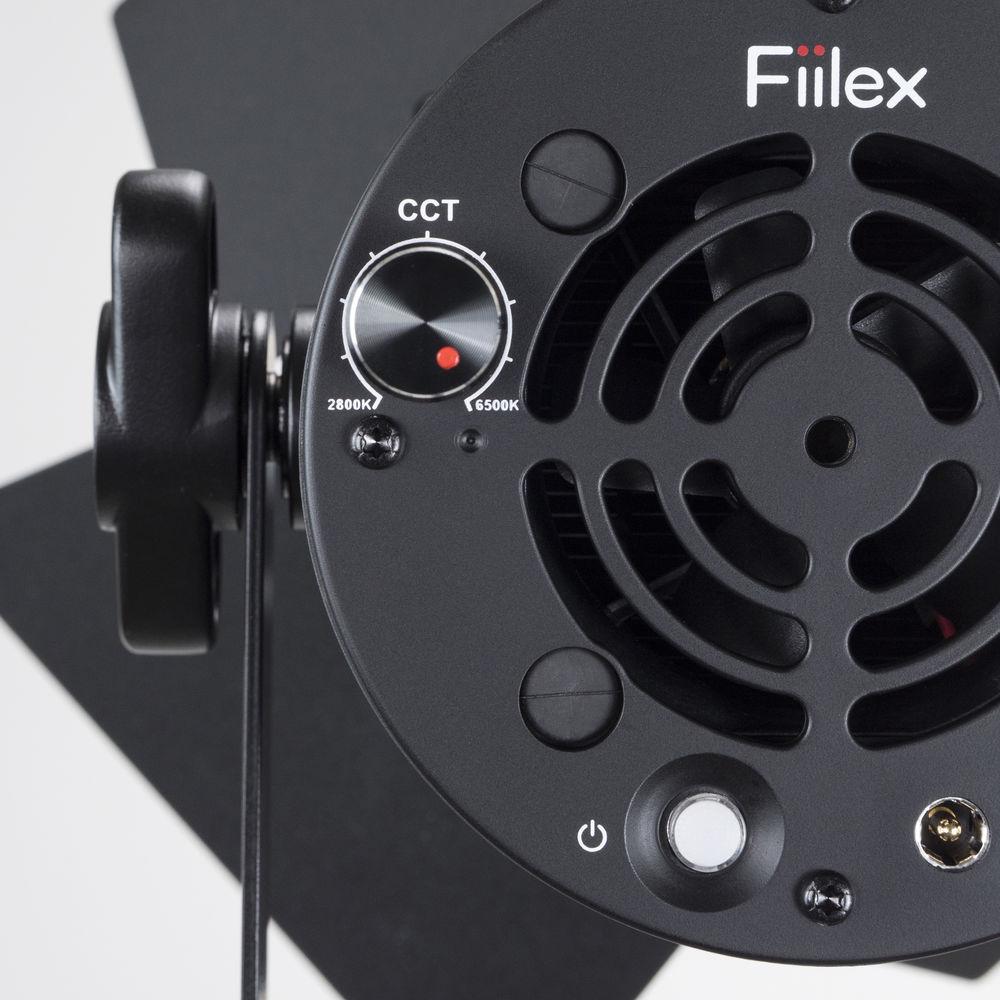

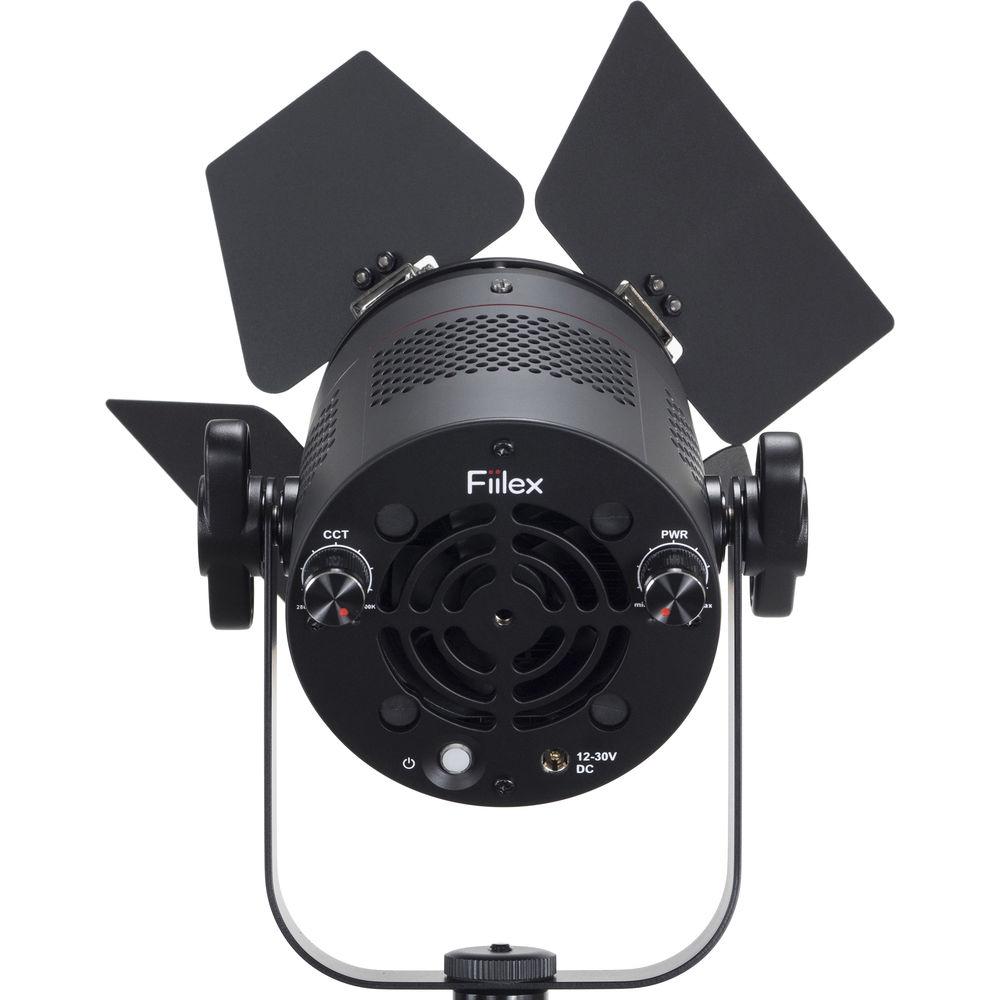

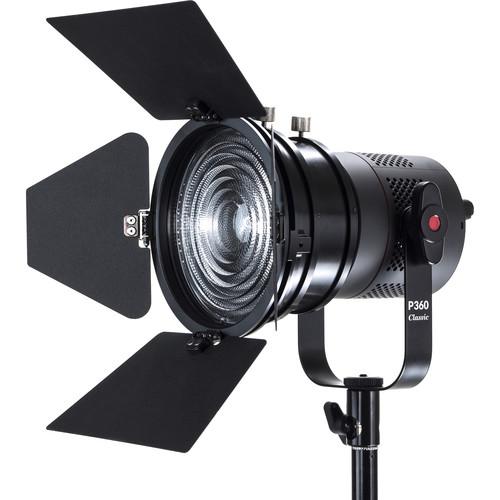

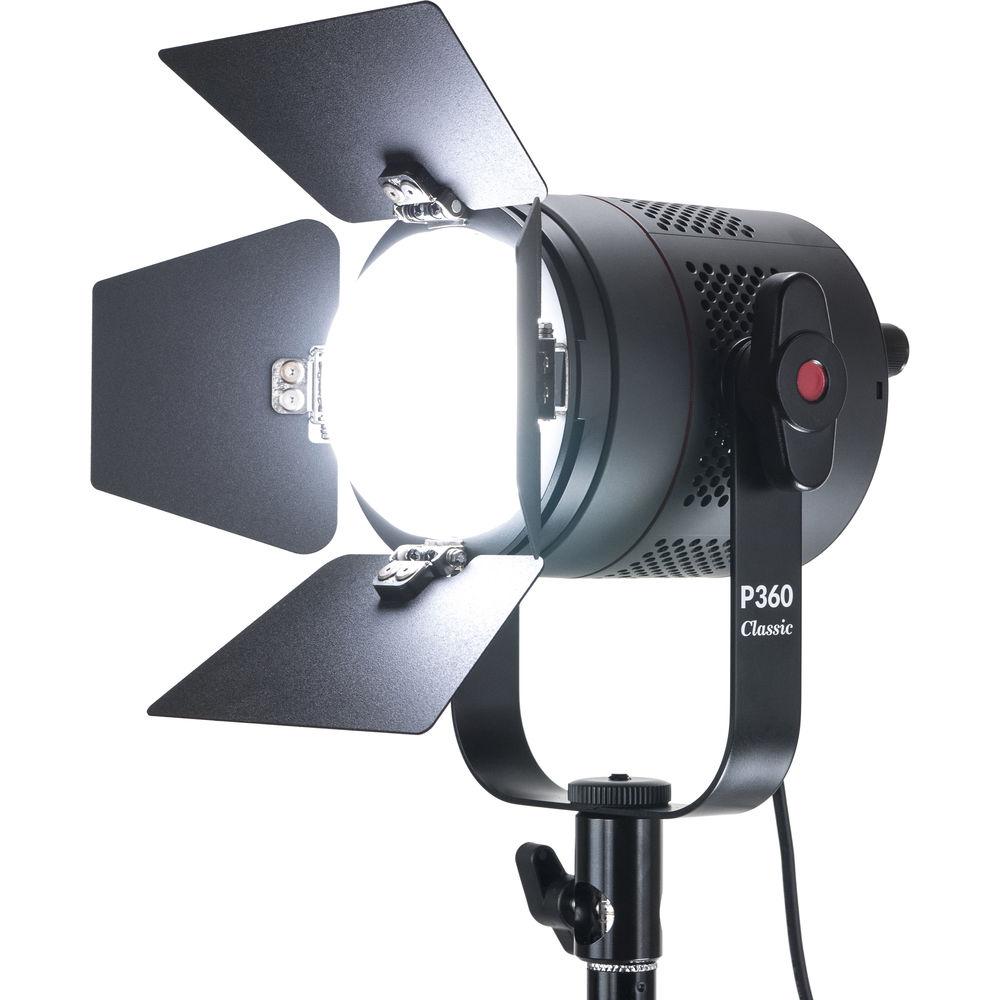

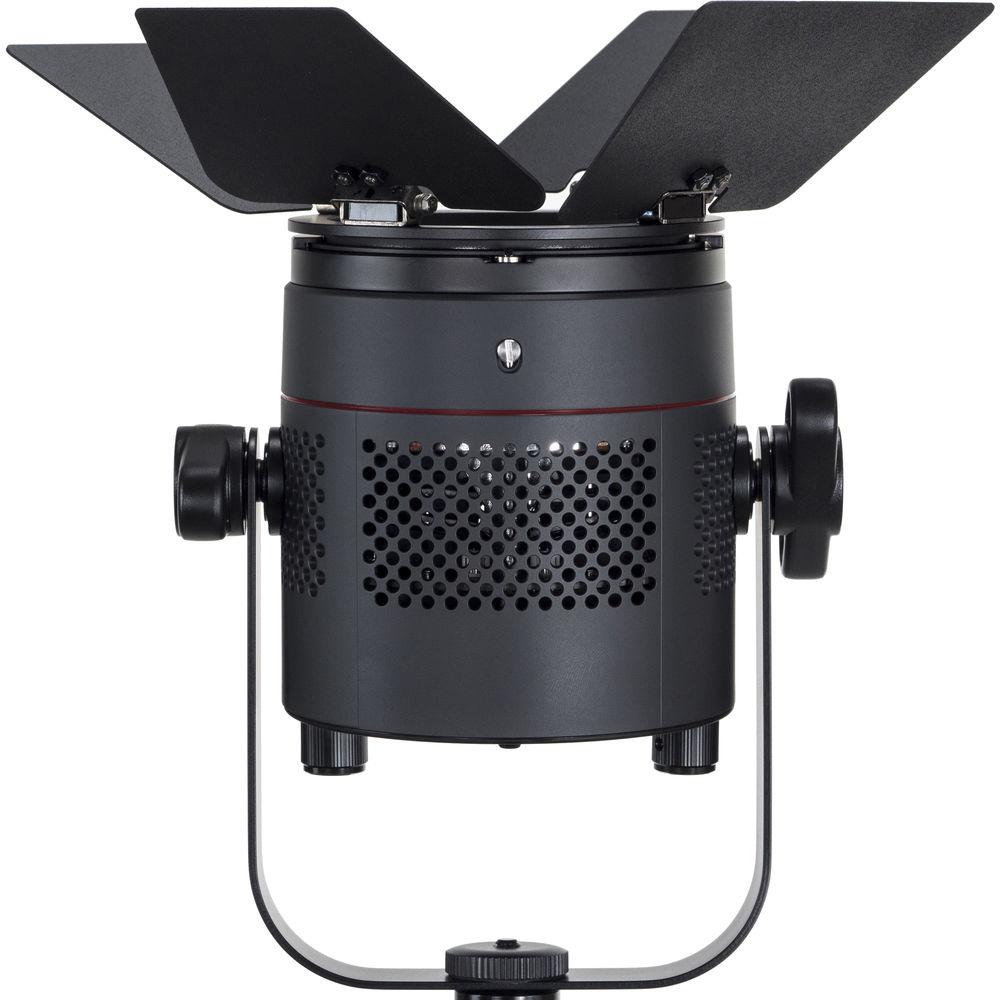

Product description Ideal for on-camera video work, the P360 Classic LED Light from Fiilex has an expanded variable color temperature range compared with its predecessor of 2800 to 6500K and a high CRI/TLCI rating of 93/96 at 5600K, indicating an accurate rendition of color. The P360 Classic employs a 50-diode Dense Matrix LED array that could fit on a dime and renders a brighter flicker-free output than its predecessor with a beam angle of 65 degrees. At only 1.8 lb with an 8.1 x 5.8 x 4.8" form factor, the P360 Classic is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low current draw which translates to low running costs and long running times. Besides the AC adapter, the P360 Classic ships with a set of 4-way barndoors. - Photometrics
- Without Lens: 65-Degrees at 3000K
432 lux / 194 fc @ 3.3' (1.0 m)
48 lux / 22 fc @ 9.8' (3.0 m)
17 lux / 8 fc @ 16.4' (5.0 m)
Without Lens: 65 Degrees at 5600K
603 lux / 271 fc @ 3.3' (1.0 m)
67 lux / 30 fc @ 9.8' (3.0 m)
24 lux / 11 fc @ 16.4' (5.0 m) UPC: 092145341940 In the Box Fiilex P360 Classic LED Light 90W AC Adapter for P360, P200 and P180E LED Lights 4-Way Barndoors for P360 and P360EX LED Lights Limited 1-Year Warranty Data Sheet PDF 1003.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex P360 Classic LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex P360 Classic Specs | | | Beam Angle | 65° | | Color Temperature | 6500K | | Color Accuracy Standard | CRI 93 at 5600K
CRI 94 at 3000K
TLCI 96 at 5600K
TLCI 96 at 3000K | | Cooling System | Fan | | Dimming | Yes, 20 to 100% (Continuous) | | Display | None | | Fixture Dimensions | Overall: 8.1 x 5.8 x 4.8" / 20.6 x 14.7 x 12.2 cm | | Fixture Weight | 1.83 lb / 0.83 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 30 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 90 W | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 12.9 x 7.4 x 6.0" |
