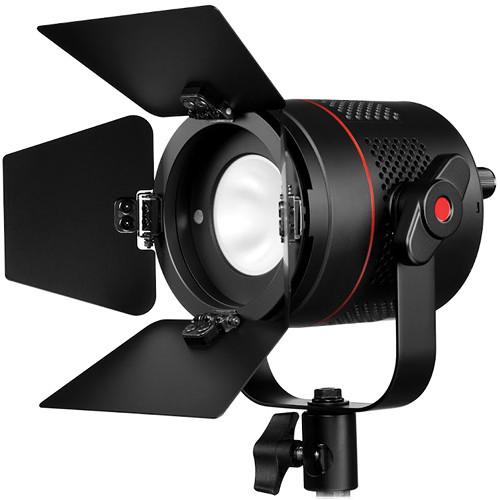

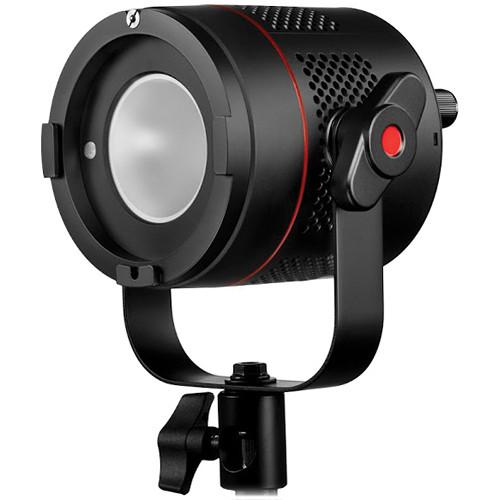

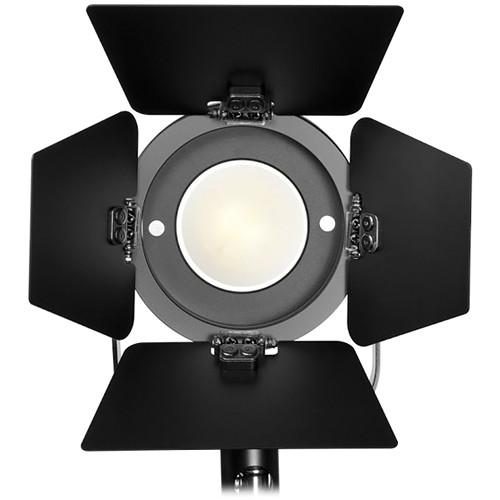

Product description Ideal for on camera or off camera video work, the P360EX Variable Color LED Light from Fiilex features 3000-5600K adjustable color temperature and a high CRI (Color Rendering Index) rating of 92. The P360EX employs a 50-diode Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a native beam angle of 65 degrees or 30 degrees with optional Fresnel lens. Light intensity is variable from 100-0% and can be adjusted manually or remotely via DMX with separate purchase of the Fiilex DMX Connection Box. At only 1.6 lb with a 4" diameter form factor, the P360EX is a natural as a location light and can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC adapter, the P360EX ships with a set of 4-way barndoors. - Full Spectrum Color Tuning
- The P360EX has the ability to smoothly tune the spectrum of light producing variable color temperatures of 3000-5600K
- Ultra Efficient Light Source
- The P360EX draws only 90W while outputting the equivalent of a 400W traditional tungsten light source. The LED source can last 10 to 15 years
- Weather Ready
- The P360EX has an IP-24 rating and will operate in inclement weather conditions.
- DMX Control Ready with Optional DMX Box
- The P360EX is DMX control capable with separate purchase of the optional DMX Connection Box. With only one box, you can daisy chain all of your lights together and control them from one panel, or use multiple boxes for individual control. Each box features 512 addresses, an LCD display, 5-pin XLR in/out, RJ45 in/out, and comes with the Power Adapter Holder to mount the box and the adapter to a light stand
- Compact, Lightweight, Ideal for Travel

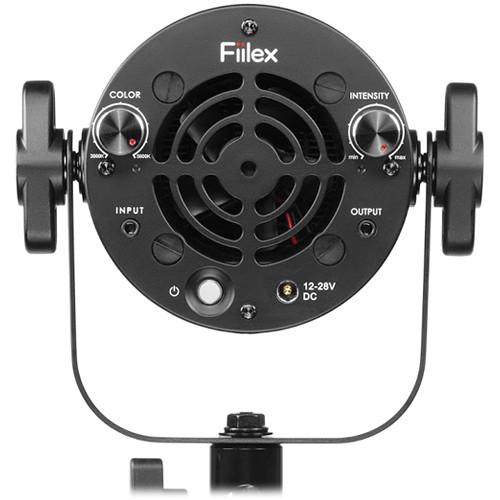

- Weighing in at 1.6 lb, the P360EX is one of the lightest and most powerful light sources out there. The 12-28 VDC power input allows the P360EX to be used with all major battery brands
- Additional Features
-
- Dimming (10-100%)
- Full-spectrum light quality without spikes
- Single-point dense matrix LED light source
- Flicker-free at any frame rate
- Cool to the touch
- Compatible with broadcast batteries
- Solid state technology, no bulbs to replace
- Does not emit UV light/radiation
- Applications
-
- Location lighting
- Event lighting
- Still photography
- Chroma key
- Photometrics
- Full Flood at 3000K
61.4 fc/661 lux at 5.0' (1.5m) with beam diameter of 6.2' (2.0m) and field diameter of 14' (4.3m)
16.5 fc/178 lux at 10' (3.0m) with a beam diameter of 12.5' (3.8m) and field diameter of 28' (8.5m)
7.9 fc/85 lux at 15.0' (4.6m) with a beam diameter of 18.7' (5.7m) and field diameter of 42' (12.8m)
Full Flood At 5600K
71 fc/764 lux at 5.0' (1.5m) with beam diameter of 6.2' (2.0m) and field diameter of 14' (4.3m)
19 fc/206 lux at 10' (3.0m) with a beam diameter of 12.5' (3.8m) and field diameter of 28' (8.5m)
9.2 fc/99 lux at 15.0' (4.6m) with a beam diameter of 18.7' (5.7m) and field diameter of 42' (12.8m)
Spot at 3000K (with Optional Fresnel Lens)
144 fc/1556 lux at 5.0' (1.5m) with beam diameter of 2.6' (0.79m) and field diameter of 5.3' (1.6m)
37.2 fc/401 lux at 10' (3.0m) with a beam diameter of 5.2' (1.58m) and field diameter of 10.6' (3.24m)
17 fc/183 lux at 15.0' (4.6m) with a beam diameter of 7.8' (2.36m) and field diameter of 16' (4.8m)
Spot at 5600K (with Optional Fresnel Lens)
182 fc/1956 lux at 5.0' (1.5m) with beam diameter of 2.6' (0.79m) and field diameter of 5.3' (1.6m)
47.2 fc/508 lux at 10' (3.0m) with a beam diameter of 5.2' (1.58m) and field diameter of 10.6' (3.24m)
21.5 fc/232 lux at 15.0' (4.6m) with a beam diameter of 7.8' (2.36m) and field diameter of 16' (4.8m) UPC: 092145338124 In the Box Fiilex P360EX Variable Color LED Light Set 4-Way Barndoors AC/DC Power Adapter Limited 2-Year Warranty User Manual PDF 847.9kbwsezuvaqevuqzfrfzxxufcdtascbswwf Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex P360EX Variable Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex P360EX Specs | | | Beam Angle | 65° | | Color Temperature | 3000 to 5600K | | Color Accuracy Standard | CRI 92 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Fixture Dimensions | 4.0 x 4.0 x 4.7" / 10.2 x 10.2 x 12.0 cm | | Fixture Weight | 1.6 lb / 0.74 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 90 W | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 13.0 x 7.4 x 6.1" |
