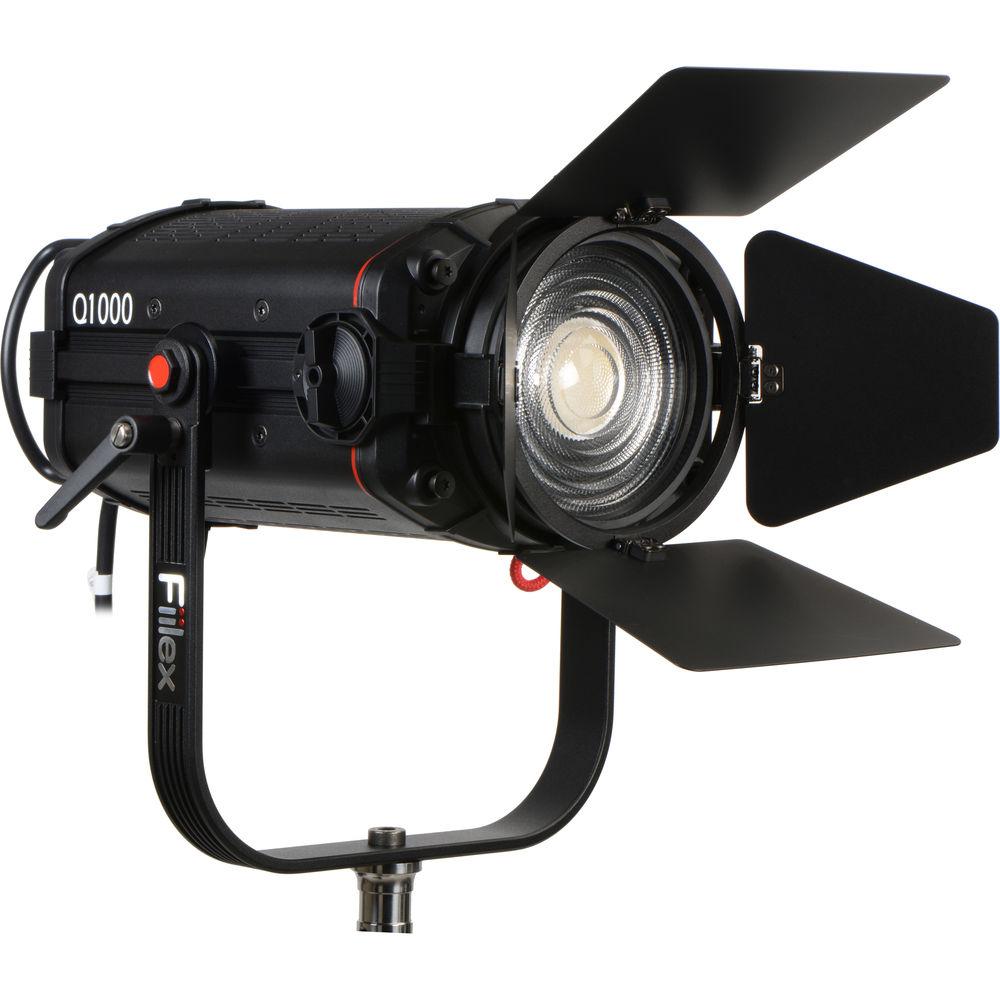

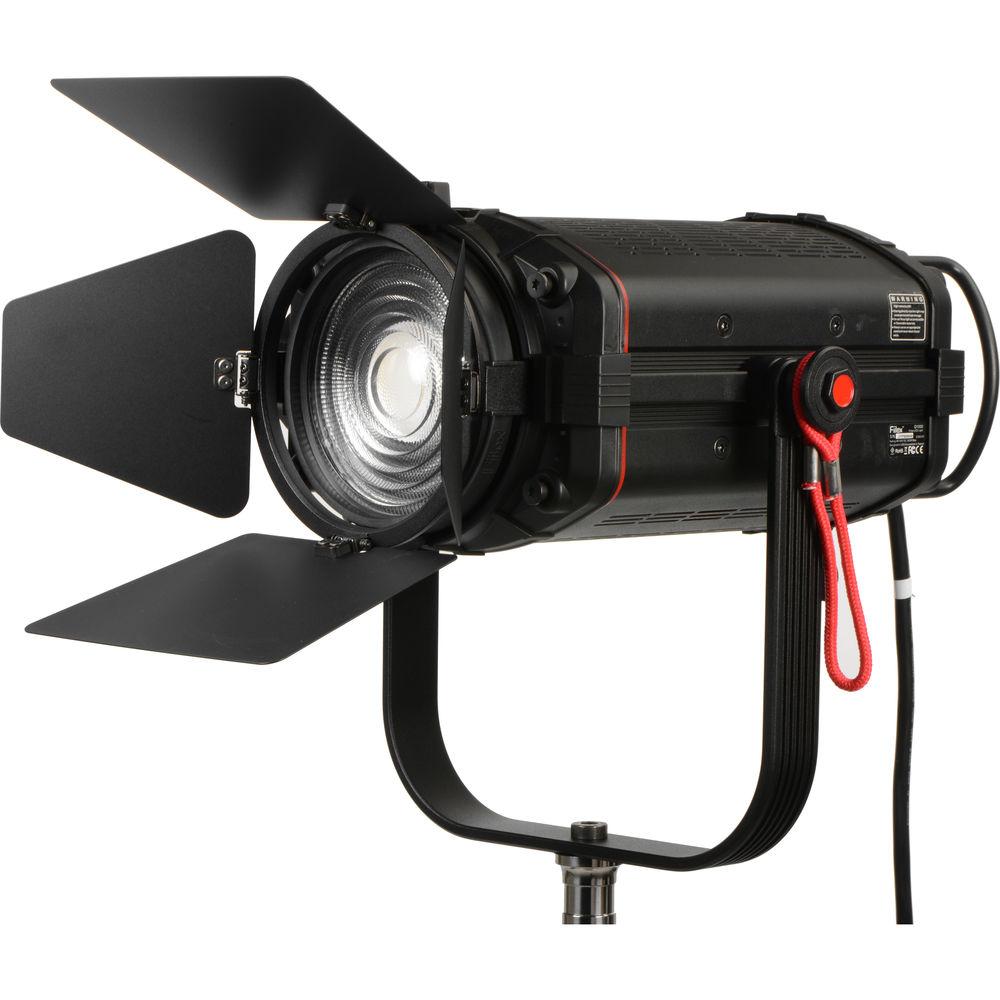

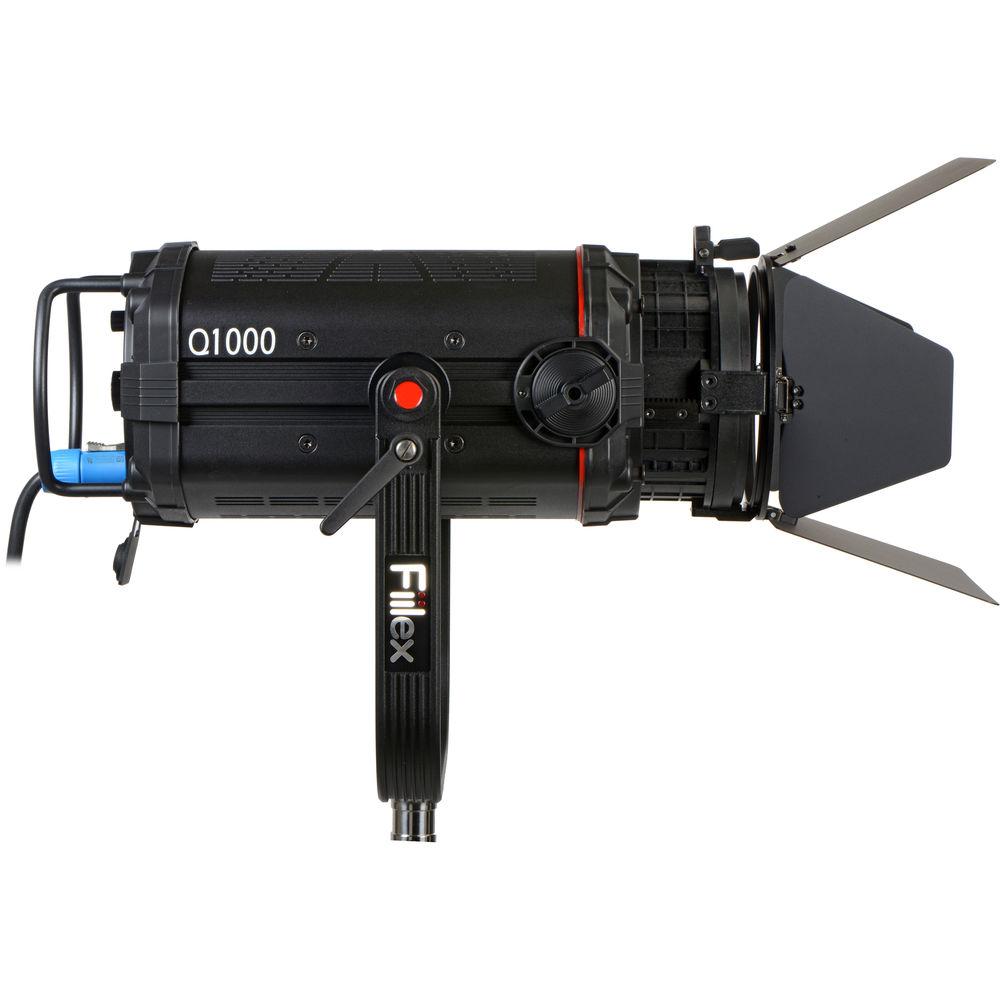

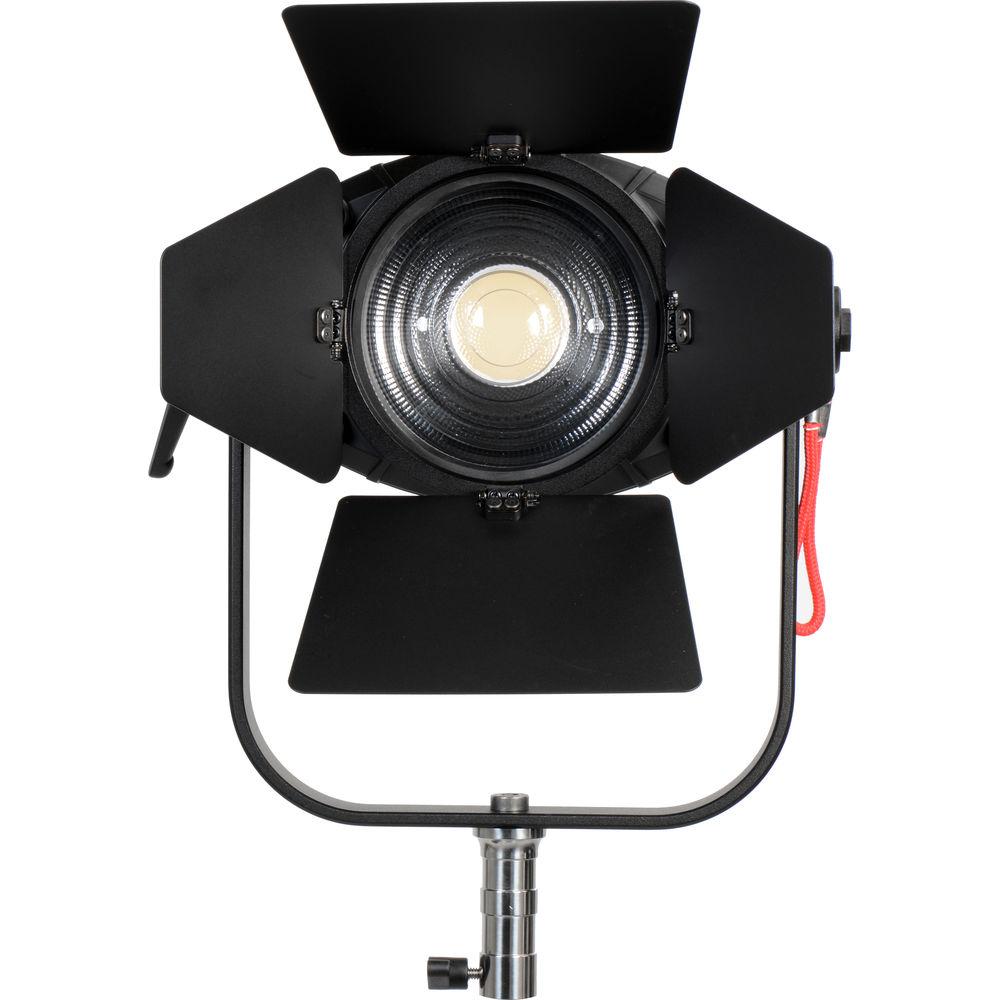

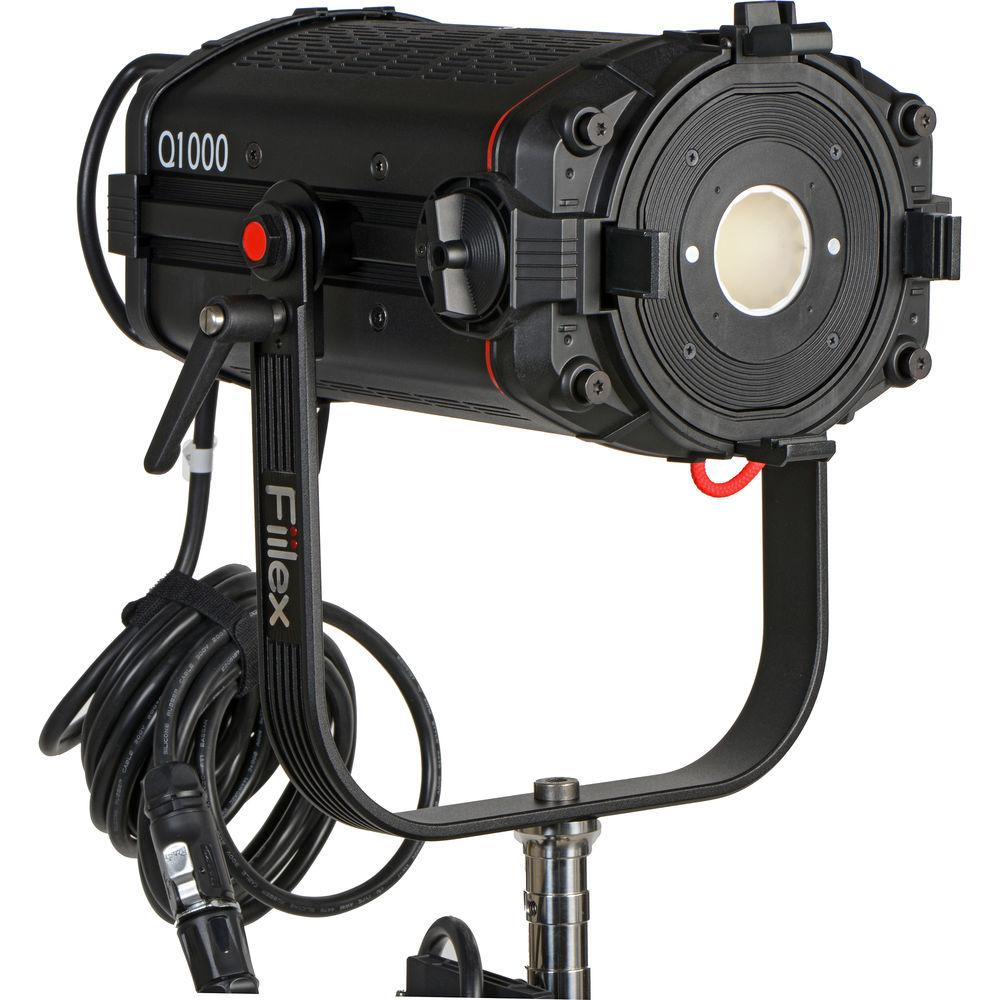

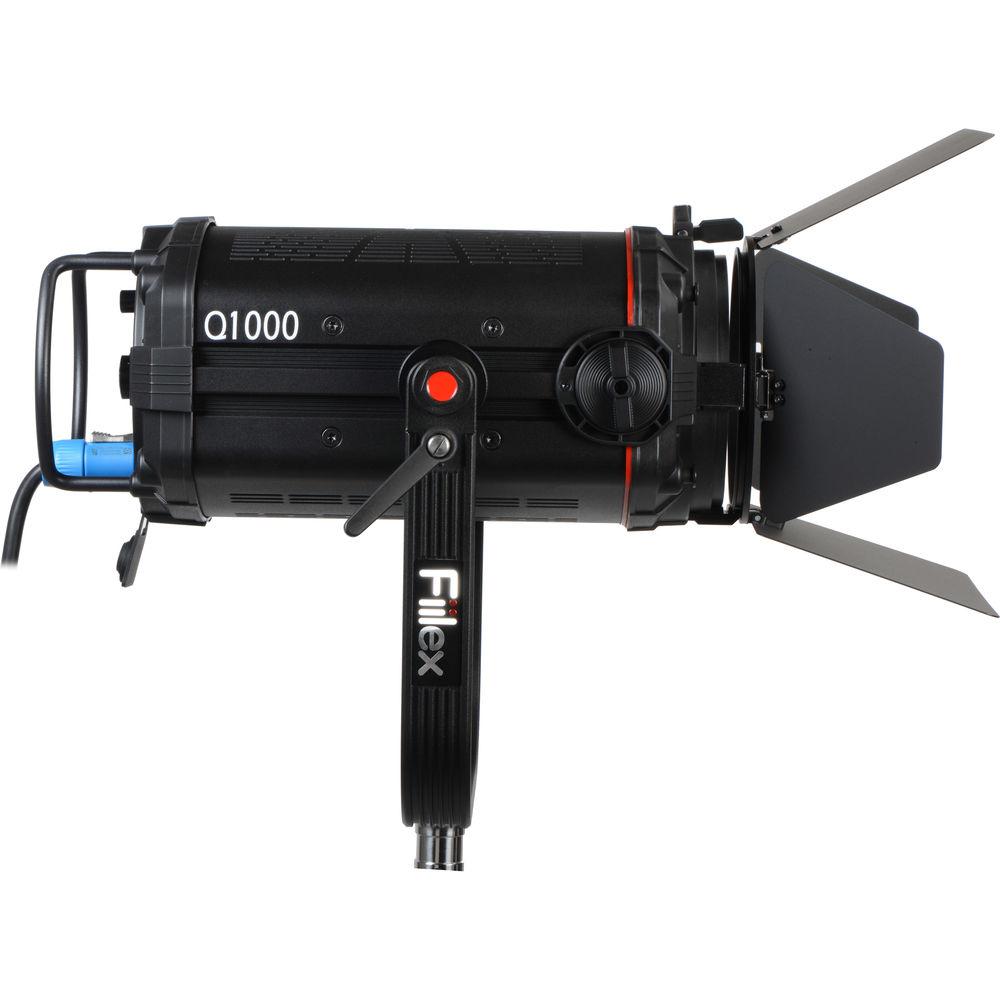

Product description With high output, a weather-resistant design, and portability, the Q1000 5" Fresnel LED Light from Fiilex is looking to replace your power hungry 1,500-2,000W tungsten fixtures. Utilizing Dense Matrix LED technology, this light is able to achieve CRI ratings of >96 and TLCI ratings of >98 for accurate color reproduction. Also, this fixture has a variable color temperature of 2800 - 6500K as well as a focusable 5" fresnel lens for a beam angle of 32-59°. Flicker-free dimming is present from 0-100% and it has hue control of ±2.5 magenta/green for quick hue correction on location.

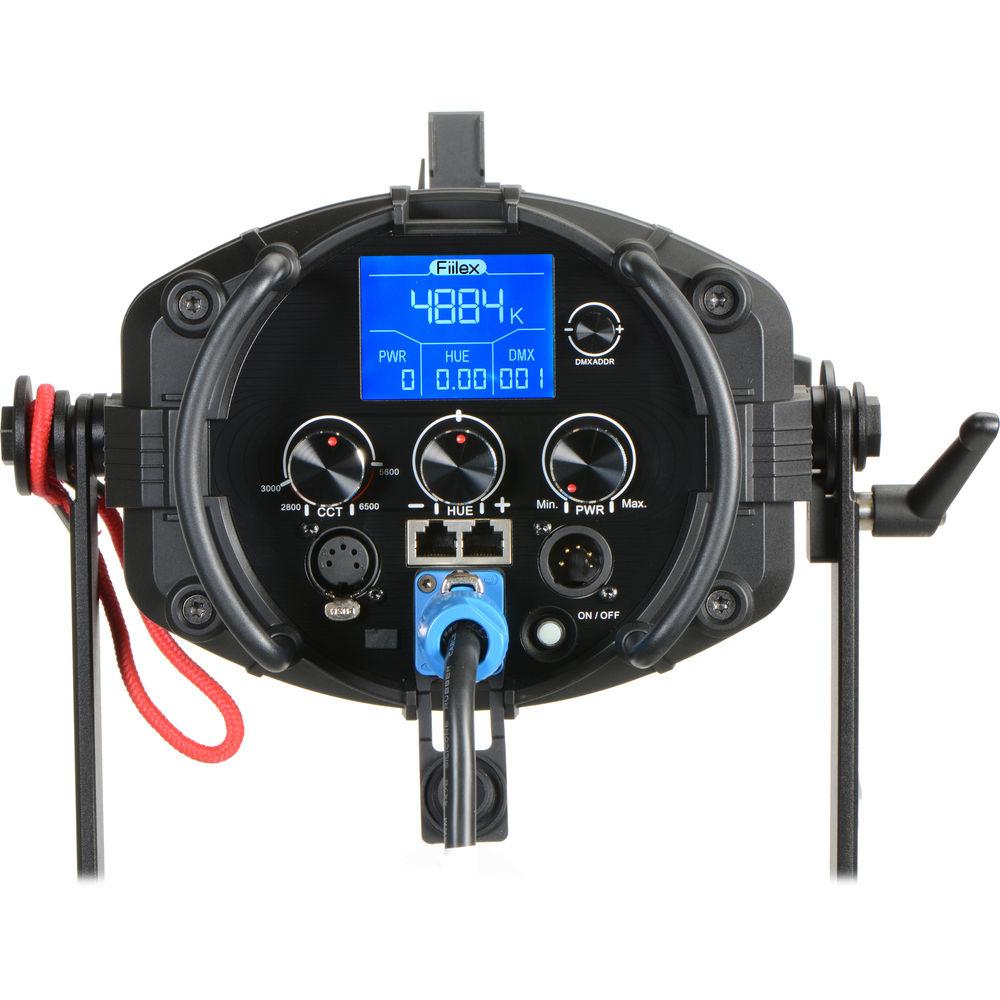

A solid construction features IP24 water resistance for use is less than ideal conditions and it has an Advanced Vapor Cooling system to ensure it doesn't get too hot. Local rotary dials are available on the rear for making adjustments as well as 5-pin XLR and RJ45 inputs and outputs with DMX512 support for remote operation. The light is capable of handling either AC or DC operation and comes with a 20' powerCON cable. Accessories are easily mounted with a Size 3 Magnetic mounting system and it offers a USB port for future firmware updates. - Photometrics
- Spot
At 3000K and 10' (3 m): 258 fc (1706 lux)
At 5600K and 10' (3 m): 254 fc (2735 lux)
At 3000K and 23' (7 m): 29 fc (313 lux)
At 5600K and 23' (7 m): 47 fc (502 lux)
Flood
At 3000K and 10' (3 m): 55 fc (590 lux)
At 5600K and 10' (3 m): 88 fc (946 lux)
At 3000K and 23' (7 m): 10 fc (108 lux)
At 5600K and 23' (7 m): 16 fc (174 lux) UPC: 092145339954 In the Box Fiilex Q1000 5" Fresnel LED Light 5" Fresnel Lens Size III Barndoor AC/DC Power Adapter 20' powerCON Cable Cord Tie Limited 2-Year Warranty Quick start Guide PDF 1.4mbszwfseatdtewsaxuwbtfwrcex Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex Q1000 5" Fresnel LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex Q1000 Specs | | | Beam Angle | 32 to 59° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 96
TLCI 98 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 12.8 x 12.8 x 15.7" / 350.0 x 325.0 x 400.0 mm (Including Yoke) | | Fixture Weight | 12.8 lb / 5.8 kg (Including Yoke) | | | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR, RJ45 | | Service Connector | Mini-USB | | | | Lens Diameter | 5.1" / 130 mm | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 48 to 54 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 340 W | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 28.6 lb | | Box Dimensions (LxWxH) | 25.0 x 17.0 x 11.5" |
