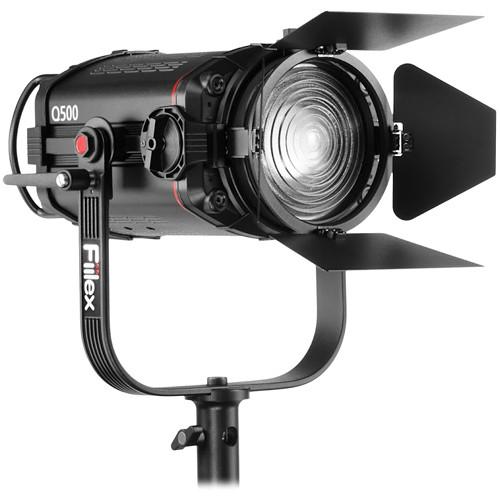

User Manual for Fiilex Q500-AC 5" Fresnel LED Light Click to enlarge the picture
Contents of the user manual for the Fiilex Q500-AC 5" Fresnel LED Light
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
|
User manual for the Fiilex Q500-AC 5" Fresnel LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|
Product description The Q500-AC 5" Fresnel LED Light from Fiilex is a highly versatile, powerful studio light that you can take on the road whenever necessary. The Q500 outputs the equivalent of a 750W tungsten fixture while drawing only 185W, resulting in low running costs and extended run times when battery-powered. Output is variable from 5-100% while color temperature can be adjusted from 2,800 to 6,500K. You can even tweak the hue with +/- 0.25 magenta/green control. Adjustments can be made locally or remotely via onboard DMX and settings can be monitored on the bright LCD display.The included 100-240 VAC power adapter allows worldwide use. The light also ships with a set of 4-way barndoors and detachable Fresnel lens. - High Output
- The Q500 produces an impressive 750W equivalent tungsten output while only using 185W. It's flicker-free at any frame rate, and can be dimmed from 5-100% with smooth transitioning. The Q500 has an adjustable beam angle 50-27°
- Ambient Light Matching and More
- The Q500 is color-tunable between 2800-6500K, and has Hue Control of ± 0.25 Magenta/Green so you can quickly correct for different light temperatures, camera sensor bias, or even adjust for different skin tones
- Built-in DMX Control
- The Q500 features built-in DMX control (512 Addresses), an LCD display, 5-pin XLR in/out, and RJ45 in/out. You can adjust the light's settings locally or remotely from the comfort of your control board
- Features
-
- High CRI of >93
- Full spectrum light quality - no spikes
- Dimming: 5-100%
- Solid state technology - no bulbs to replace
- Does not emit UV light/radiation
UPC: 092145336885 In the Box Fiilex Q500-AC 5" Fresnel LED Light 5" Fresnel Lens Set of 4-Way Barndoors PowerCon Cable Cable Tie Limited 2-Year Warranty User Manual PDF 1.2mbwsezuvaqevuqzfrfzxxufcdtascbswwf Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex Q500-AC 5" Fresnel LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex Q500 Specs | | | Beam Angle | 27 to 50° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 93 | | Cooling System | Passive | | Dimming | Yes, 5 to 100% | | Display | None | | Expected Lamp Life | 42,000 Hours | | Fixture Dimensions | 12.0 x 9.0 x 6.8" / 30.5 x 23.0 x 17.2 cm
12.0 x 12.8 x 15.0" / 30.5 x 32.5 x 38.0 cm (Including Yoke) | | Fixture Weight | 12 lb / 5.5 kg | | | | DMX Connector | 5-Pin XLR, RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 185 W | | | | Cable Type | Unspecified to | | | | IP Rating | IP20 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 24.55 lb | | Box Dimensions (LxWxH) | 20.787 x 16.142 x 12.441" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
