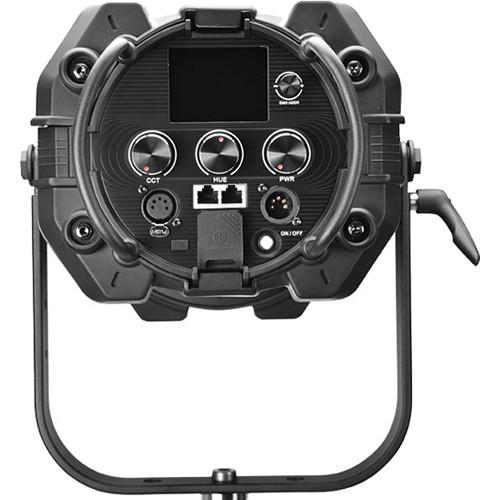

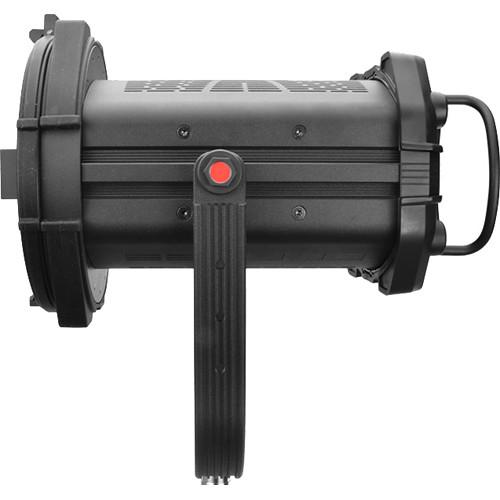

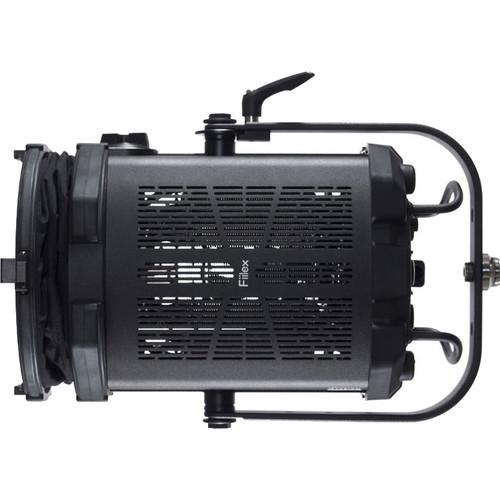

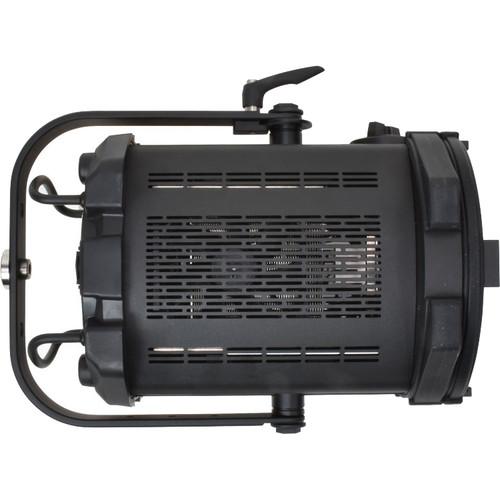

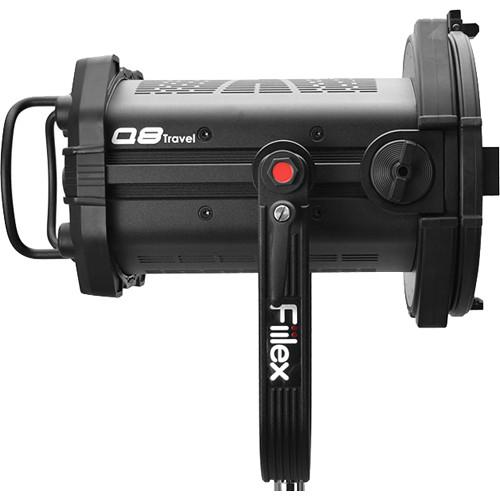

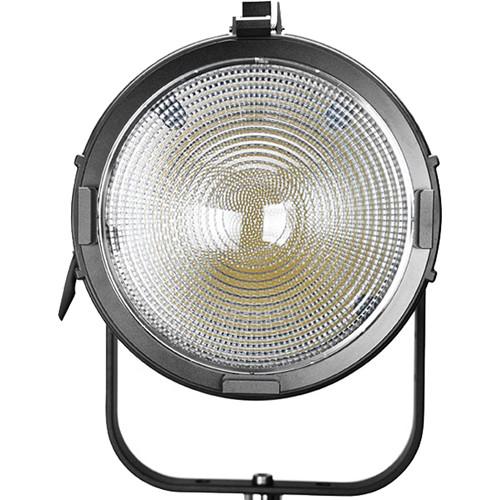

User Manual for Fiilex Q8 Travel Bi-Color LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the Fiilex Q8 Travel Bi-Color LED Fresnel
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
 |
User manual for the Fiilex Q8 Travel Bi-Color LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|
Product description The Q8 Travel Bi-Color LED Fresnel Light from Fiilex is a highly versatile, powerful fixture that's a valuable tool in the studio or on the road. The 8" Fresnel has an expansive spot-to-flood beam angle range of 12 to 60 degrees allowing sharp-shadow, high-contrast sunlight effects at the spot setting or filling a silk at the flood setting. The Q8 has a wide color temperature range that's variable from 2800 to 6500K, without the inconvenience of filters. The CRI rating is typically 97, indicating an accurate rendition of color. As a further refinement, the green/magenta hue is tunable to +/-0.25. The fixture is dimmable from 0-100% saving you the hassle of jockeying it back and forth for the correct light intensity. All of these changes can be made locally on the fixture and viewed on the unit's LCD screen, but they can also be made remotely from a console via DMX. You can also daisy chain several lights together and make DMX adjustments from a single "master" Q8. The Q8 is ready for worldwide use thanks a 100-240 VAC power adapter that can be mounted on a light stand section using the included clamp. Finally, with its IP24 water-resistant rating, your shoot won't be cancelled due to inclement weather. - Benefits
-
- 340W power draw
- Focus/flood range of 12-60°
- Smooth dimming down to 0%
- Flicker-free at any frame rate
- IP24 Rating (water-resistant)
- Tunable CCT (2800-6500K)
- Hue control (
|
Upload User Manual
Have you got an user manual for the Fiilex Q8 Travel Bi-Color LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex Q8 Travel Specs | | | Beam Angle | 12 to 60° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 97 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | LCD | | Photometrics | 60° at 5600K:
53 fc / 573 lux at 9.8' / 3 m
12° at 5600K:
597 fc / 6430 lux at 9.8' / 3 m | | Expected Lamp Life | 42,000 Hours | | Fixture Dimensions | 14.1 x 12.3 x 17.2" / 35.8 x 31.2 x 43.7 cm (Including Yoke) | | Fixture Weight | 16.2 lb / 7.35 kg (Including Yoke) | | | | DMX Connector | 5-Pin XLR, RJ45 | | | | Lens Diameter | 8" / 20.32 cm | | Lens Type | Fresnel | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 3 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 48 to 54 VDC | | Power Source | AC Adapter | | Max Power Consumption | 340 W | | | | Power Supply Weight | 5.7 lb / 2.59 kg | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 29.95 lb | | Box Dimensions (LxWxH) | 24.0 x 16.4 x 13.3" |
