User Manual for Fiilex V360 Versatile Viewing Lamp Click to enlarge the picture
Contents of the user manual for the Fiilex V360 Versatile Viewing Lamp
- Product category: Viewing Stations & Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex Viewing Stations & Lights
 |
User manual for the Fiilex V360 Versatile Viewing Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|

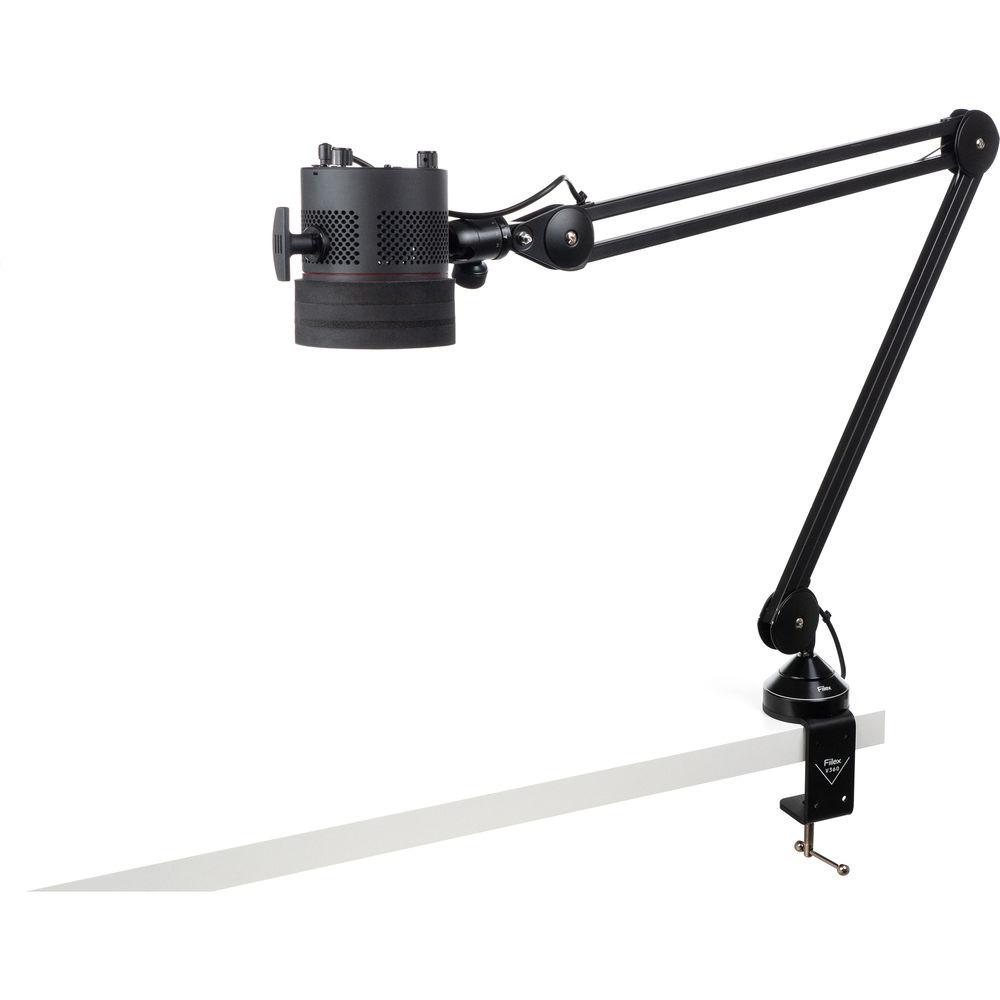

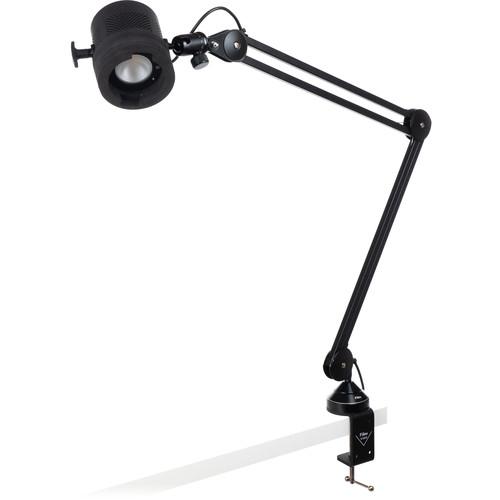

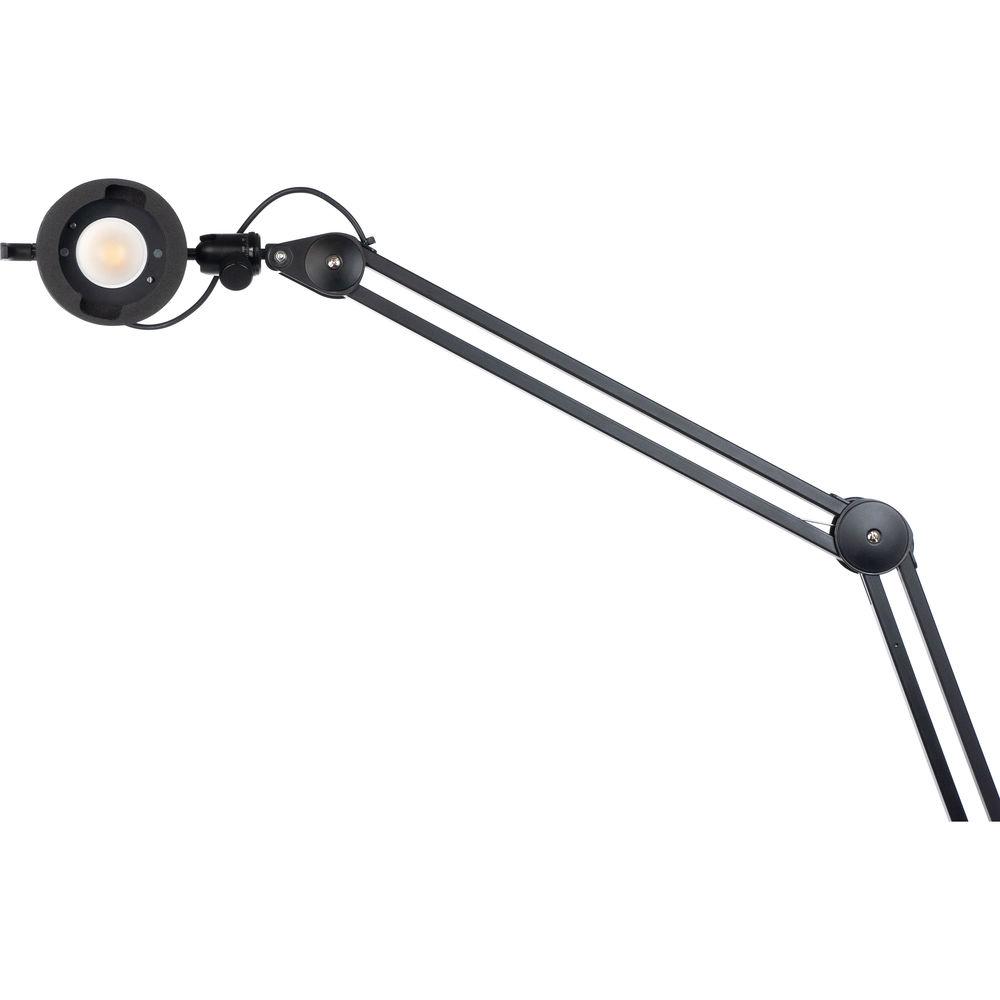

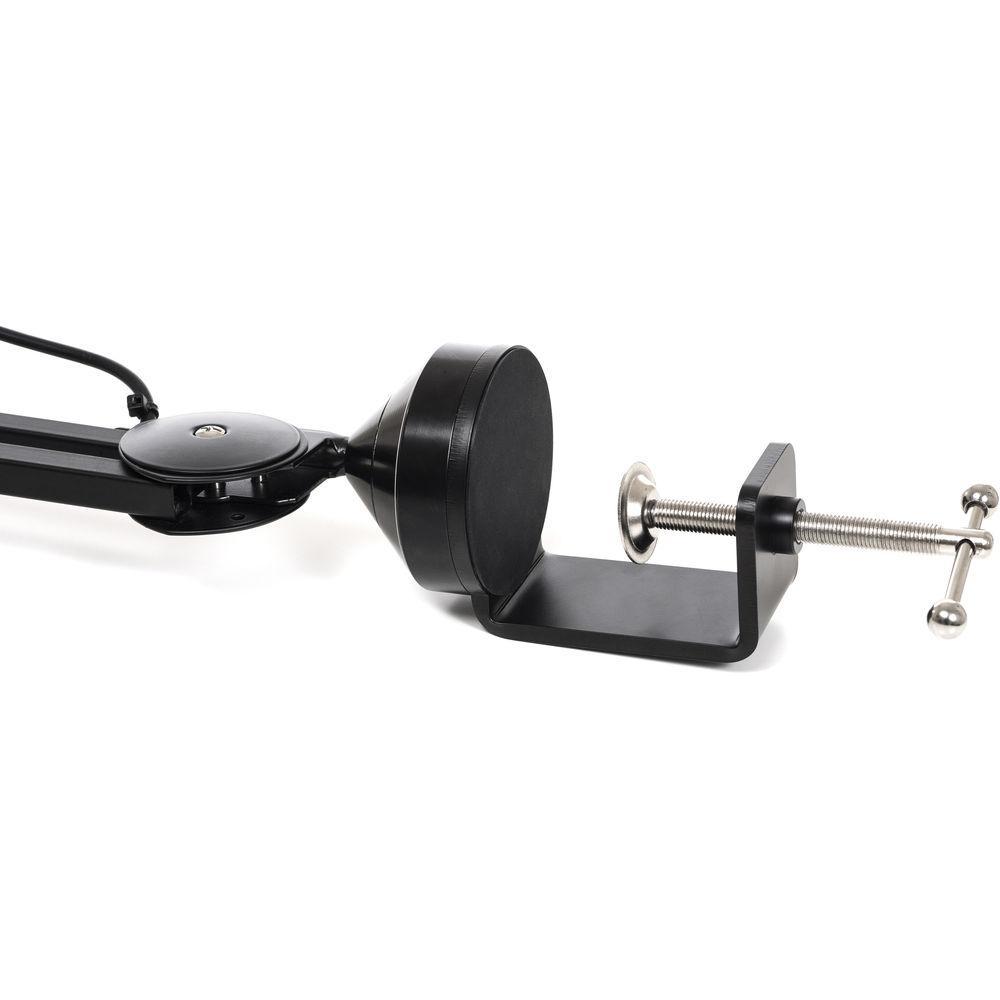

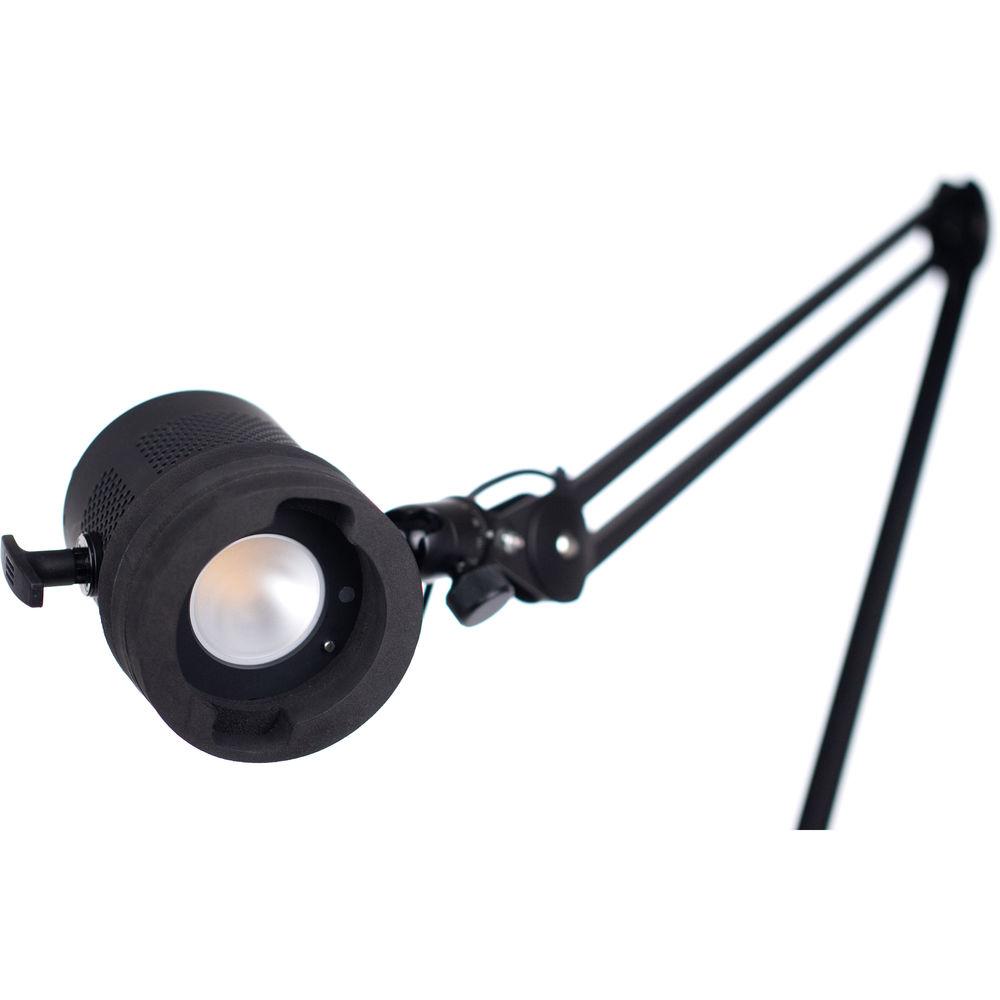

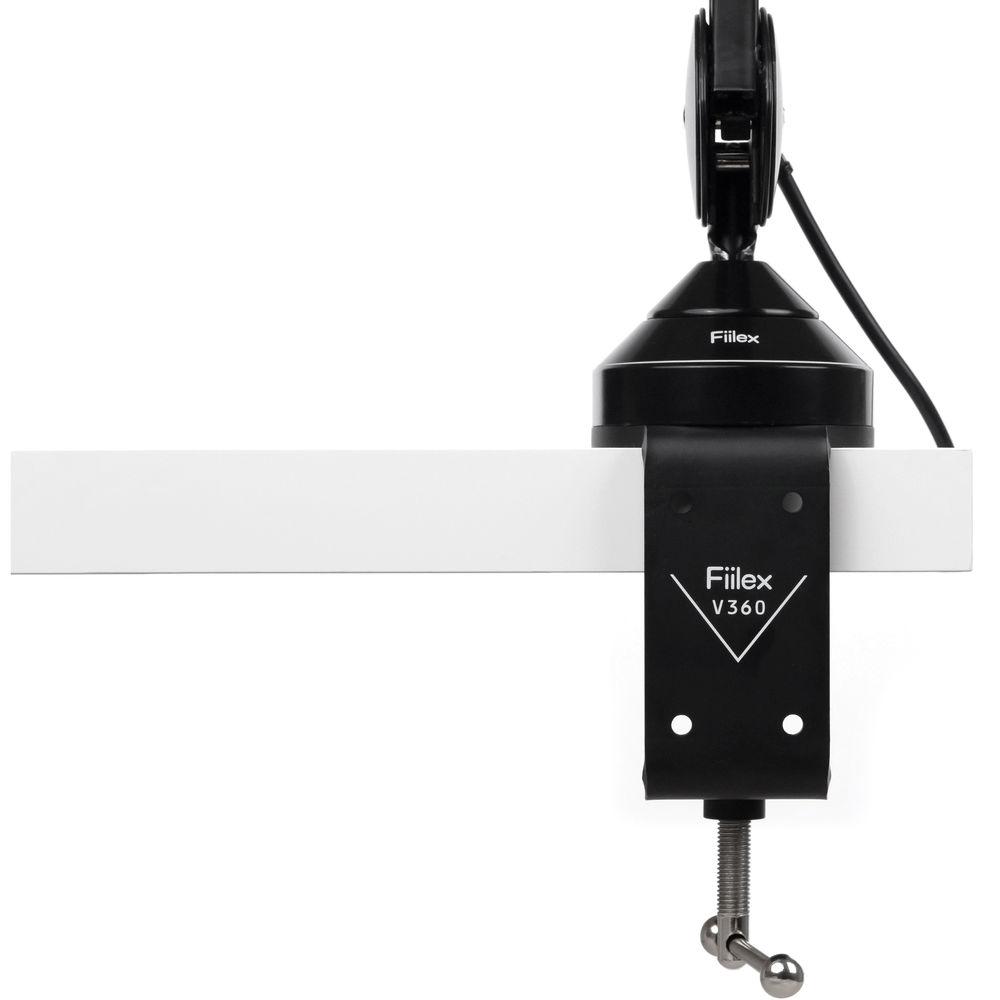

Product description The V360 Versatile Viewing Lamp from Fiilex is used by photographers, graphic designers, and other professionals that need a color-critical source of illumination. The LED light produces a greater output of light than a traditional 300W bulb and with a CRI of 97. Because of the base, the light can clamp onto the edge of a table or mount onto a light stand. Then, the balanced extension arm can precisely place the light source over the viewing area. The OLED display, which is on the back of the head, exhibits the color temperature that is adjustable between 2800 to 6500K. At the same time, the flicker- and UV-free light is dimmable from 0-100%. The V360 has two DMX channels for intensity and CCT, which can be controlled via a DMX Box controller, which plugs directly into the light's XLR-5P or RJ45 with a unit link adapter. Overheating is prevented thanks to the fan cooled, advanced vapor cooling system. To spread the beam of light from 60 to 33°, a 2" Fresnel, which is available separately, locks magnetically into the front of the head. Other light shapers are also available. UPC: 092145342756 In the Box Fiilex V360 Versatile Viewing Lamp 90W AC/DC Power Adapter EVA Bumper Snoot Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex V360 Versatile Viewing Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex V360 Pro Specs | Lamp Type | LED | | Beam Angle | 60°33° (with 2" / 5.1 cm fresnel) | | Thermal Design | Advanced Vapor Cooling System (fan cooled) | | Color Temperature Control | 2800 to 6500K | | CRI | 97 | | Dimming Range | 0-100%, continuous | | Photometrics | Bare at 60°
3.3' / 1.0 m at 3000K: 227 fc / 505 lux 9.8' / 3.0 m at 3000K: 25 fc / 56 lux 16.4' / 5.0 m at 3000K: 9 fc / 20 lux With 2" / 5.1 cm Fresnel Lens at 33° 3.3' / 1.0 m at 3000K: 5433 fc / 2440 lux 9.8' / 3.0 m at 3000K: 604 fc / 271 lux 16.4' / 5.0 m at 3000K: 217 fc / 98 lux | | Max Power Draw | 90 W | | DMX Channels | IntensityCCT | | DMX Connectors | XLR-5PRJ45 (with unit link adapter) | | Power Requirements | Input: 100-240 VAC, 50/60 HzOutput: 24 VDC | | Operating Temperature | 32 to 104° F / 0 to 40° C | | Water Resistance | IP-24 | | Dimensions | Light: 5.5 x 4 x 4.7" / 14 x 10.2 x 11.9 cmArm: Extended: 36.2" / 92 cmBase: 3.2 x 7.6" / 8.1 x 19.3 cm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 30.6 x 15.7 x 7.0" |
