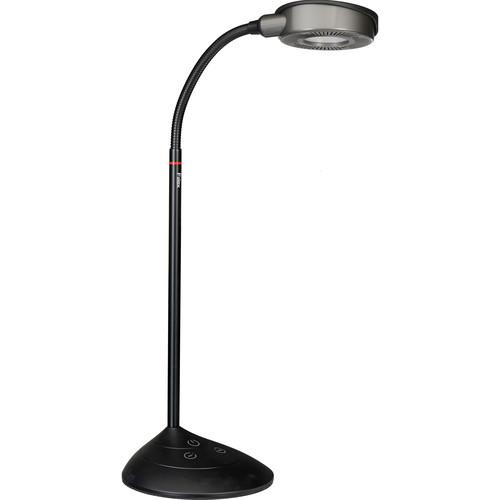

User Manual for Fiilex V70 LED Color Viewing Lamp Click to enlarge the picture
Contents of the user manual for the Fiilex V70 LED Color Viewing Lamp
- Product category: Viewing Stations & Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex Viewing Stations & Lights
|
User manual for the Fiilex V70 LED Color Viewing Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|
Product description The Fiilex V70 LED Color Viewing Lamp is a dense matrix LED lamp with a flexible gooseneck for easy positioning. With a small size and base it is ideal for setting up on a tabletop or desk and can be used for a wide variety of applications, include photography, video blogging, styling, or design work.
Major features of the V70 are the touch-controlled color temperature and intensity settings. There are four different color settings, 3000K for tungsten-balanced light, 4000K for a middle warm light, D50 5000K and D65 6500K for daylight-balanced light. Each of these will help you achieve the look you need for your tasks. Also, there is continuous dimming from 100-25%.
The V70 is excellent for color correct lighting due to its high CRI of >90, meaning colors will look natural and bright. Additionally, the lamp uses passive cooling technology to keep from overheating and has a long 50,000 hour lifespan. There is even an dome diffuser for achieving a soft lighting effect when necessary. - Maximum height of 27.2" down to 17.1" when bent at a 90° angle
UPC: 092145339411 In the Box Fiilex V70 LED Color Viewing Lamp AC Adapter Dome Diffuser for P360/EX and V70 LED Lights szbbaqcwffdctsyzufadyaybtzwbevbdtetets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fiilex V70 LED Color Viewing Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiilex V70 Specs | LED | Dense matrix LED | | Thermal Design | Passive cooling | | Color Temperature Control | 3000 K, 4000 K, 5000 K, 6500 K | | CRI | >90 | | Dimming | 100-25%, continuous | | Photometrics | Flood
1' (0.3 m) at 3000K: 256.5 fc (2761 lux)
2' (0.6 m) at 3000K: 65 fc (699 lux)
3' (0.9 m) at 3000K: 29 fc (313 lux)
1' (0.3 m) at 6500K: 320 fc (3445 lux)
2' (0.6 m) at 6500K: 80 fc (861 lux)
3' (0.9 m) at 6500K: 35.8 fc (385 lux)
Dome
1' (0.3 m) at 3000K: 81.9 fc (882 lux)
2' (0.6 m) at 3000K: 20.7 fc (223 lux)
3' (0.9 m) at 3000K: 9.3 fc (100 lux)
1' (0.3 m) at 6500K: 102.2 fc (1100 lux)
2' (0.6 m) at 6500K: 25.5 fc (275 lux)
3' (0.9 m) at 6500K: 11.4 fc (123 lux) | | Lifetime | 50,000 hours | | Power Consumption | 11-13 W | | Input Voltage | 12-28 VDC ±5% | | Power Requirements | Input: 100-240 VAC, 50/60 Hz
Output: 24 VDC, 1 A, 24 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | Maximum Height (Straight): 27.2"
Minimum Height (Bent): 17.1"
Base Diameter: 6.8" | | Weight | 2.8 lb (1.25 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 19.4 x 8.0 x 8.0" |
