Fiilex X312 1-Q500-DC 2-P360 Pro Plus

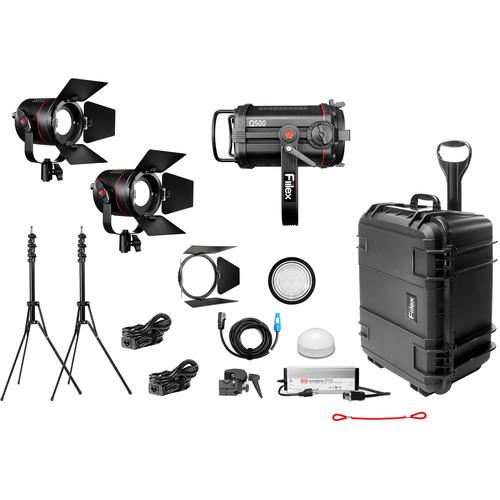

User Manual for Fiilex X312 1-Q500-DC 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit

• Product category: LED Lights Fiilex
• Brand: Fiilex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fiilex LED Lights

Product description

• Q500-DC 5" Fresnel LED Light The Q500-DC 5" Fresnel LED Light from Fiilex is a highly versatile, powerful studio light that you can take on the road whenever necessary, especially due to this model's 20-50 VDC power option. The Q500 outputs the equivalent of a 750W tungsten fixture while drawing only 185W on AC or 170W on DC power, resulting in low running costs and extended run times when battery-powered. Output is variable from 0-100% while color temperature can be adjusted from 2,800 to 6,500K. You can even tweak the hue with +/- 0.25 magenta/green control. Adjustments can be made locally or remotely via onboard DMX and settings can be monitored on the bright LCD display.The included 100-240 VAC power adapter allows worldwide use. The light also ships with a set of 4-way barndoors and detachable Fresnel lens.
  High Output
  • The Q500 produces an impressive 750W equivalent tungsten output while only using 185W on AC or 170W on DC power. It's flicker-free at any frame rate, and can be dimmed from 0-100% with smooth transitioning. The Q500 has an adjustable beam angle 50-27°
  Ambient Light Matching and More
  • The Q500 is color-tunable between 2800-6500K, and has Hue Control of ± 0.25 Magenta/Green so you can quickly correct for different light temperatures, camera sensor bias, or even adjust for different skin tones
  Built-in DMX Control
  • The Q500 features built-in DMX control (512 Addresses), an LCD display, 5-pin XLR in/out, and RJ45 in/out. You can adjust the light's settings locally or remotely from the comfort of your control board
  Features
  • High CRI of >93
  • Full spectrum light quality - no spikes
  • Dimming: 0-100%
  • Solid state technology - no bulbs to replace
  • Does not emit UV light/radiation
• Dome Diffuser for P360/EX and V70 LED Lights The Dome Diffuser for P360/EX and V70 LED Lights from Fiilex is designed to attach to the magnetic mounts on the front of the P360 or P360EX lights. It is also compatible with the V70 viewing lamp. The dome increases the beam angle and softens the light. Dome diffusers spread the beam angle, diffuse, and soften the light's output. It can be combined with other light modifiers such as softboxes and beauty dishes. UPC: 654367099872
• P360 Pro Plus LED Light Building on the strong foundation of the popular P360, the P360 Pro Plus LED Light from Fiilex has a variable color temperature of 2800-6500K and a high CRI (Color Rendering Index) rating of >95. The P360 Pro Plus employs a Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a native beam angle of 65 degrees. Optional Fresnel lenses are available to tighten the beam angle.At only 1.85 lb with a 4.8" diameter, the P360 Pro Plus is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC/DC adapter, the P360 Pro Plus ships with a set of four-way barndoors to further control the beam spread.
  Benefits
  • • Tunable CCT (2800 - 6500K)
    • Hue Control (±.25 Green)
    • 400W tungsten output equivalent, only 90W draw
    • Water resistant (IP24)
    • Dimming (0 -100%)
    • High CRI of >95 at any color temperature
    • Does not emit UV light/radiation
    • Broadband full spectrum LED source
    • OLED display for easy setup
    • Single Point Dense Matrix LED light source
    • Flicker-free
    • Lightweight, compact and easy for travel
    • Cool to the touch
    • Compatible with broadcast batteries
    • Designed in USA, assembled in USA/Taiwan
  Photometrics
  • At 3000K, 65° (Standard)
    186 fc/1999 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
    21 fc/222 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
    7.0 fc/80 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1m)
    At 5600K, 65° (Standard)
    258 fc/2773 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
    29 fc/308 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
    10 fc/111 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1 m)
  UPC: 092145341964
• Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
  Features
  • Compact design
  • Quick setup
  • Fits in Custom Fiilex Rolling Travel Case
  • 5/8" Stud with 1/4"-20 thread
  UPC: 092145336946

• 5" Fresnel Lens

• Set of 4-Way Barndoors

• Power Adapter

• PowerCon Cable

• Cable Tie

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 4-Way Barndoors for P360 and P360EX LED Lights

• 90W AC Adapter for P360, P200 and P180E LED Lights

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• Hard Kit Case
• Limited Lifetime Warranty on Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Q500-DC 5" Fresnel LED Light

  Beam Angle	27 to 50°
  Color Temperature	2800 to 6500K
  Color Accuracy Standard	CRI 93
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Display	None
  Expected Lamp Life	42,000 Hours
  Fixture Dimensions	12.0 x 9.0 x 6.8" / 30.5 x 23.0 x 17.2 cm 12.0 x 12.8 x 15.0" / 30.5 x 32.5 x 38.0 cm (Including Yoke)
  Fixture Weight	12 lb / 5.5 kg

  DMX Connector	5-Pin XLR, RJ45

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	22 to 54 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	185 W

  Cable Type	Unspecified to

  IP Rating	IP24
  Operating Temperature	32 to 104°F / 0 to 40°C

  Box Dimensions (LxWxH)	21.0 x 16.0 x 13.0"

• Dome Diffuser for P360/EX and V70 LED Lights

  Material	Plastic
  Diameter	3.0" (7.6 cm)

  Box Dimensions (LxWxH)	4.95 x 3.8 x 2.45"

• P360 Pro Plus LED Light

  Light Source	Dense Matrix LED array
  Display	OLED
  Color Range	2800 to 6500K continuous tuning ± 0.25 Green Hue Control
  CRI	95
  Beam Angle	65° (Native) Optional Fresnel lens
  Cooling	Advanced Vapor Cooling System
  Operating Voltage	100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out) Input Voltage: 12-30 VDC Input Port: 5.5 x 2.5 mm DC jack
  Tungsten Equivalent	400 W tungsten fixture
  Power Consumption	90 W max.
  Dimming	0-100%
  DMX	3 Channels : Intensity, CCT, Hue Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078)
  Mount	Light stand mount (attached), 1/4"-20 female socket
  IP Rating	IP24
  Operating Temperature	32 - 104°F (0 - 40%deg;C)
  Dimensions	8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm)
  Weight	1.85 lb (0.84 kg)

  Box Dimensions (LxWxH)	13.0 x 7.55 x 5.95"

• Reverse Leg Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	84" / 213.3 cm
  Collapsed Height	21" / 53 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Material	Aluminum
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	22.3 x 3.2 x 3.2"
