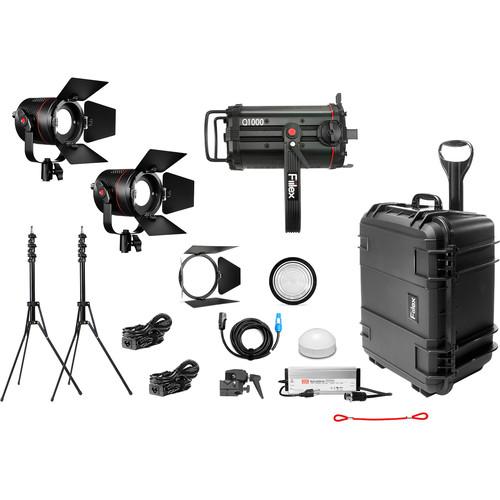

User Manual for Fiilex X314 1-Q1000-DC 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit

Click to enlarge the picture
Fiilex X314 1-Q1000-DC 2-P360 Pro Plus 3-Light LED Gaffer Contents of the user manual for the Fiilex X314 1-Q1000-DC 2-P360 Pro Plus
  • Product category: LED Lights Fiilex
  • Brand: Fiilex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fiilex LED Lights

User manual for the Fiilex X314 1-Q1000-DC 2-P360 Pro Plus contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fiilex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!



Product description

The comprehensive, versatile X314 1-Q1000-DC 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit from Fiilex is a solid core setup that allows you to power the lights via AC voltage or with an optional battery. The kit includes a variable color Q1000-DC LED light with barndoors, a dome diffuser, 5" Fresnel lens, and a cord tie. Also included are 2 variable-color P360 Pro Plus LED lights each with 4-way barndoors and a 7' compact light stand. All of the lights come with an AC power adapter, a 20' power cable, and a clamp mount. It all fits in the kit's hard kit case.
  • Q1000 5" Fresnel LED Light With high output, a weather-resistant design, and portability, the Q1000 5" Fresnel LED Light from Fiilex is looking to replace your power hungry 1,500-2,000W tungsten fixtures. Utilizing Dense Matrix LED technology, this light is able to achieve CRI ratings of >96 and TLCI ratings of >98 for accurate color reproduction. Also, this fixture has a variable color temperature of 2800 - 6500K as well as a focusable 5" fresnel lens for a beam angle of 32-59°. Flicker-free dimming is present from 0-100% and it has hue control of ±2.5 magenta/green for quick hue correction on location.

    A solid construction features IP24 water resistance for use is less than ideal conditions and it has an Advanced Vapor Cooling system to ensure it doesn't get too hot. Local rotary dials are available on the rear for making adjustments as well as 5-pin XLR and RJ45 inputs and outputs with DMX512 support for remote operation. The light is capable of handling either AC or DC operation and comes with a 20' powerCON cable. Accessories are easily mounted with a Size 3 Magnetic mounting system and it offers a USB port for future firmware updates.
      Photometrics
    • Spot
      At 3000K and 10' (3 m): 258 fc (1706 lux)
      At 5600K and 10' (3 m): 254 fc (2735 lux)
      At 3000K and 23' (7 m): 29 fc (313 lux)
      At 5600K and 23' (7 m): 47 fc (502 lux)
      Flood
      At 3000K and 10' (3 m): 55 fc (590 lux)
      At 5600K and 10' (3 m): 88 fc (946 lux)
      At 3000K and 23' (7 m): 10 fc (108 lux)
      At 5600K and 23' (7 m): 16 fc (174 lux)
    UPC: 092145339954
  • Dome Diffuser for P360/EX and V70 LED Lights The Dome Diffuser for P360/EX and V70 LED Lights from Fiilex is designed to attach to the magnetic mounts on the front of the P360 or P360EX lights. It is also compatible with the V70 viewing lamp. The dome increases the beam angle and softens the light. Dome diffusers spread the beam angle, diffuse, and soften the light's output. It can be combined with other light modifiers such as softboxes and beauty dishes. UPC: 654367099872
  • P360 Pro Plus LED Light Building on the strong foundation of the popular P360, the P360 Pro Plus LED Light from Fiilex has a variable color temperature of 2800-6500K and a high CRI (Color Rendering Index) rating of >95. The P360 Pro Plus employs a Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a native beam angle of 65 degrees. Optional Fresnel lenses are available to tighten the beam angle.At only 1.85 lb with a 4.8" diameter, the P360 Pro Plus is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC/DC adapter, the P360 Pro Plus ships with a set of four-way barndoors to further control the beam spread.
      Benefits
      • Tunable CCT (2800 - 6500K)
      • Hue Control (±.25 Green)
      • 400W tungsten output equivalent, only 90W draw
      • Water resistant (IP24)
      • Dimming (0 -100%)
      • High CRI of >95 at any color temperature
      • Does not emit UV light/radiation
      • Broadband full spectrum LED source
      • OLED display for easy setup
      • Single Point Dense Matrix LED light source
      • Flicker-free
      • Lightweight, compact and easy for travel
      • Cool to the touch
      • Compatible with broadcast batteries
      • Designed in USA, assembled in USA/Taiwan
      Photometrics
    • At 3000K, 65° (Standard)
      186 fc/1999 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
      21 fc/222 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
      7.0 fc/80 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1m)
      At 5600K, 65° (Standard)
      258 fc/2773 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
      29 fc/308 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
      10 fc/111 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1 m)
    UPC: 092145341964
  • Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
      Features
    • Compact design
    • Quick setup
    • Fits in Custom Fiilex Rolling Travel Case
    • 5/8" Stud with 1/4"-20 thread
    UPC: 092145336946
In the Box Bundle Items Q1000 5" Fresnel LED Light tcsqqxbfwqyrsc
  • 5" Fresnel Lens
  • Size III Barndoor
  • AC/DC Power Adapter
  • 20' powerCON Cable
  • Cord Tie
  • Limited 2-Year Warranty
Dome Diffuser for P360/EX and V70 LED Lights
  • Limited 1-Year Warranty
2 x P360 Pro Plus LED Light
  • 4-Way Barndoors for P360 and P360EX LED Lights
  • 90W AC Adapter for P360, P200 and P180E LED Lights
  • Limited 2-Year Warranty
2 x Reverse Leg Light Stand (7')
  • Limited 2-Year Warranty

Also Includes

  • Hard Kit Case
  • Limited Lifetime Warranty on Case
Data Sheet- P360 Pro Plus PDF 43mb Table of Contents




Upload User Manual

Have you got an user manual for the Fiilex X314 1-Q1000-DC 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Q1000 5" Fresnel LED Light
    Beam Angle 32 to 59°
    Color Temperature 2800 to 6500K
    Color Accuracy Standard CRI 96
    TLCI 98
    Cooling System Passive
    Dimming Yes, 0 to 100%
    Display None
    Expected Lamp Life 50,000 Hours
    Fixture Dimensions 12.8 x 12.8 x 15.7" / 350.0 x 325.0 x 400.0 mm (Including Yoke)
    Fixture Weight 12.8 lb / 5.8 kg (Including Yoke)
    Power Input Connector powerCON
    DMX Connector 5-Pin XLR, RJ45
    Service Connector Mini-USB
    Lens Diameter 5.1" / 130 mm
    Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
    Accessory Mount None
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 48 to 54 VDC
    Power Source AC Adapter, External Battery
    Max Power Consumption 340 W
    IP Rating IP24
    Operating Temperature 32 to 104°F / 0 to 40°C
    Box Dimensions (LxWxH) 25.0 x 17.0 x 11.5"
  • Dome Diffuser for P360/EX and V70 LED Lights
    Material Plastic
    Diameter 3.0" (7.6 cm)
    Box Dimensions (LxWxH) 4.95 x 3.8 x 2.45"
  • P360 Pro Plus LED Light
    Light Source Dense Matrix LED array
    Display OLED
    Color Range 2800 to 6500K continuous tuning
    ± 0.25 Green Hue Control
    CRI 95
    Beam Angle 65° (Native)
    Optional Fresnel lens
    Cooling Advanced Vapor Cooling System
    Operating Voltage 100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out)
    Input Voltage: 12-30 VDC
    Input Port: 5.5 x 2.5 mm DC jack
    Tungsten Equivalent 400 W tungsten fixture
    Power Consumption 90 W max.
    Dimming 0-100%
    DMX 3 Channels : Intensity, CCT, Hue
    Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078)
    Mount Light stand mount (attached), 1/4"-20 female socket
    IP Rating IP24
    Operating Temperature 32 - 104°F (0 - 40%deg;C)
    Dimensions 8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm)
    Weight 1.85 lb (0.84 kg)
    Box Dimensions (LxWxH) 13.0 x 7.55 x 5.95"
  • Reverse Leg Light Stand (7')
    Mounting Options 1/4"-20 Male Thread
    5/8" Stud
    Number of Sections 4
    Maximum Working Height 84" / 213.3 cm
    Collapsed Height 21" / 53 cm
    Air Cushioned No
    Detachable Base No
    Leveling Leg No
    Reverse Legs Yes
    Finish Black
    Material Aluminum
    Weight 2.5 lb / 1.1 kg
    Box Dimensions (LxWxH) 22.3 x 3.2 x 3.2"
