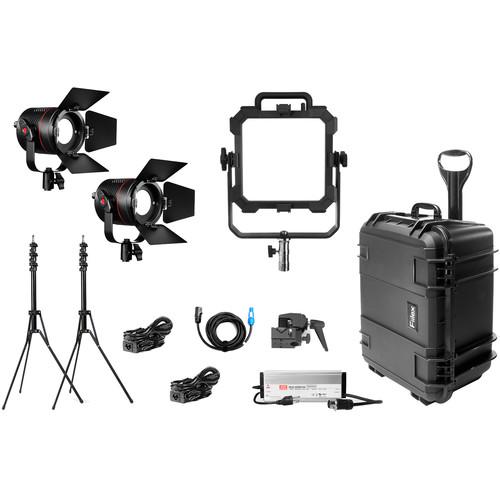

User Manual for Fiilex X316 1-Matrix 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit

Click to enlarge the picture
Fiilex X316 1-Matrix 2-P360 Pro Plus 3-Light LED Gaffer Contents of the user manual for the Fiilex X316 1-Matrix 2-P360 Pro Plus
  • Product category: LED Lights Fiilex
  • Brand: Fiilex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fiilex LED Lights

User manual for the Fiilex X316 1-Matrix 2-P360 Pro Plus contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fiilex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!



Product description

The comprehensive, versatile X316 1-Matrix 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit from Fiilex is a solid core setup that allows you to power the lights via AC voltage or with an optional battery. The kit includes a variable color Matrix LED light with hue control. Also included are 2 variable-color P360 Pro Plus LED lights each with 4-way barndoors and a 7' compact light stand. All of the lights come with an AC power adapter, a 20' power cable, and a clamp mount. It all fits in the kit's hard kit case.
  • Matrix LED 1-Light Kit Built around the versatile, variable color LED fixture, the Matrix LED 1-Light Kit from Fiilex includes 1 Matrix Bi-Color LED light along with a power supply, 20' power cable, and a clamp mount.The Matrix LED panel features an adjustable color temperature range of 2800-5600K, along with green/magenta hue adjustment for complete control over the light's color output. Each panel draws just 320W of power while producing output similar to a 1500W tungsten source, and the lights deliver flicker-free output with a CRI of 93 throughout the 0-100% dimming range. Manual settings adjustment is possible on each panel or remote control can also be performed via a DMX512 connection and each light is set in its own yoke with a junior stud / baby receiver combo for stand mounting. UPC: 092145340882
  • P360 Pro Plus LED Light Building on the strong foundation of the popular P360, the P360 Pro Plus LED Light from Fiilex has a variable color temperature of 2800-6500K and a high CRI (Color Rendering Index) rating of >95. The P360 Pro Plus employs a Dense Matrix LED array that could fit on a dime and renders a bright flicker-free output with a native beam angle of 65 degrees. Optional Fresnel lenses are available to tighten the beam angle.At only 1.85 lb with a 4.8" diameter, the P360 Pro Plus is an ideal location light that can be powered by the included 100-240 VAC power adapter or by optional 12-28 VDC batteries. Whatever way you power it, you'll appreciate the low power draw which translates to low running costs and long running times. Besides the AC/DC adapter, the P360 Pro Plus ships with a set of four-way barndoors to further control the beam spread.
      Benefits
      • Tunable CCT (2800 - 6500K)
      • Hue Control (±.25 Green)
      • 400W tungsten output equivalent, only 90W draw
      • Water resistant (IP24)
      • Dimming (0 -100%)
      • High CRI of >95 at any color temperature
      • Does not emit UV light/radiation
      • Broadband full spectrum LED source
      • OLED display for easy setup
      • Single Point Dense Matrix LED light source
      • Flicker-free
      • Lightweight, compact and easy for travel
      • Cool to the touch
      • Compatible with broadcast batteries
      • Designed in USA, assembled in USA/Taiwan
      Photometrics
    • At 3000K, 65° (Standard)
      186 fc/1999 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
      21 fc/222 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
      7.0 fc/80 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1m)
      At 5600K, 65° (Standard)
      258 fc/2773 lux @ 3.3' (1.0 m) with beam diameter of 3.4' (1.0 m)
      29 fc/308 lux @ 9.8' (3.0 m) with a beam diameter of 10.1' (3.1 m)
      10 fc/111 lux @ 16.4 (5.0 m) with a beam diameter of 16.9' (5.1 m)
    UPC: 092145341964
  • Reverse Leg Light Stand (7') This 7' Reverse Leg Light Stand from Fiilex uses a unique design that allows its legs to fold up against the riser enabling a closed length of 21" that neatly fits in the Fiilex Rolling Travel Case or similar cases. The 4-section stand is topped with a 5/8" stud with a 1/4"-20 male thread.
      Features
    • Compact design
    • Quick setup
    • Fits in Custom Fiilex Rolling Travel Case
    • 5/8" Stud with 1/4"-20 thread
    UPC: 092145336946
In the Box Bundle Items Matrix LED 1-Light Kit wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • Matrix LED 1-Light Kit
2 x P360 Pro Plus LED Light
  • 4-Way Barndoors for P360 and P360EX LED Lights
  • 90W AC Adapter for P360, P200 and P180E LED Lights
  • Limited 2-Year Warranty
2 x Reverse Leg Light Stand (7')
  • Limited 2-Year Warranty

Also Includes

  • Hard Kit Case
  • Limited Lifetime Warranty on Case
Data Sheet- P360 Pro Plus PDF 43mb Table of Contents




Upload User Manual

Have you got an user manual for the Fiilex X316 1-Matrix 2-P360 Pro Plus 3-Light LED Gaffer's Interview Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Matrix LED 1-Light Kit
    Color Temperature 3000 to 5600K
    Color Accuracy Standard CRI 93
    Cooling System None
    Display None
    DMX Connector 5-Pin XLR
    Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
    Accessory Mount None
    AC Input Power 120 to 240 VAC, 50 / 60 Hz
    Power Source AC Adapter, External Battery
    IP Rating IP24
    Box Dimensions (LxWxH) 24.3 x 16.3 x 13.3"
  • P360 Pro Plus LED Light
    Light Source Dense Matrix LED array
    Display OLED
    Color Range 2800 to 6500K continuous tuning
    ± 0.25 Green Hue Control
    CRI 95
    Beam Angle 65° (Native)
    Optional Fresnel lens
    Cooling Advanced Vapor Cooling System
    Operating Voltage 100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out)
    Input Voltage: 12-30 VDC
    Input Port: 5.5 x 2.5 mm DC jack
    Tungsten Equivalent 400 W tungsten fixture
    Power Consumption 90 W max.
    Dimming 0-100%
    DMX 3 Channels : Intensity, CCT, Hue
    Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078)
    Mount Light stand mount (attached), 1/4"-20 female socket
    IP Rating IP24
    Operating Temperature 32 - 104°F (0 - 40%deg;C)
    Dimensions 8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm)
    Weight 1.85 lb (0.84 kg)
    Box Dimensions (LxWxH) 13.0 x 7.55 x 5.95"
  • Reverse Leg Light Stand (7')
    Mounting Options 1/4"-20 Male Thread
    5/8" Stud
    Number of Sections 4
    Maximum Working Height 84" / 213.3 cm
    Collapsed Height 21" / 53 cm
    Air Cushioned No
    Detachable Base No
    Leveling Leg No
    Reverse Legs Yes
    Finish Black
    Material Aluminum
    Weight 2.5 lb / 1.1 kg
    Box Dimensions (LxWxH) 22.3 x 3.2 x 3.2"
