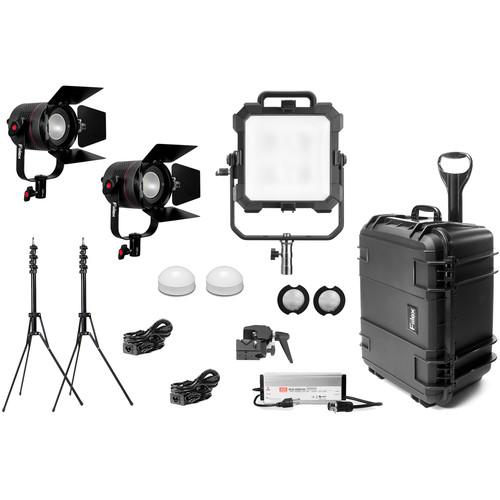

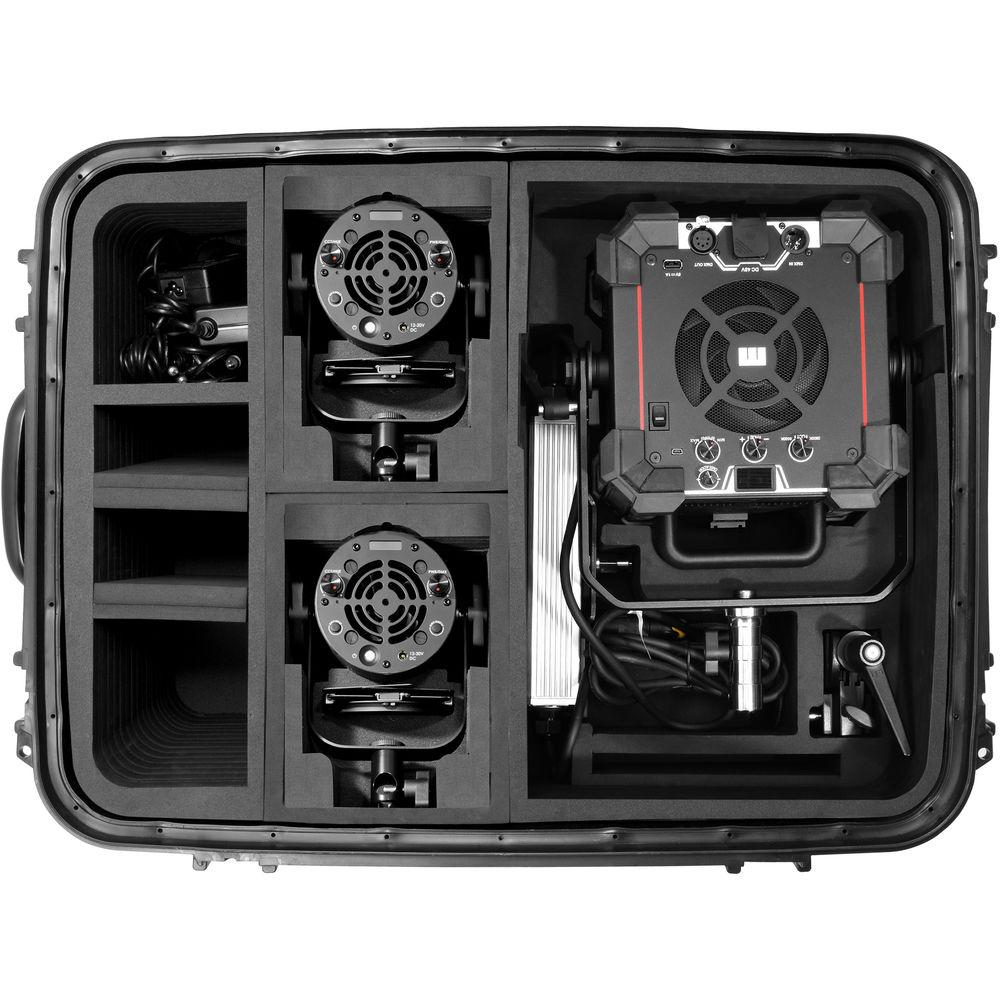

Fiilex X341 Gaffer's Interview Travel Kit

User Manual for Fiilex X341 Gaffer's Interview Travel Kit with 1 x Matrix II TW & 2 x P360 Pro Plus

• Product category: LED Lights Fiilex
• Brand: Fiilex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Fiilex LED Lights

Product description

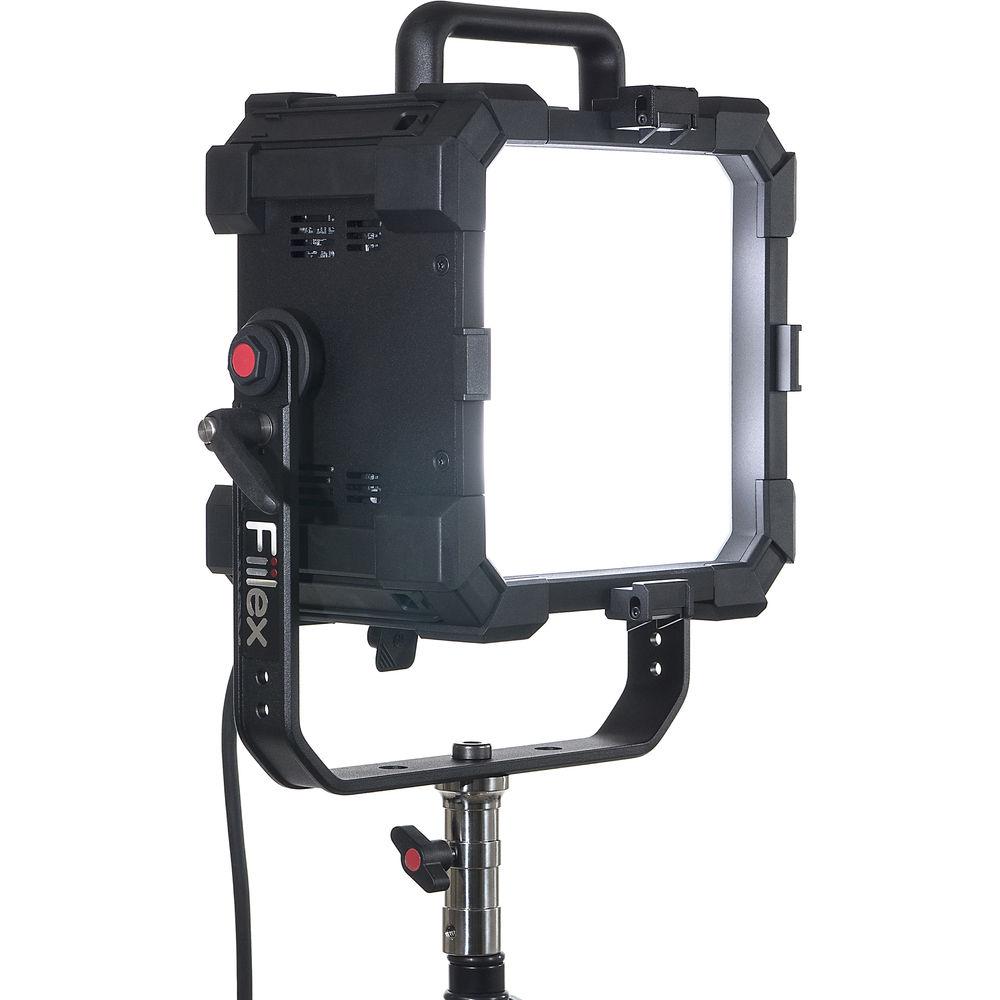

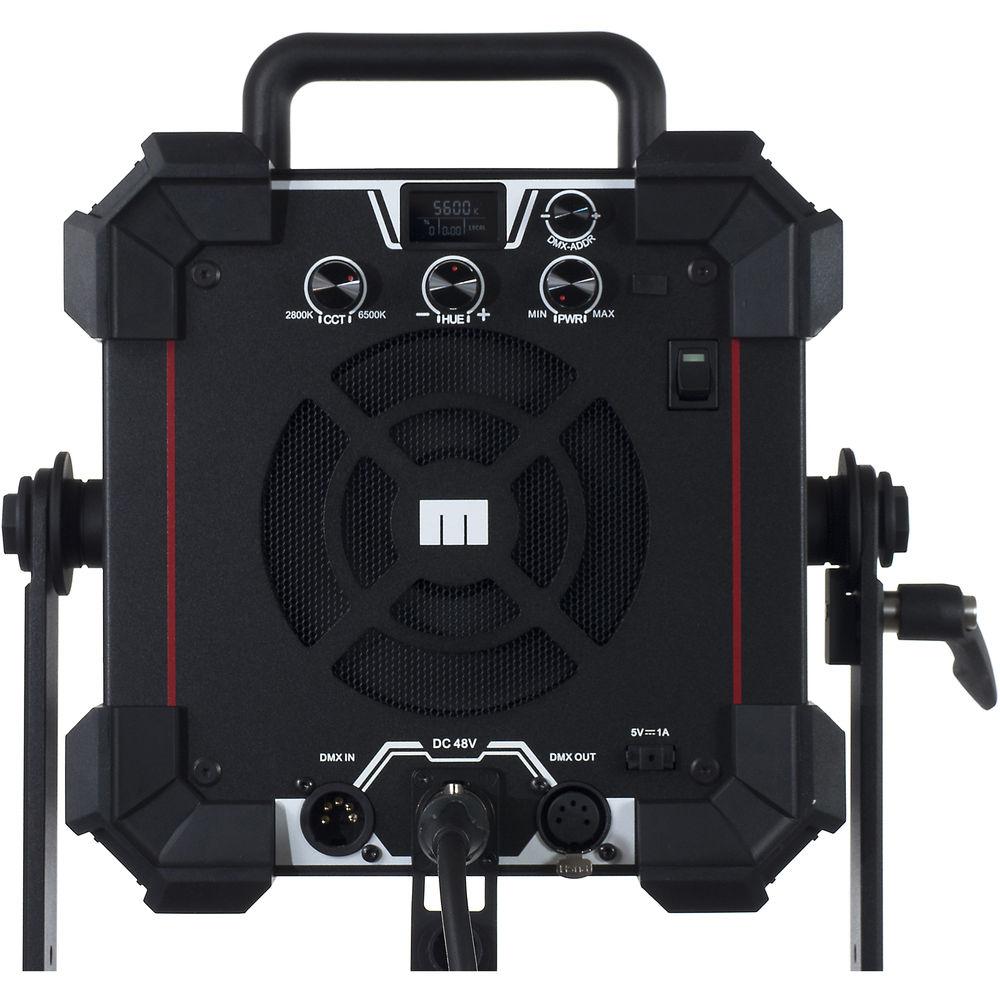

• Matrix II Tunable White Bi-Color Cinematic Quad-Source LED Punch Light The Fiilex Matrix II Tunable White Bi-Color Cinematic Quad-Source LED Punch Light is an advanced 6.7 x 12.2 x 16.5" light source that uses Quad 75W DiCon Dense Matrix LEDs to render an expansive color temperature range of 2800 to 6500K while maintaining a high CRI rating of 96, an indicator of an accurate color rendition. Other controls include +/-0.25 magenta/green adjustment as well as 0-100% flicker-free dimming. These settings can be made locally on the fixture or remotely on a console via onboard DMX. The fixture also has a USB port for updating firmware and for powering wireless DMX antennas. The Matrix II has wide 99-degree beam coverage that can be shaped with optional barndoors or a 31-degree Fresnel lens that adds "punch" to the output for selective lighting or long-throw work. One of the benefits of LED use is cool, comfortable running temperature coupled with high output and low power consumption, and while the Matrix II consumes just 340 W, it outputs the equivalent of a 1000W tungsten soft light. The fixture has an Advanced Vapor (fan) Cooling System and a yoke with a combination 1 1/8" Junior pin and 5/8" Baby receiver. The Matrix II is ready for worldwide use thanks to its 100 to 240 VAC power supply, but it can also run on optional 48V batteries when mains current is unavailable.
  Benefits
  • Quad 75W DiCon Dense Matrix LED
  • Tunable Color: 2800-6500K,

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Matrix II Tunable White Bi-Color Cinematic Quad-Source LED Punch Light

  Beam Angle	99°
  Color Temperature	2800 to 6500K
  Color Accuracy Standard	CRI 96
  Cooling System	Fan
  Dimming	Yes, 0 to 100% (Continuous)
  Display	None
  Housing Material	Aluminum
  Photometrics	99° at 3200K: 117 fc / 1258.9 lux at 9.84' / 3 m 99° at 5600K: 155 fc / 1667.8 lux at 9.84' / 3 m
  Fixture Dimensions	Flood: 6.7 x 12.2 x 16.5" / 17.0 x 31.0 x 41.9 cm
  Fixture Weight	9.7 lb / 4.40 kg (Including Yoke)

  Battery Plate	None
  DMX Connector	5-Pin XLR

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery
  Max Power Consumption	340 W

  Power Supply Weight	5.7 lb / 2.59 kg

  IP Rating	IP24
  Operating Temperature	32 to 104°F / 0 to 40°C

  Box Dimensions (LxWxH)	24.3 x 16.4 x 13.1"

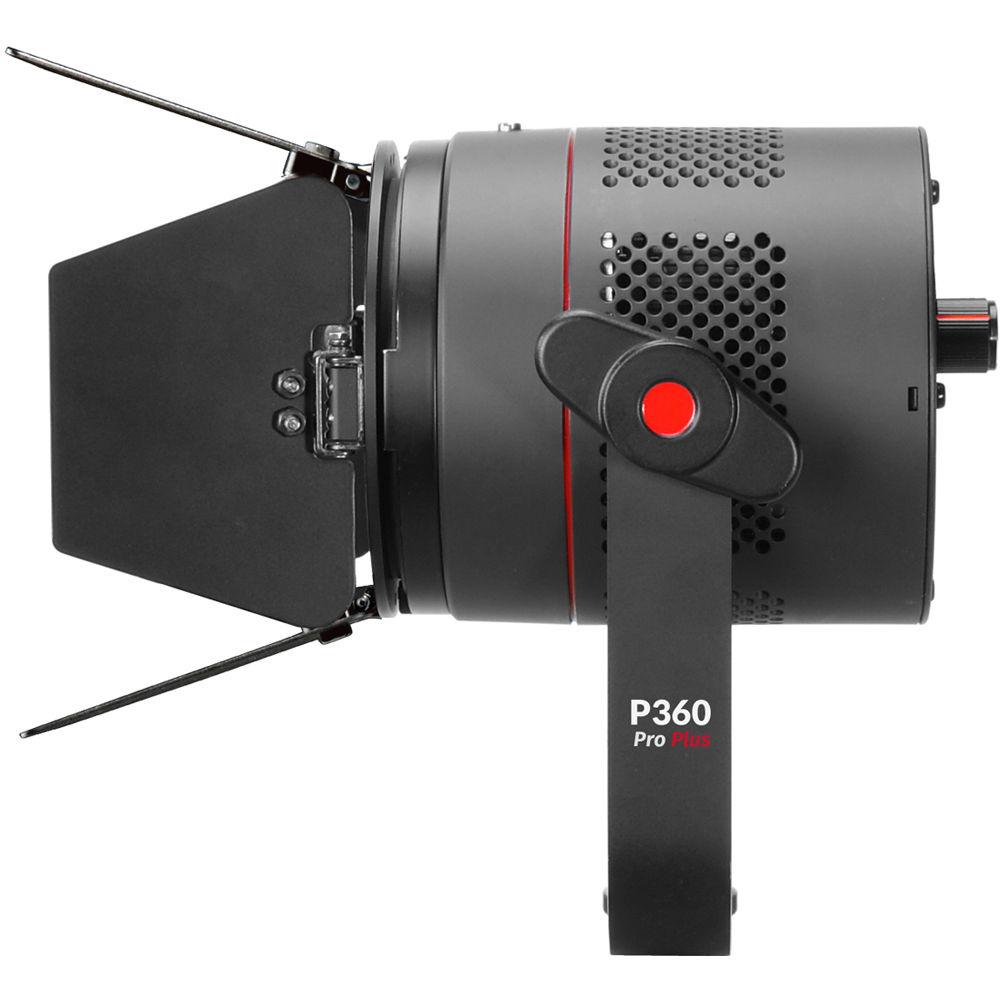

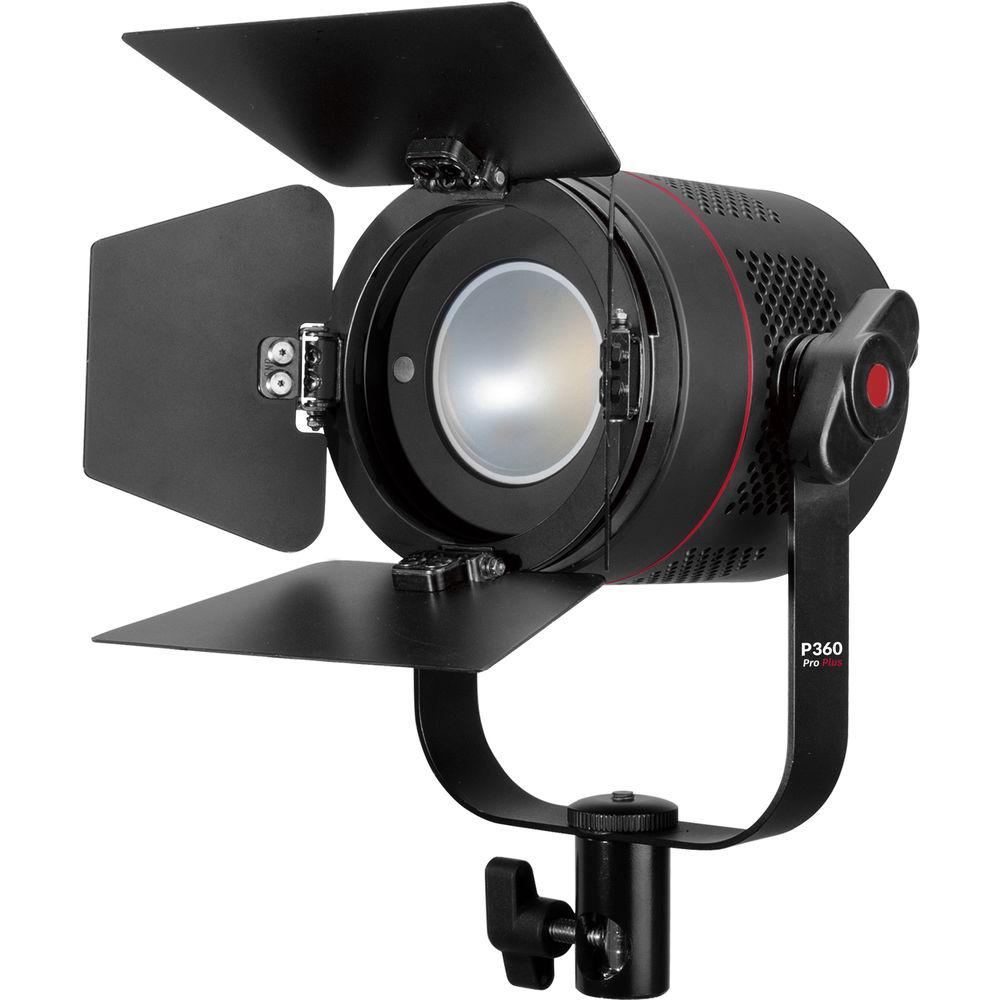

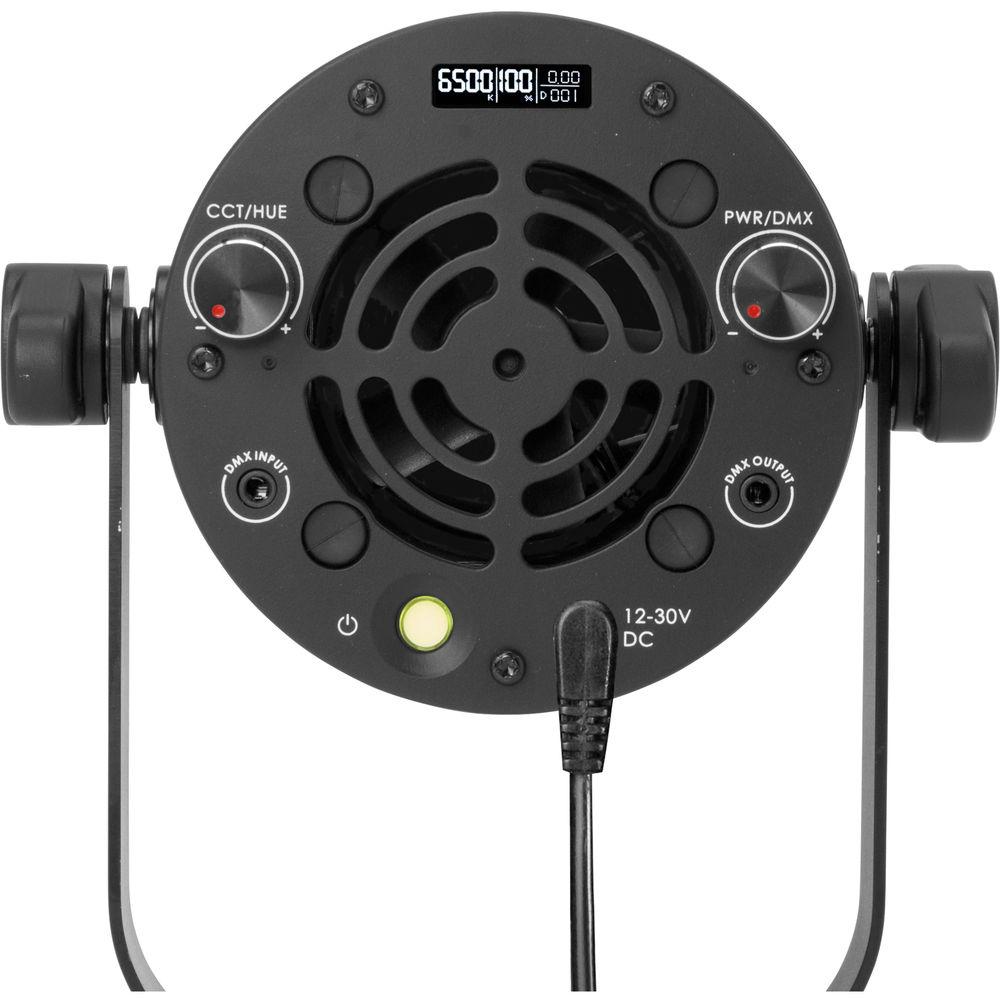

• P360 Pro Plus LED Light

  Light Source	Dense Matrix LED array
  Display	OLED
  Color Range	2800 to 6500K continuous tuning ± 0.25 Green Hue Control
  CRI	95
  Beam Angle	65° (Native) Optional Fresnel lens
  Cooling	Advanced Vapor Cooling System
  Operating Voltage	100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out) Input Voltage: 12-30 VDC Input Port: 5.5 x 2.5 mm DC jack
  Tungsten Equivalent	400 W tungsten fixture
  Power Consumption	90 W max.
  Dimming	0-100%
  DMX	3 Channels : Intensity, CCT, Hue Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078)
  Mount	Light stand mount (attached), 1/4"-20 female socket
  IP Rating	IP24
  Operating Temperature	32 - 104°F (0 - 40%deg;C)
  Dimensions	8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm)
  Weight	1.85 lb (0.84 kg)

  Box Dimensions (LxWxH)	13.0 x 7.55 x 5.95"

• Dome Diffuser for P360/EX and V70 LED Lights

  Material	Plastic
  Diameter	3.0" (7.6 cm)

  Box Dimensions (LxWxH)	4.95 x 3.8 x 2.45"

• 2" Fresnel Lens for P360/EX and V70 LED Lights

  Lens Diameter

  2" (5 cm)

  Box Dimensions (LxWxH)	3.25 x 3.25 x 0.5"
