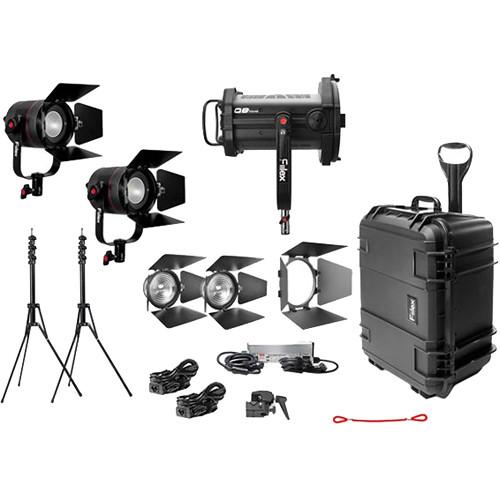

User Manual for Fiilex X381 3-Light Bi-Color LED Gaffer's Kit with Case Click to enlarge the picture
Contents of the user manual for the Fiilex X381 3-Light Bi-Color LED Gaffer's
- Product category: LED Lights Fiilex
- Brand: Fiilex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fiilex LED Lights
|
User manual for the Fiilex X381 3-Light Bi-Color LED Gaffer's contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fiilex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fiilex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fiilex product will considerably shorten its lifespan!
|
Product description Made for image makers that need to take studio-quality lighting on the road, the X381 3-Light Bi-Color LED Gaffer's Kit with Case from Fiilex has the gear and modifiers to facilitate your personal expression The bi-color kit comes with a Q8 Fresnel with 4-way barndoors and a gel holder, and two P360 Pro Plus lights with barndoors. All of the lights have variable color temperature from 2800 to 6500K and come with multi-voltage power supplies. They're also IP24 water resistant. Two 5" Fresnels with their own barndoors are included for the P360s to narrow their beam spread to a tight 14 degrees, while two dome diffusers expand the beam for wide coverage. The kit is rounded out by two 7' light stands, a cord tie, clamp mount, and an X-Series Hard Travel Case. - Q8 Travel Bi-Color LED Fresnel Light The Q8 Travel Bi-Color LED Fresnel Light from Fiilex is a highly versatile, powerful fixture that's a valuable tool in the studio or on the road. The 8" Fresnel has an expansive spot-to-flood beam angle range of 12 to 60 degrees allowing sharp-shadow, high-contrast sunlight effects at the spot setting or filling a silk at the flood setting. The Q8 has a wide color temperature range that's variable from 2800 to 6500K, without the inconvenience of filters. The CRI rating is typically 97, indicating an accurate rendition of color. As a further refinement, the green/magenta hue is tunable to +/-0.25. The fixture is dimmable from 0-100% saving you the hassle of jockeying it back and forth for the correct light intensity. All of these changes can be made locally on the fixture and viewed on the unit's LCD screen, but they can also be made remotely from a console via DMX. You can also daisy chain several lights together and make DMX adjustments from a single "master" Q8. The Q8 is ready for worldwide use thanks a 100-240 VAC power adapter that can be mounted on a light stand section using the included clamp. Finally, with its IP24 water-resistant rating, your shoot won't be cancelled due to inclement weather.
- Benefits
-
- 340W power draw
- Focus/flood range of 12-60°
- Smooth dimming down to 0%
- Flicker-free at any frame rate
- IP24 Rating (water-resistant)
- Tunable CCT (2800-6500K)
- Hue control (
|
Upload User Manual
Have you got an user manual for the Fiilex X381 3-Light Bi-Color LED Gaffer's Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Q8 Travel Bi-Color LED Fresnel Light
| | | Beam Angle | 12 to 60° | | Color Temperature | 2800 to 6500K | | Color Accuracy Standard | CRI 97 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | LCD | | Photometrics | 60° at 5600K:
53 fc / 573 lux at 9.8' / 3 m
12° at 5600K:
597 fc / 6430 lux at 9.8' / 3 m | | Expected Lamp Life | 42,000 Hours | | Fixture Dimensions | 14.1 x 12.3 x 17.2" / 35.8 x 31.2 x 43.7 cm (Including Yoke) | | Fixture Weight | 16.2 lb / 7.35 kg (Including Yoke) | | | | DMX Connector | 5-Pin XLR, RJ45 | | | | Lens Diameter | 8" / 20.32 cm | | Lens Type | Fresnel | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 3 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 48 to 54 VDC | | Power Source | AC Adapter | | Max Power Consumption | 340 W | | | | Power Supply Weight | 5.7 lb / 2.59 kg | | | | IP Rating | IP24 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Box Dimensions (LxWxH) | 24.0 x 16.4 x 13.3" | - Barndoor for Q8 LED Light
| Material of Construction | Aluminum | | Dimensions | 9.44 x 9.44 x 0.66" / 240 x 240 x 17 mm | | Weight | 1.34 lb / 609 g | | | | Box Dimensions (LxWxH) | 12.8 x 10.5 x 1.6" | - P360 Pro Plus LED Light
| Light Source | Dense Matrix LED array | | Display | OLED | | Color Range | 2800 to 6500K continuous tuning
± 0.25 Green Hue Control | | CRI | 95 | | Beam Angle | 65° (Native)
Optional Fresnel lens | | Cooling | Advanced Vapor Cooling System | | Operating Voltage | 100-240 VAC, 50/60 Hz (In) / 24 VDC, 90 W max. (Out)
Input Voltage: 12-30 VDC
Input Port: 5.5 x 2.5 mm DC jack | | Tungsten Equivalent | 400 W tungsten fixture | | Power Consumption | 90 W max. | | Dimming | 0-100% | | DMX | 3 Channels : Intensity, CCT, Hue
Connects with XLR5 or RJ45 via optional Unit link Adapter (FLXA076, FLXA077, FLXA078) | | Mount | Light stand mount (attached), 1/4"-20 female socket | | IP Rating | IP24 | | Operating Temperature | 32 - 104°F (0 - 40%deg;C) | | Dimensions | 8.1 x 5.8 x 4.8" (20.5 x 14.7 x 12.2 mm) | | Weight | 1.85 lb (0.84 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 7.55 x 5.95" | - Reverse Leg Light Stand (7')
| Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 84" / 213.3 cm | | Collapsed Height | 21" / 53 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Material | Aluminum | | Weight | 2.5 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 22.3 x 3.2 x 3.2" | - 5" Fresnel Zoom Lens with Barndoors for P360-Series LED Lights
| Material | Aluminum, glass | | Compatibility | P360, P360 Pro, P360 Pro Plus, P360EX | | Beam Angle | Spot: 14° | | Dimensions | Lens Diameter: 5.0" (12.7 cm) | | | | Box Dimensions (LxWxH) | 8.9 x 7.1 x 4.6" | - Gel Holder for Q8
| Material of Construction | Steel | | Compatibility | Q8 Travel and Q8 Junior LED lights
P360EX, P360, P200, P180E LED lights | | Dimensions | Outer Diameter 7.77"/ 197 mm
Inner Diameter 7.09" / 180 mm
Thickness: 0.11"/ 2.7 mm | | Weight | 2.1 oz / 60 g | - Dome Diffuser for P360/EX and V70 LED Lights
| Material | Plastic | | Diameter | 3.0" (7.6 cm) | | | | Box Dimensions (LxWxH) | 4.95 x 3.8 x 2.45" |
