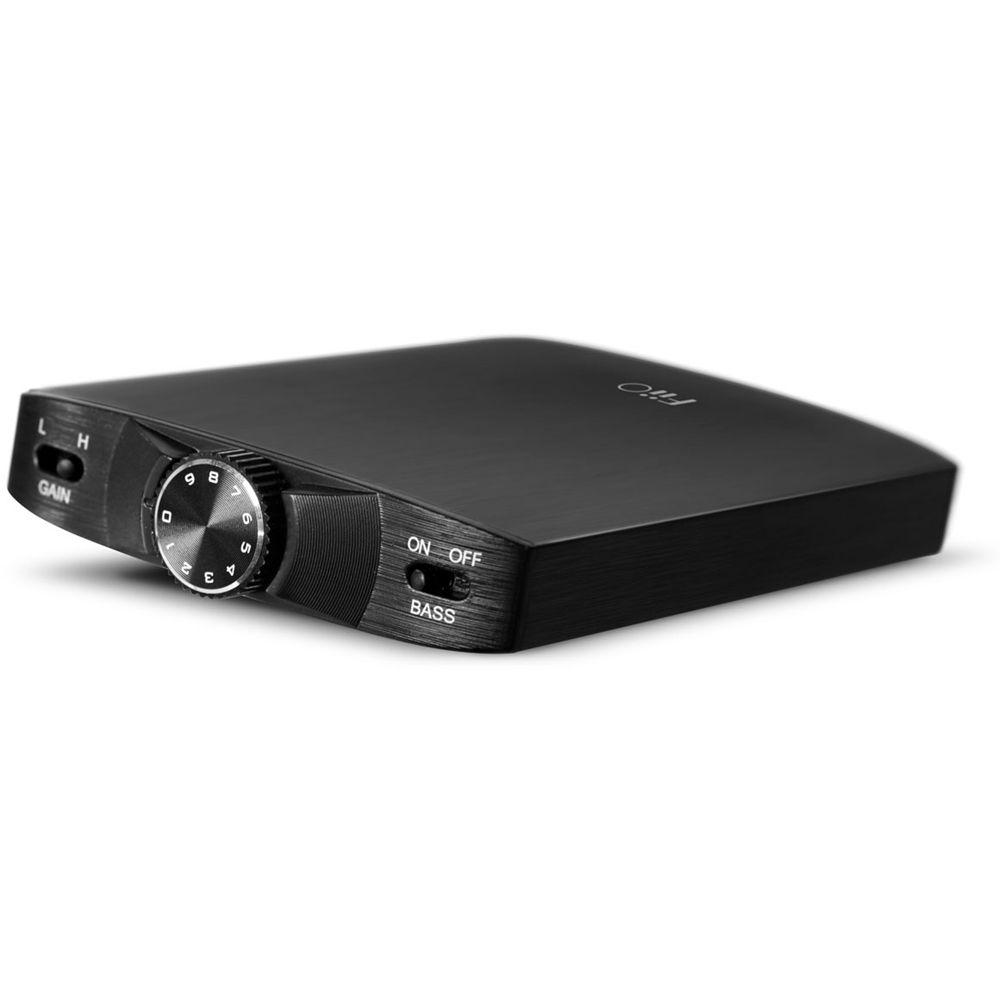

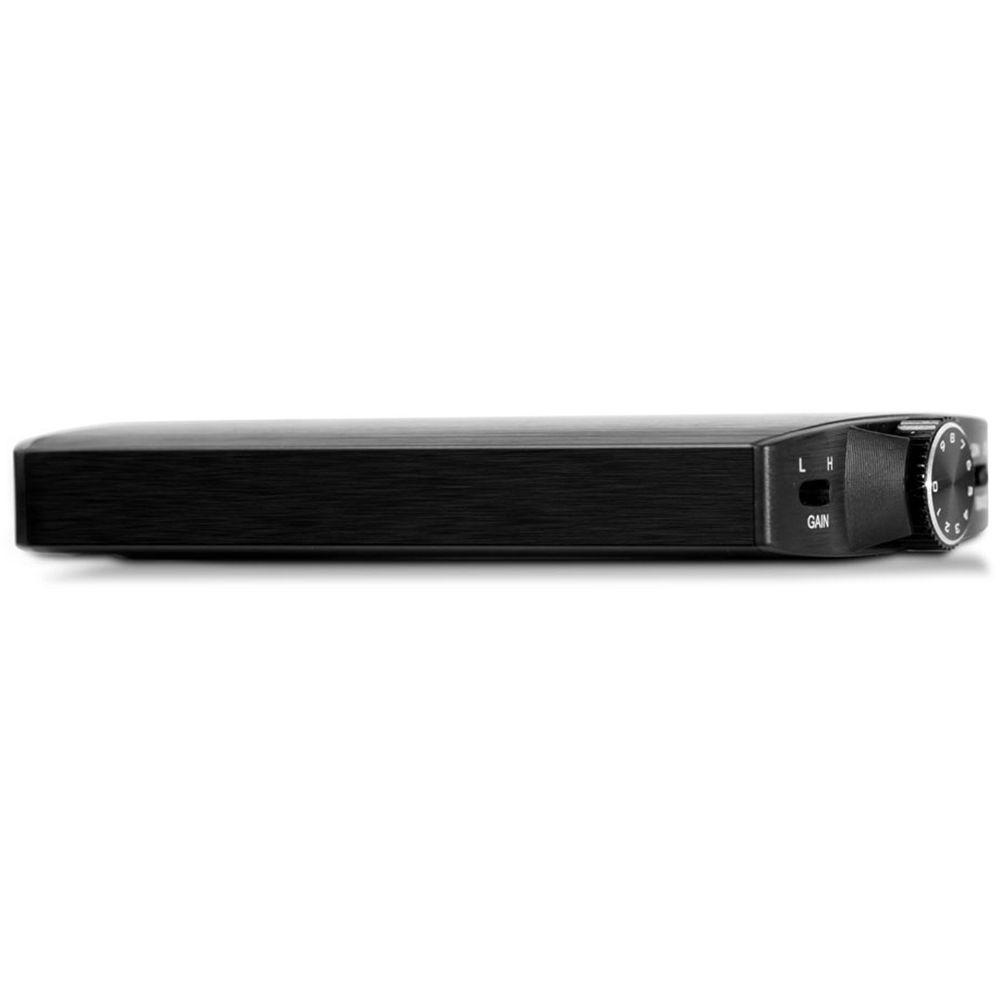

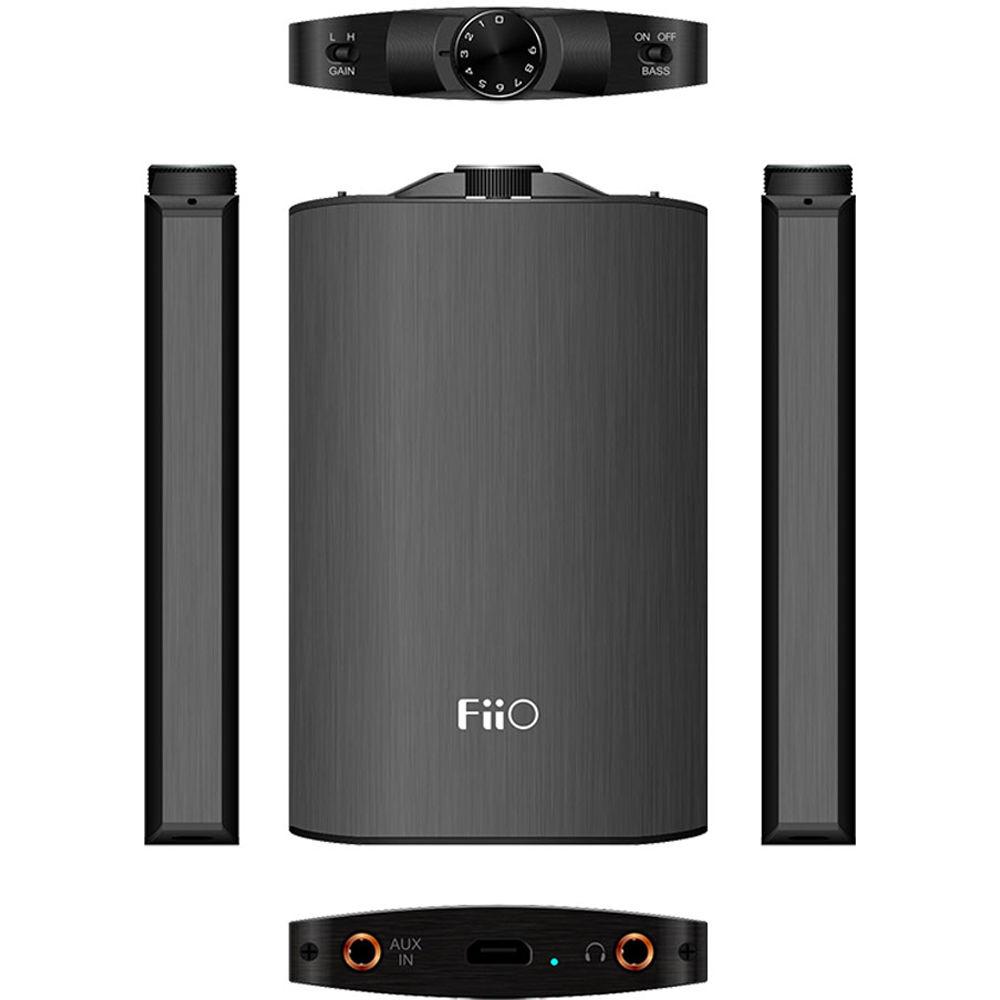

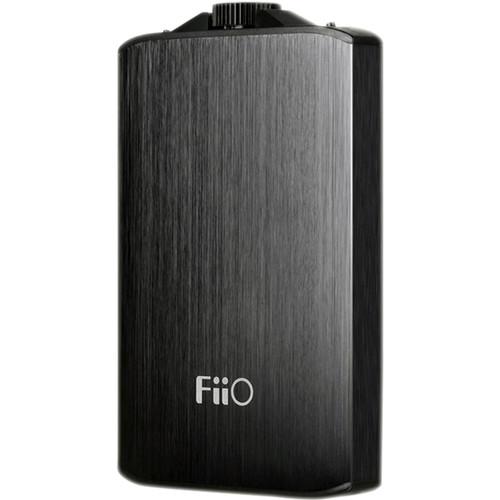

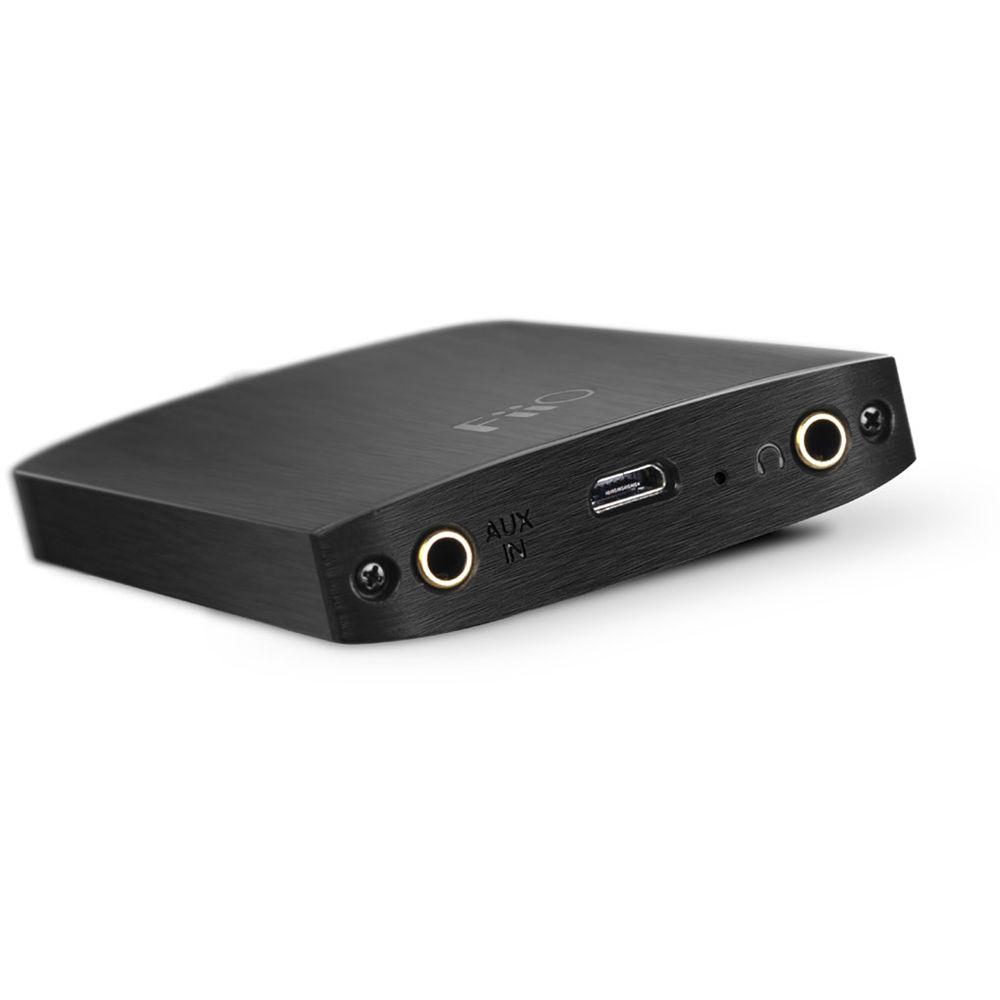

Product description The black colored version of the Fiio A3 - Portable Headphone Amplifier is designed for mobile Hi-Fi listening applications and is compatible with a wide range of headphones, earphones, and other in-ear monitoring systems. The all-aluminum alloy body and chassis of the amplifier shields against electromagnetic interference and the built-in rechargeable 1400 mAh battery provides approximately 16 hours of operation on a four-hour charge via mini USB port. For I/O, it features an 1/8" stereo auxiliary input and an 1/8" stereo headphone output.
The device utilizes an OPA1642 as the voltage pre-amplifier and an AD8397 power amplifier to deliver a maximum power output of 450 mW at 16Ω (270 mW at 32 Ω) with a frequency response of 20 to 20,000 Hz, a signal-to-noise ratio of equal to or greater than 108 dB, and a T.H.D. of less than 0.004% into loads between 16 and 150Ω.

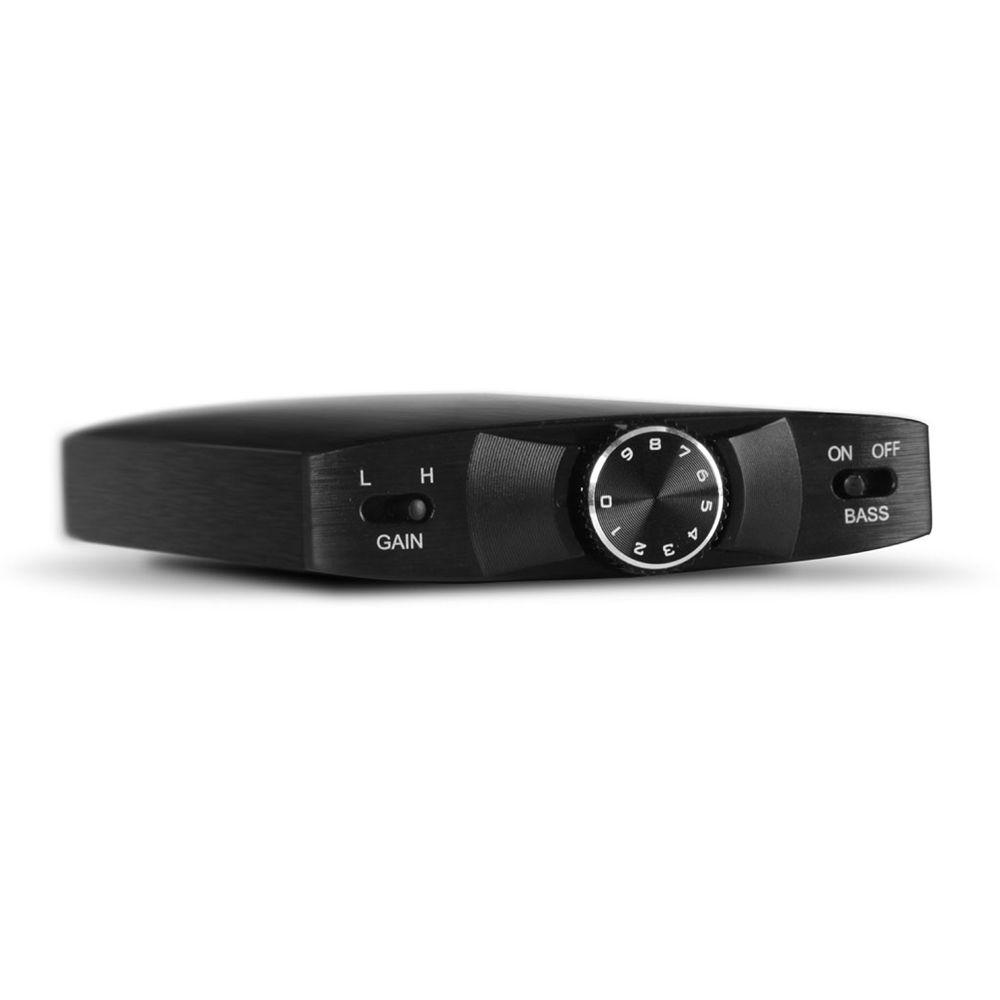

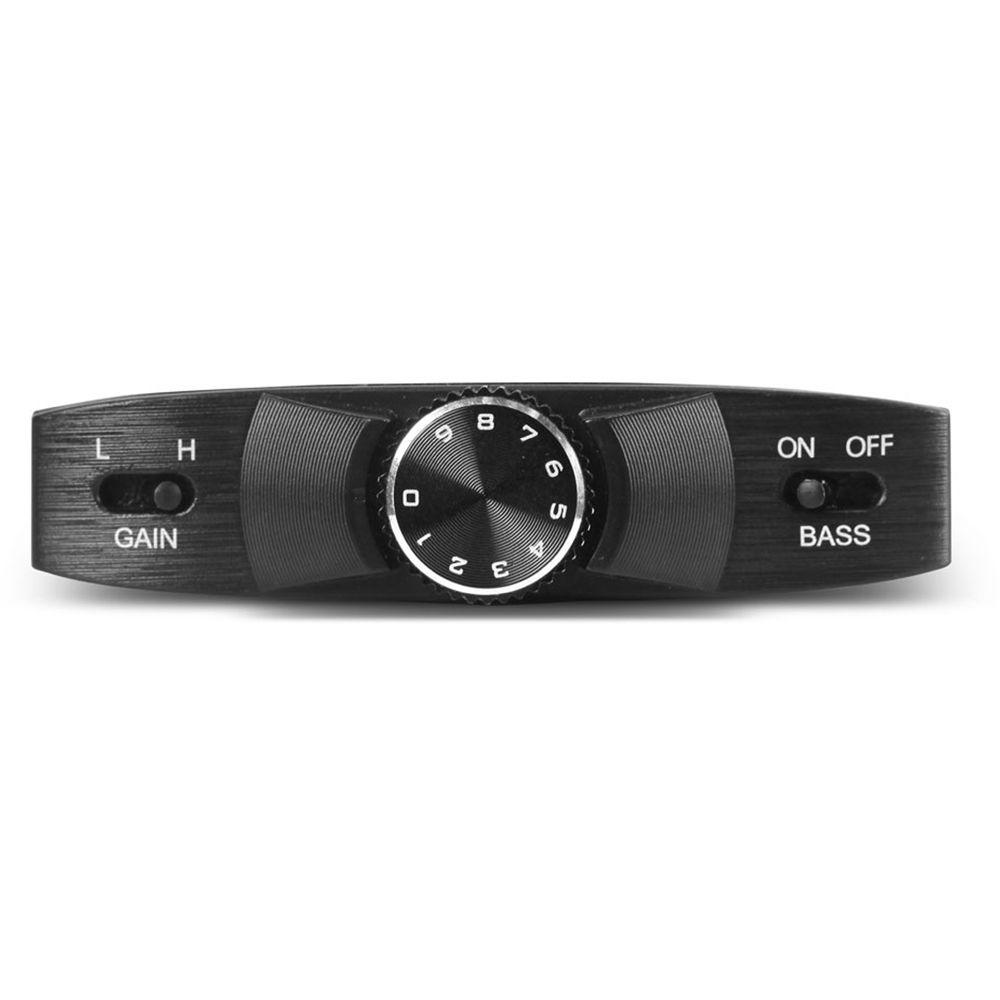

For controls, the amplifier includes a low-high gain toggle switch, a rotary volume control, and a fully discrete bass boost circuit that can be bypassed to decrease interference and lower the overall noise floor. In the Box FiiO A3 - Portable Headphone Amplifier (Black) USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO A3 - Portable Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO A3 Specs | Input | 1/8" (3.5 mm) stereo aux | | Gain | GAIN=L: Sensitivity = 2.4 V
GAIN=H: Sensitivity = 0.8 V | | Output | 1/8" (3.5 mm) stereo headphone | | Volume Control | ALPS potentiometer | | Frequency Response | 20 to 20,000 Hz | | Crosstalk | ≥ 72 dB (Gain=H) | | Signal to Noise Ratio | > 108 dB | | THD | 0.004% at 1,000 Hz | | Channel Imbalance | <0.5 dB | | Balance Control | GAIN=L: Balance = 0.3 dB
GAIN=H: Balance = 0.2 dB | | Charging Time | 4 hours | | Power Supply | Mini USB Port | | Battery Capacity | 1400 mAhH | | Operating Time | Up to 16 hours | | Power Input | 5 VDC at 500 mA | | Input Impedance | 16 to 150 Ω | | Output Impedance | <0.2 Ω | | Output Power | 270 mW (32 Ω)
450 mW (16 Ω) | | Output Current Limit | 92.6 mA | | Output Voltage | 8.67 Vp-p | | Dimensions | 3.59 x 2.20 x 0.51" (91.2 x 56.0 x 13.0 mm) | | Weight | 3.2 oz (92 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.2 x 5.2 x 1.0" |
