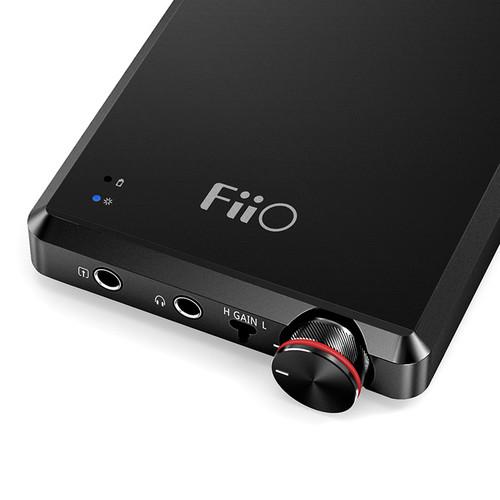

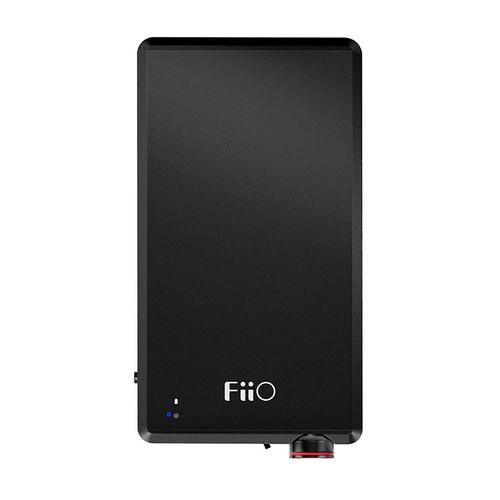

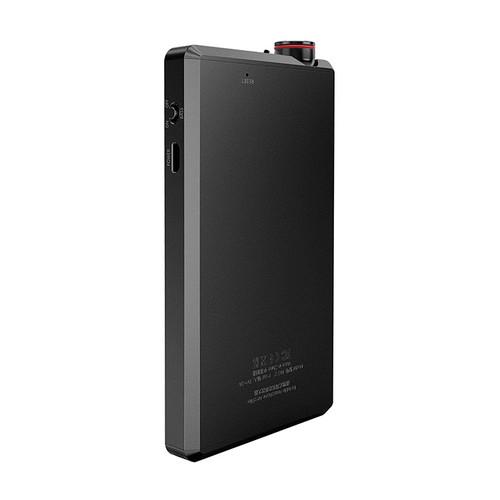

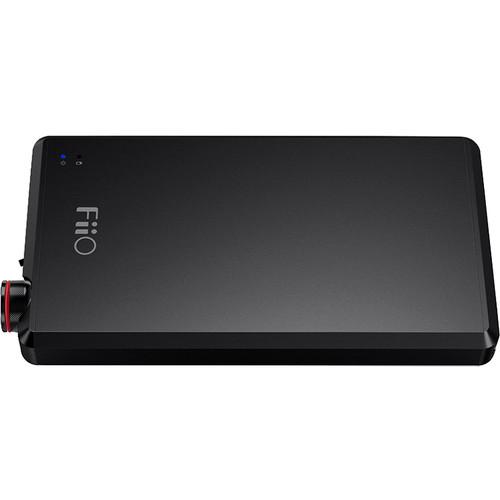

User Manual for FiiO A5 Portable Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the FiiO A5 Portable Headphone Amplifier
- Product category: Headphone Amplifiers FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Headphone Amplifiers
 |
User manual for the FiiO A5 Portable Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|
Product description Building upon the success of the E12 series, the black Fiio A5 is a headphone amplifier designed to be used on the go and provide a hi-fi sonic backdrop to any traveling situation. The A5 utilizes the same combination of opamps (Muse02 + LME49600) as the E12A, but delivers improved performance with high-precision components that provide better harmonic distortion, a higher signal-to-noise ratio, and an improved channel balance.
The headphone amplifier also sports an 880mAh battery, which can last up to 13 hours on a 2.5-hour charge when supplied power via an optional 5V/2A charger. When charging, the A5 will automatically adjust the amount of current it accepts depending on whether you're using a computer's USB port, a tablet charger, or a cell phone charger. An LED indicates the A5's charging status.
Furthermore, the 3.5mm headphone jack utilizes a CNC stainless steel ring, rather than copper, which was used in previous models. This, combined with a plastic ring, ensures the termination port is integrated with no gaps whatsoever, giving you a sturdier connection for your headphones. The amp accepts signal through a 3.5mm jack located near the headphone jack, and features a switch that allows you to adjust between high- and low-gain settings. The A5 ships with a USB power cable, two silicone pads, four silicone bands, an 3.5mm audio cable, and a cloth pouch. - Key Features at a Glance
-
- Provides 800mW at 32 Ohms
- Offers a MUSES02 and LME49600 Opamp combination
- Sports a signal to noise ratio of 115 dB
- Features a total harmonic distortion of 0.002%
- Utilizes low-resistance power management
- Provides an 880mAh 11V battery
- Battery lasts for up to 13 hours on a 2.5-hour charge
- LED displays charging status
- CNC-Milled headphone jack provides sturdier connection
- Volume knob inspired by string instruments and designed with fifty-six 45° etched lines
- Sandblasted zirconium finish provides a robust enclosure
In the Box FiiO A5 Portable Headphone Amplifier (Black) USB Power Cable 2 x Silicon Pads 4 x Silicon Bands 3.5mm Audio Cable Cloth Pouch Limited 180-Day Warranty on Battery Limited 1-Year Warranty on Mainframe Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO A5 Portable Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO A5 Specs | Inputs and Outputs | Audio Input: 1/8" / 3.5 mm Stereo Jack
Headphone Output: 1/8" / 3.5 mm Stereo Jack | | Volume Control | ALPS Potentiometer | | Bass Boost | Bass Boost: 1 Level
Bass-Boost Range: >5 dB (Bass On) | | Drive Ability | 16 to 300 Ohms (Recommended) | | Output Power | >800 mW (32 Ohms / THD <1%)
≥150 mW (300 Ohms / THD <1%) | | THD + N | <0.002% (1 kHz) | | Frequency Response | 10 Hz to 90 kHz (-3 dB, Input: 220 mV) | | Input Sensitivity | 5.6 V (Gain = L) 1.15 V (Gain = H) | | Crosstalk | ≥75 dB | | Gain | 13 dB (Gain = H)
0 dB (Gain = L) | | Peak Output Voltage | 14.96 V p-p | | Output Impedance | <0.3 Ohms | | Signal-to-Noise Ratio (SNR) | ≥115 dB (A-Weighted) | | Line Max Input Level | >8 Vrms | | Channel Imbalance | <0.3 dB | | Max Output Current | 250 mA (for Reference) | | Power Input | 5 VDC, 2 A (Recommended) | | Battery | Battery Capacity: 880 mAh
Battery Life: ≥13 Hours
Charging Time: <3 Hours (5 VDC 2 A) | | Dimensions (L x W x D) | 4.9 x 2.6 x 0.6" / 124.0 x 65.5 x 14.5 mm | | Weight | 5.9 oz / 168.0 g (Including Battery) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.347 x 6.535 x 4.331" |
