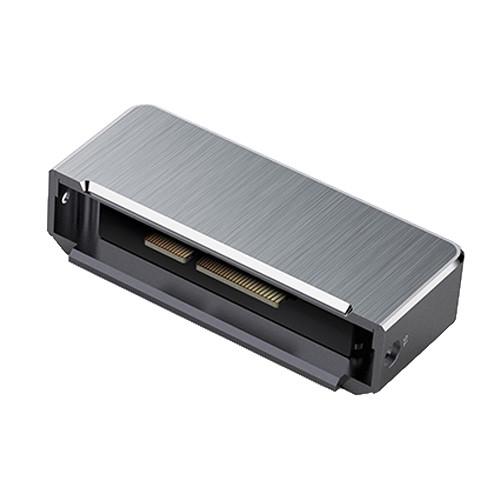

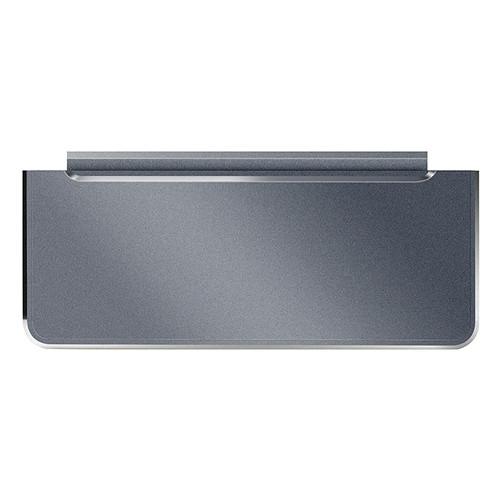

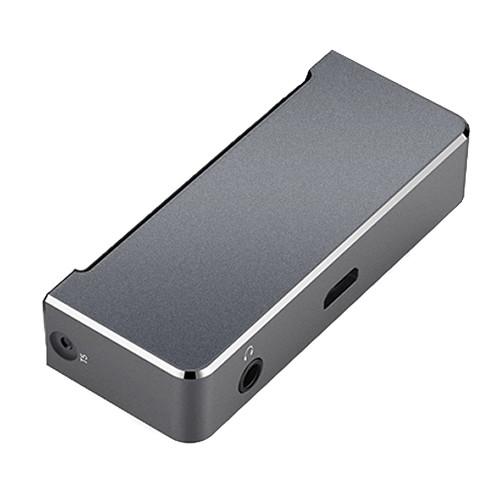

User Manual for FiiO AM2A Medium-Power Headphone Amplifier Module for X7 & X7 Mark II Click to enlarge the picture
Contents of the user manual for the FiiO AM2A Medium-Power Headphone Amplifier Module
- Product category: Headphone Amplifiers FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Headphone Amplifiers
 |
User manual for the FiiO AM2A Medium-Power Headphone Amplifier Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|

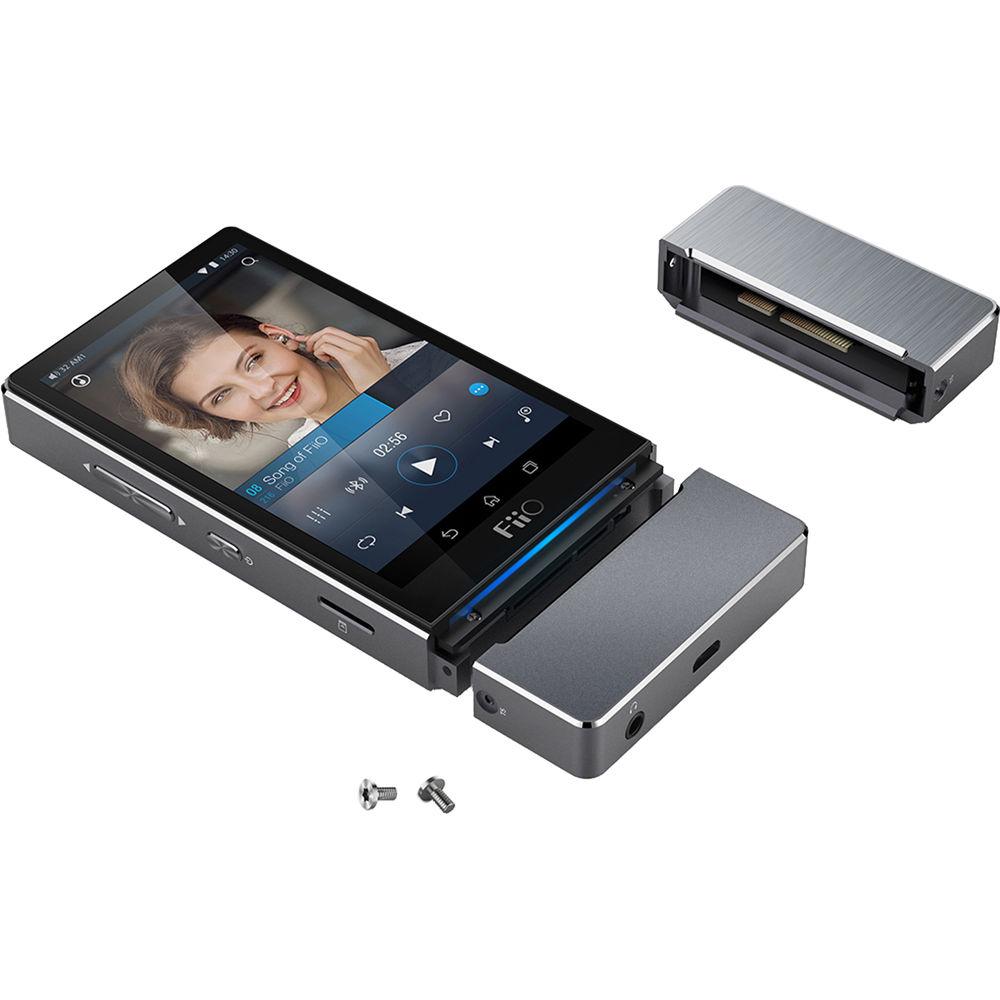

Product description The FiiO AM2A is a medium powered headphone amplifier module for the X7 and X7 MKII high-resolution portable music players. The AM2A is the official modified version based on the non-official modification of the AM1 module, which utilizes the combo AD8620 + AD8397ARDZ as its operational amplification. The headphone module uses the same voltage supply as the AM2, hence the name. The AM2A presents a smooth, neutral sound signature with clear high-mids and rich lows. In the Box FiiO AM2A Medium-Power Headphone Amplifier Module for X7 & X7 Mark II Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO AM2A Medium-Power Headphone Amplifier Module for X7 & X7 Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO AM2A Specs | Output Power | 420 mW (32 Ohms / 1 kHz) | | Frequency Response | 8 Hz to 92 kHz (-3 dB) | | SNR | ≥118 dBA | | Output Impedance | <0.3 Ohms (32 Ohm load) | | Channel Separation | >73 dB (32 Ohms / 1 kHz) | | THD + N | <0.002% (32 Ohm / 1 kHz) | | Peak Output Voltage | >10.6 Vp-p | | Maximum Output Current | >250 mA (for reference) | | Battery Life | Battery Life: ≥7.5 hours
Test Conditions:
Screen: Off
Gain: Low
EQ: Off
Load: M3 open earbuds (27 Ohms)
Volume: 52
Test File: MP3 44.1 kHz / 16-bit | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.7 x 3.55 x 0.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
