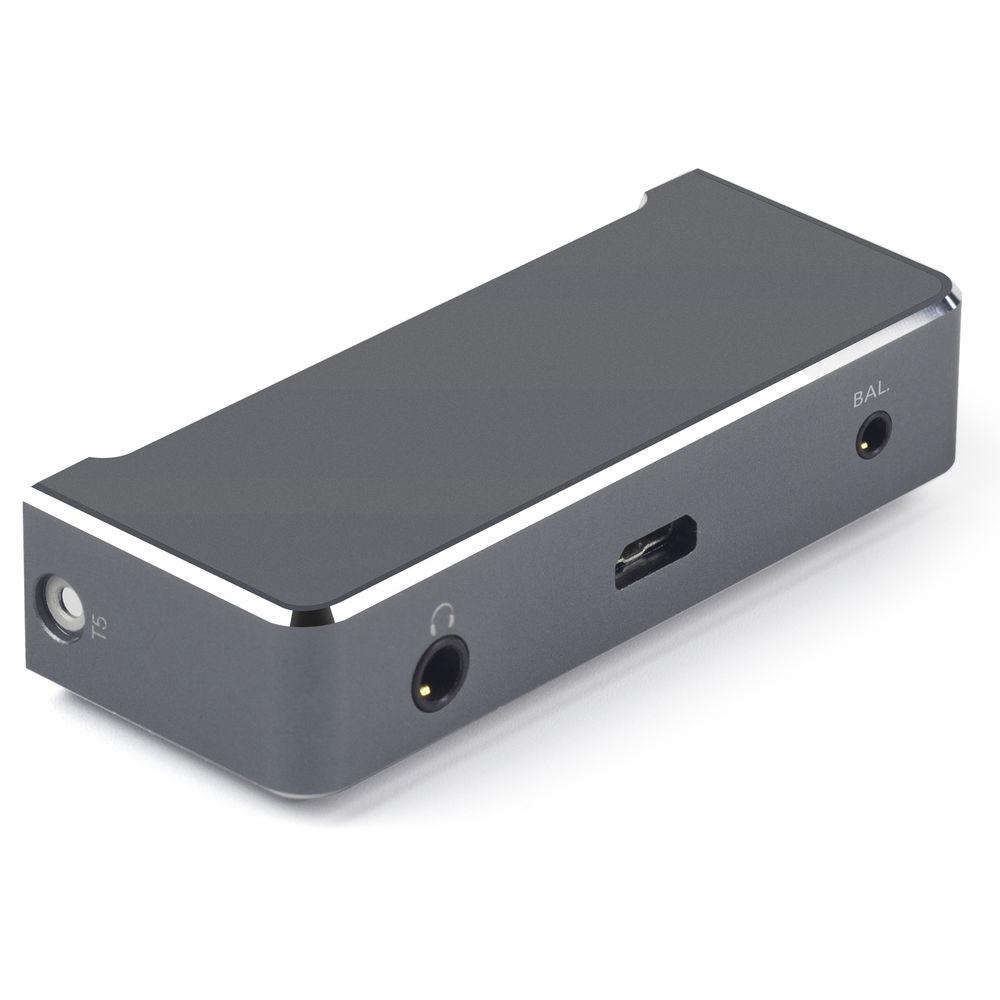

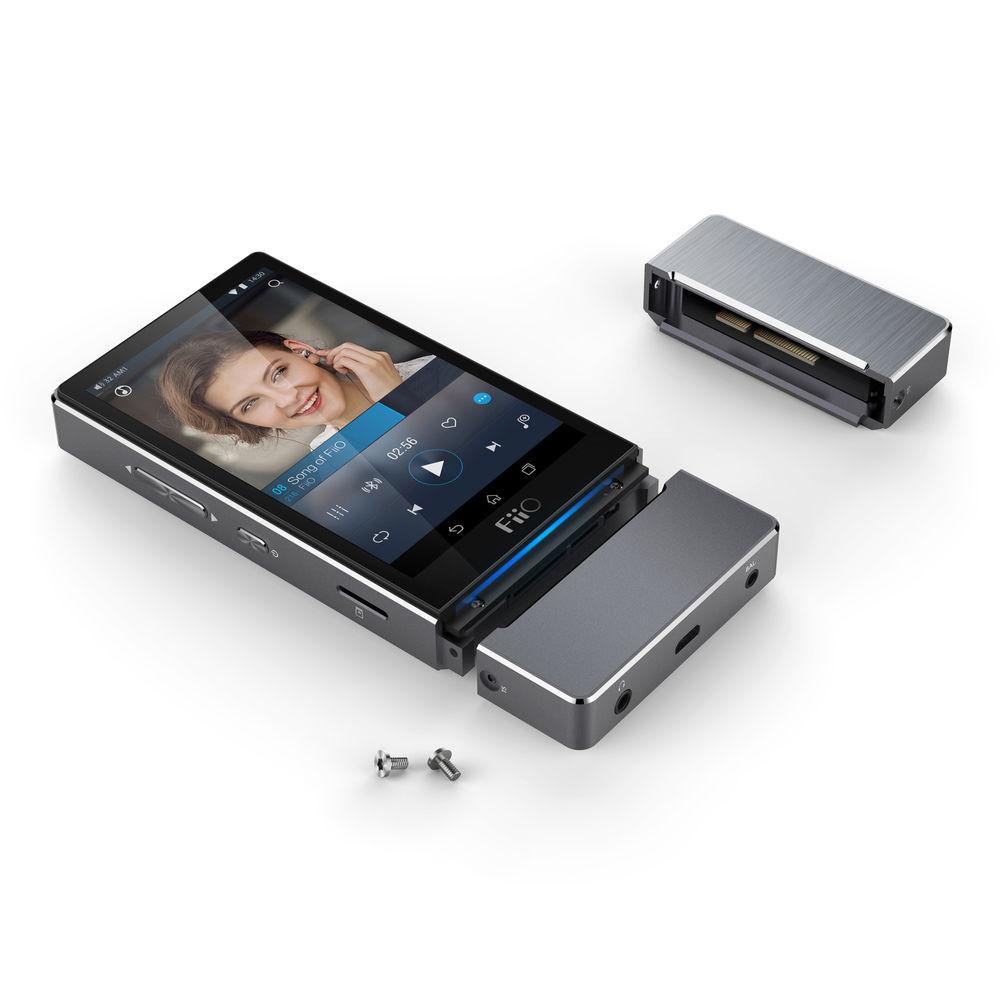

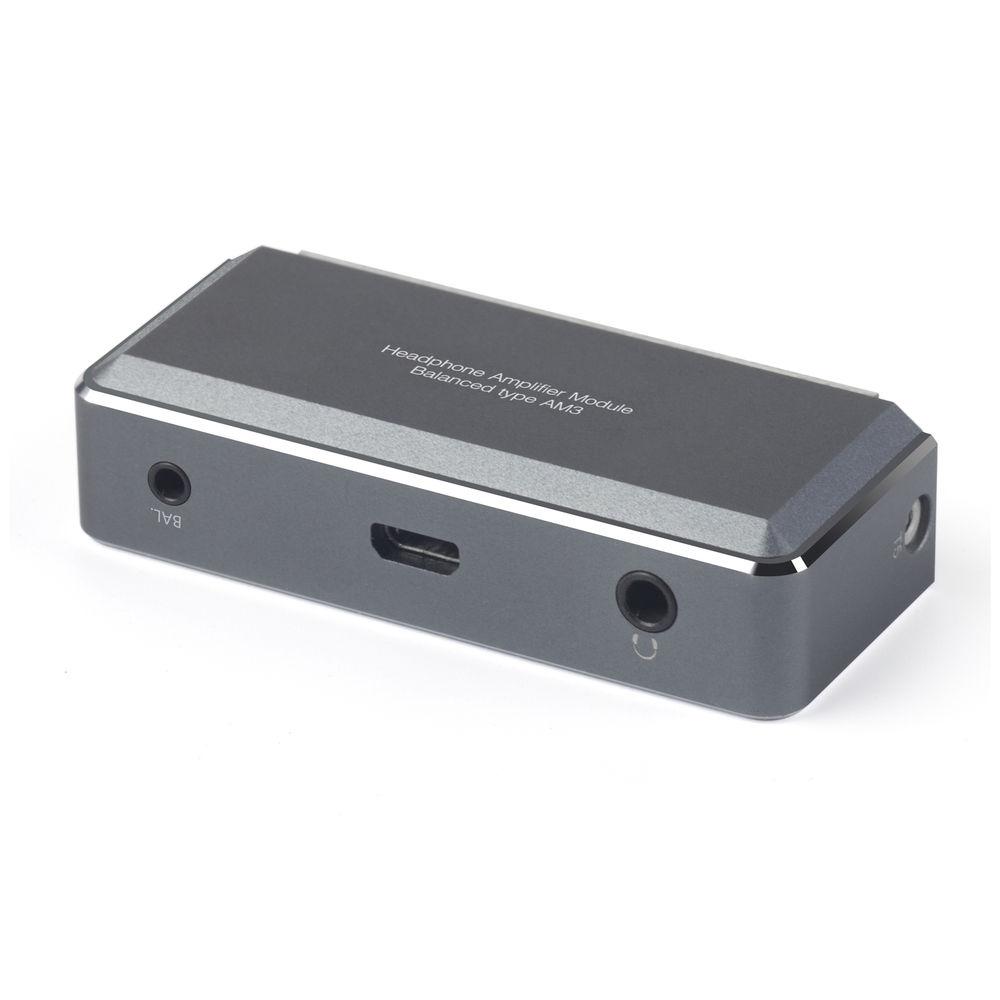

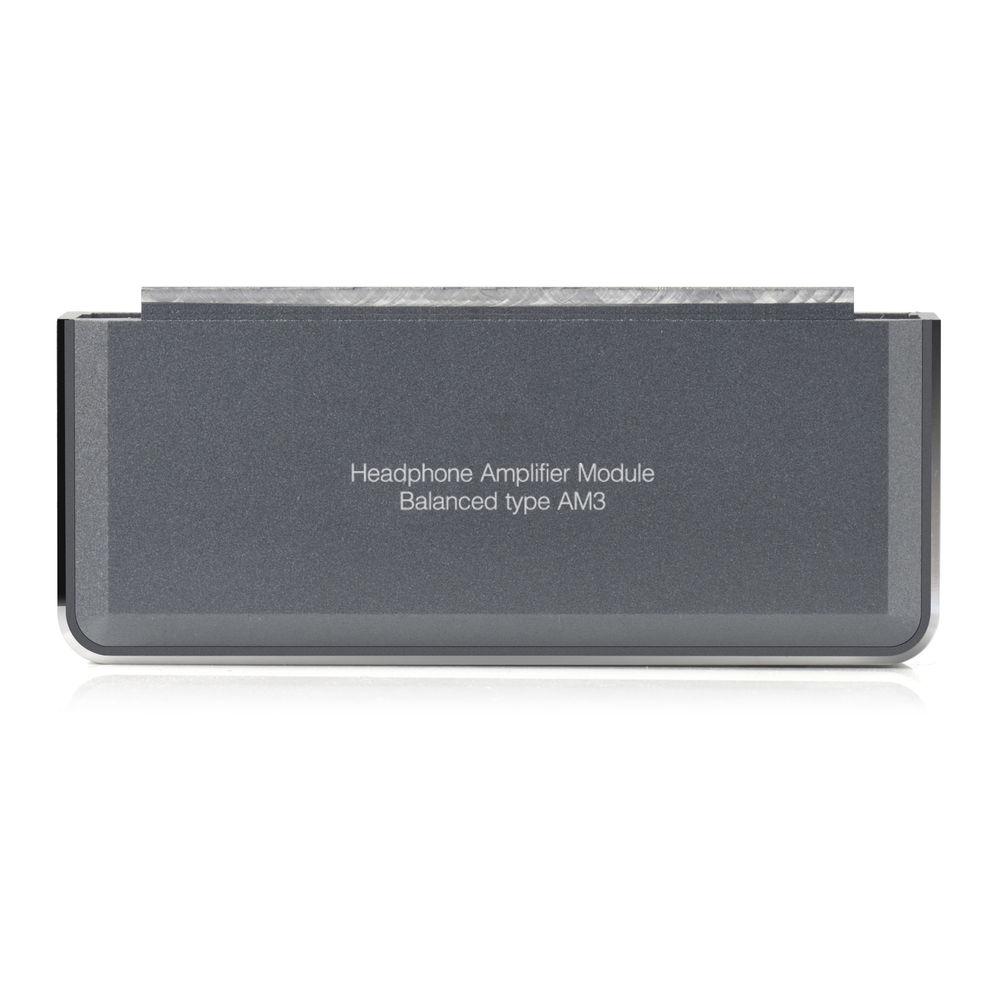

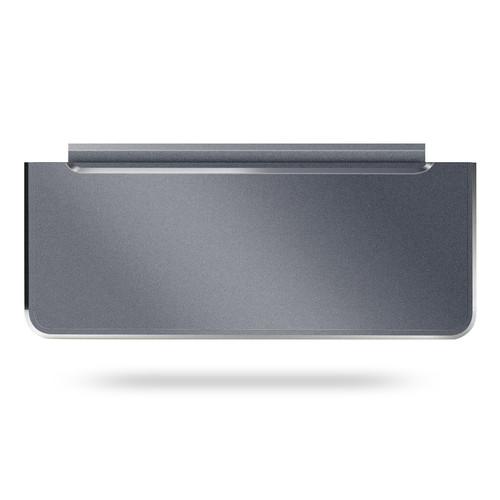

Product description Intended for use with the X7 Portable High-Resolution Audio Player, the FiiO AM3 is a headphone amplifier which gives you both a standard 3.5mm headphone output and a 2.5mm TRRS headphone output for balanced connections. Depending on your power settings—and the headphones you use—the AM3 adds between 15 and 600 mW of output power, as well an increased peak output voltage. It also helps improve the frequency response; with the AM1, you get 10 Hz to 76 kHz, but with the AM3, you get 5 Hz to 83 kHz. You can swap out the AM1 on your X7 for this module at any time. In the Box FiiO AM3 Balanced Amplifier for X7 Portable High-Resolution Audio Player Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO AM3 Balanced Amplifier for X7 Portable High-Resolution Audio Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO AM3 Specs | Output Power | 3.5 mm output
1: > 250 mW (16 Ohms / 1 kHz)
2: > 190 mW (32 Ohms / 1 kHz)
3: > 25 mW (300 Ohms / 1 kHz)
2.5 mm TRRS balanced headphone output
1: > 420 mW (16 Ohms / 1 kHz)
2: > 540 mW (32 Ohms / 1 kHz)
3: > 70 mW (300 Ohms / 1 kHz) | | Frequency Response | Both outputs
5 Hz to approximately 83 kHz (-3 dB) | | Signal to Noise | Both outputs
≥ 115 dB (A-weighted) | | Drive Ability | 3.5 mm output
16 to 150 Ohms (recommended)
2.5 mm TRRS balanced headphone output
16 to 300 Ohms (recommended) | | Output Impedance | Both outputs
< 0.3 Ohms (32 Ohms load) | | Channel Separation | 3.5 mm output
> 72 dB (A-weighted)
2.5 mm TRRS balanced headphone output
> 100 dB (32 Ohms / 1 kHz) | | THD + N | 3.5 mm output
< 0.001% (32 Ohms / 1 kHz)
2.5 mm TRRS balanced headphone output
< 0.0008% (32 Ohms / 1 kHz) | | Max Output Voltage | 3.5 mm output
> 7 V p-p
2.5 mm TRRS balanced headphone output
> 11 V p-p | | Max Output Current | 3.5 mm output
> 80 mA (for reference)
2.5 mm TRRS balanced headphone output
> 160 mA (for reference) | | Product Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.7 x 3.5 x 1.0" |
