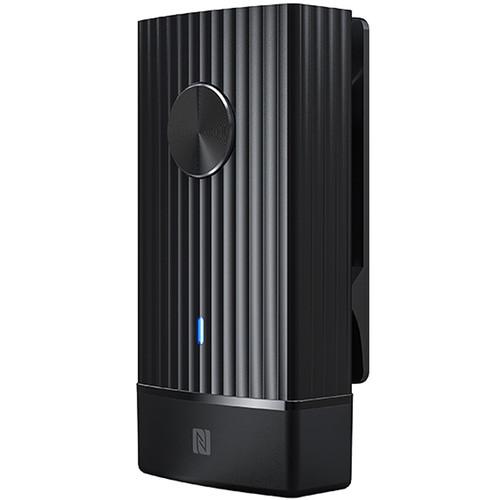

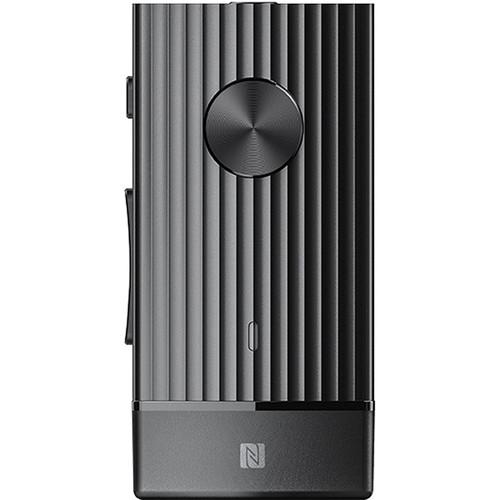

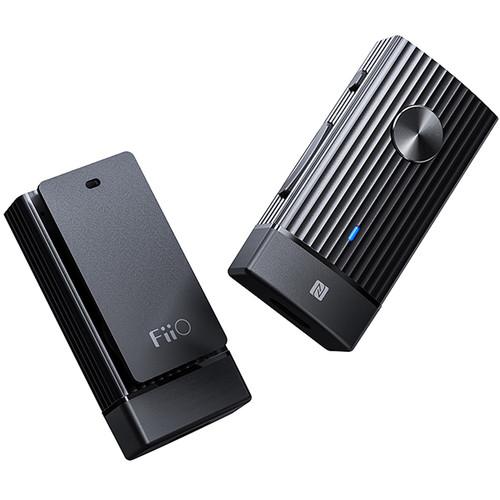

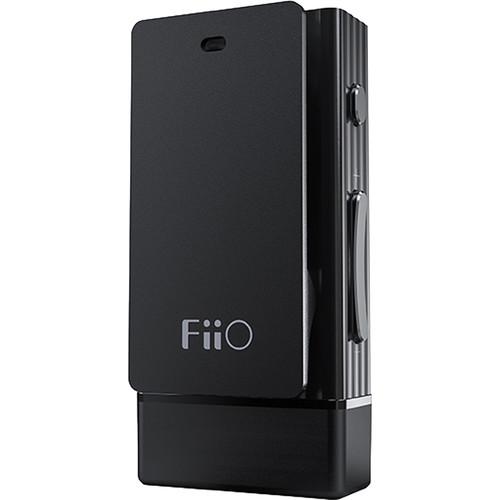

User Manual for FiiO BTR1K Portable High-Fidelity Bluetooth Amplifier Click to enlarge the picture
Contents of the user manual for the FiiO BTR1K Portable High-Fidelity Bluetooth Amplifier
- Product category: Other Headphone Accessories FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Other Headphone Accessories
 |
User manual for the FiiO BTR1K Portable High-Fidelity Bluetooth Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|
Product description The FiiO BTR1K is a Bluetooth receiver with an integrated DAC. It is intended to give you, the listener, a more refined, detailed, articulate, and sonically pleasing experience when listening to music over Bluetooth. The previous iteration of this receiver also purported to mitigate the sonic inferiority of the Bluetooth experience, but this version takes things a step further with a new Qualcomm QCC3005 Bluetooth chip, one that handles Bluetooth 5.0.
The BTR1K also sports an upgrade in regards to digital-to-audio conversion, thanks to the AK4376A DAC. This model provides a lower noise floor than its previous incarnation, as well as a higher signal-to-noise ratio and more output power. This DAC is housed alongside FiiO's Bluetooth Chip architecture to provide support aptX, aptX Low Latency, SBC, and AAC codecs.
Surrounding these components is a sleek aluminum-alloy chassis, which can stylishly clip onto your shirt pocket or shoulder strap. A microphone is provided so you can take phone calls in between tunes. A built-in rechargeable battery lasts for eight hours, ensuring you can listen to music wirelessly for a long time. If your iOS or Android device doesn't have a 3.5mm headphone jack, this can serve as a high-quality method to stream great sounding music. - Long Battery Life
- The built-in rechargeable lithium battery charges to full capacity in 1.5 hours and lasts up to 8 hours at a clip. The battery sports a 205mAh battery capacity.
- Clear Status Indicators
- The blue and red lights on the BTR1K instantly show you the codec you're using as well as the charging and working status
- Strong and Compact Aluminum-Alloy Body
- The BTR1K sports a sleek, aluminum-alloy body finished in black. Its compact, yet stylish design fits easily in your pocket or clips to your backpack shoulder strap.
In the Box FiiO BTR1K Portable High-Fidelity Bluetooth Amplifier USB-C Charging Cable Limited 180-Day Warranty on Battery Limited 1-Year Warranty on Mainframe Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO BTR1K Portable High-Fidelity Bluetooth Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO BTR1K Specs | Bluetooth Version | 5.0 | | Supported Audio Formats / Codecs | AAC, SBC, aptX, aptX Low Latency | | Bluetooth Protocol | NFC Bluetooth Pairing | | Chipset | Bluetooth: Qualcomm QCC3005 | | Noise Reduction | Qualcomm cVc 8th Generation Noise Cancellation | | DAC | Functions as USB DAC | | Output Power | ≥25 mW (32 Ohms / THD <1%)
≥45 mW (16 Ohms / THD <1%) | | THD+N | <0.04% (1 kHz) Bluetooth
<0.004% (1 kHz) USB DAC | | SNR | 118 dBA | | Output Impedance | <0.3 Ohms(32 Ohms, Loaded) | | Drive Ability | 16 to Approximately 100 Ohms (Recommended) | | Frequency Response | 20 to Approximately 20 kHz (aptX Connection) | | Crosstalk | ≥74 dB(32 Ohms, Loaded) | | Status Indicator | RGB Light Indicates Input Bluetooth Audio Codec, Charging, and Working Status | | Headphone Output | 1 x 3.5 mm | | USB Port | USB Type-C | | Power Input | Recommend 5 VDC, 500 mA | | Battery Capacity | 205 mAh | | Run Time | About 8 Hours | | Charging Time | ≤1.5 Hours (5 VDC, 500 mA) | | Wearing Style | Clip and Lanyard | | Dimensions | 0.9 x 2.0 x 0.5" / 24.0 x 50.0 x 11.6 mm (Excluding Back Clip) | | Weight | 0.7 oz / 20.5 g, (Including Battery) | | | | Package Weight | 0.185 lb | | Box Dimensions (LxWxH) | 3.8 x 3.6 x 1.1" |
