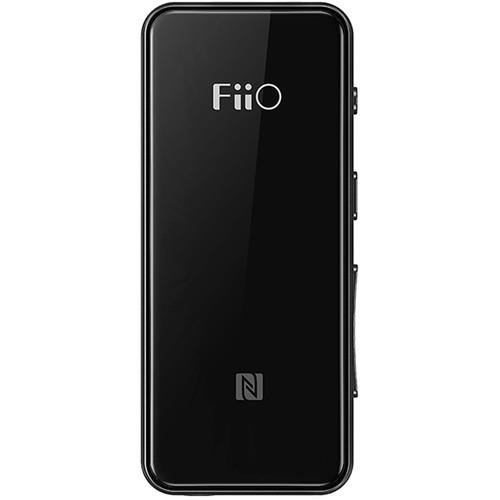

User Manual for FiiO BTR3 Portable High-Fidelity Bluetooth Amplifier Click to enlarge the picture
Contents of the user manual for the FiiO BTR3 Portable High-Fidelity Bluetooth Amplifier
- Product category: Other Headphone Accessories FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Other Headphone Accessories
 |
User manual for the FiiO BTR3 Portable High-Fidelity Bluetooth Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|
Product description The FiiO BTR3 is a portable Bluetooth amplifier designed for two purposes: to give your headphones a robust signal and to communicate with compatible devices over Bluetooth 4.2. The device supports audio codecs such as AAC, SBC, aptX, aptX Low Latency, aptX HD, LDAC, and LHDC. The onboard amplifier and DAC ensures a quality sound that will bring out the best in your music. NFC pairing ensures you can pair with devices more quickly.
A Qualcomm CR8675 Bluetooth chip has been supplied, one that supports 24-bit transmission and processing to preserve your music's dynamic range and stability in most locales to fight against dropouts. The independent AK4376A DAC offers low levels of distortion and a high signal-to-noise ratio to ensure a sonic experience that is high on nuance and low on sonic impediments. Connect your headphones to the BTR3 by means of the 3.5mm jack.
Controls and indicators are on hand so you always know which input Codec is selected at any time, and so you're always able to switch tracks, make phone calls, start/stop your music, and contact your digital assistant. A built-in microphone allows for hands free calls. A remote control app facilitates even more control.
In addition to serving as a go-between for headphones and devices, the BTR3 is also a high-quality USB DAC with a USB Type-C connector, so you can upgrade the sound of your computer. In the Box FiiO BTR3 Portable High-Fidelity Bluetooth Amplifier USB Type-C Charging Cable Limited 180-Day Warranty on Battery Limited 1-Year Warranty on Mainframe Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO BTR3 Portable High-Fidelity Bluetooth Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO BTR3 Specs | Profile | HFP, HSP, A2DP, AVRCP | | Bluetooth Version | 4.2 | | Supported Audio Formats / Codecs | AAC, SBC, aptX, aptX Low Latency, aptX HD, LDAC, and LHDC | | Bluetooth Protocol | NFC Bluetooth Pairing | | Chipset | Bluetooth: CSR8675
Amp and DAC: AK4376A | | DAC | Functions as USB DAC | | THD | LHDC 1 kHz: <0.003% | | SNR | 120 dBA | | Bluetooth Range | 98.4' / 30.0 m (Open Areas) | | Output Level / Output Impedance | < 0.3 Ohms(32 Ohms, Loaded) | | Drive Ability | 16 to Approximately 100 Ohms (Recommended) | | Frequency Response | 20 Hz to Approximately 20 kHz (aptX Connection)
20 Hz to Approximately 40 kHz (LDAC Connection) | | Crosstalk | ≥75 dB(32 Ohms, Loaded) | | Controls | Volume Adjustment, Pairing Button, Hands Free Calling, Digital Assistant, Power On/Off, Input Switch, Play/Pause, Answer Call/End Call, Previous/Next Track | | Status Indicator | RGB Light Indicates Input Bluetooth Audio Codec, Charging, and Working Status | | Headphone Output | 1 x 3.5 mm | | USB Port | USB Type-C | | Power Input | Recommend 5 VDC, 500 mA | | Battery Capacity | 300 mAh | | Run Time | About 11 Hours | | Charging Time | 1.5 Hours | | Wearing Style | Clip and Lanyard | | Dimensions | Excluding Back Clip: 2.3 x 1.0 x 0.4" / 58.0 x 25.0 x 10.4 mm | | Weight | Including Battery: 0.9 oz / 26.0 g | | | | Package Weight | 0.275 lb | | Box Dimensions (LxWxH) | 5.9 x 3.6 x 0.9" |
