User Manual for FiiO E10K USB DAC Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the FiiO E10K USB DAC Headphone Amplifier
- Product category: Headphone Amplifiers FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Headphone Amplifiers
 |
User manual for the FiiO E10K USB DAC Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|
Product description The E10K USB DAC Headphone Amplifier from Fiio is designed to improve your laptop's audio output quality via its PCM5102 DAC chip and is capable of handling PCM files in up to 24-bit, 96 kHz resolution. It features a selectable bass boost and low-pass filter, both with circuitry optimized for a low noise floor when engaged, allowing you to customize the sound of your audio to your tastes.

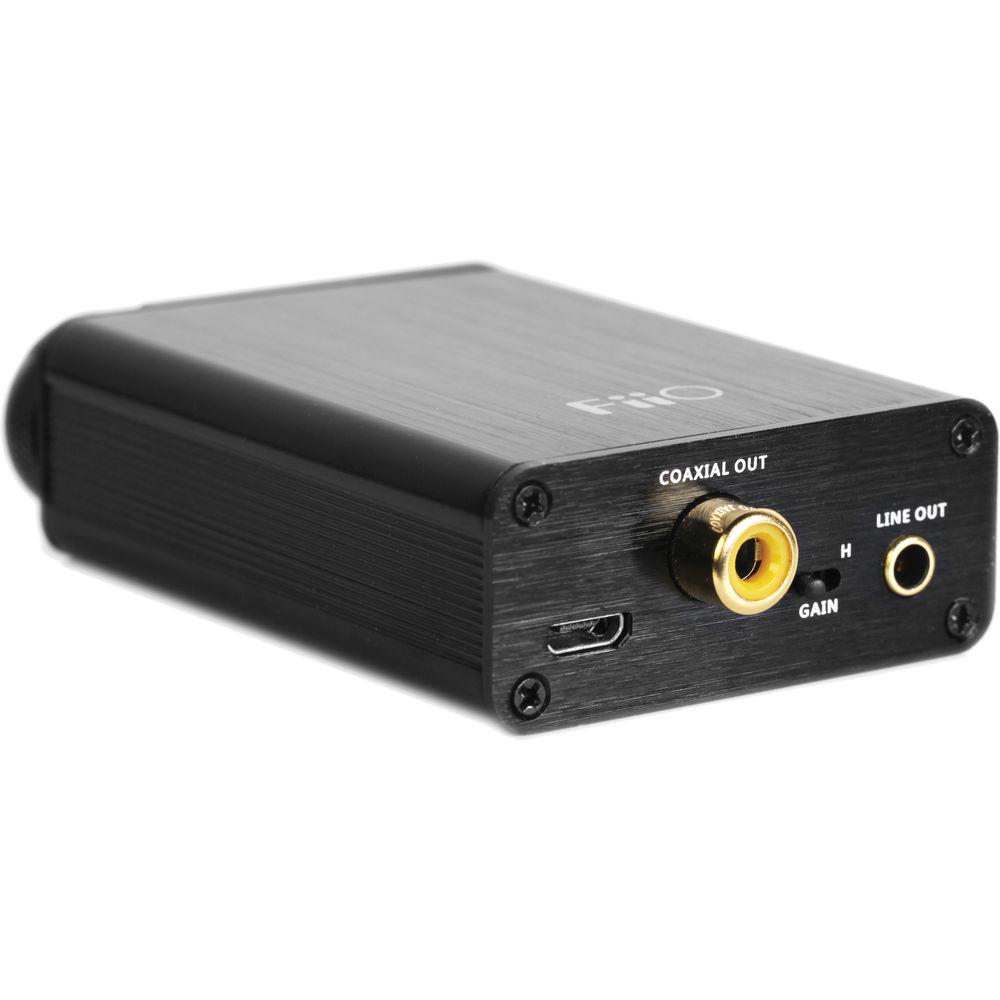

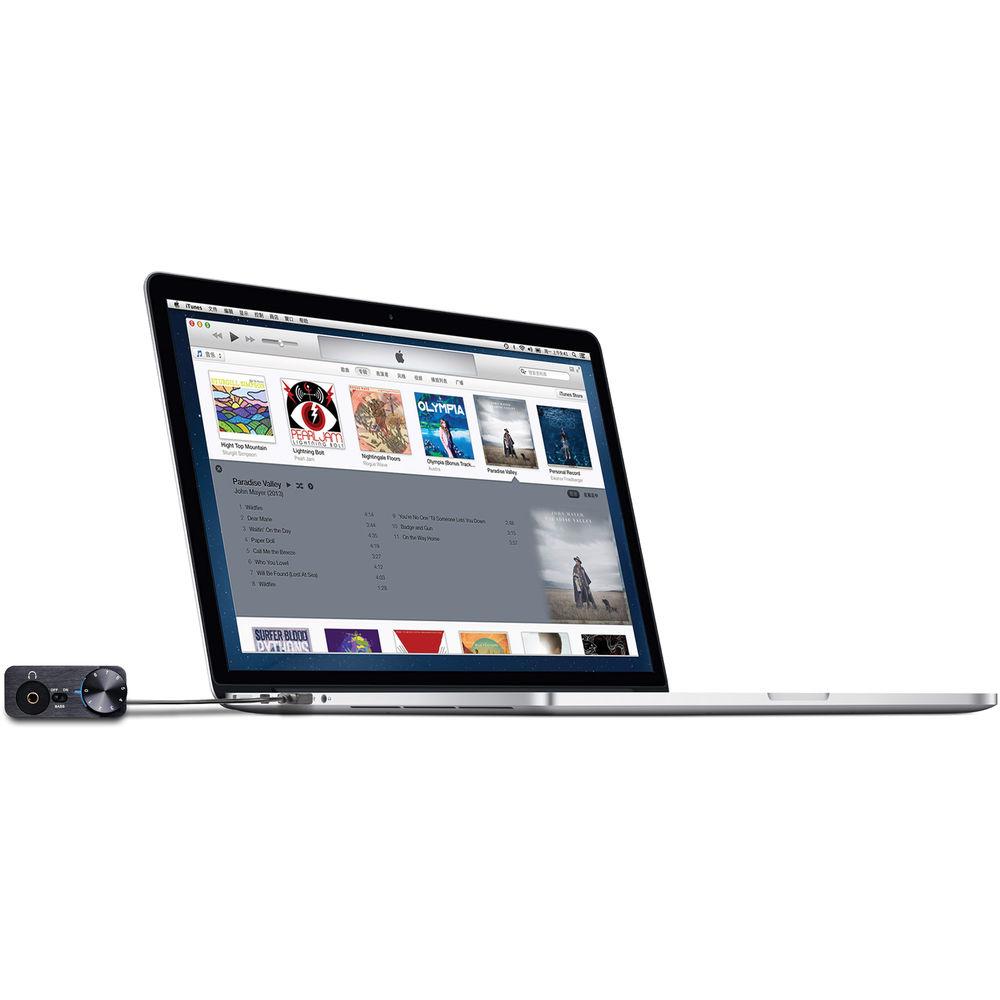

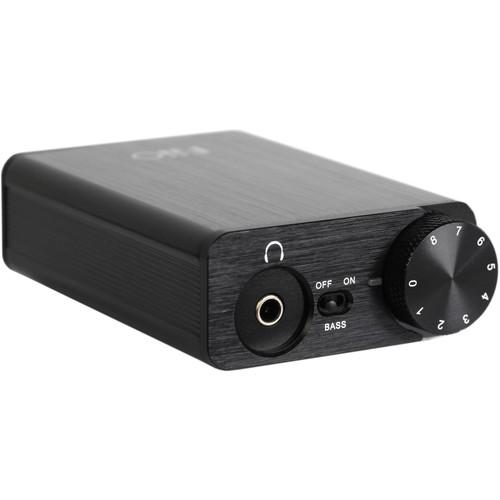

The unit connects to your laptop via its Micro USB connection, which also provides it with power. It offers a variety of connections, including a front-panel 1/8" headphone jack, a rear-panel 1/8" line output, and a rear-panel coaxial digital output, which allows you to send your digital audio to another destination. - DAC Chip
- The internal DAC chip is a PCM5102 and can handle PCM files up to 24-bit/96 kHz while improving audio quality through via a linear internal filter, reduced delay and internal silence on changing tracks, and no phase shifts
- Low Noise Floor
- The unit has an optimized low-pass filter and selectable bass boost circuit that are designed for a low noise floor in all states
- Amplification Stage
- The E10K features a LMH6643 op amp, which is designed for transient response and driving power

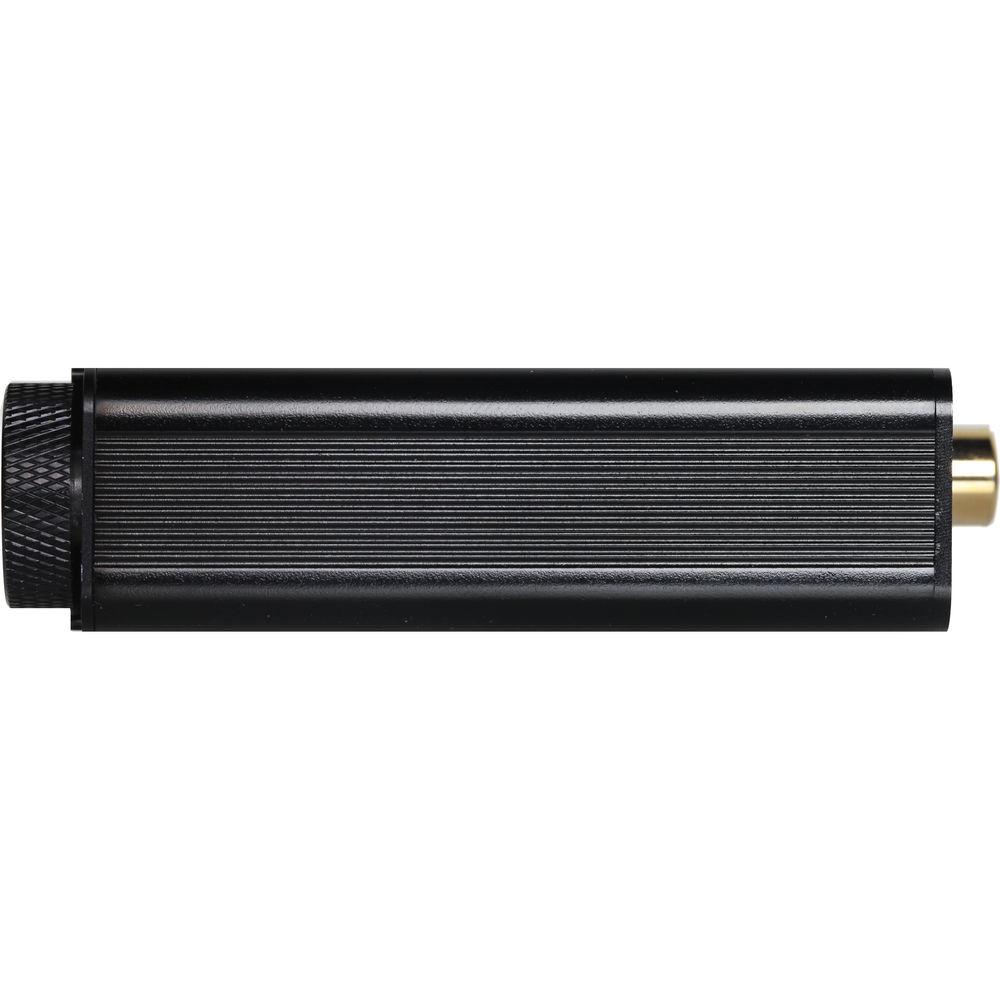

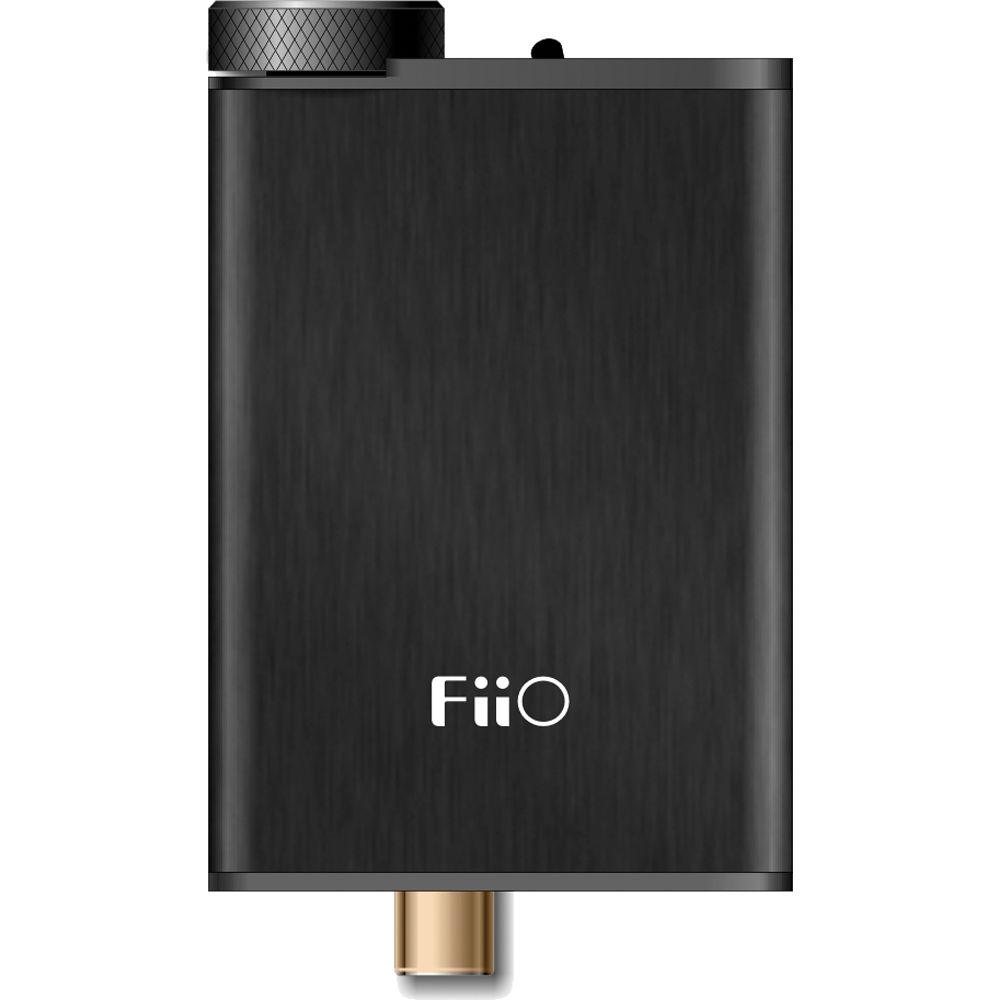

- Portable Design
- A brushed aluminum shell and chassis allow for durable portable use
In the Box FiiO E10K USB DAC Headphone Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO E10K USB DAC Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO E10 Specs | Power Supply | Standard Micro USB port | | Output Power | 200 mW @ 32 Ω | | Sample Rate | Maximum of 24-bit/96 kHz supported | | Signal to Noise Ratio | ≥108 dB | | Digital Output | 1x Coaxial digital output, stereo PCM format | | Frequency Response | 20 Hz to 20 kHz | | Impedance | Recommended Headphone Impedance: 16 to 150 Ω | | Dimensions (H x W x D) | 3.1 x 1.9 x 0.8" (79.0 x 49.1 x 21.0 mm) | | Weight | 2.8 oz (78 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.1 x 5.1 x 1.1" |
