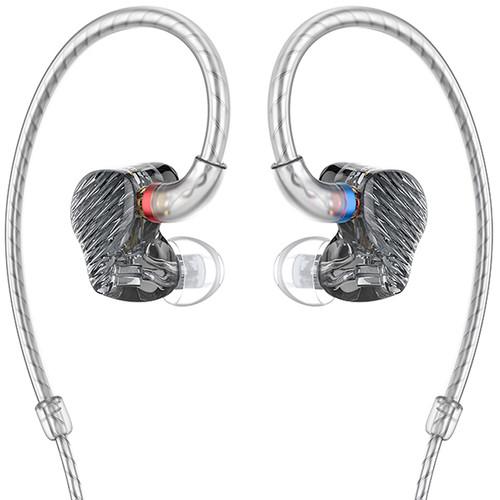

User Manual for FiiO FA7 Quad Driver Balanced Armature In-Ear Monitors Click to enlarge the picture
Contents of the user manual for the FiiO FA7 Quad Driver Balanced Armature
- Product category: Earphones FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Earphones
|
User manual for the FiiO FA7 Quad Driver Balanced Armature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|
Product description The gray FiiO FA7 Quad Driver Balanced Armature In-Ear Monitors feature four drivers per ear with a 4-way crossover and custom-IEM-like comfort, well suited for musicians, engineers, and audiophiles. The FA7 is DLP 3D printed using hypoallergenic resin imported from Germany that is precisely crafted for consistent sound and reduced sonic resonances, allowing the music to flow through unimpeded. The skin-friendly resin is medically certified and is both comfortable and antimicrobial, while being extremely durable and resistant to discoloration.
There are four Knowles balanced armature drivers. The bass is handled by the CI-22955, which features a large diaphragm, resulting in a quick response with low distortion. Mids are provided by the classic and proven ED-29689, which provides a full, sweet, and unfatiguing sound, while the treble is produced by the dual-BA SWFK-31736 driver, which provides extended and detailed highs for a natural and clear sound. The integrated, tuned four-way crossover ensures a wide, deep sound stage with dynamic bass, crystal clear vocals, and highly detailed and smooth treble.
The standard 3.9' FA7 cable is made from high-purity monocrystalline silver-plated copper wire, ensuring the audio signal is transferred with minimal distortion and without loss for a transparent sound. The cable utilizes MMCX earphone connectors, allowing the cable to be replaced should something go wrong, while the 3.5mm L-shaped stereo jack is gold-plated to ensure solid signal transmission. The FiiO FA7 includes 13 pairs of ear tips: three different sets of small, medium, and large, which are designed for either bass-emphasized or vocal-emphasized sound signature. Also included are three pairs of foam ear tips in medium and one pair of bi-flanged ear tips. Hard case, cable wrap, carry pouch, and cleaning tool accessories are included. -
- Quad Knowles balanced armature drivers
- DLP 3D printed
- Hypoallergenic resin shell imported from Germany
- 4-way crossover
- Custom-IEM like comfort
- Hi-Res Audio certified by Japan Audio Society
- Frequency Response: 20 Hz to 40 kHz
- Sensitivity: 110 dB/mW (at 1 kHz)
- 3.9' high-purity monocrystalline silver-plated copper cable
- Replaceable with MMCX connectors
- L-shaped, gold-plated 3.5mm stereo audio connector
- Includes hard case, soft carry pouch, cleaning tool, cable wrap, and 13 sets of ear tips
In the Box FiiO FA7 Quad Driver Balanced Armature In-Ear Monitors (Gray) Cable 13 x Sets of Eartips Headphone Case Soft Carry Bag Cable Wrap Cleaning Brush Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO FA7 Quad Driver Balanced Armature In-Ear Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO FA7 Specs | | | Design | In-Ear (Intra-Aural) | | Driver Type | Balanced | | Number of Drivers | 4, per earpiece | | Active Noise Cancellation | None | | Noise Attenuation | None | | | | Frequency Response | 20 Hz to 40 kHz | | Sensitivity | 110 dB at 1 kHz | | Impedance | 23 Ohms (Passive) | | | | Audio Connector | 1/8" / 3.5 mm TRS Right-Angled | | Connector Plating | Gold | | Connector to Earpiece | 2 x MMCX | | | | Design | Y-Type | | Detachable | Yes | | Type | Braided | | Cable Length | 3.94' / 1.2 m (Unbalanced) | | | | IP Rating | None | | Material of Construction | Plastic | | Weight | 0.18 oz / 5.2 g without Cable | | | | Package Weight | 1.195 lb | | Box Dimensions (LxWxH) | 8.2 x 6.1 x 3.1" |
