FiiO FH5 Quad-Driver Hybrid In-Ear Monitors

Search your instruction manual in PDF to download

User Manual for FiiO FH5 Quad-Driver Hybrid In-Ear Monitors

Click to enlarge the picture
FiiO FH5 Quad-Driver Hybrid In-Ear Monitors Contents of the user manual for the FiiO FH5 Quad-Driver Hybrid In-Ear Monitors
  • Product category: Earphones FiiO
  • Brand: FiiO
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for FiiO Earphones

FiiO FH5 Quad-Driver Hybrid In-Ear Monitors FiiO FH5 Quad-Driver Hybrid In-Ear Monitors FiiO FH5 Quad-Driver Hybrid In-Ear Monitors
User manual for the FiiO FH5 Quad-Driver Hybrid In-Ear Monitors contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any FiiO product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!



Product description

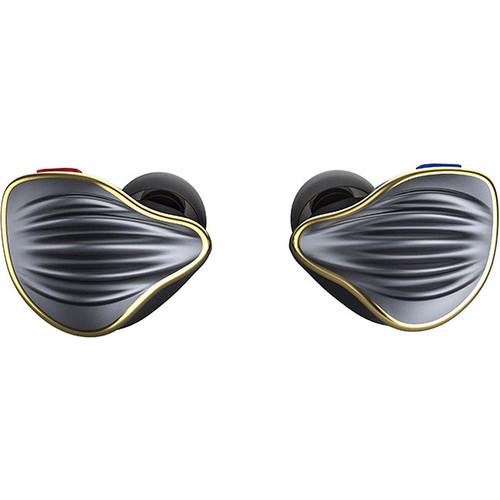

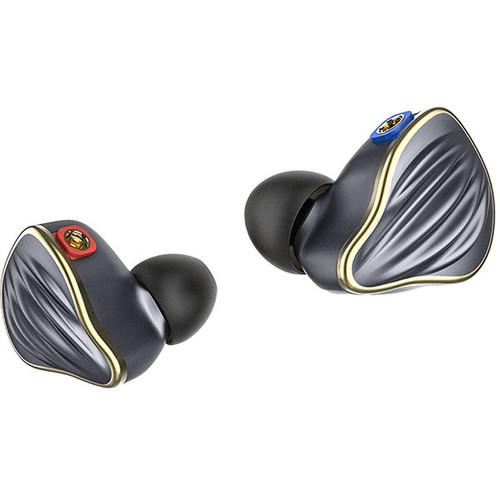

Styled in a titanium finish, the FH5 Quad-Driver Hybrid In-Ear Monitors from FiiO feature an acoustic design inspired by exotic supercars, S.TURBO technology, independent sound tubes, and three Knowles balanced-armature drivers for the high and mid frequencies and a 10mm dynamic driver for the bass. They are specifically designed to conform to the human ear and provide a snug, comfortable fit that allows you to focus on listening to music on your smartphone, MP3 player, and more.
    Exotic-Inspired Acoustics Design
  • The FH5's TRISHELL structural design features a 5-axis CNC machined aluminum-magnesium alloy rear shell, body, and front covers fixed tightly together with multiple screws— greatly reducing excess resonance and distortion.
    S.TURBO Technology
  • With its turbine-inspired design that makes clever use of the physics of sound waves, you get meaty, deep bass that is more than capable of letting you feel the music. S.TURBO also filters out unnecessary mid and high frequencies produced by the bass driver ensuring a more seamless transition between the lows and highs.
    Independent Sound Tubes
  • These tubes have been designed to integrate with the 4-driver units, allowing for a smooth transition between the three main regions of sound frequencies and maximizing the drivers' combined potential.
    Knowles Balanced-Armature + Dynamic Drivers
  • The FH5 employs a hybrid driver design that combines the best of balanced-armature and dynamic drivers for a balanced sound. Low frequencies are deftly handled by a 10mm polymer nanocomposite dynamic driver, providing bass extension. Mid frequencies are produced by the Knowles ED30262 balanced armature driver, while high and ultra-high frequencies are created by the Knowles 31082 driver.
    MMCX Connectors
  • The FH5's connectors on the cable make it easy to connect to other devices—with its elbow plug it can easily be changed. The grippy MMCX connectors are colored blue and red for identification.

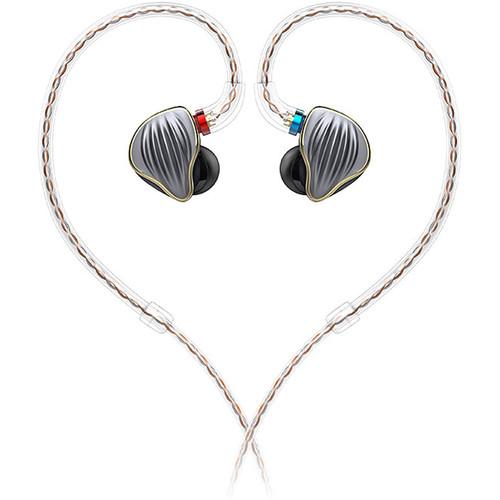

    Copper Wire
  • The high-purity, monocrystalline, silver-plated copper wire that makes up the FH5's hybrid cable effective minimizes distortion and signal transmission loss for high-quality. These wires are braided together in an environmentally friendly, transparent TPU sheath.
    Machined-Aluminum Alloy Shell
  • The shell of the FH5 is of aluminum alloy precisely machined with CNC technology, ensuring that it will continue to luster for years to come.
In the Box FiiO FH5 Quad-Driver Hybrid In-Ear Monitors (Titanium)
  • 6N Monocrystalline Silver-Plated Copper Cable with 3.5mm Right-Angled Plug
  • 4 x Sets of Eartips (Balanced, Vocal, Memory Foam, Bass)
  • Headphone Case
  • Storage Bag
  • Cleaning Brush
  • Limited 1-Year Warranty
  • User Manual PDF 12.6mbvtvfdawrutztwwwevurvvtredtts Table of Contents




    Upload User Manual

    Have you got an user manual for the FiiO FH5 Quad-Driver Hybrid In-Ear Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    FiiO FH5 Specs

    Design In-Ear (Intra-Aural)
    Driver Type Dynamic
    Number of Drivers 4, per earpiece
    Active Noise Cancellation None
    Noise Attenuation None
    Frequency Response 15 Hz to 40 kHz
    Sensitivity 112 dB
    Impedance 19 Ohms (Passive)
    Maximum Power Handling 100 mW
    Audio Connector 1/8" / 3.5 mm TRS Right-Angled
    Connector Plating Gold
    Connector to Earpiece 2 x MMCX
    Design Y-Type
    Detachable Yes
    Type Braided
    Cable Length 3.94' / 120 cm (Unbalanced)
    IP Rating None
    Material of Construction Aluminum
    Weight 0.56 oz / 16 g without Cable
    Package Weight 1.225 lb
    Box Dimensions (LxWxH) 8.2 x 6.15 x 3.1"
