User Manual for FiiO K1 Portable Headphone Amplifier and USB DAC Click to enlarge the picture
Contents of the user manual for the FiiO K1 Portable Headphone Amplifier and
- Product category: Headphone Amplifiers FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Headphone Amplifiers
 |
User manual for the FiiO K1 Portable Headphone Amplifier and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|

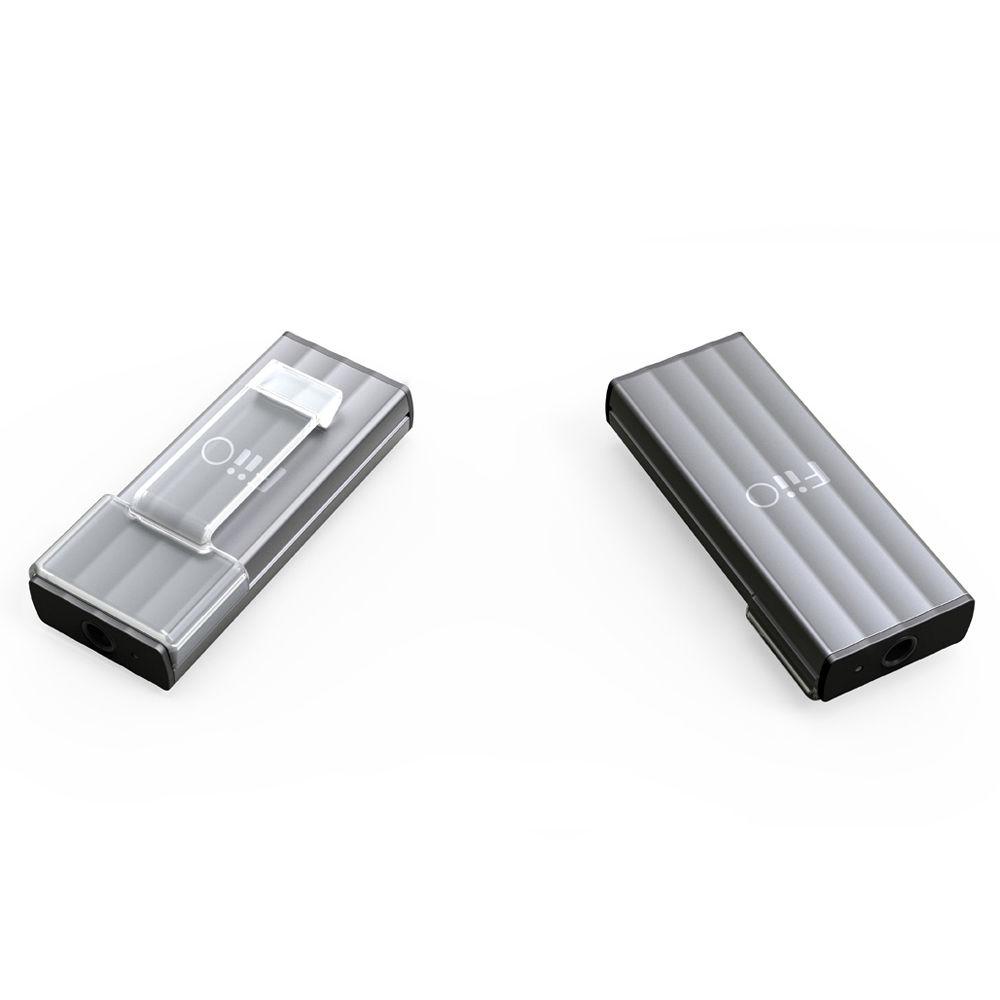

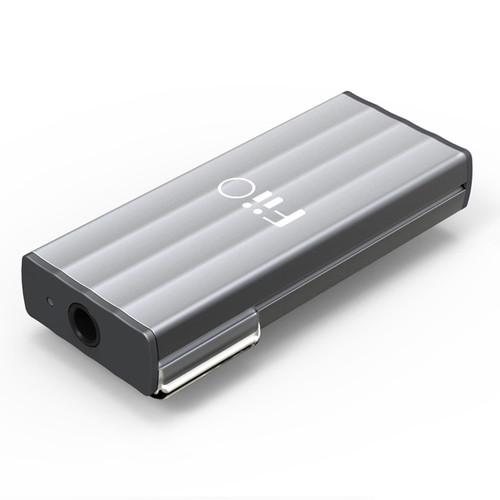

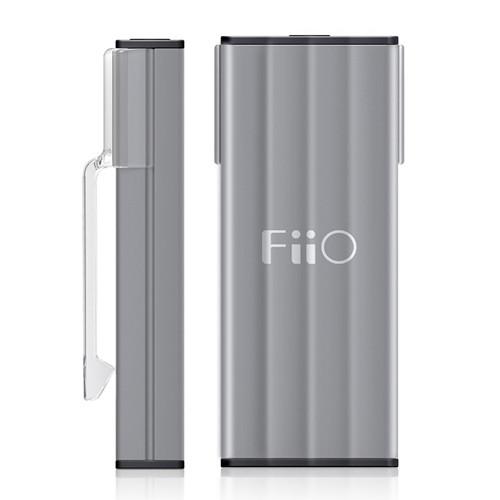

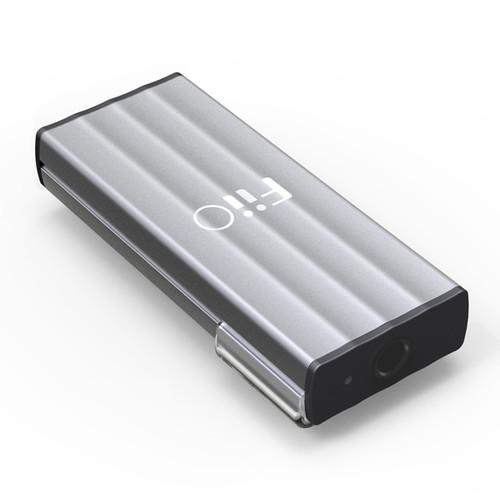

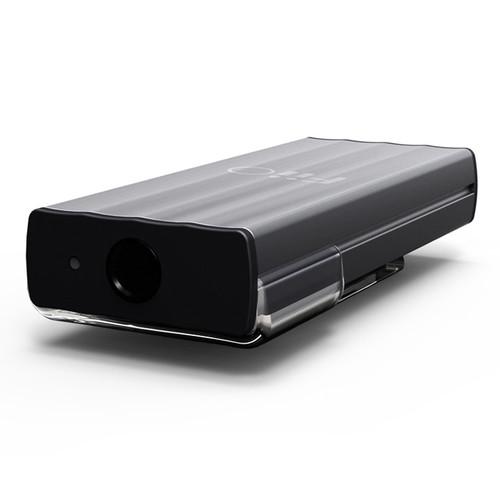

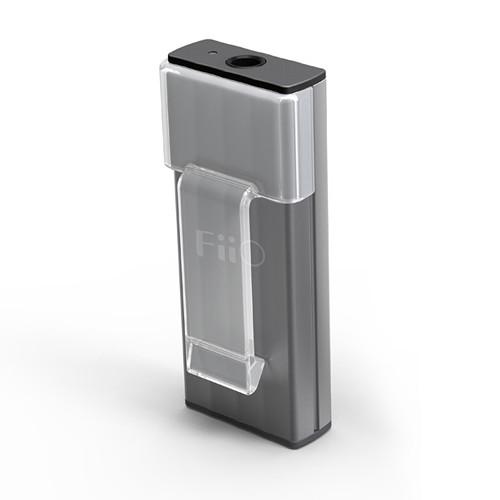

Product description Perfect Gifts for the Working Person: 4 Pocket-Sized DACs Read More wyweyybyttzbbtcdqcwdessvvzdzcxdct The thumb-sized K1 from FiiO is a portable headphone amplifier and DAC with mastering quality sound that supports resolutions of up to 24-bit/ 96 kHz. The unit offers true plug-and-play operation with no batteries to charge and no drivers required for operation. The K1's audio architecture utilizes Savitechs's SA9023A USB receiver to decode USB audio, while the high fidelity, low noise TI PCM5102 DAC chip outputs to the TPA 61332A headphone amplifier, which is capable of driving most headphones with a range of 16 to 100 ohms. The K1 also self-mutes when powering on or off, reducing harmful transients. The all-metal chassis is sandblasted for optimal sheen, texture, durability of appearance, and hand grip. The K1 ships with a removable clip and a USB connection cable. In the Box FiiO K1 Portable Headphone Amplifier and USB DAC Removable Clip USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO K1 Portable Headphone Amplifier and USB DAC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO K1 Specs | Model | K1 | | Color (housing) | Titanium | | Audio Input | Micro USB | | Headphone Output | Standard 1/8" / 3.5 mm port | | Drive Ability | 16 to 100 ohms(recommended) | | Power Supply | USB powered | | Output Power | Output Power1: >75 mW （16 ohms/THD+N＜1%)
Output Power2: >35 mW （32 ohms/THD+N＜1%) | | THD | ＜0.01% (1 kHz) | | Output Impedance | ≤ 1 ohm | | Frequency Response | 20 Hz to 20 kHz | | Signal-to-Noise Ratio (SNR) | ≥100 dB (A-weighted) | | Input Sensitivity | >0 dB | | Crosstalk | ≥70 dB (1 kHz) | | Channel Imbalance | < 0.3 dB | | Gain | 1.2 dB | | Power Status LEDs | yes (blue light when on) | | Max Output | MAX Output Voltage: 3.25 Vp-p
MAX Output Current: 35.93 mA | | Dimension (L x W x H) | 2.0 x 0.8 x 0.3" / 50.0 x 20.5 x 8.0 mm | | Weight | 0.4 oz / 11.3 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.6 x 3.4 x 0.9" |
