User Manual for FiiO Q1 Mark II Portable Headphone Amplifier & DAC Click to enlarge the picture
Contents of the user manual for the FiiO Q1 Mark II Portable Headphone
- Product category: Headphone Amplifiers FiiO
- Brand: FiiO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for FiiO Headphone Amplifiers
 |
User manual for the FiiO Q1 Mark II Portable Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any FiiO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official FiiO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a FiiO product will considerably shorten its lifespan!
|

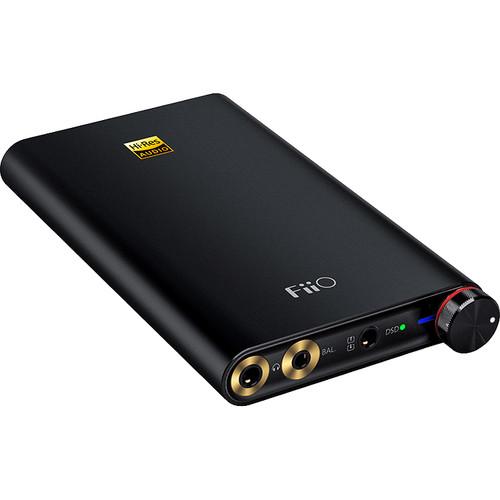

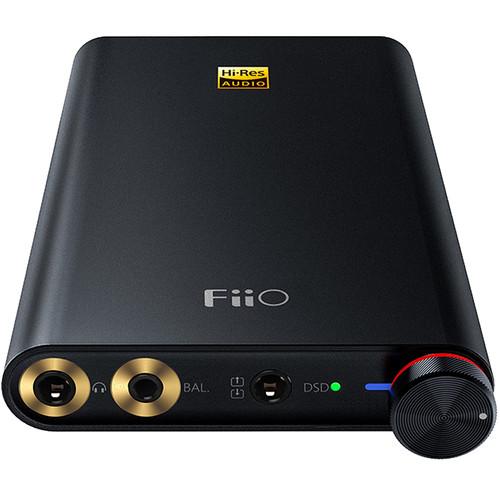

Product description The Fiio Q1 Mark II is a DAC and headphone amplifier designed for use with iPhones, Walkman, mobile players, computers, and other devices. It’s designed to provide a hi-fi audio experience, presenting your audio exactly as it was intended to be heard by its creators.The Q1 Mark II can handle sample rates up to 384 kHz / 32-bit when decoding PCM files into audio. It is also capable of handling DSD256 files, and has been certified Hi-Res by the Japan Audio Society.Proven chips were used in the DAC, amplifier, and low-pass filtering stages to ensure an audiophile experience, while multiple connections are provided to facilitate many different experiences. You can use the 3.5mm single-ended output with your regular headphones, connect balanced headphones to the 2.5mm headphone jack, and use a separate multipurpose 3.5mm jack as both a line input and a line output.Included with the Q1 Mark II are a Lightning-to-USB cable, a USB cable, a 3.5mm audio cable, silicone bands for attaching to your phone, a silicone base pad, and a carry pouch. For a complete rundown on features, please read on. - Proven DAC, Amplifier, and Low-Pass Chipset
- The Q1 Mark II utilizes the AKM AK4452 DAC chip to decode high sample rates, giving you a high signal-to-noise ratio and providing low distortion. The headphone amplifier chip in the Q1 Mark II is the very same utilized in the AM3A module, usually used with the X7 MARK II (OPA926). Finally, low-pass filter duties on the line-output are handled by the TI OPA1662 chip.
- Native DSD Decoding
- Equipped with the XMOS platform, the Q1 Mark II can support decoding of 384 kHz / 32-bit PCM. It can also support DSD256 (a green light will turn on when DSD is in use). two separate crystal oscillators, each designed to handle different sample rates, help to achieve the utmost accuracy in digital-to-analog conversion.
- Hi-Res Certified
- The Q1 Mark II has been certified as Hi-Res Audio capable by the Japan Audio Society.
- Compatible with iPhone
- By connecting the included Lightning-to-USB cable from the iPhone to the device, you can continue to use your favorite headphones from your iOS device, all while listening to high-quality audio.
- Compatible with Sony Walkman
- With a specially-designed adapter (available separately), you can connect from the WM-port of a Sony Walkman to the Q1 Mark II. In this way, the DAC can handle the digital decoding duties, contributing to the high-resolution audio experience.
- Compatible with Computers
- The Q1 Mark II can operate as a USB DAC when paired over USB with a computer. It can decode audio formats up to 384 kHz / 32-bit (PCM). No driver is needed for use with a Mac computer, while Windows will require a driver easily available from FiiO's website.
- Multifunctional 3.5mm Jack
- The Q1 Mark II has a 3.5mm multifunction connection point, working as both a line input and a line output. When the device's 3.5mm jack is utilized as a line input, it can be used as an analog amplifier to be paired with another player. However, the Q1 Mark II can work as a DAC when external, line-level device is plugged into this very same 3.5mm jack.
- ADC Volume Adjustment Technology
- The device utilizes special technology to correct problems such as level imbalance between channels when adjusting the volume, making turning your audio up or down in level a less noisy, jarring experience. The volume knob itself has an interesting analog form factor—obconical to be exact. Though relatively large in diameter for easy adjustments, it still fits into the limited space provided by the device.
- Multiple Outputs

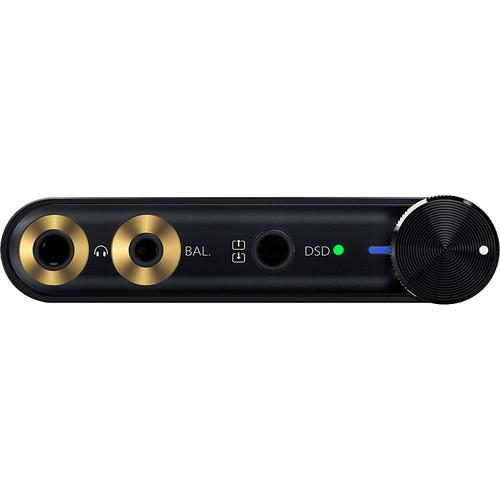

- In addition to the line input/output jack, the Q1 Mark II offers a single-headed 3.5mm headphone jack, and a 2.5mm balanced headphone jack. The 3.5mm headphone output works with many standard letters, while the 2.5mm output works with balanced headphones.
- Automatic Input Detection
- The USB component of the Q1 Mark II automatically detects what type of device it's matched with, so you don't have to switch manually to achieve the best settings. For example, if the Q1 Mark II is paired with an iPhone, it automatically recognizes the phone and switches off the charge-over-USB feature to preserve the iPhone's battery. Yet, when connected to a computer, the device will automatically draw bus power.
- Gain and Boost Switches

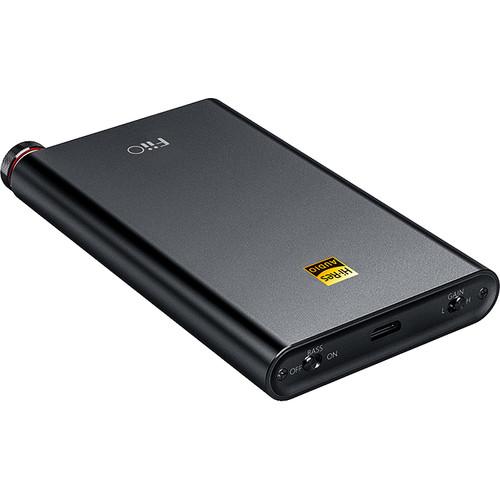

- These switches will allow you to adjust gain and fine-tune bass levels. Change the gain depending on your headphones' sensitivity, and tailor the bass level to your liking.
- Metal Exterior

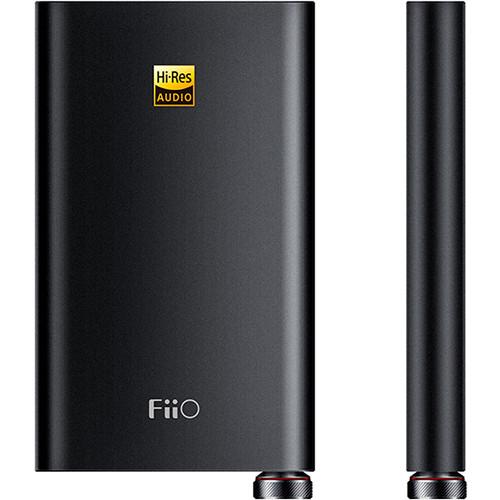

- The metal chassis of the Q1 Mark II isn't just for aesthetics; it also protects the innards of the unit against electromagnetic phenomena, which can compromise the sound. Thus, when physically attached to an iPhone, you'll hear no interference as you listen to your music.
In the Box FiiO Q1 Mark II Portable Headphone Amplifier & DAC USB to Micro-USB Cable Micro-USB to Lightning Cable 3.5mm Line-In Cable Silicone Base Pad Carry Pouch 2 x Long Silicone Bands 2 x Short Silicone Bands Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO Q1 Mark II Portable Headphone Amplifier & DAC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO Q1 Mark II Specs | Audio Input | 1 x Micro USB
1 x 3.5 mm line input (also functions as an output) | | Headphone Output | 1 x 3.5 mm line output (also functions as an input)
1 x 3.5 mm headphone output
1 x 2.5 mm balanced jack | | Bass Boost | 0/5.4 dB | | Recommended Headphone Impedance | 16 to 100 Ohms (PO)
16 to 150 Ohms (Balanced) | | Power Input | 5 VDC, 2 A recommended | | Battery Capacity | 1800 mAh | | Battery Life | >20 hours (auxiliary input)
>10 hours (USB input) | | Output Power | 3.5 mm Headphone Jack:
Output Power 1: >112 mW (16 Ohms / THD+N <1%)
Output Power 2: >75 mW (32 Ohms / THD+N <1%)
Output Power 3: >11 mW (300 Ohms / THD+N <1%)
Balanced Headphone Jack:
Output Power 1: ≥240 mW (16 Ohms / THD+N <1%)
Output Power 2: ≥220 mW (32 Ohms / THD+N <1%)
Output Power 3: ≥45 mW (300 Ohms / THD+N <1%) | | Charge Time | ≤4 h | | THD + N | <0.002% (1 kHz, AUX input / line output)
<0.003% (1 kHz, USB input) | | Output Impedance | 3.5 mm Jack: <1.2 Ohms (32 Ohms loaded)
2.5 mm Jack: <2 Ohms (32 Ohms loaded) | | Frequency Response | Line Out: 6 Hz to approximately 80 kHz (-3 dB)
3.5 mm Jack: 5 Hz to 55 kHz (-3 dB)
2.5 mm Jack: 6 Hz to 80 kHz (-3 dB) | | SNR | ≥115 dB (A-weighted, AUX IN)
≥109 dB (A-weighted, USB IN) | | Maximum Input Level | 3.4 V | | Channel Imbalance | 0.2 dB | | Gain | 3.5 mm Output: -2.5 dB (G=L), 3.2 dB (G=H)
2.5 mm Output: 3.2 dB (G=L), 9.1 dB (G=H) | | Maximum Output Voltage | 3.5 mm Output: >4.4 V p-p
2.5 mm Output: >7.4 V p-p | | Maximum Output Current | >150 mA (for reference) | | Dimension (L x W x H) | 3.9 x 2.3 x 0.5" / 99.0 x 59.0 x 12.5 mm (approximately) | | Weight | 3.6 oz / 101.0 g (approximately) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.9 x 4.4 x 2.1" |
