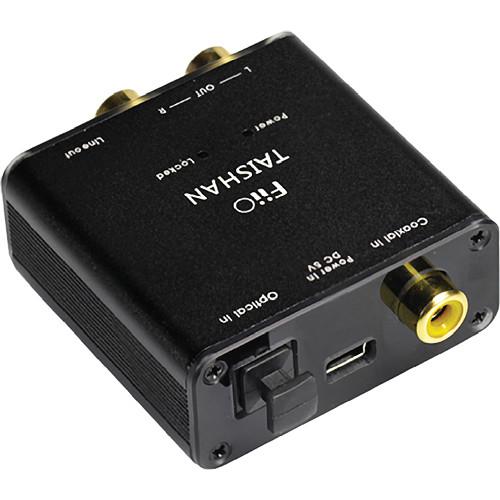

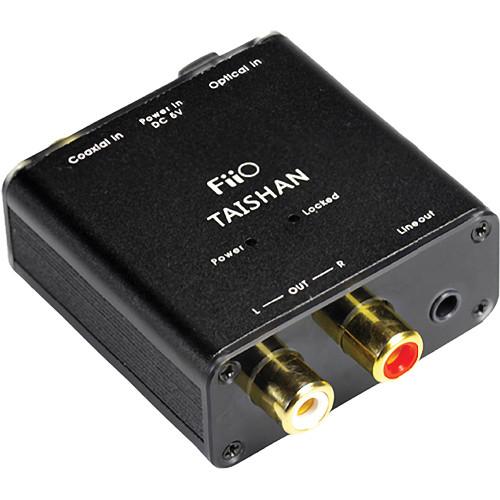

Product description The TAISHAN-D03K from FiiO is a simple device that converts coaxial or optical S/PDIF digital audio into a stereo analog output, perfect for multimedia components such as TVs or CD/DVD/Blu-ray players that do not feature analog output. Dual RCA phono outputs can be connected to an amplifier, while a 3.5mm mini stereo output can be used to supply signal to a WLAN wireless headphone system. (The mini stereo output is not recommended for direct connection to conventional wired headphones.)

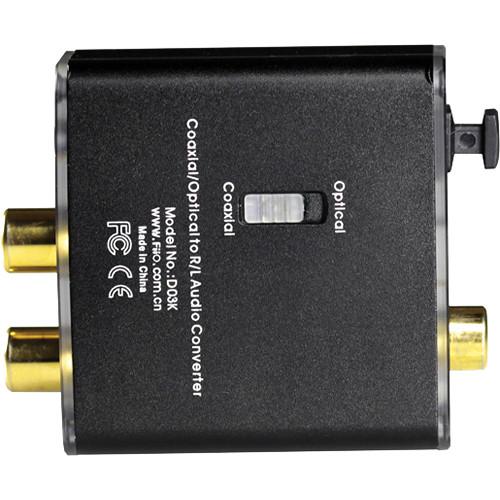

The unit features a digital input format switch and an LED to confirm digital signal lock. Power is supplied by an included external power supply. The input will accept up to 24-bit/192 kHz resolution PCM digital audio, but Dolby Digital and DTS are not supported. Note: Connecting regular headphones directly into the 3.5mm output is not recommended. - Converts a digital coaxial/optical S/PDIF signal to two-channel (left/right) analog output, which can then be fed to an amplifier or to WLAN headphones
- Suitable for use with televisions and CD/DVD/Blu-ray players with S/DIF digital output

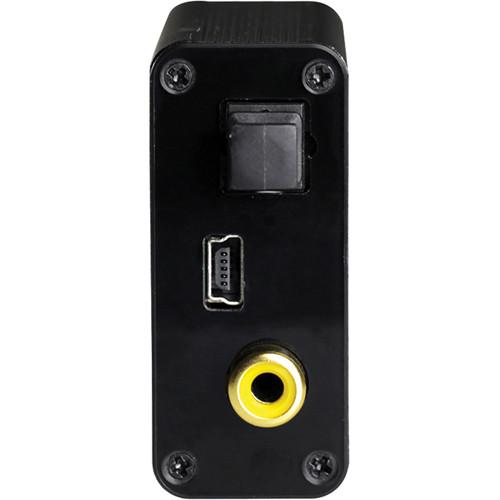

- RCA coaxial and TOSLink digital inputs

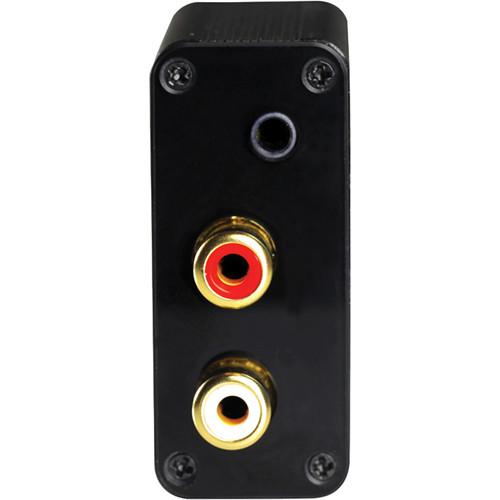

- Dual RCA phono and 3.5mm mini stereo output connectors
- Supports up to 24-bit/192 kHz input (PCM only, no support for Dolby Digital or DTS formats)
- Indicator for digital signal status (lock)
- Receives power via a mini USB port
In the Box FiiO TAISHAN-D03K - S/PDIF Digital to Analog Converter Power Adapter One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the FiiO TAISHAN-D03K - S PDIF Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFiiO D03K Specs | Sample Rate | Up to 24-bit/192 kHz input | | Connectors | 1 x TOSLink optical S/PDIF Input
1 x RCA coaxial S/PDIF Input
2 x RCA phono analog Output
1 x 3.5 TRS stereo mini analog Output
1 x USB mini power Input | | Frequency Response | 20 Hz to 20 kHz | | THD | <0.01% | | Signal to Noise Ratio | >95 dB, A-weighted | | Crosstalk | >85 dB | | Noise | <0.05 mV | | Gain | 3.5 dB | | Power Output | 1.5 Vrms (0 dB Fs) | | Power Supply | USB 5V DC via included 110~240V adapter | | Size | 2.4 x 1.9 x 0.8" (62 x 49 x 21 mm) | | Weight | 1.8 oz (50 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.5 x 3.0 x 0.8" |
