User Manual for Firefield 1.5-5x32 Barrage Riflescope Click to enlarge the picture
Contents of the user manual for the Firefield 1.5-5x32 Barrage Riflescope
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield 1.5-5x32 Barrage Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

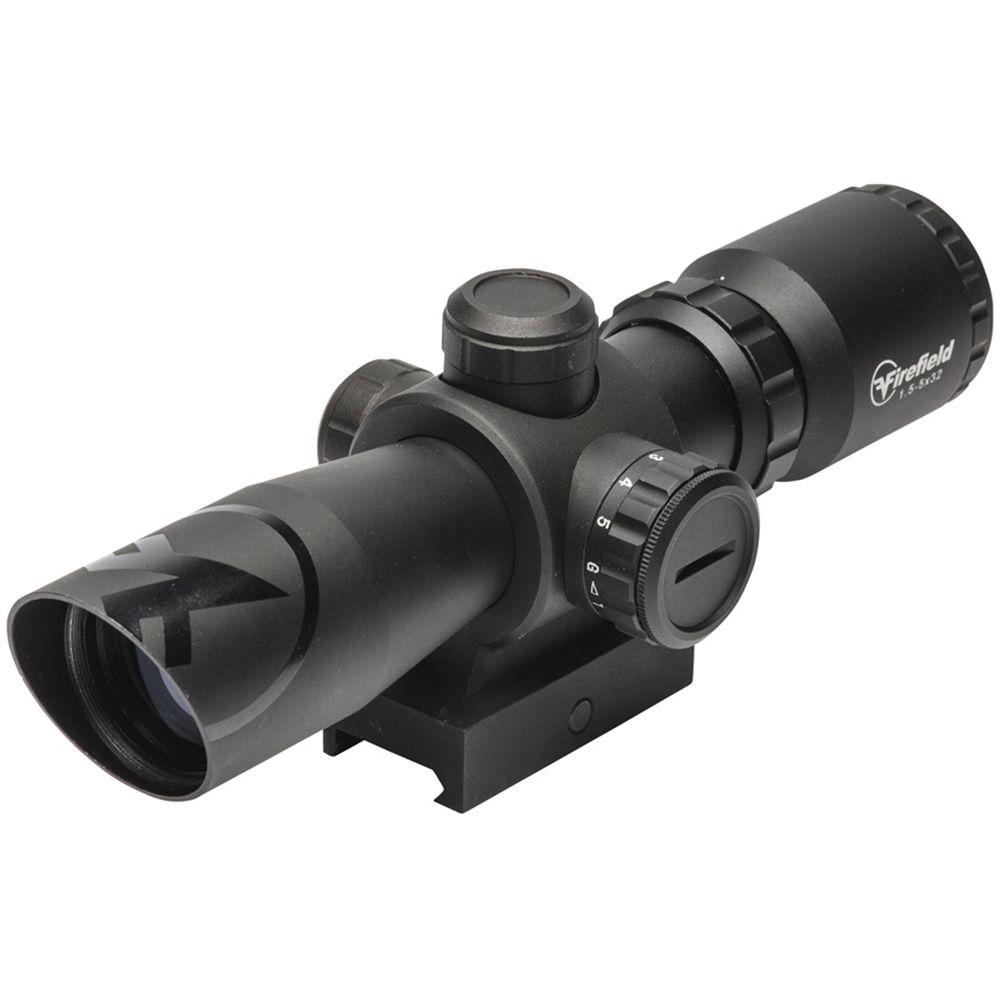

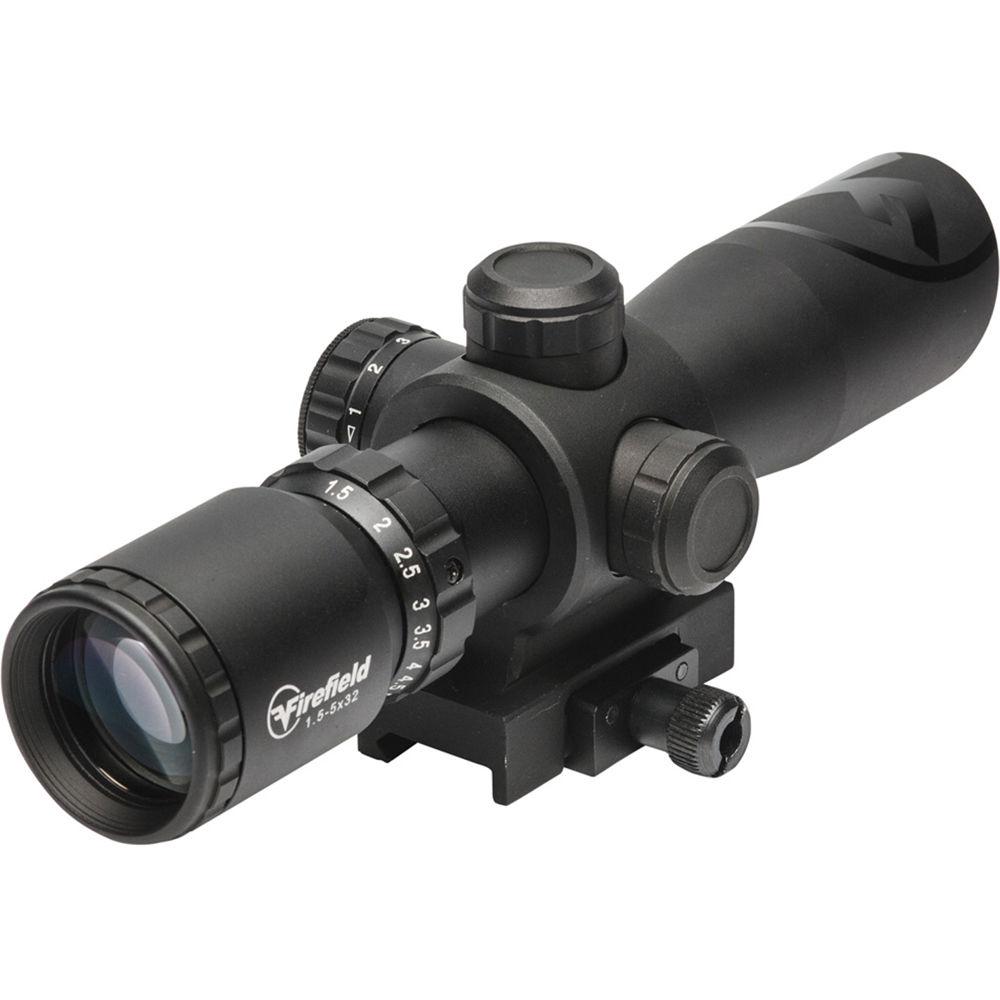

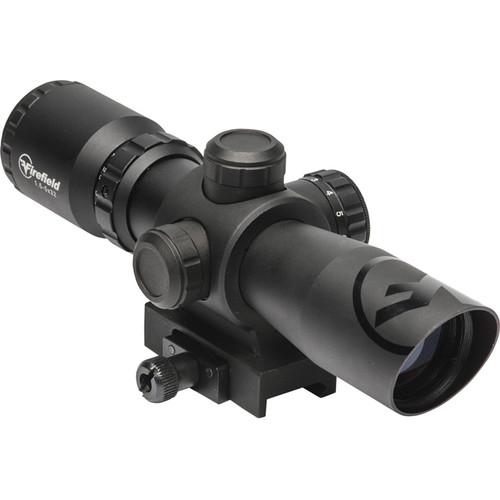

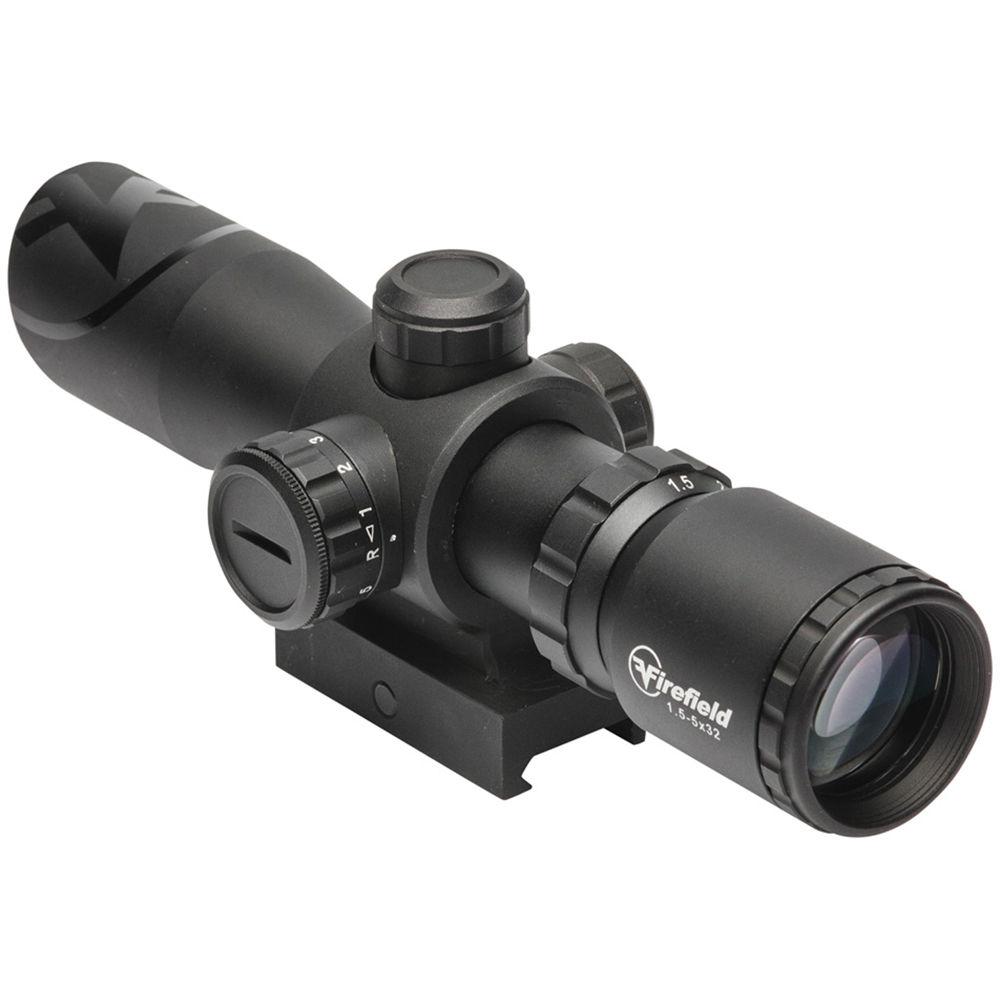

Product description Get on target with the FireField 1.5-5x32 Barrage Riflescope . This compact and lightweight riflescope offers a 1.5-5x zoom magnification for sizable close-ups and an illuminated Mil-Dot reticle with green or red variable illumination. Other highlights of this riflescope are its bright and clear fully multi-coated lenses, parallax-free distance of 100 yd, and generous windage and elevation adjustment ranges.
To be able to follow you anywhere, the scope has a robust and impact-resistant 6061-T6 aluminum housing, which is also nitrogen-filled fogproof and weather-resistant. To block glare from the sun or other bright light sources that may reduce your accuracy, the objective bell has a built-in angled sunshade. - Optical Performance
-

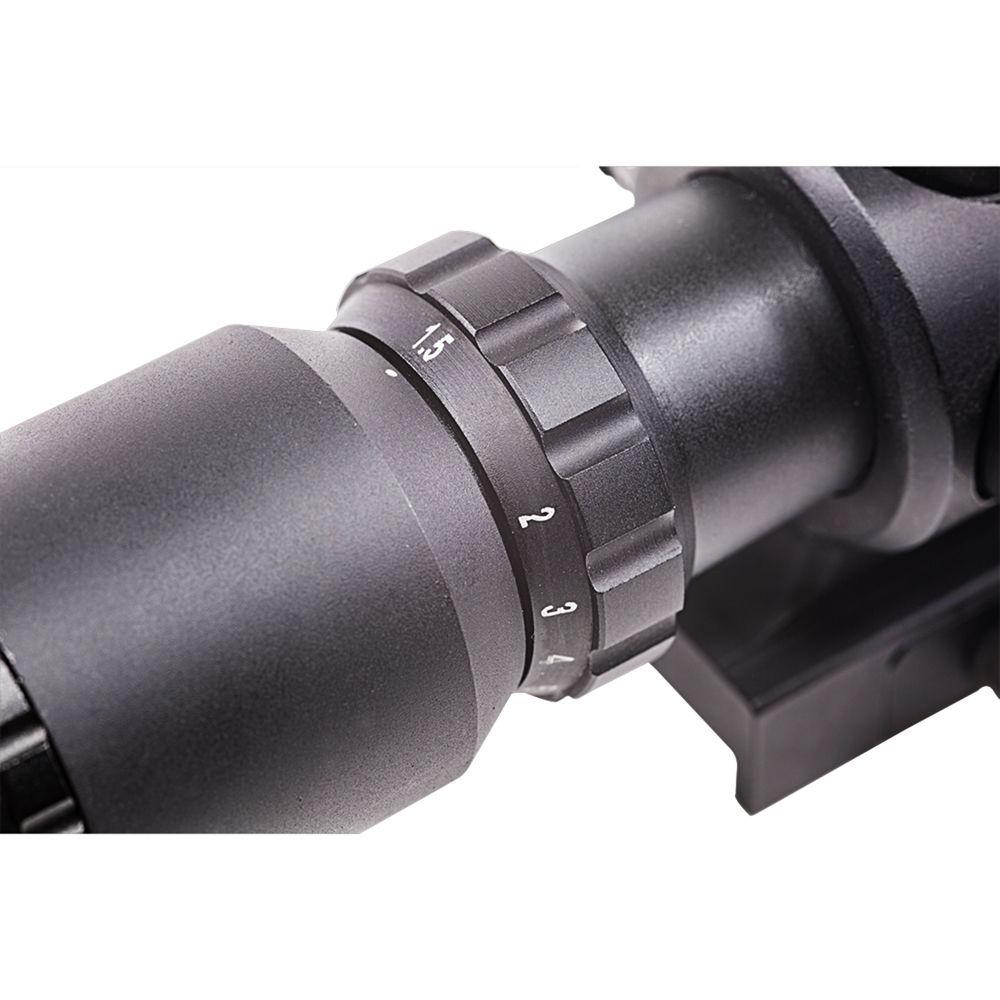

- 1.5 - 5x zoom magnification
- 32mm objective diameter
- Fully multi-coated optics
- 42 - 14.7' at 100 yards linear field of view
- Mil-Dot Reticle
-
- Second focal plane

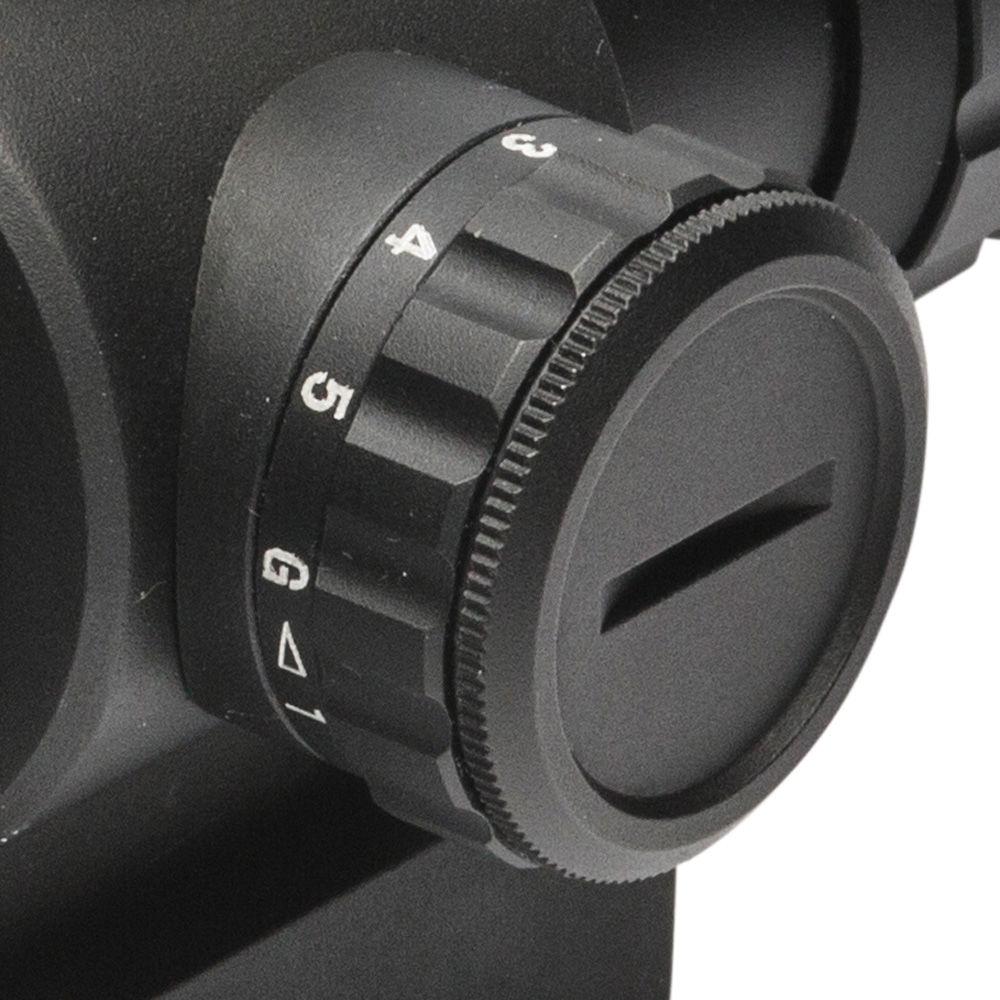

- Red or green illumination settings
- Five brightness levels
- Parallax-free at 100 yd
- Use and Handling
-

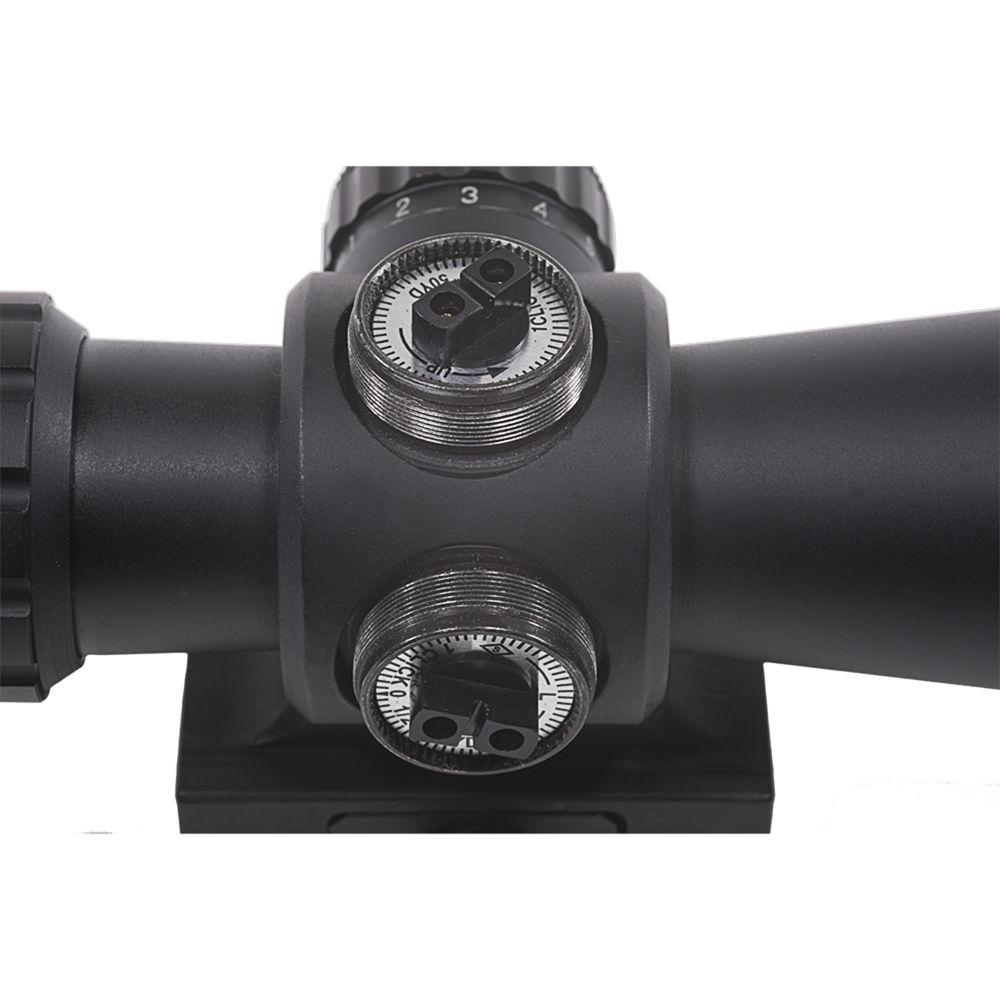

- 1/2 MOA per click impact point correction clicks
- 130 MOA windage and elevation adjustment
- Two-piece Picatinny/Weaver mount
- Exit pupil diameter: 21.3 - 6.4mm
- Diopter adjustment: +2 to -2
- Eye relief: 5.1 - 1.97 "
- Construction Details
-
- 6061-T6 aluminum housing
- Anodized matte black finish
- Capped adjustment turrets
- Weather-resistant, fogproof, shock-resistant

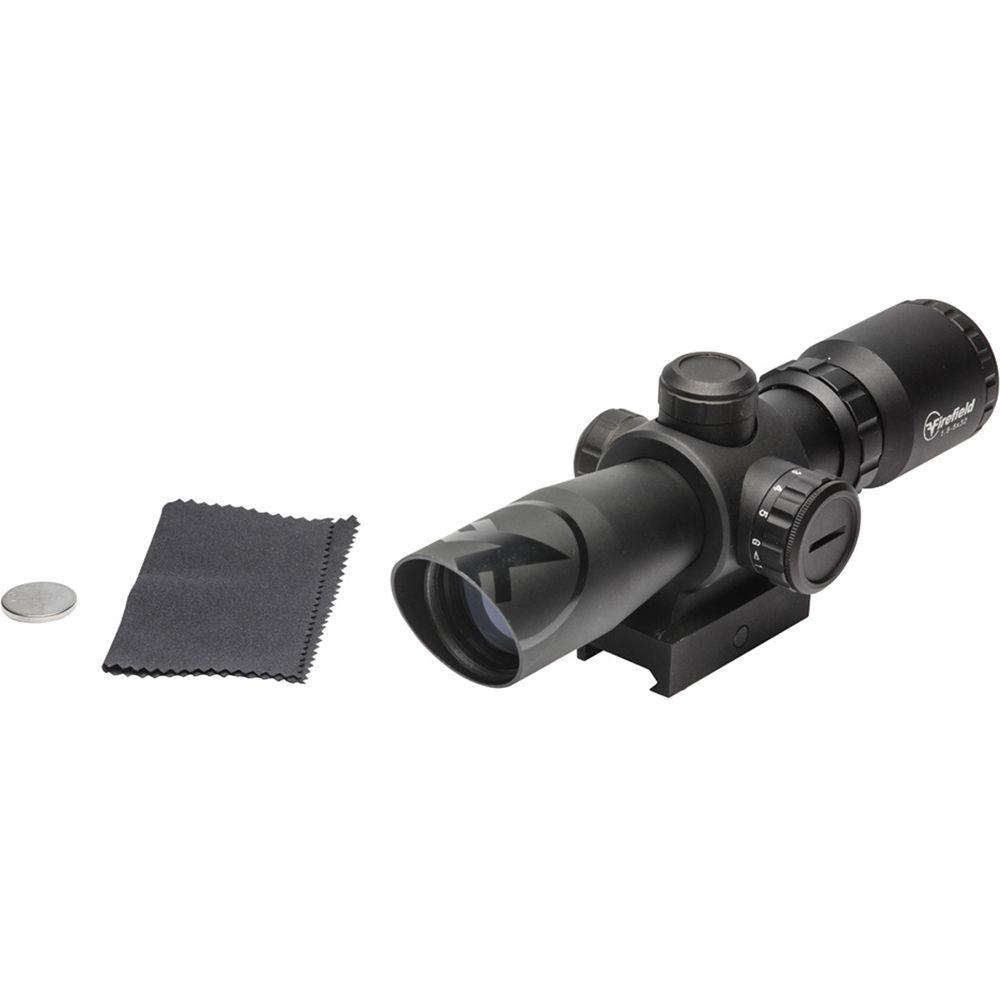

UPC: 812495022081 In the Box Firefield 1.5-5x32 Barrage Riflescope (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 1.5-5x32 Barrage Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13061 Specs | | | Magnification | 1.5 to 5x | | Objective Lens Diameter | 32 mm | | Field of View | 1.5x: 42' @ 100 yd / 14 m @ 100 m
5x: 14.7' @ 100 yd / 4.9 m @ 100 m | | Exit Pupil Diameter | 1.5x: 21.3 mm
5x: 6.4 mm | | Eye Relief | 2 to 5.1" / 50 to 130 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 130 MOA | | Elevation Adjustment | 130 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX4 | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | 0 to 120°F / -17.8 to 49°C | | | | Battery | 1 x CR2032 | | Battery Runtime | 100 Hours | | Dimensions | Length: 8.3" / 21 cm
Height: 3.1" / 8 cm
Width: 3" / 7.7 cm | | Weight | 18.3 oz / 510.3 g |
