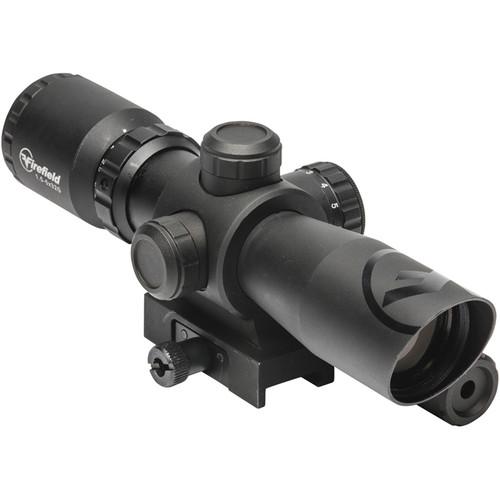

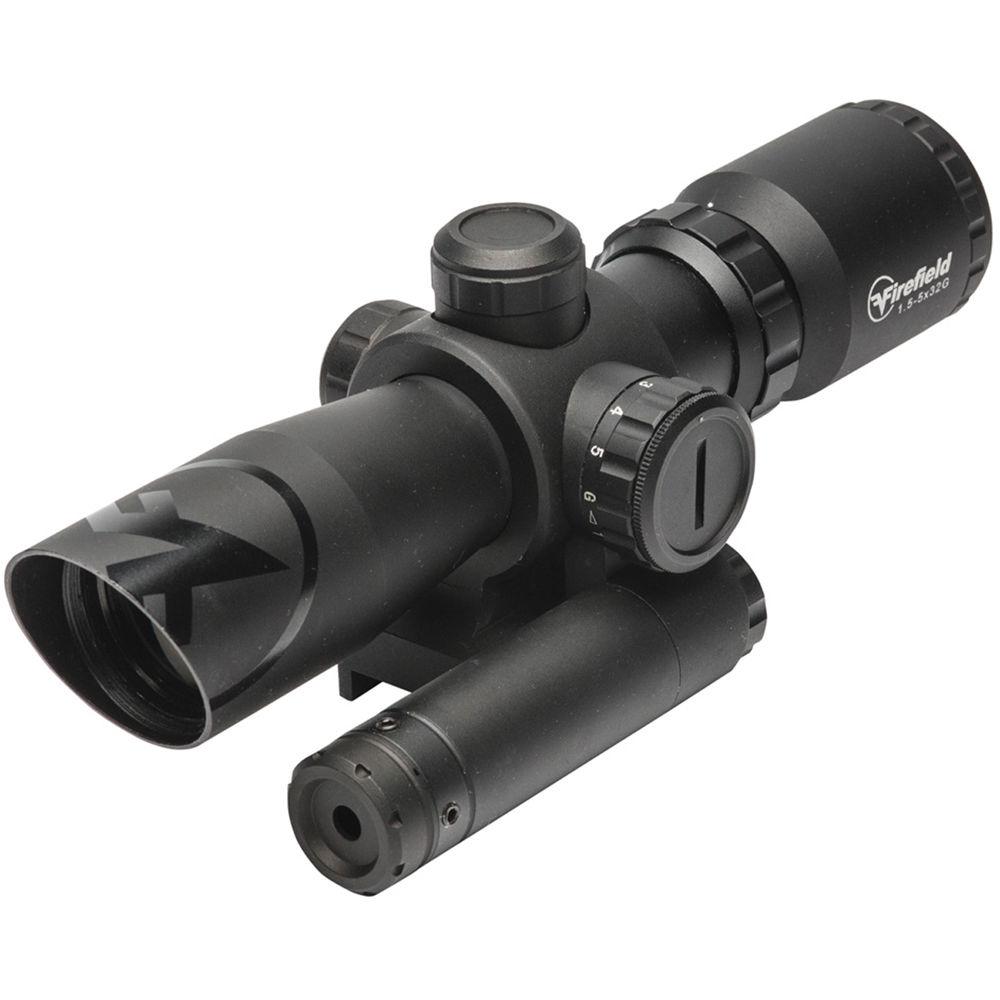

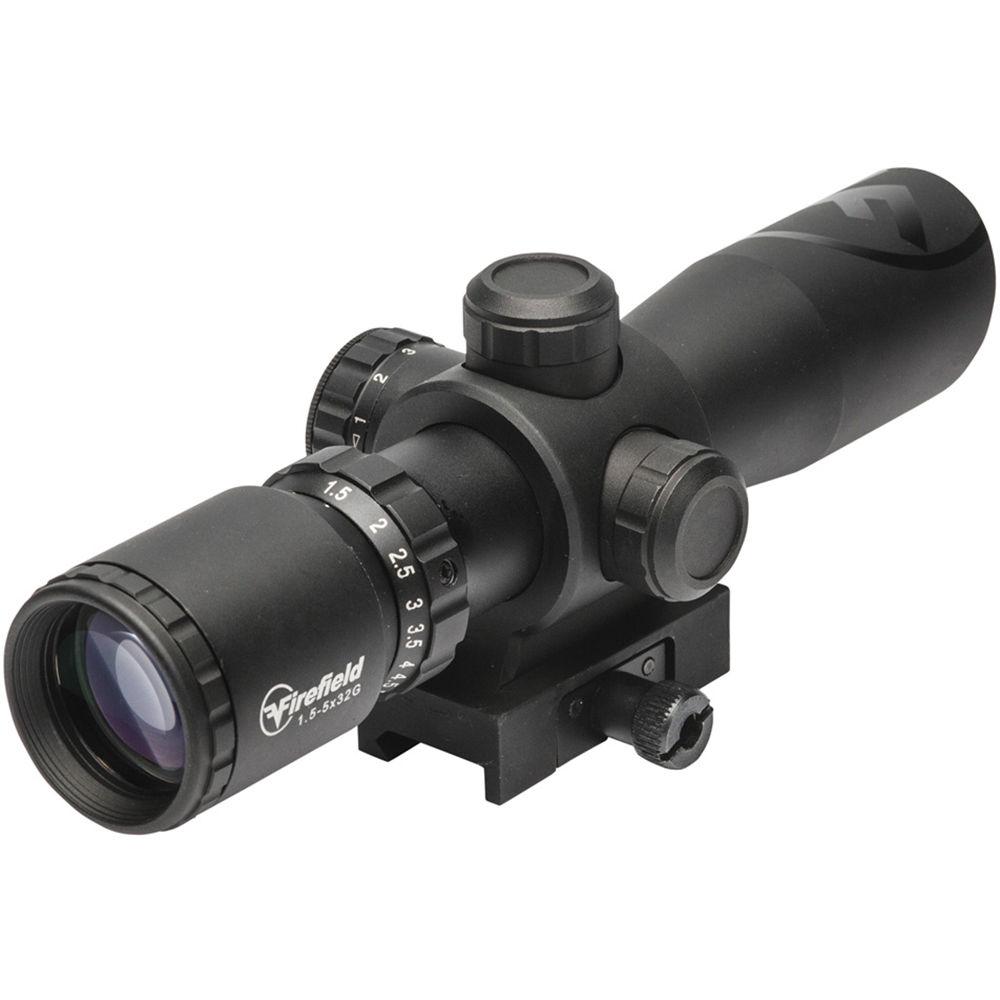

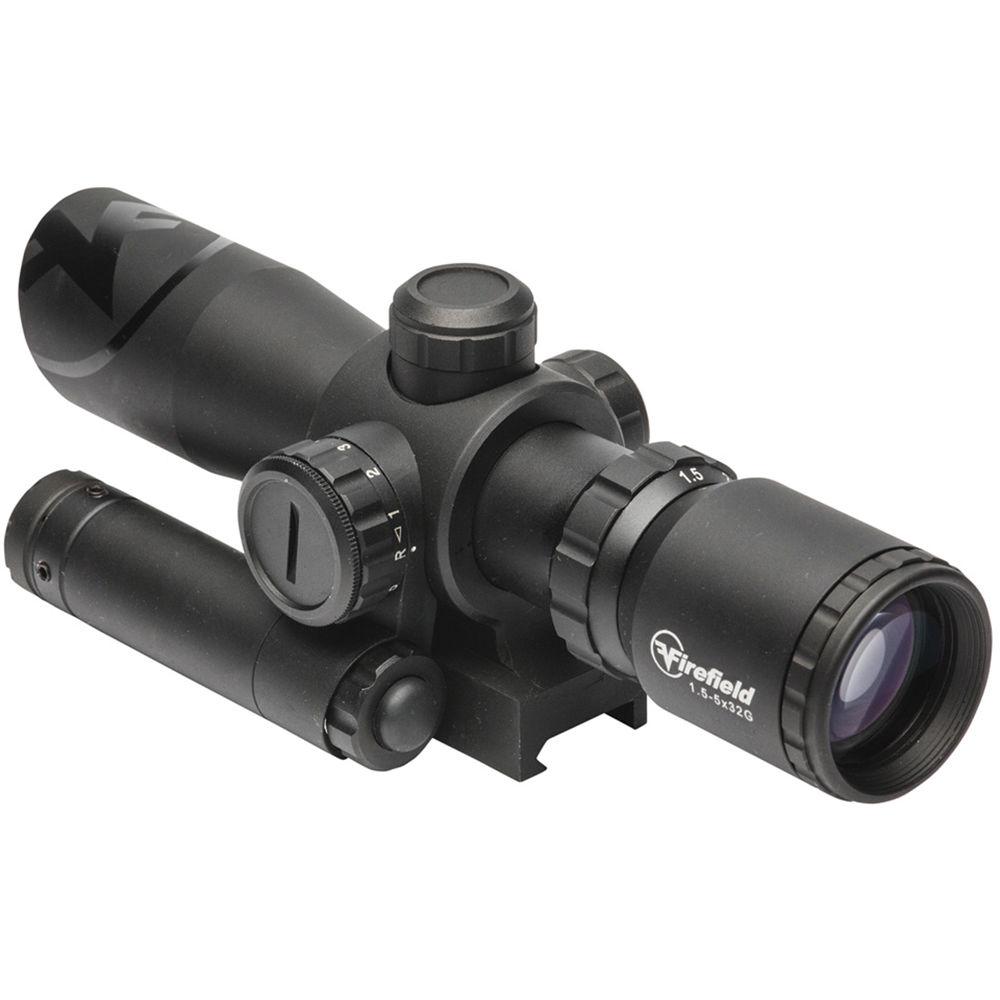

Product description Get on target with the FireField 1.5-5x32 Barrage Riflescope with Green Laser. This compact and lightweight riflescope offers a 1.5-5x zoom magnification for sizable close-ups and an illuminated Mil-Dot reticle with green or red variable illumination. This scope includes a green aiming laser to make your aiming process laser-sharp by adding a brilliant laser target dot on you targets. The laser is mounted on the side of the scope and draws power from a separate included battery. Other highlights of this riflescope are its bright and clear fully multi-coated lenses, parallax-free distance of 100 yd, and generous windage and elevation adjustment ranges.
To be able to follow you anywhere, the scope has a robust and impact-resistant 6061-T6 aluminum housing, which is also nitrogen-filled fogproof and weather-resistant. To block glare from the sun or other bright light sources that may reduce your accuracy, the objective bell has a built-in angled sunshade. - Optical Performance
-
- 1.5 - 5x zoom magnification
- 32mm objective diameter
- Fully multi-coated optics
- 42 - 14.7' at 100 yards linear field of view
- Mil-Dot Reticle
-
- Second focal plane

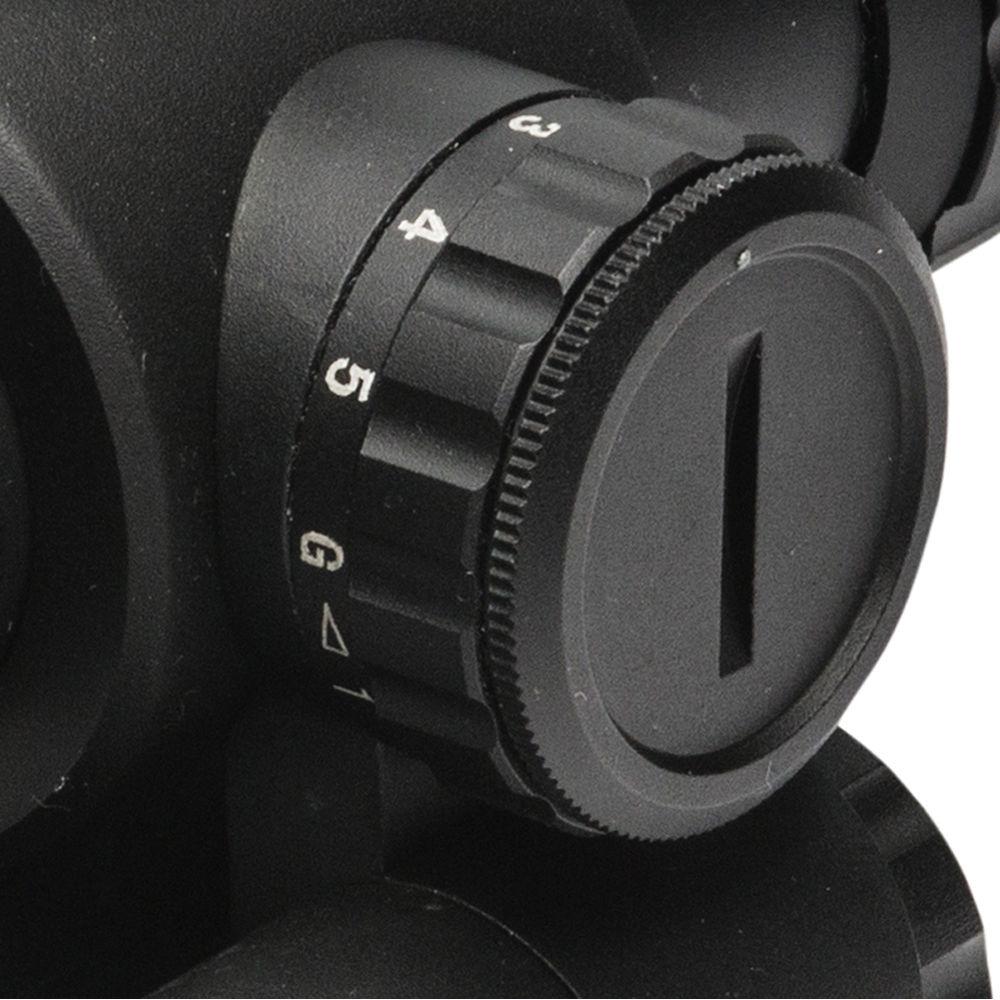

- Red or green illumination settings
- Five brightness levels
- Parallax-free at 100 yd
- Use and Handling
-
- 1/2 MOA per click impact point correction clicks
- 130 MOA windage and elevation adjustment

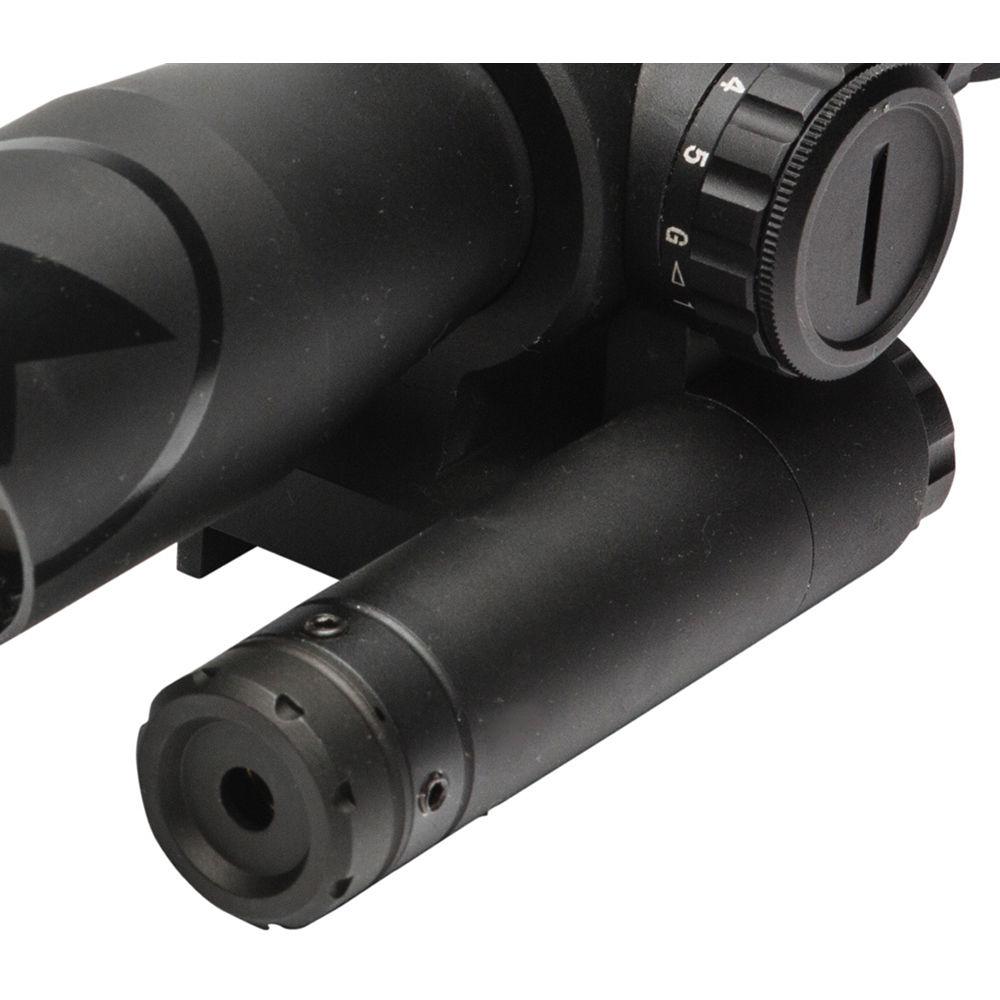

- Green detachable laser illuminator
- Two-piece Picatinny/Weaver mount
- Exit pupil diameter: 21.3 - 6.4mm
- Diopter adjustment: +2 to -2
- Eye relief: 5.1 - 1.97 "
- Construction Details
-
- 6061-T6 aluminum housing
- Anodized matte black finish
- Capped adjustment turrets
- Weather-resistant, fogproof, shock-resistant
UPC: 812495022104 In the Box Firefield 1.5-5x32 Barrage Riflescope with Green Laser (Red-Green Mil-Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- CR2 Battery
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 1.5-5x32 Barrage Riflescope with Green Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13063 Specs | | | Magnification | 1.5 to 5x | | Objective Lens Diameter | 32 mm | | Field of View | 1.5x: 42' @ 100 yd / 14 m @ 100 m
5x: 14.7' @ 100 yd / 4.9 m @ 100 m | | Exit Pupil Diameter | 1.5x: 21.3 mm
5x: 6.4 mm | | Eye Relief | 2 to 5.1" / 50 to 130 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Diameter | 1" / 2.5 cm | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 130 MOA | | Elevation Adjustment | 130 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | IPX4 | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | 0 to 120°F / -17.8 to 49°C | | | | Battery | Reticle: 1 x CR2032
Laser: 1 x CR2 | | Battery Runtime | Reticle: 100 Hours
Laser: 16 Hours | | Dimensions | Length: 8.3" / 21 cm
Height: 3.1" / 8 cm
Width: 3" / 7.7 cm | | Weight | 18.3 oz / 510.3 g |
