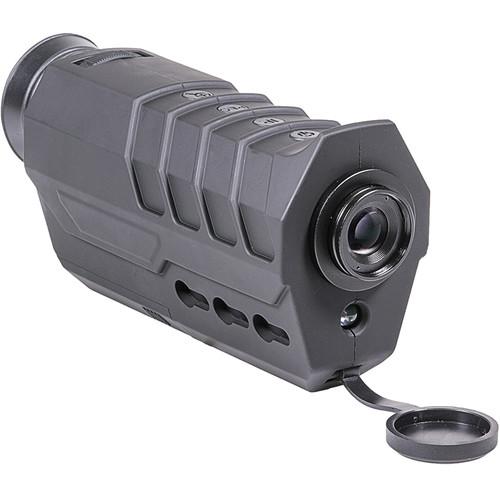

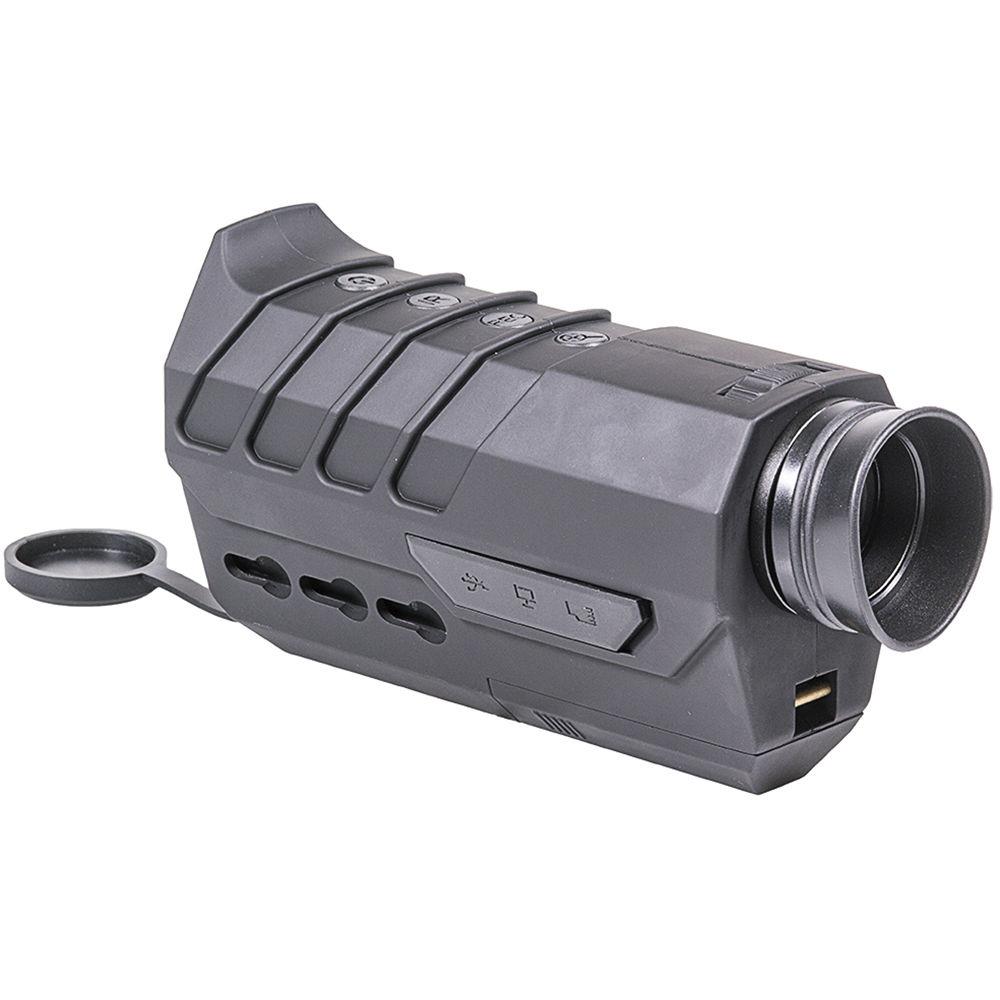

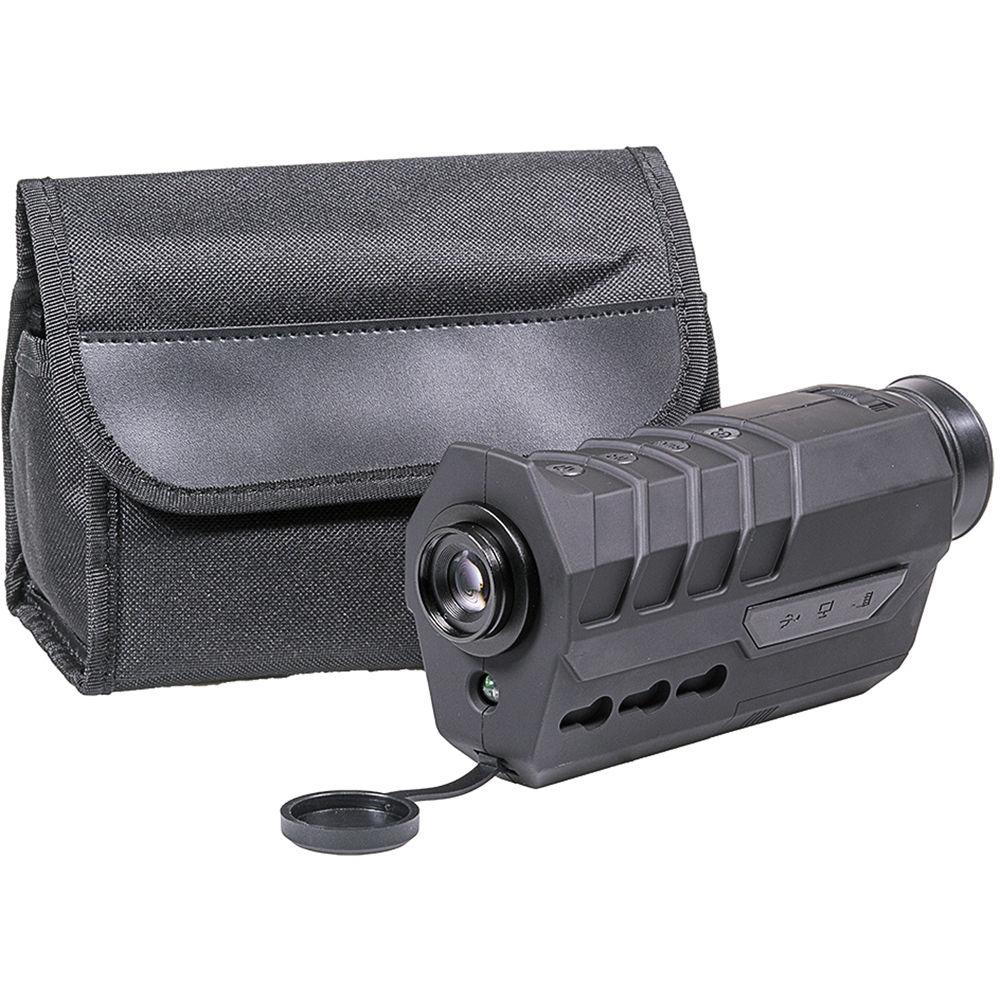

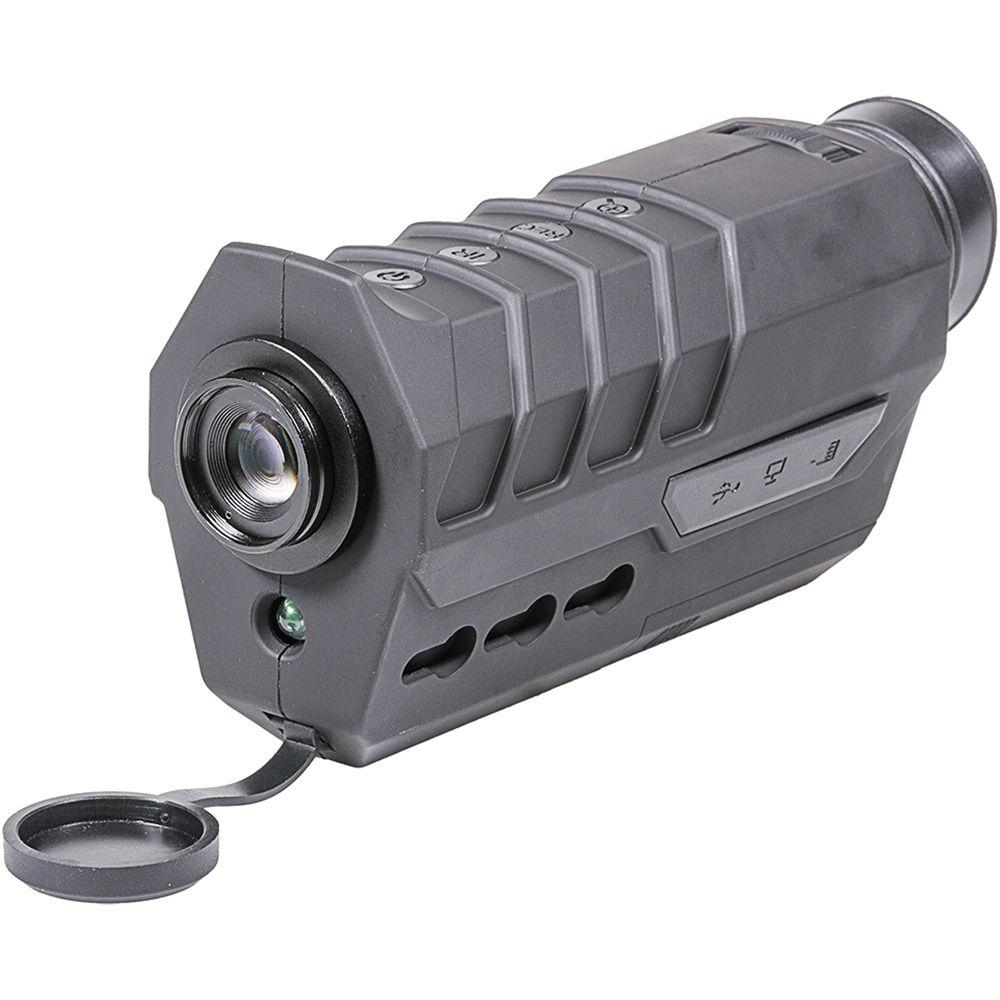

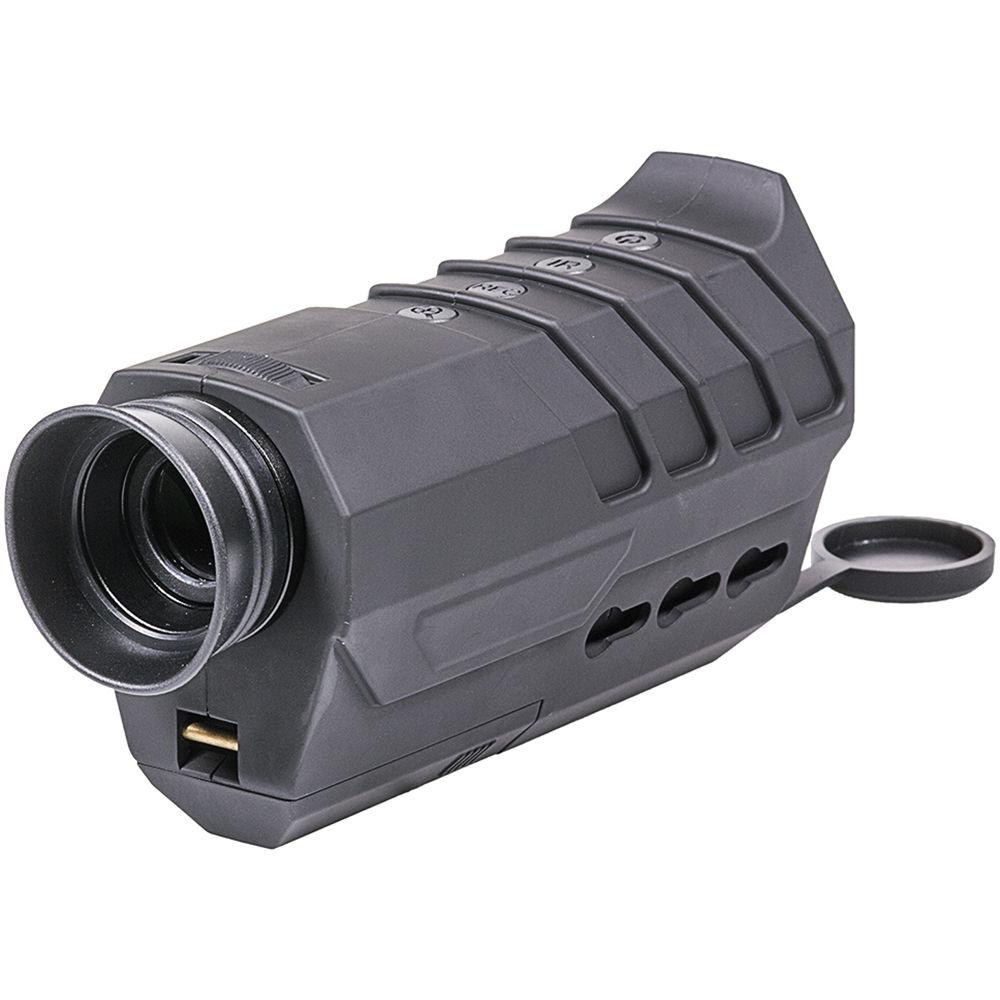

Product description Explore the night using the FireField 1-8x16 Digital Night Vision Monocular. This digital night vision device features a 640 x 480 CMOS sensor and a 640 x 480 color LCD display for making observations in low-light conditions. The electronics also enable you to zoom your images digitally to 8x, capture and play back images and videos, relay video outputs to external devices, or save your work on to an external memory card. For making things visible when it gets really dark, like cloudy nights, you have a built-in infrared LED illuminator to cast extra light on your subjects. The polycarbonate body is ergonomic and water-resistant. It provides a menu pad located on the top and KeyMod slots on both sides for attachment to compatible devices or accessories. - Imaging Sensor and IR Illuminator
-
- 640 x 480 CMOS sensor
- Full color day mode
- Captures images and videos
- Built-in IR LED illuminator: 50, 75, and 150mW
- Optical Performance
-
- 1x magnification
- 16mm objective diameter
- 12mm lens focal length
- Multi-coated optics
- 20° angular field of view at 1x magnification
- Use and Handling
-
- Powered by three AA batteries or an external power supply
- Built-in recording and playback
- Mountable to 1/4"-20 tripod
- External memory slot
- Video out port
- Construction
-
- Polymer body
- Integrated KeyMod compatibility
- IP55, water-resistant construction
- Tethered objective cap
- Rubber eyecup
UPC: 812495022555 In the Box Firefield 1-8x16 Digital Night Vision Monocular - Lanyard
- 8GB Memory Card
- Lens Cloth
- Video Cable
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 1-8x16 Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF18000 Specs | Imager | 640 x 480 CMOS | | Display | 640 x 480 LCD | | Magnification | 1x optical
8x digital zoom | | Field of View | 105' at 100 yd / 35 m at 100 m | | Lens Diameter | 16mm | | Focal Length | 12mm | | Minimum Focus Distance | 6.5' / 2.0 m | | Eye Relief | 1.4" / 36 mm | | Dioptric Correction | +1 to -1 | | Infrared Illuminator | Yes
20° beam divergence
850 nm emission wavelength
50/75/150 mW output power settings | | Video Recording Format | 640 x 480 AVI format | | Battery / Runtime | 3 x AA batteries / 9 hours with IR on, 12 hours with IR off | | Weatherproofing | Weather-resistant, IP55-rated | | Operating Temperature | 4 to 122°F / -15.6 to 50°C | | Dimensions | 7.0 x 3.4 x 2.2" / 177.8 x 86.3 x 55.8 mm | | Weight | 10.8 oz / 306.2 g |
