User Manual for Firefield 10x50 Siege Tactical Monocular Click to enlarge the picture
Contents of the user manual for the Firefield 10x50 Siege Tactical Monocular
- Product category: Monoculars Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Monoculars
 |
User manual for the Firefield 10x50 Siege Tactical Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

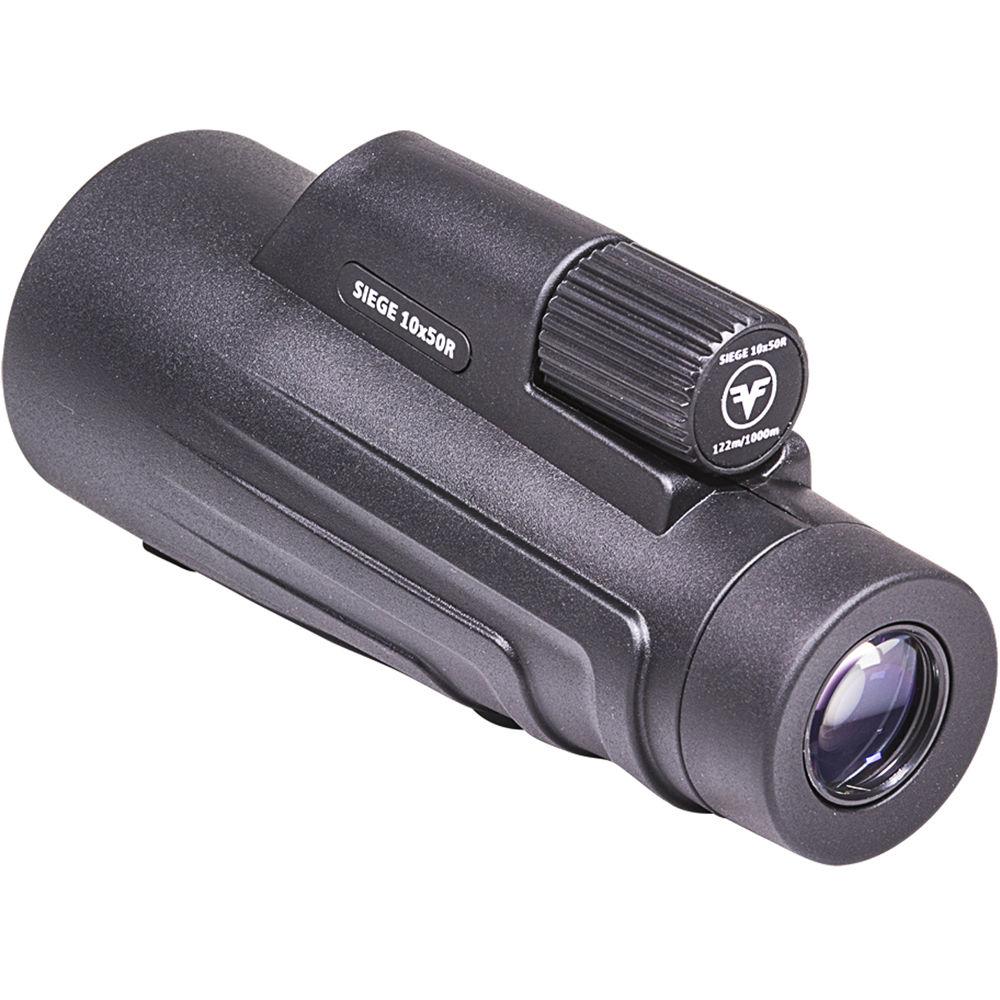

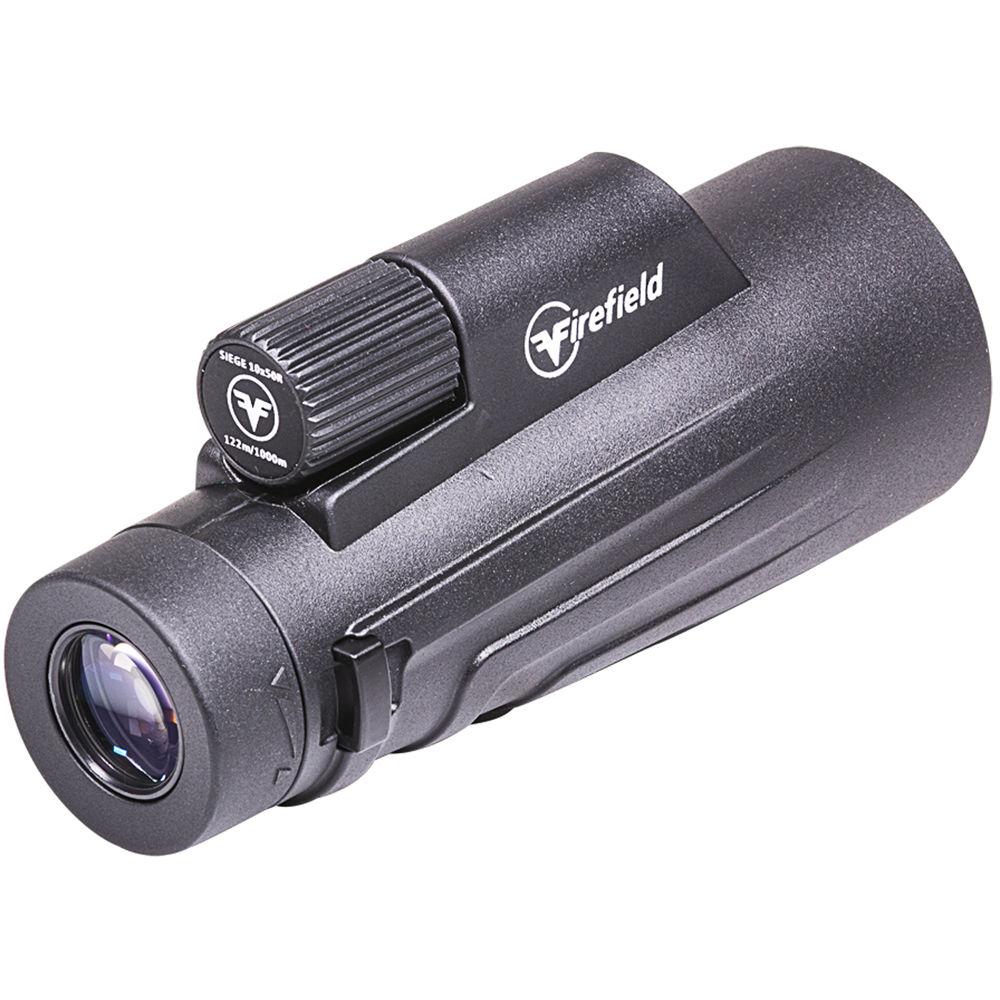

Product description With an integrated in-view ranging reticle, Firefield's black 10x50 Siege Tactical Monocular is designed with hunters and professionals in mind as a highly portable field optic for long-range use even in challenging light conditions. Its reticle uses a series of hashes and stadia to provide users with the tools required for estimating the distance to, and the size of, their target; and for ballistic drop compensation and improved first-shot accuracy.The combination of magnification and objective lens ensures an ultra-wide 70° apparent angle of view and large exit pupil, with enhanced light gathering ability versus smaller comparable models. Added to these features are anti-reflection fully multi-coated optics and BAK4 roof prisms which maximize light transmission through the optical path, producing bright and clear high-contrast images with accurate color rendition.The housing is made of a lightweight and durable plastic that is wrapped in a protective black rubber armor. Accents on the armor promote a more secure grip, helping to increase its handling in cold and wet weather. The optical tube is O-ring sealed to an IP67-rating making it dustproof, and submersible to a depth of 3.3' (1m) for up to one hour. The optical tube is also nitrogen-filled to be resistant to internal fogging during extreme changes in temperature and environmental conditions. Construction details such as a twist-up eyecup and a standard 1/4"-20 tripod mount add to the comfort and usability of the monocular. - Optical Performance
-
- High 10x magnification enables detailed observations of distant subjects
- Large 50mm objective lens diameter draws in copious amounts of light to boost its light-gathering ability in challenging conditions such as at dawn and dusk
- Compact BAK4 roof prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Anti-reflection fully multi-coated optics produce views with improved color rendition, contrast, and clarity
- Ultra-wide 70° apparent angle of view minimizes the appearance of visible hand shake that is common when holding high-power optics
- 367-foot field of view at 1000 yards
- Use and Handling
-
- Rangefinder reticle utilizes hashes and stadia to provide the means for estimating the distance to, and the size of, the target for determining BDC and improving first-shot accuracy
- Large textured user-facing focusing knob is easy to find and manipulate without looking and even when wearing gloves
- Convenient twist-up rubber eyecups for comfortable use with or without eyewear
- Standard 1/4"-20 tripod mount allows for hands-free use to reduce fatigue and hand shake that can interfere with viewings
- Long 15.4mm eye relief helps to reduce eye strain and improve viewing comfort
- Wide 5mm exit pupil will completely cover most pupils as they open and dilate as light fades
- Construction Details
-
- Lightweight and impact-resistant plastic chassis
- Nitrogen-filled to be resistant to internal fogging when moving through extreme variations in temperature and conditions
- O-ring sealed to a dust and waterproof IP67 rating, making it submersible to 3.3' (1m) for up to 1 hour
- Textured black rubber armor protects against impacts while providing a slip-resistant grip
- Integrated accents add grip strength and stability for sure handling
- Tethered objective lens cover allows for easy use without the threat of loss
- Broad 0 to 120°F (-17 to 49°C) operating temperature
- Weight: 15.2 ounces

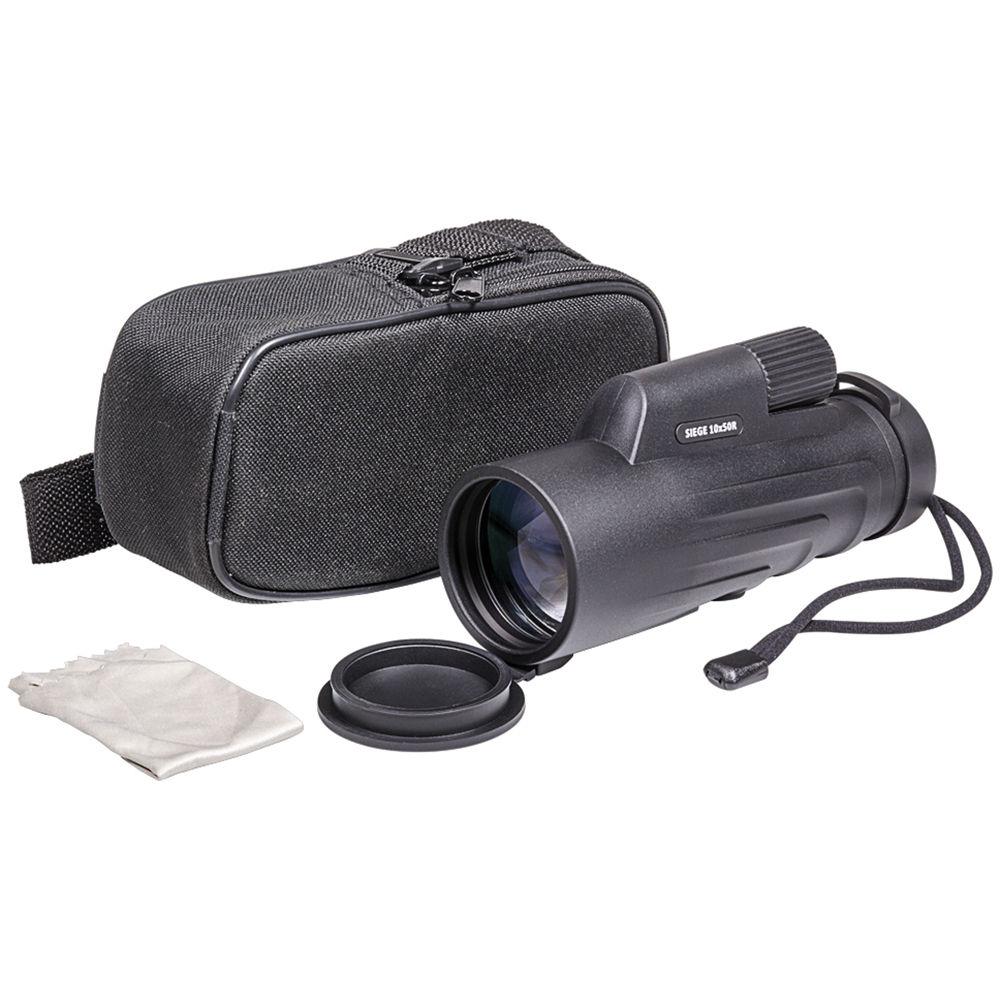

UPC: 812495022616 In the Box Firefield 10x50 Siege Tactical Monocular (Black) Wrist Strap Nylon Carrying Case Eyepiece Cap Tethered Objective Lens Cap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 10x50 Siege Tactical Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Siege Specs | Prism Type | Roof | | Magnification | 10x | | Objective Lens Diameter | 50mm | | Angle of View | 7.0°, actual | | Field of View | 367' @ 1000 yd / 122 m @ 1000 m | | Minimum Focus Distance | 13.0' / 4.0 m | | Exit Pupil Diameter | 5.0 mm | | Eye Relief | 15.4 mm | | Dioptric Correction | None | | Tripod Mount | Yes (built-in) | | Dimensions | 6.2 x 2.6 x 2.2" / 15.7 x 6.6 x 5.6 cm | | Weight | 15.2 oz / 430.9 g |
