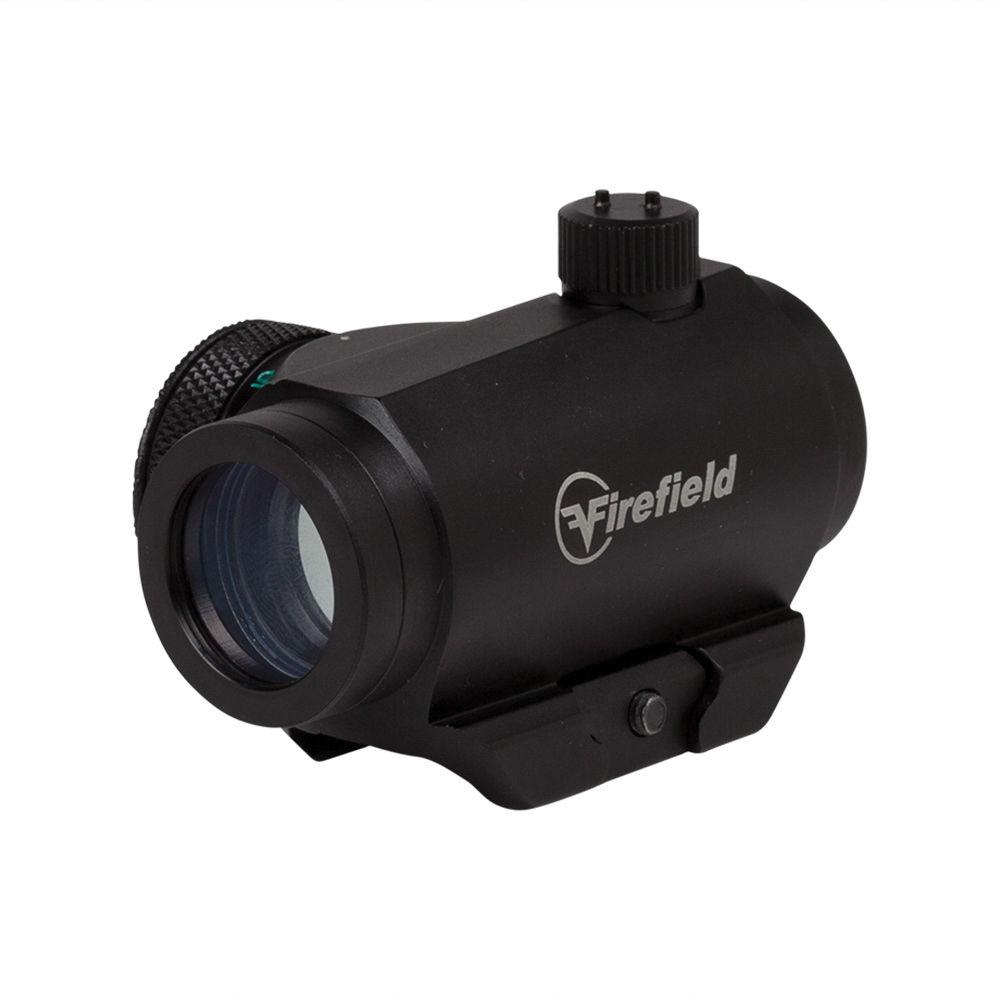

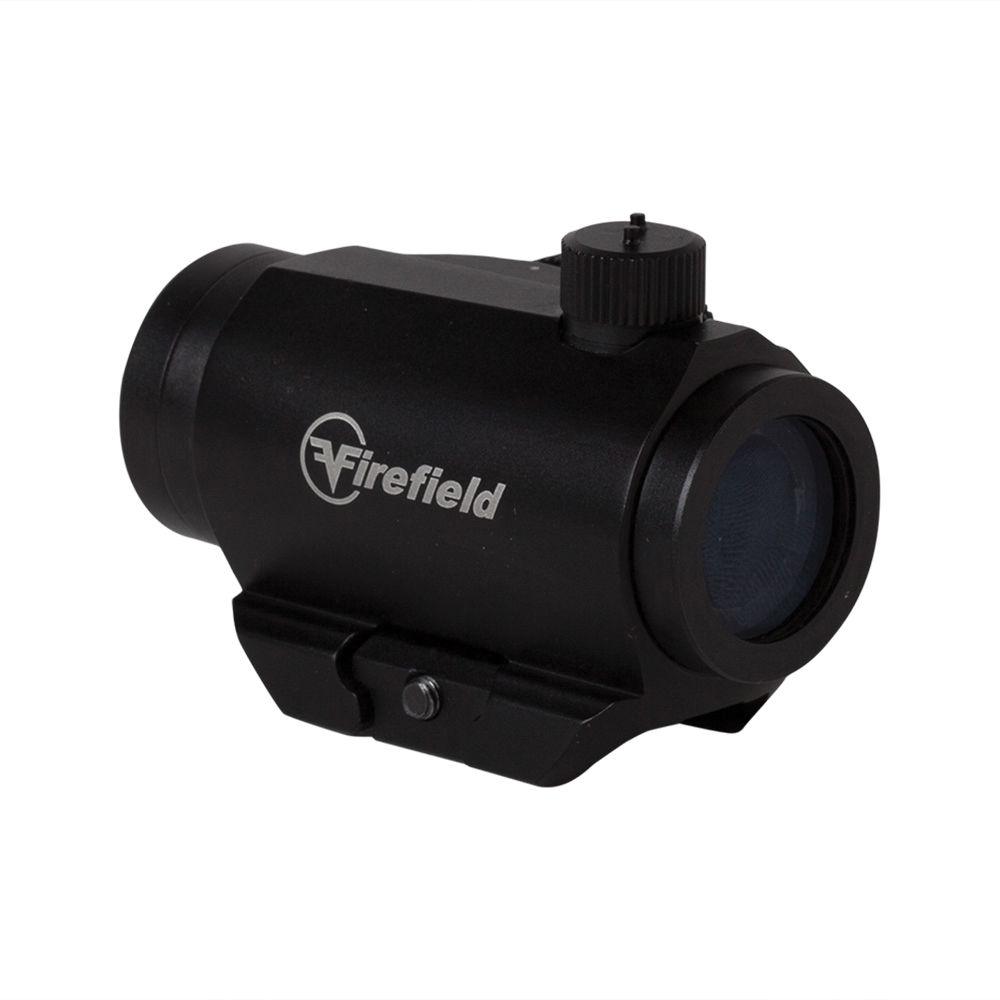

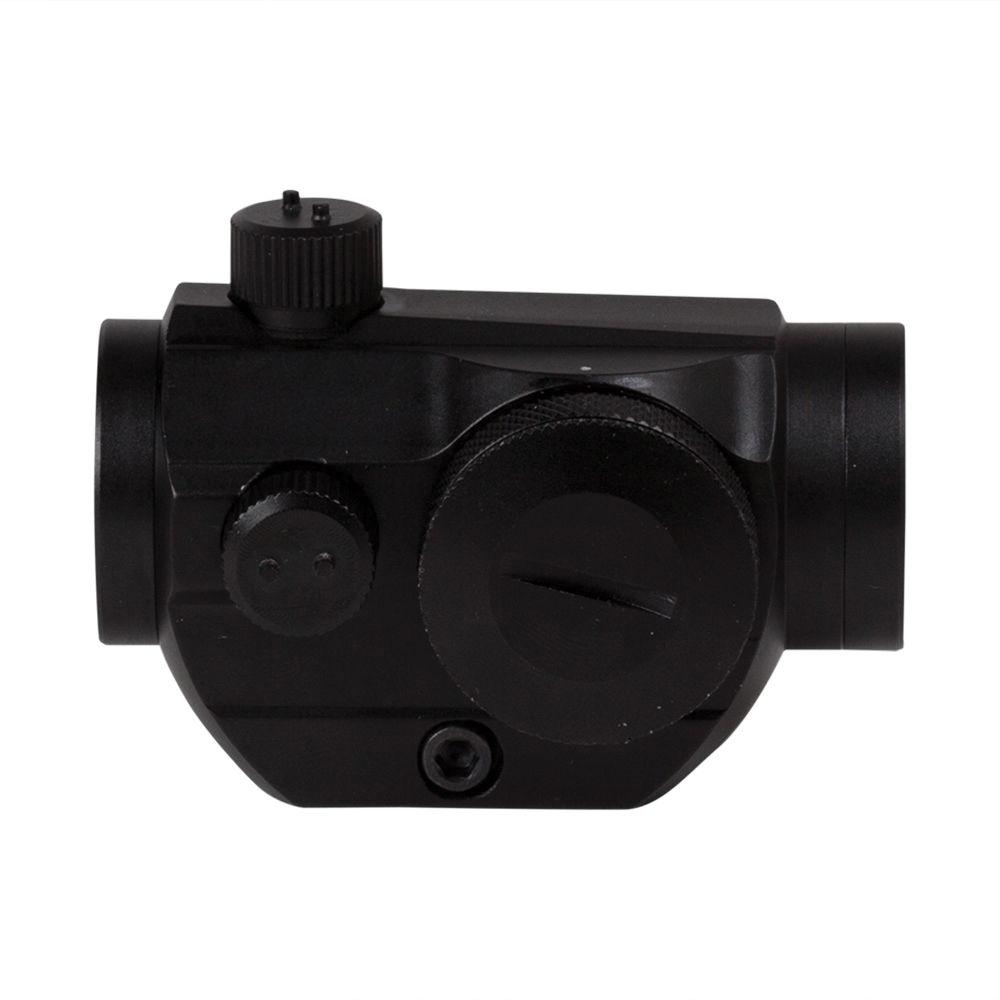

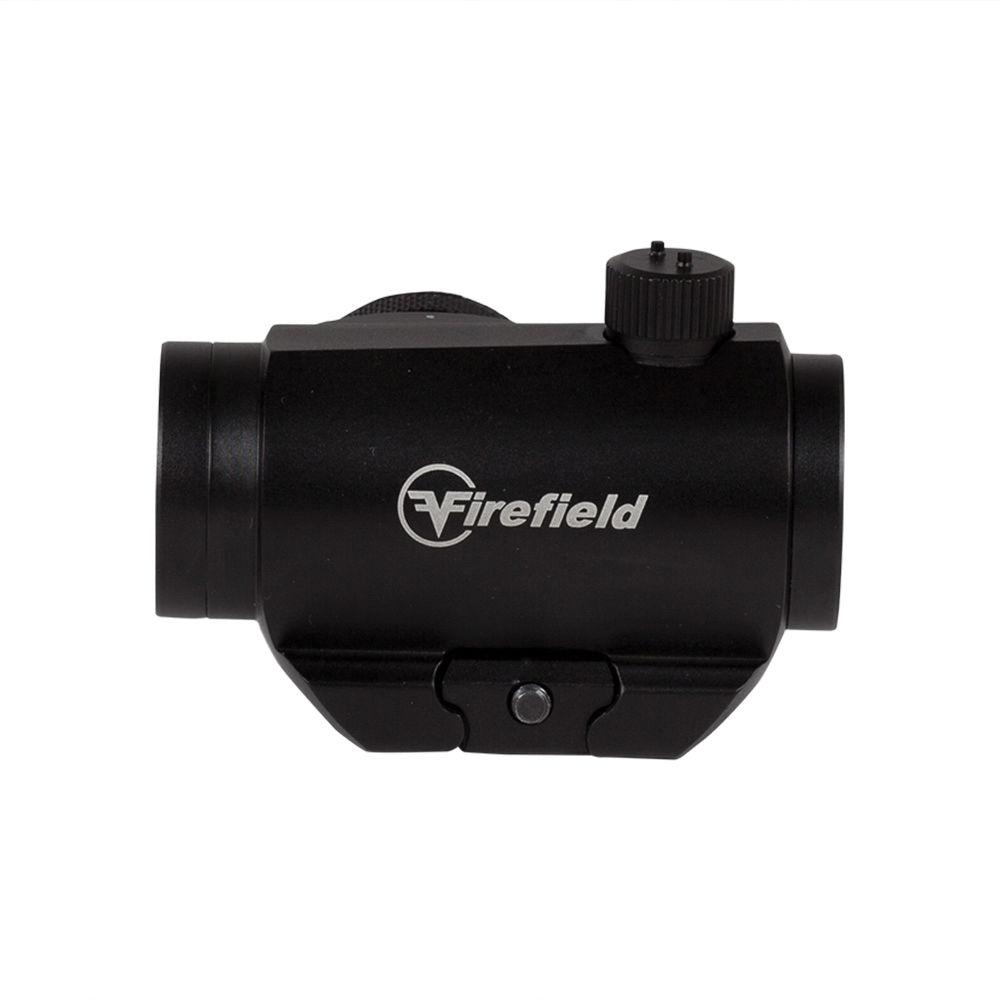

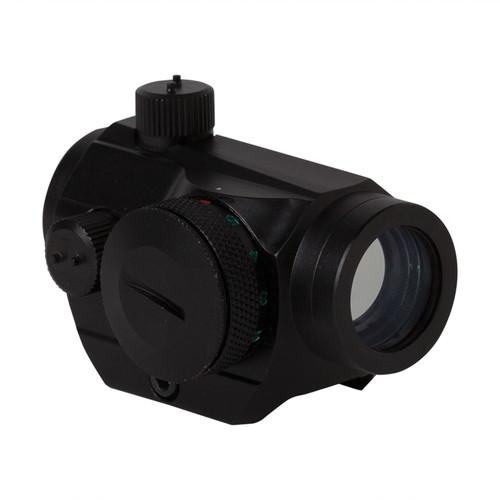

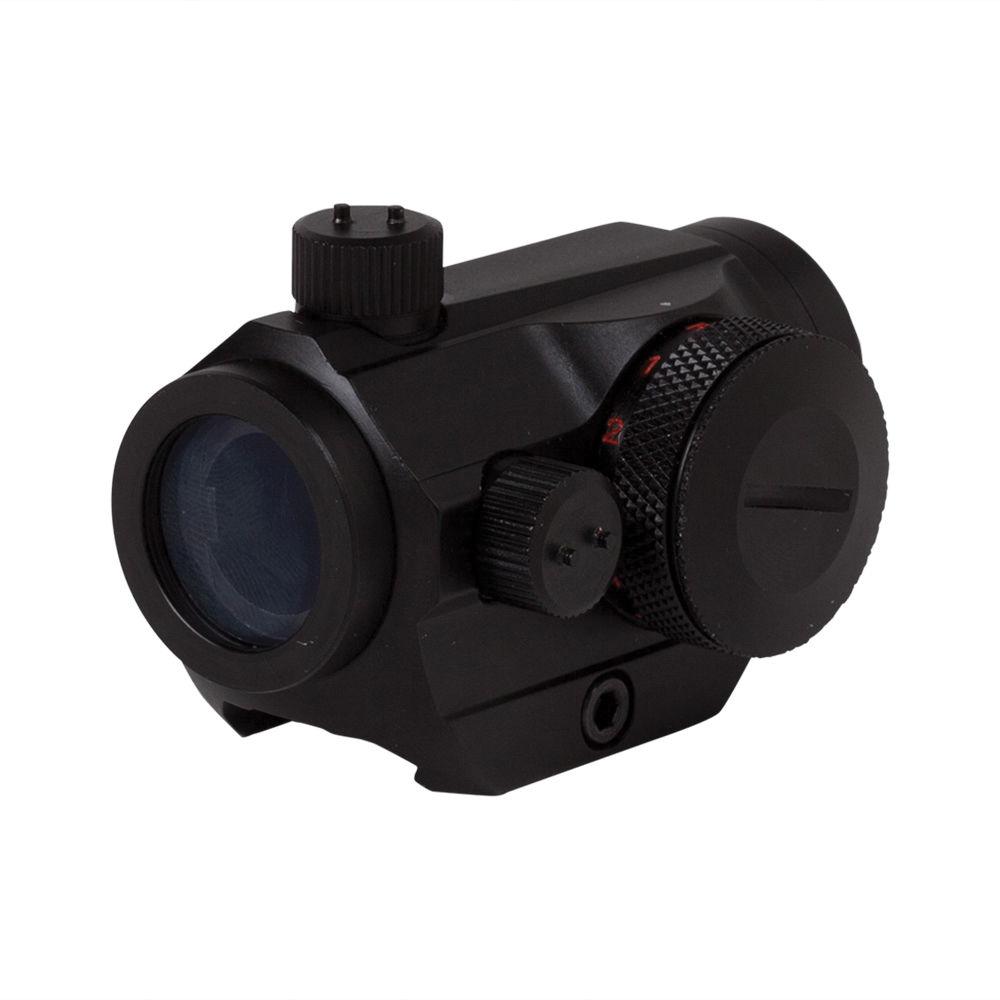

Product description The Close Combat 1x22 Micro Dot Sight with Red-Green Reticle from FireField is a compact reflex sight with a 3-MOA dual red-green reticle, five brightness levels, and is free of parallax at 20 yards. It features anti-reflection multicoated optics with 1x magnification and a 22mm objective diameter. To help you compensate for wind and projectile motion, the sight has 1 MOA impact point correction and a 120 MOA windage and elevation adjustment range.
The matte black aluminum housing is weatherproof, rated IPX6, and has a thumb screw for securing the sight. Also included with the sight is one CR2032 battery, protective objective cap, and a lens cloth. - Optical Performance
-
- 1x magnification
- 22mm objective diameter
- 32' @ 100 yd linear field of view
- Anti-reflective multicoated optics
- Reticle
-
- 3-MOA dot reflex reticle
- Red or green illumination option
- Five brightness levels
- Parallax-free at 20 yards
- Use and Handling
-
- 1 MOA impact point correction
- 120 MOA windage and elevation adjustment range
- Runs on included CR2032 battery
- Construction
-
- Cantilever design can mount forward on the upper receiver of an AR-15
- Secures to Weaver or Picatinny mount via included thumbscrew
- Aluminum housing with matte black finish
- IPX6-rated waterproof

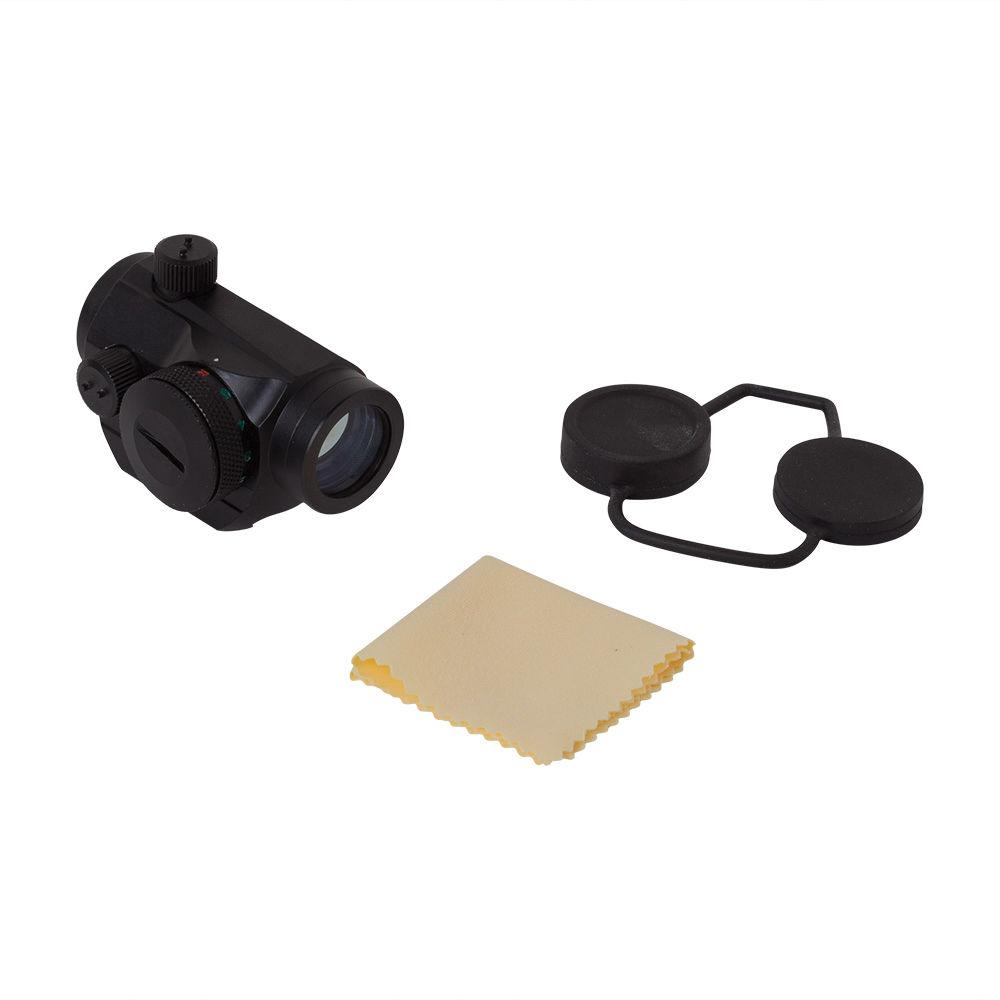

UPC: 810119019585 In the Box Firefield 1x22 Sight with Micro Dot Red-Green Reticle CR2032 Battery Objective Cap Lens Cloth Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 1x22 Sight with Micro Dot Red-Green Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Close Combat Specs | | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 22 mm | | Field of View | 32' @ 100 yd / 10.6 m @ 100 m | | Exit Pupil Diameter | 22 mm | | | | Impact Point Correction | 1 MOA | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | | | Water Resistance | IPX6 | | Material | Aluminum | | Dimensions | L: 2.7 x W: 2.0 x H: 1.7" / L: 6.9 x W: 5.1 x H: 4.3 cm | | Weight | 4.2 oz / 119.1 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.5 x 5.0 x 1.9" |
