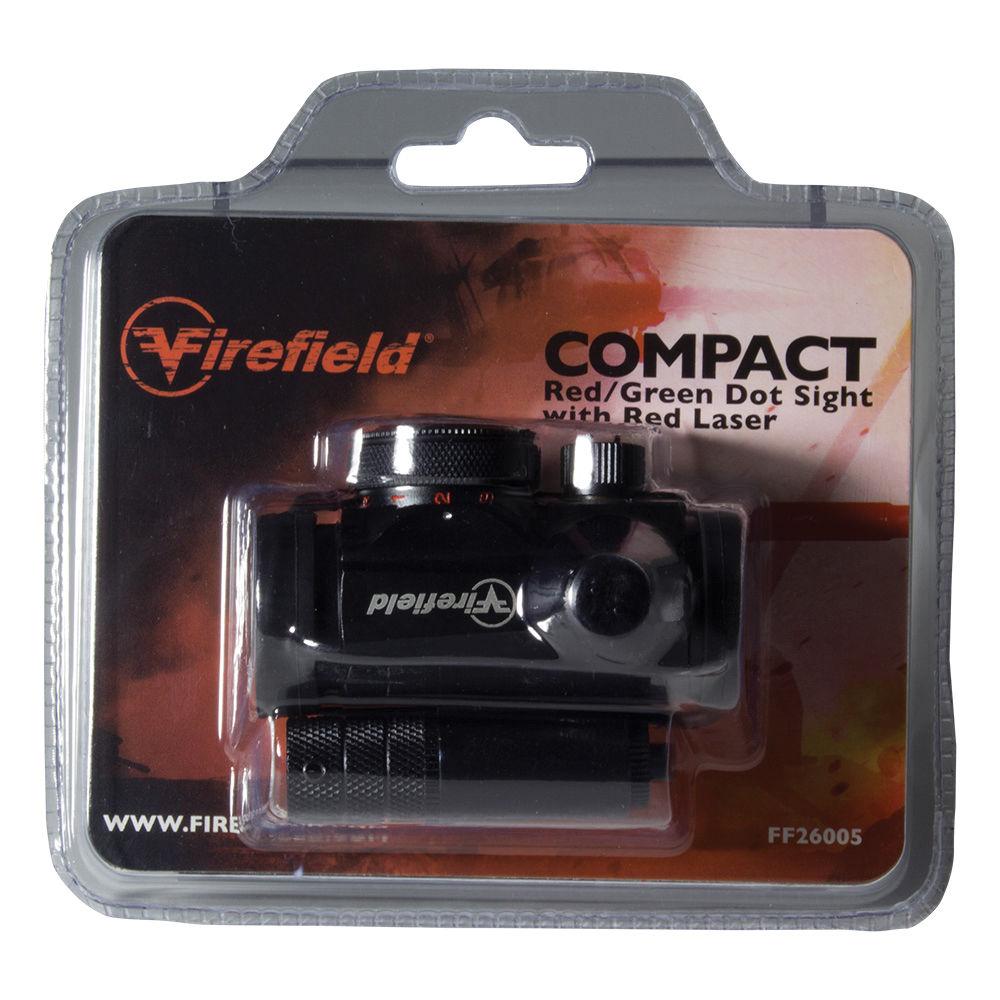

User Manual for Firefield 1x22 Sight with Micro Dot Red-Green Reticle and Laser Red Pointer Click to enlarge the picture
Contents of the user manual for the Firefield 1x22 Sight with Micro Dot
- Product category: Red Dot/Holographic Sights Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Red Dot/Holographic Sights
 |
User manual for the Firefield 1x22 Sight with Micro Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

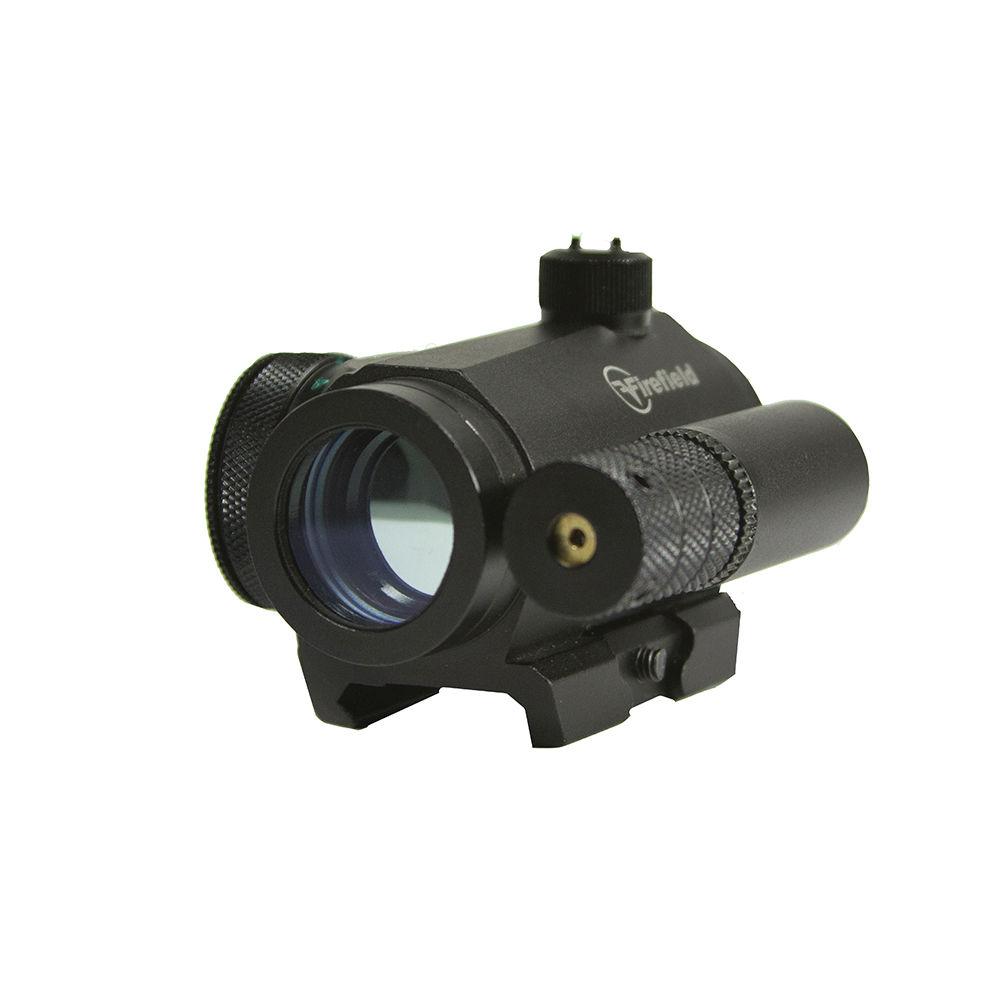

Product description The Close Combat 1x22 Sight with Micro Dot Red-Green Reticle and Laser Red Pointer from FireField is a compact reflex sight with a 3-MOA dual red-green reticle, five brightness levels, and is free of parallax at 20 yards. To give your aim more precision, the sigh has an integral red laser emitting at 632nm and offering a 1" red spot at a range of 100 yd. The optics feature anti-reflection multicoated lenses with 1x magnification and a 22mm objective diameter. To help you compensate for wind and projectile motion, the sight has 1 MOA impact point correction and a 120 MOA windage and elevation adjustment range.
The matte black aluminum housing is weatherproof, rated IPX6, and has a thumb screw for securing the sight. Also included with the sight, is a CR2032 battery, protective objective cap, and a lens cloth. - Optical Performance
-
- 1x magnification
- 22mm objective diameter
- 32' @ 100 yd linear field of view
- Anti-reflective multicoated optics
- Reticle
-
- 3-MOA dot reflex reticle
- Red or green illumination option
- Five brightness levels
- Parallax-free at 20 yards
- Laser Pointer
-
- Red laser wavelength: 632 nm
- Laser power under 5mW
- Beam size is 1" at 100 yd
- Powered by three included AG13 batteries
- Use and Handling
-
- 1 MOA impact point correction
- 120 MOA windage and elevation adjustment range
- Runs on included CR2032 battery
- Construction
-
- Cantilever design can mount forward on the upper receiver of an AR-15
- Secures to Weaver or Picatinny mount via included thumbscrew
- Aluminum housing with matte black finish
- IPX6-rated waterproof

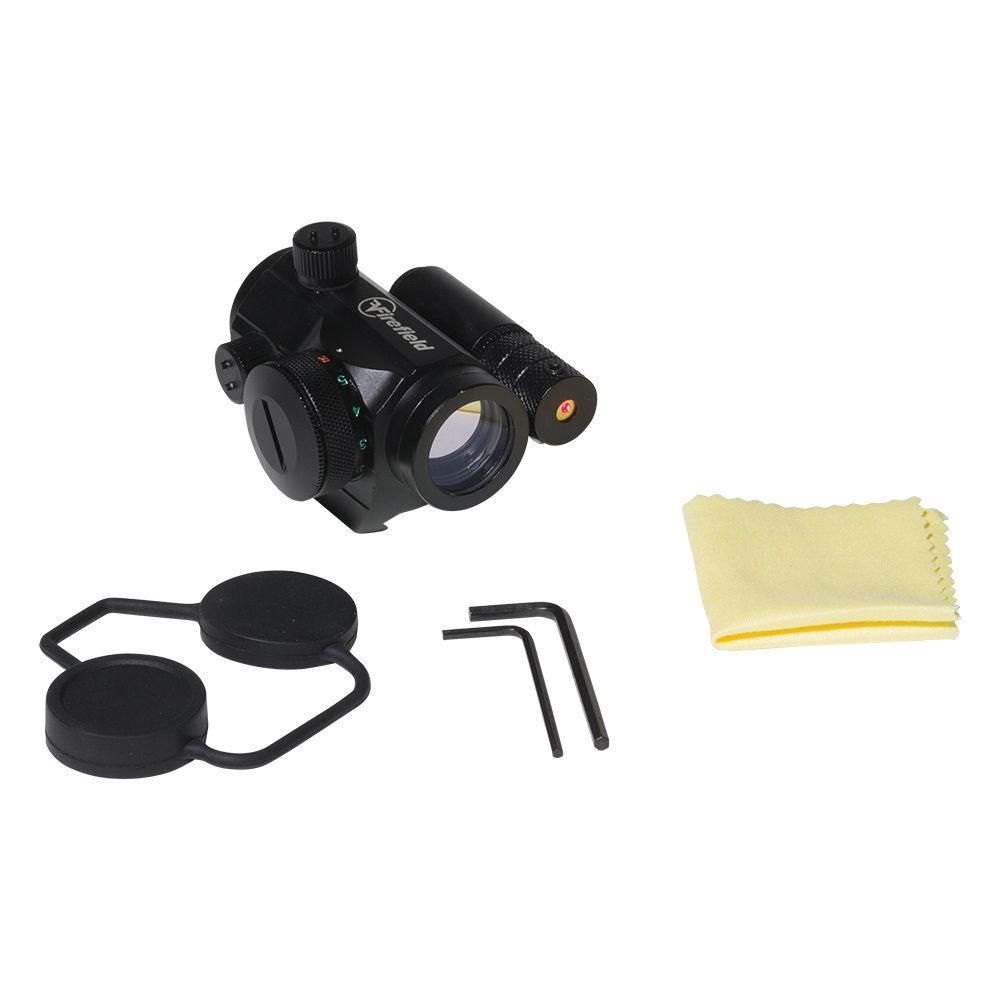

Note:10.13.2014. corrected typo in features. UPC: 810119019592 In the Box Firefield 1x22 Sight with Micro Dot Red-Green Reticle and Laser Red Pointer - CR2032 Battery
- 3 x AG13 Batteries
- Objective Cap
- Lens Cloth
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 1x22 Sight with Micro Dot Red-Green Reticle and Laser Red Pointer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Close Combat Specs | | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 22 mm | | Field of View | 32' @ 100 yd / 10.6 m @ 100 m | | Exit Pupil Diameter | 22 mm | | | | Impact Point Correction | 1 MOA | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | | | Laser Power Source | 3 x LR44 | | | | Water Resistance | IPX6 | | Material | Aluminum | | Dimensions | L: 2.7 x W: 2.0 x H: 1.7" / L: 6.9 x W: 5.1 x H: 4.3 cm | | Weight | 5.4 oz / 153.1 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.4 x 4.3 x 1.2" |
