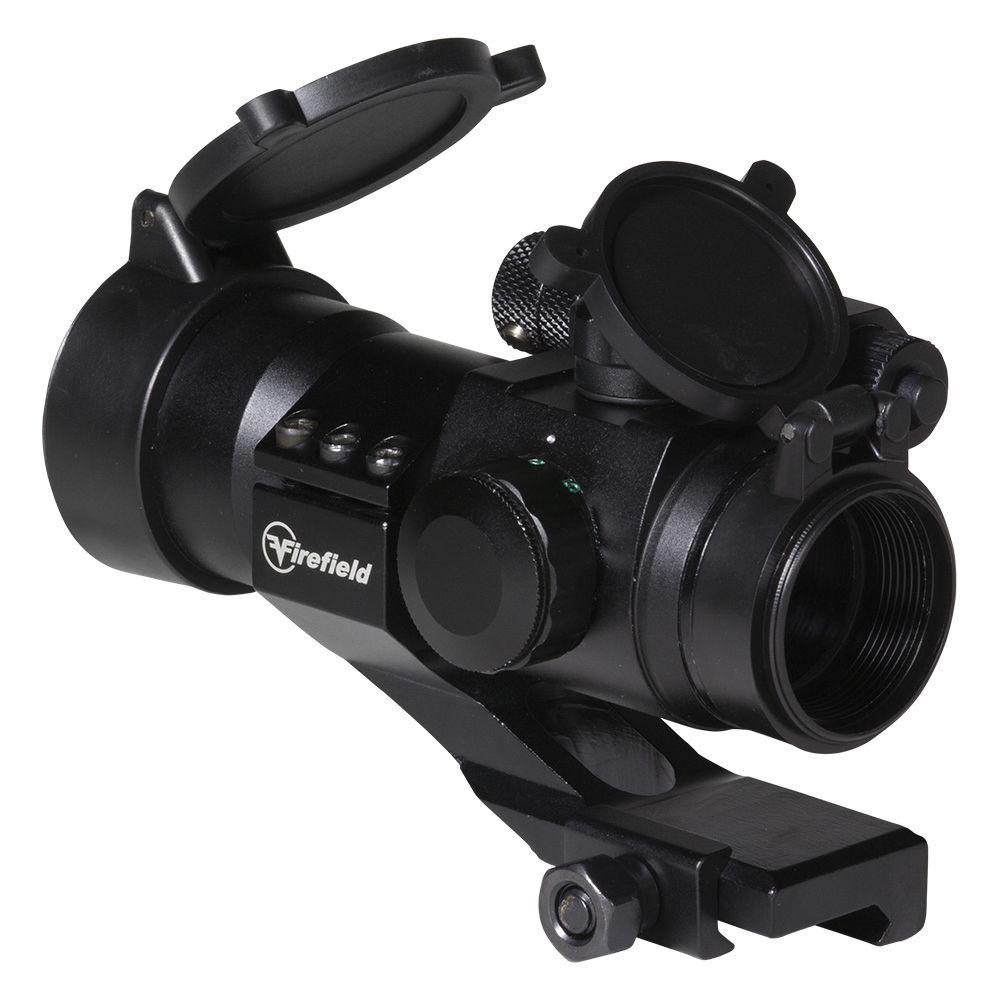

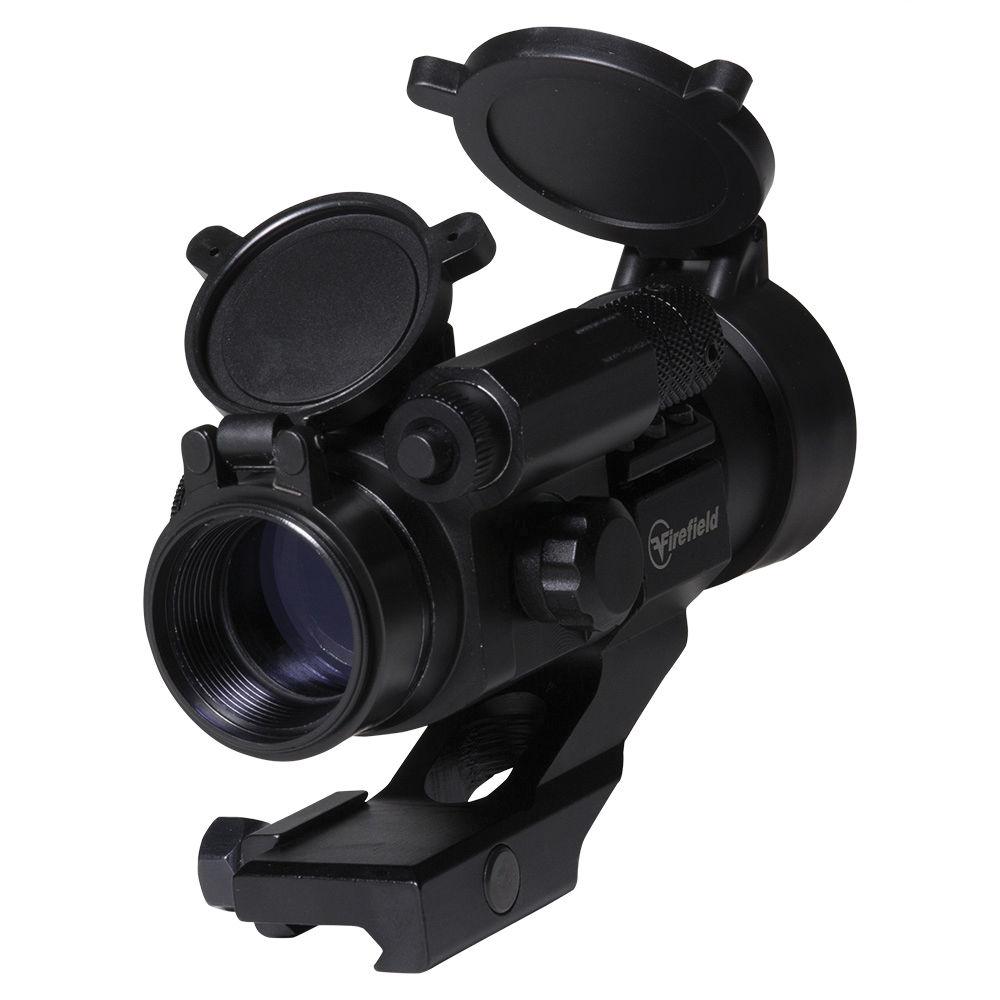

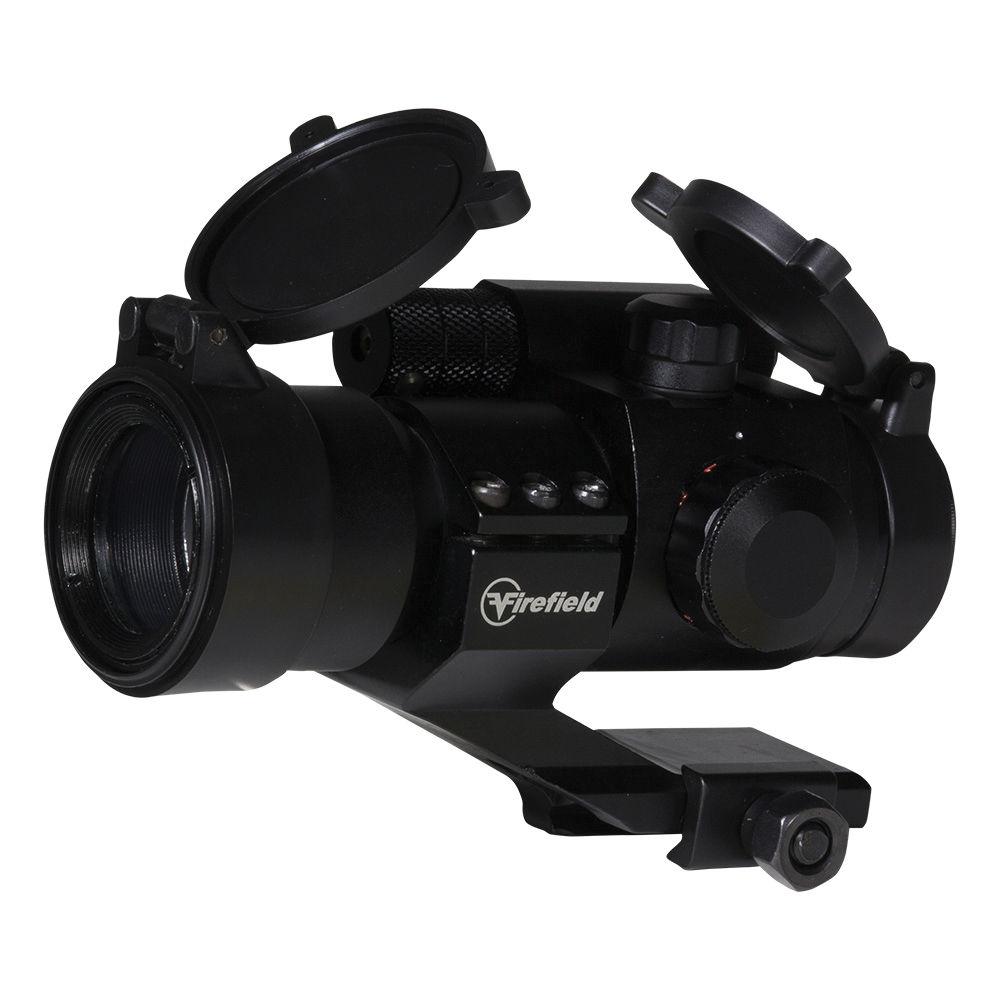

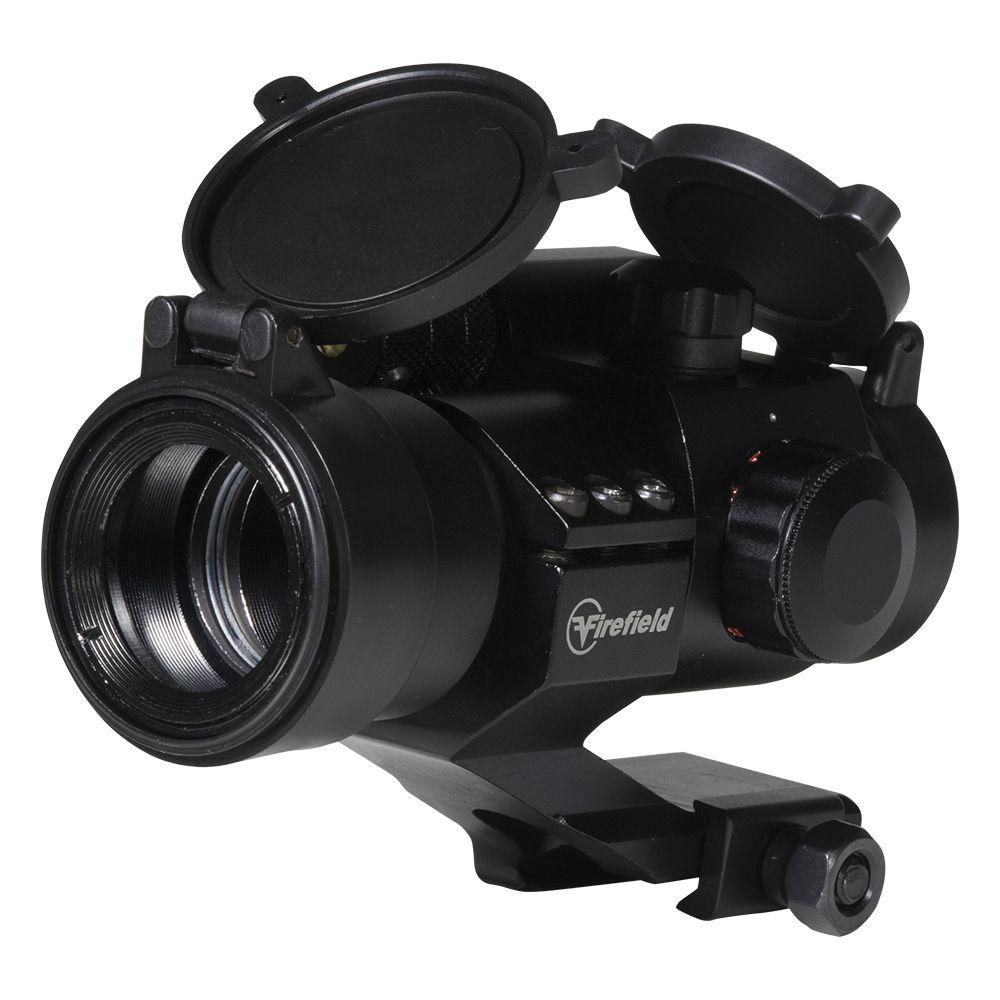

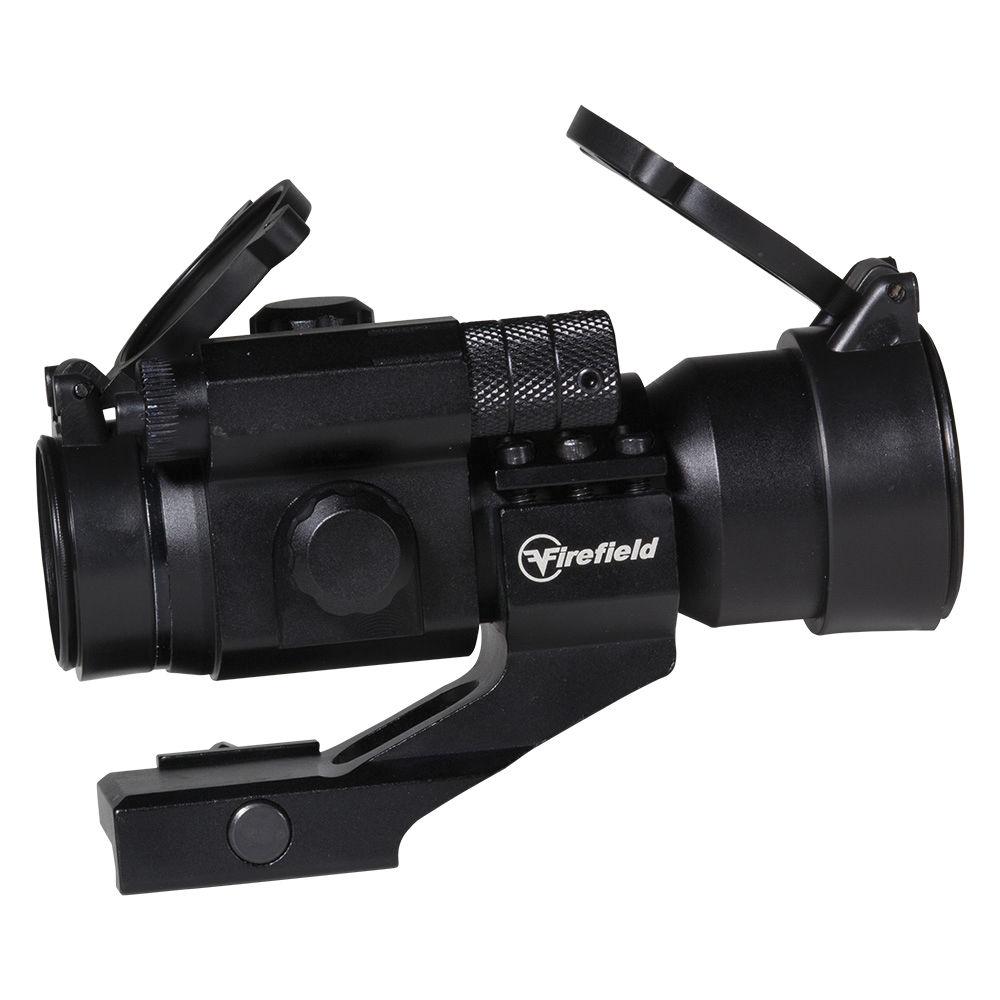

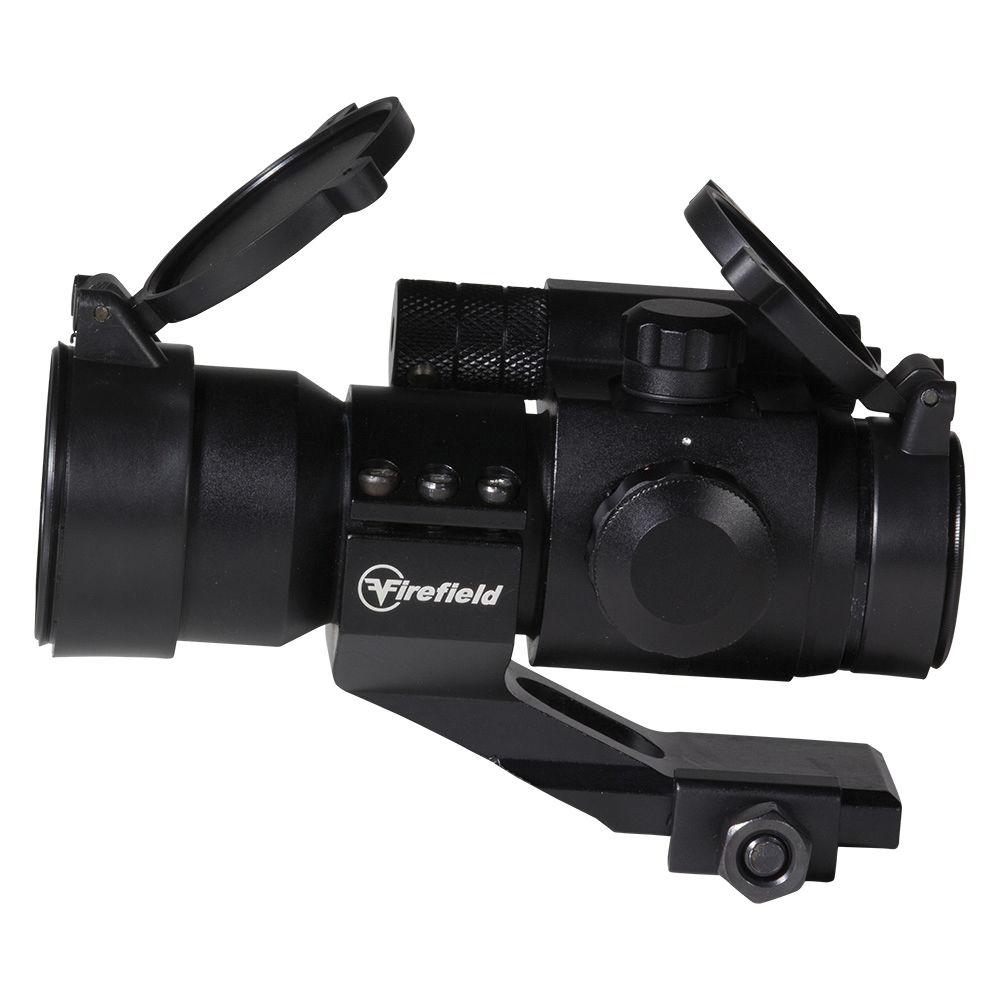

Product description The 1x28 Sight with Red-Green Dot Reticle and Laser Red Pointer from FireField is a reflex sight with a 3-MOA dual red-green reticle, five brightness levels, and is free of parallax at 20 yards. To give your aim more precision, the sight has an integral red laser emitting at 632nm and offering a 1" red spot at a range of 100 yd. The optics feature anti-reflection multicoated lenses with 1x magnification and a 28mm objective diameter. To help you compensate for wind and projectile motion the sight has a 120 MOA windage and elevation adjustment range. It has a cantilever design to enable mounting anywhere on a Picatinny rail or Weaver mount, if you need space for an optional magnifier. The matte black aluminum housing is weatherproof, rated IPX6, and has a screw for securing the sight. Also included with the sight is one CR2032 battery, three AG13 batteries, protective lens caps, and a lens cloth. - Optical Performance
-
- 1x magnification
- 28mm objective diameter
- 38' @ 100 yd linear field of view
- Anti-reflective multicoated optics
- Reticle
-
- 3 MOA dot reflex reticle
- Red or green illumination option
- Five brightness levels
- Parallax-free at 20 yards
- Laser Pointer
-
- Red laser wavelength: 632 nm
- Laser power under 5mW
- Beam size is 1" at 100 yd
- Powered by three included AG13 batteries
- Use and Handling
-
- 120 MOA windage and elevation adjustment range
- Flip-up objective caps
- Runs on included CR2032 battery
- Construction
-
- Cantilever design can mount forward on the upper receiver of an AR-15
- Secures to Weaver or Picatinny mount via included thumbscrew
- Aluminum housing with matte black finish
- IPX6-rated waterproof

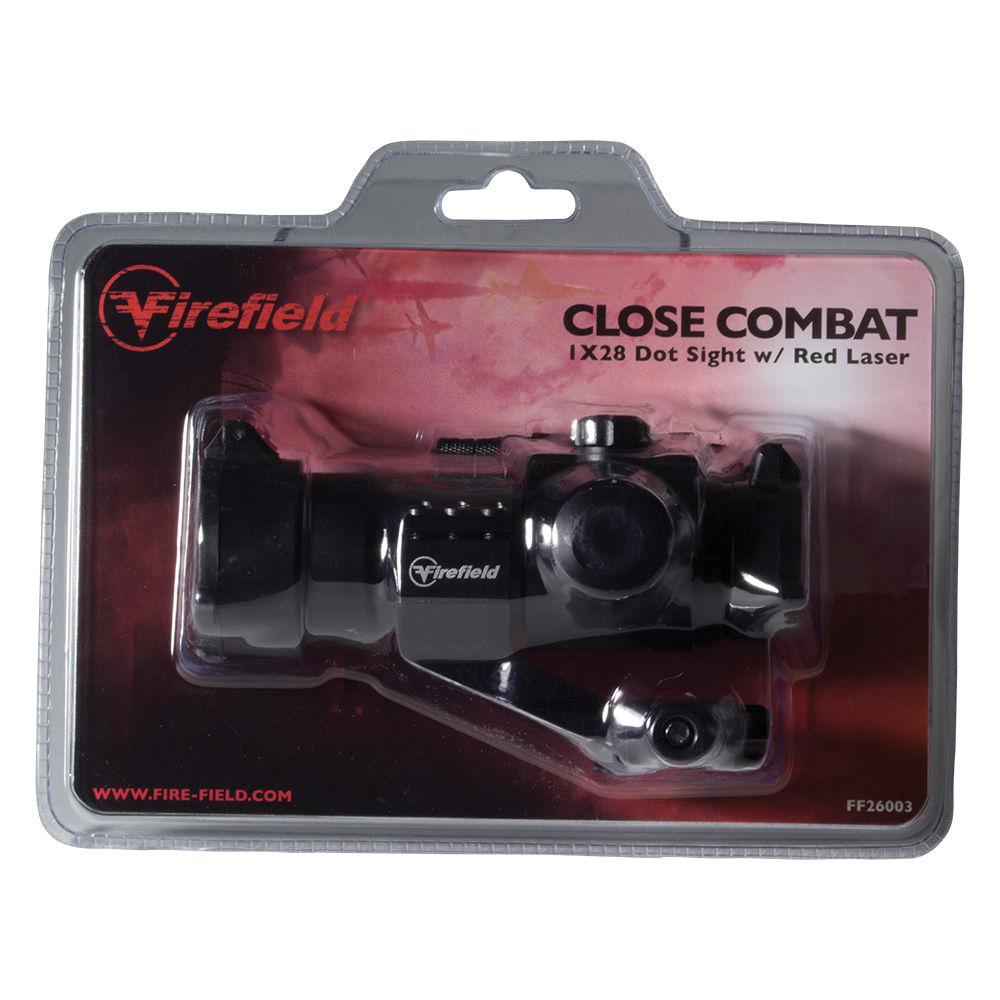

UPC: 810119017574 In the Box Firefield 1x28 Sight with Red-Green Dot Reticle and Laser Red Pointer CR2032 Battery 3 x AG13 Batteries 2 x Flip-Up Lens Caps Lens Cloth Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 1x28 Sight with Red-Green Dot Reticle and Laser Red Pointer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield Close Combat Specs | | | Power Source | 1 x CR2032 | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 28 mm | | Field of View | 38' @ 100 yd / 12.6 m @ 100 m | | Exit Pupil Diameter | 28 mm | | | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | | | Laser Power Source | 3 x LR44 | | | | Water Resistance | IPX6 | | Material | Aluminum | | Dimensions | L: 5.2 x W: 3.1 x H: 2.5" / L: 13.2 x W: 7.9 x H: 6.4 cm | | Weight | 11 oz / 311.8 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.8 x 5.3 x 2.6" |
