Firefield 1x30 Impulse Red Dot Sight

Search your instruction manual in PDF to download

User Manual for Firefield 1x30 Impulse Red Dot Sight with Red Laser

Click to enlarge the picture

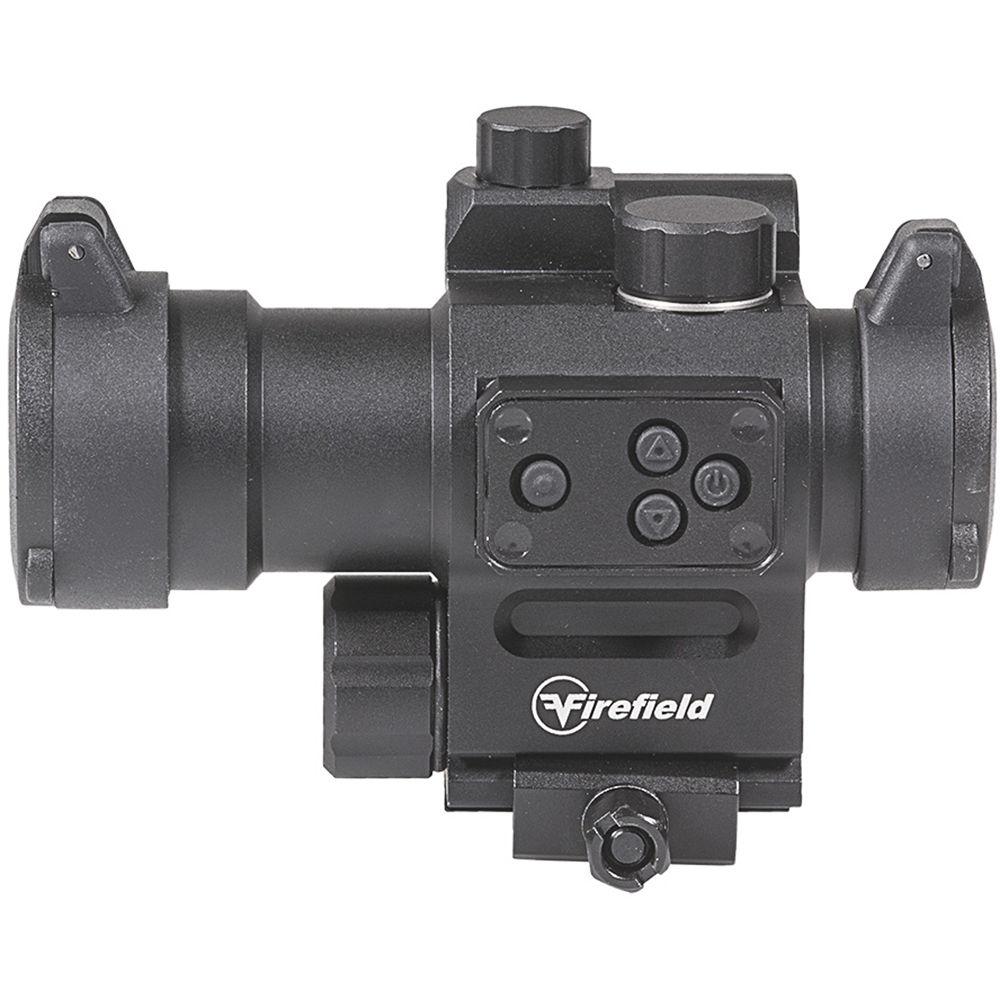

Firefield 1x30 Impulse Red Dot Sight with Red Laser Contents of the user manual for the Firefield 1x30 Impulse Red Dot Sight
  • Product category: Red Dot/Holographic Sights Firefield
  • Brand: Firefield
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Firefield Red Dot/Holographic Sights

Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser Firefield 1x30 Impulse Red Dot Sight with Red Laser
User manual for the Firefield 1x30 Impulse Red Dot Sight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Firefield product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!



Product description

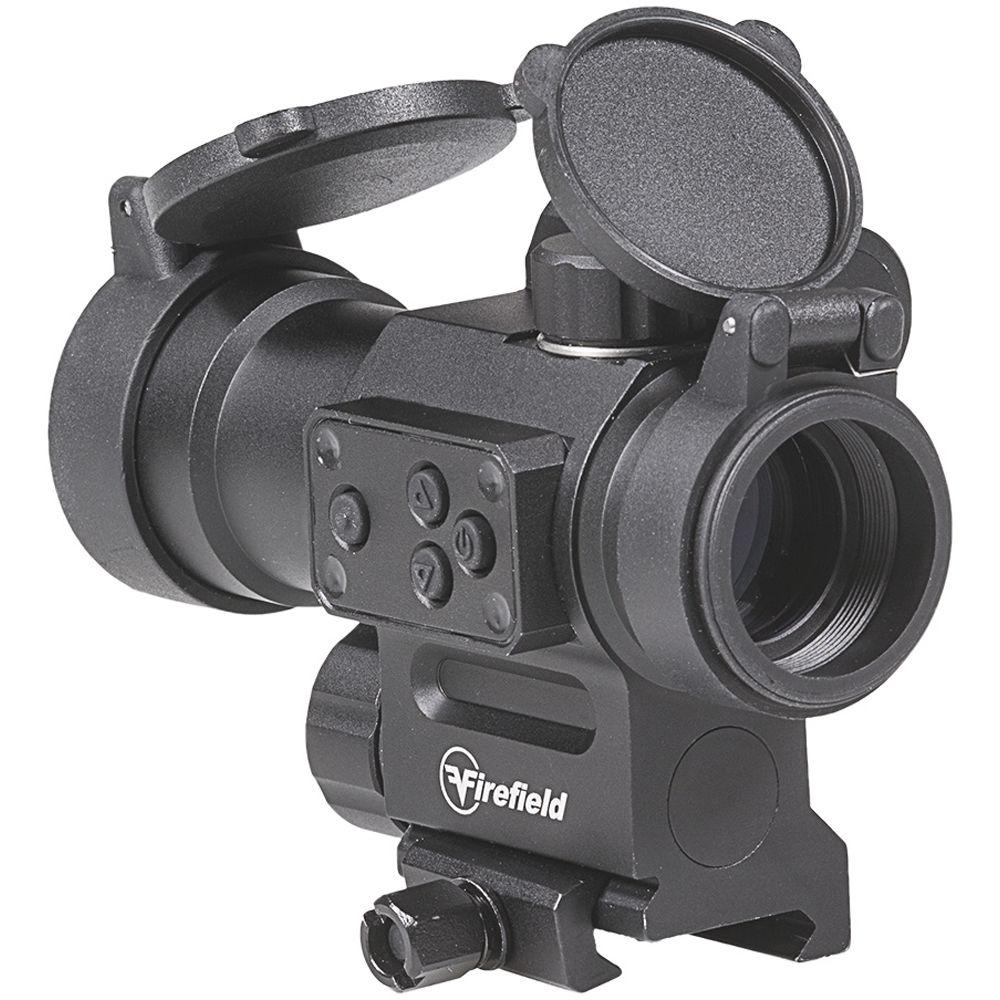

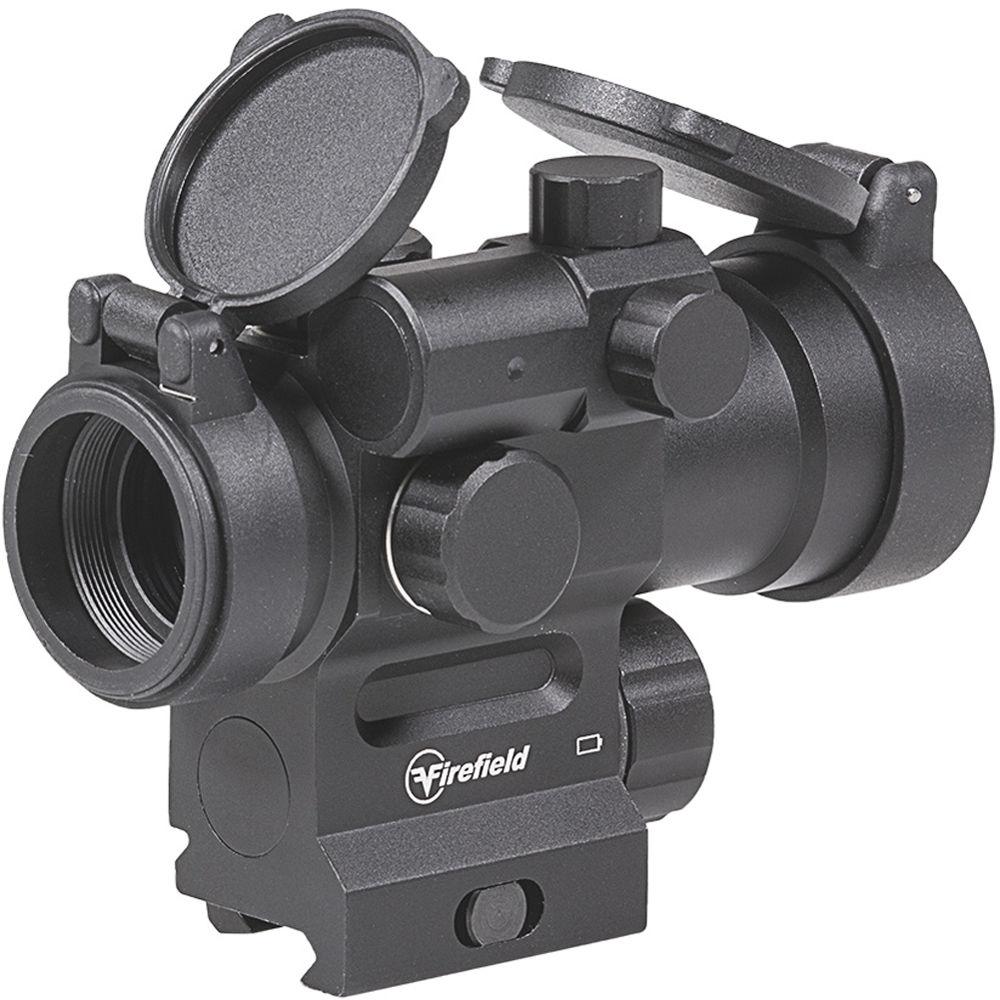

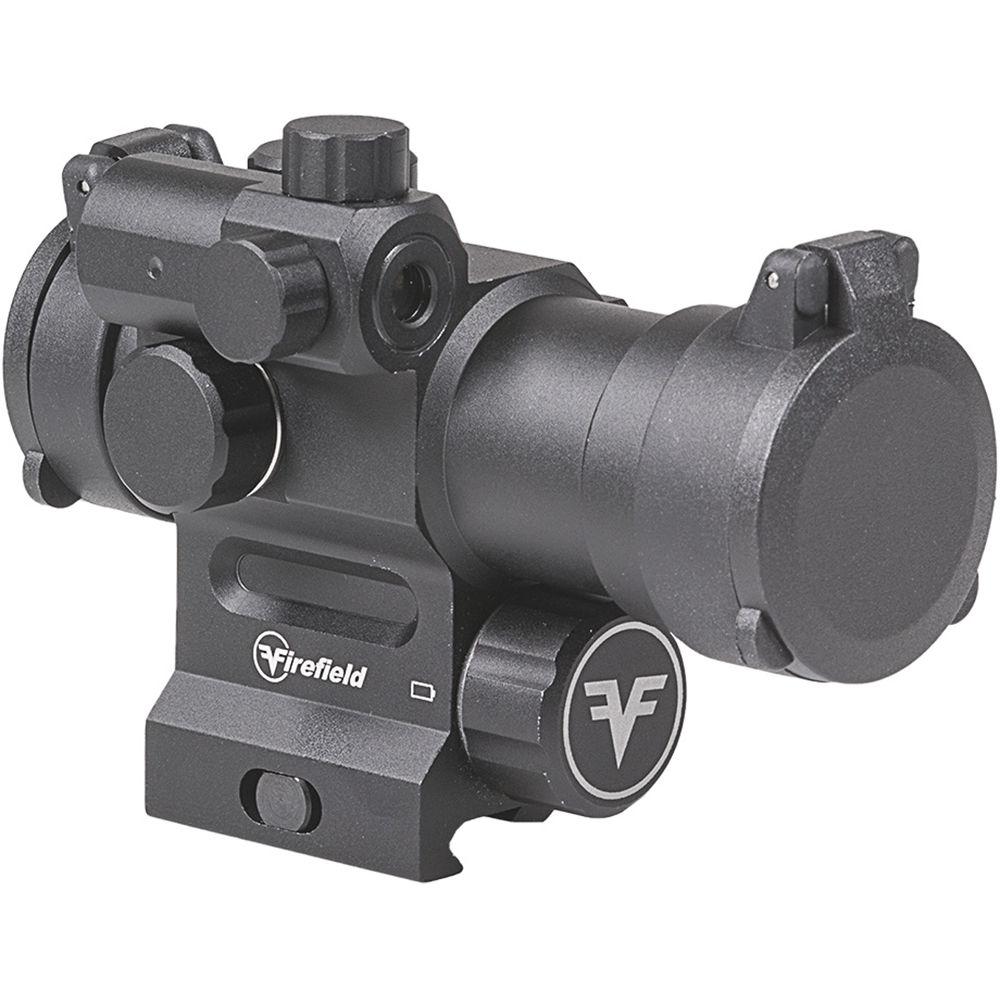

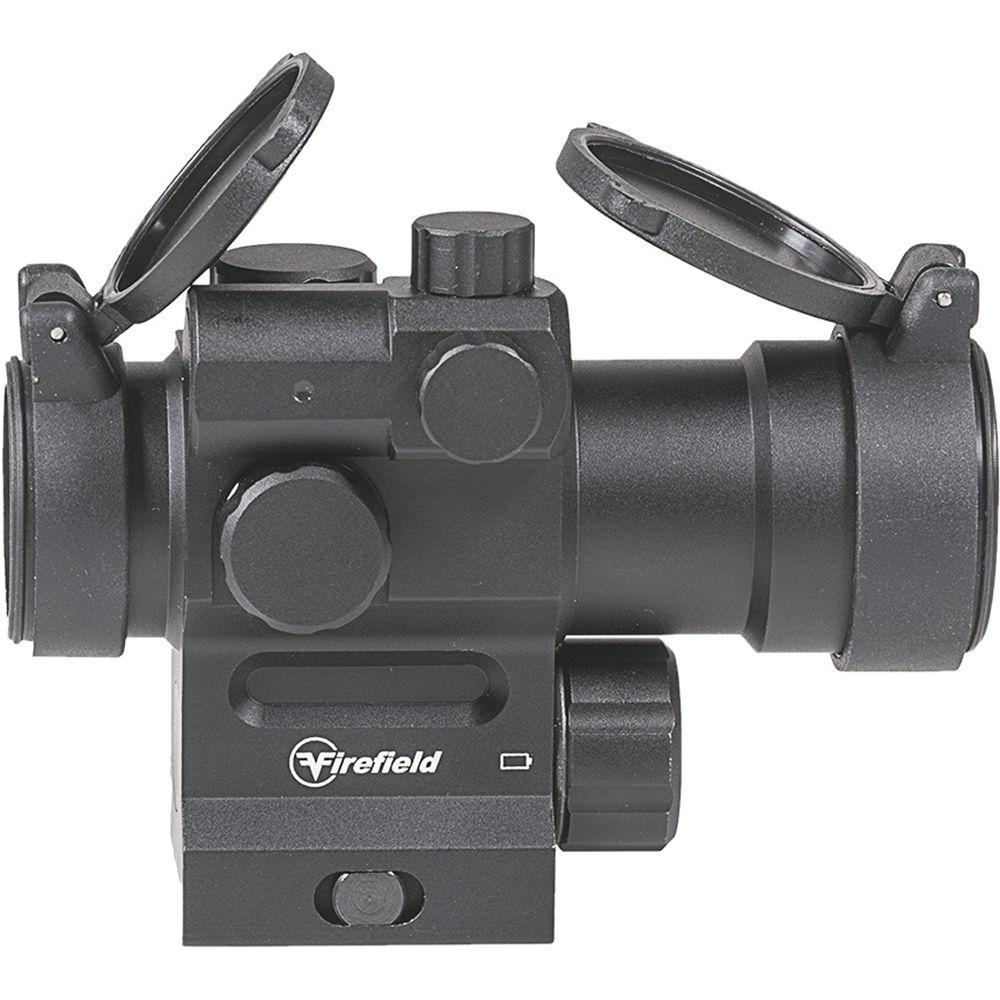

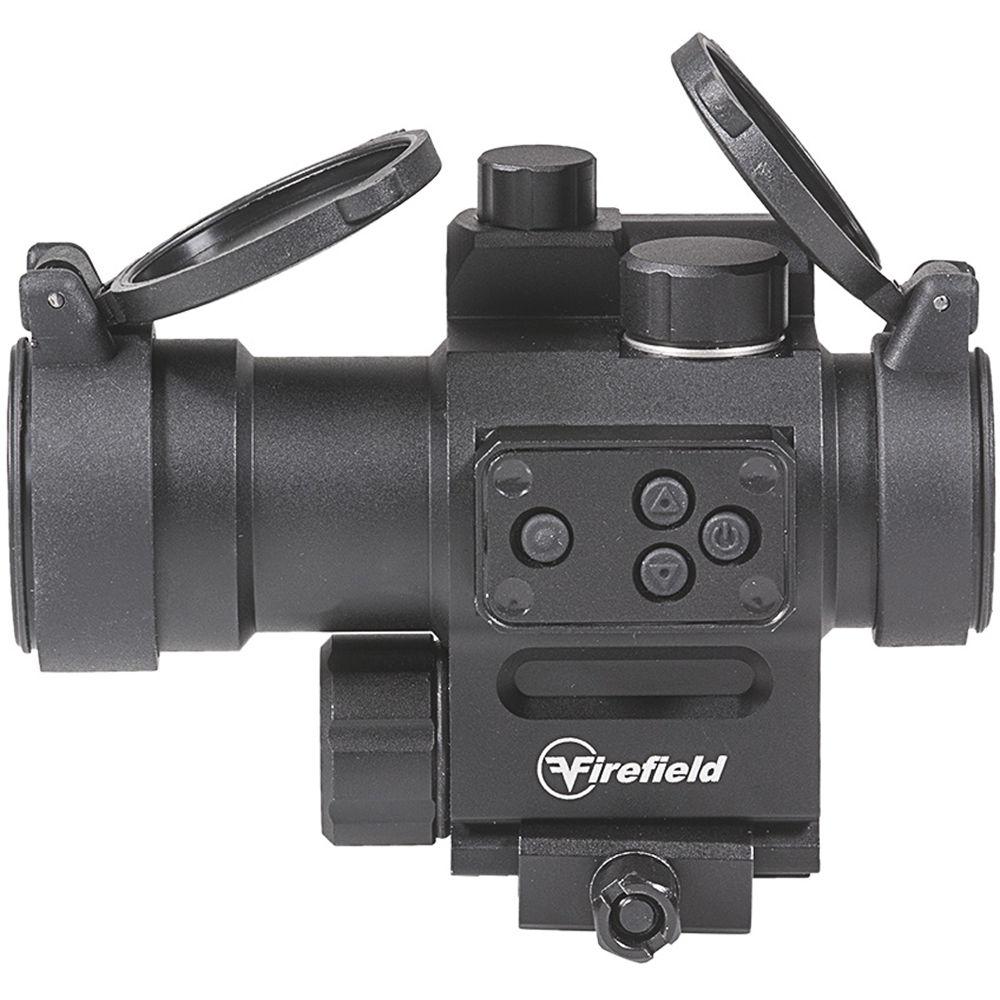

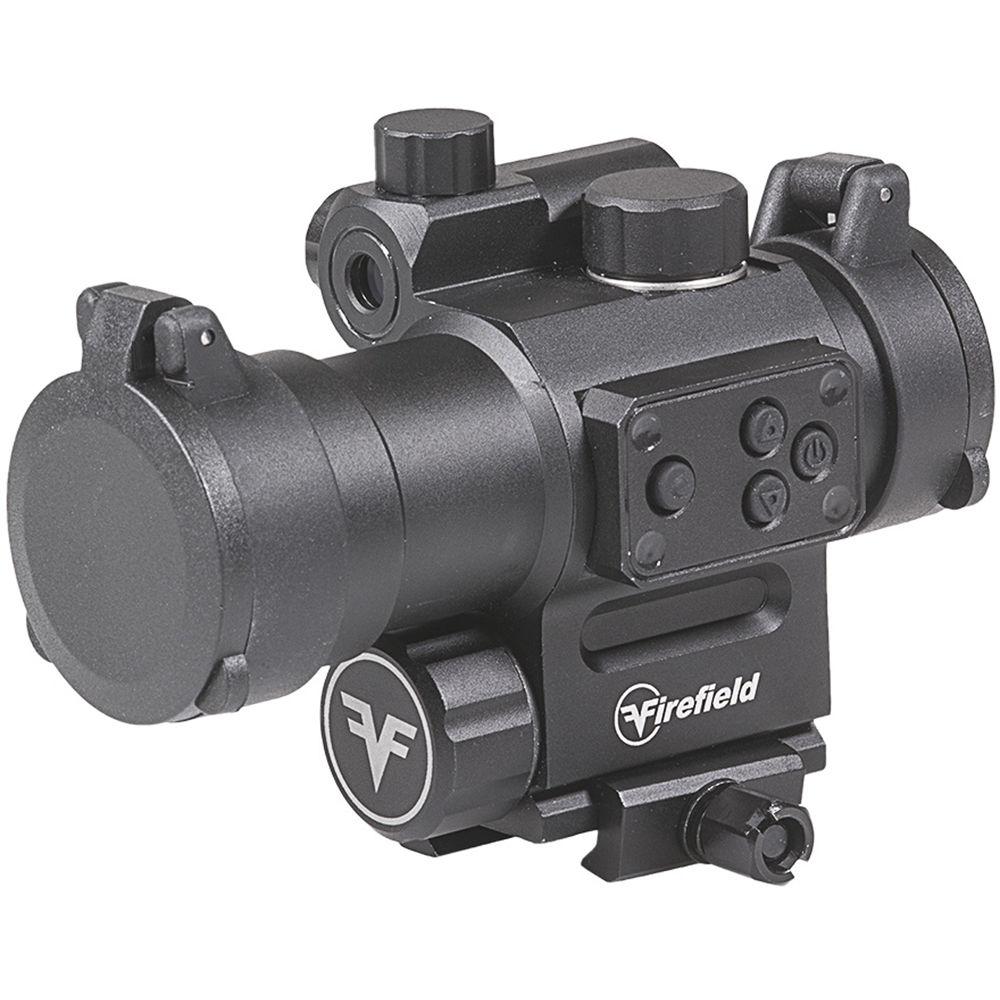

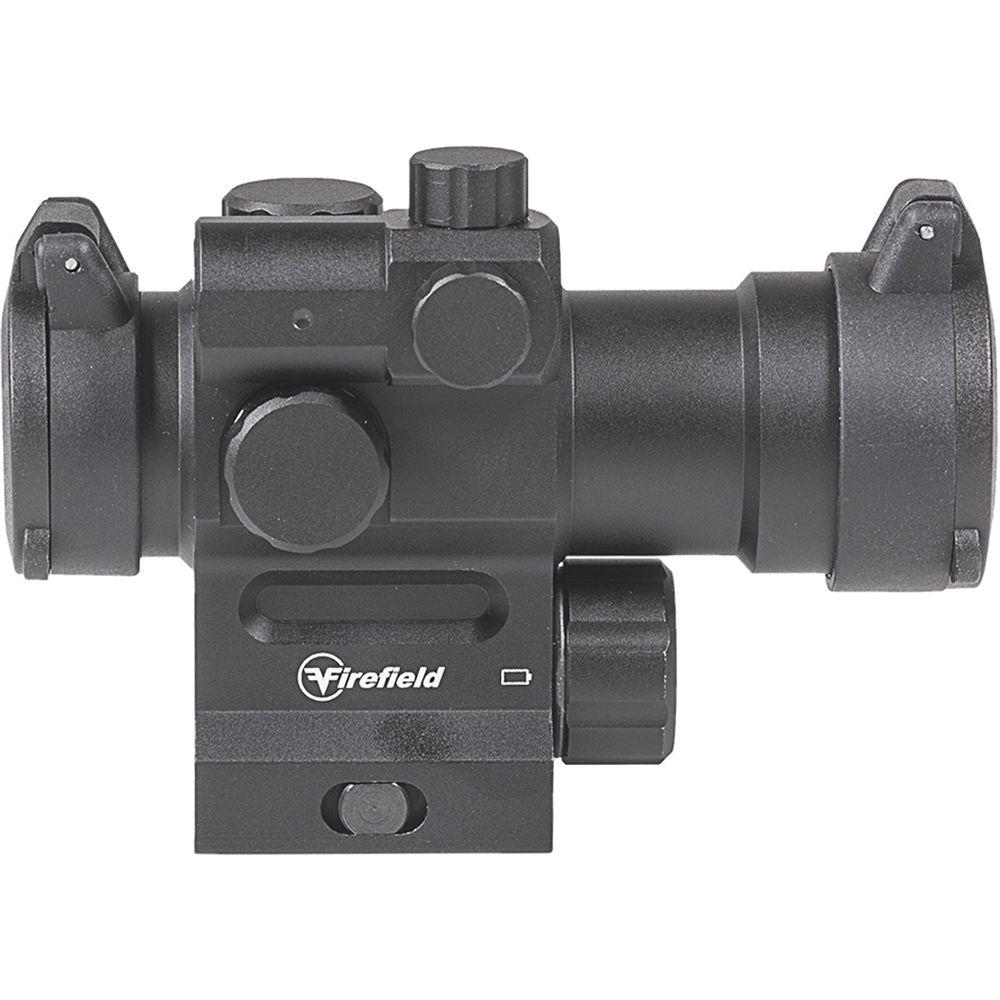

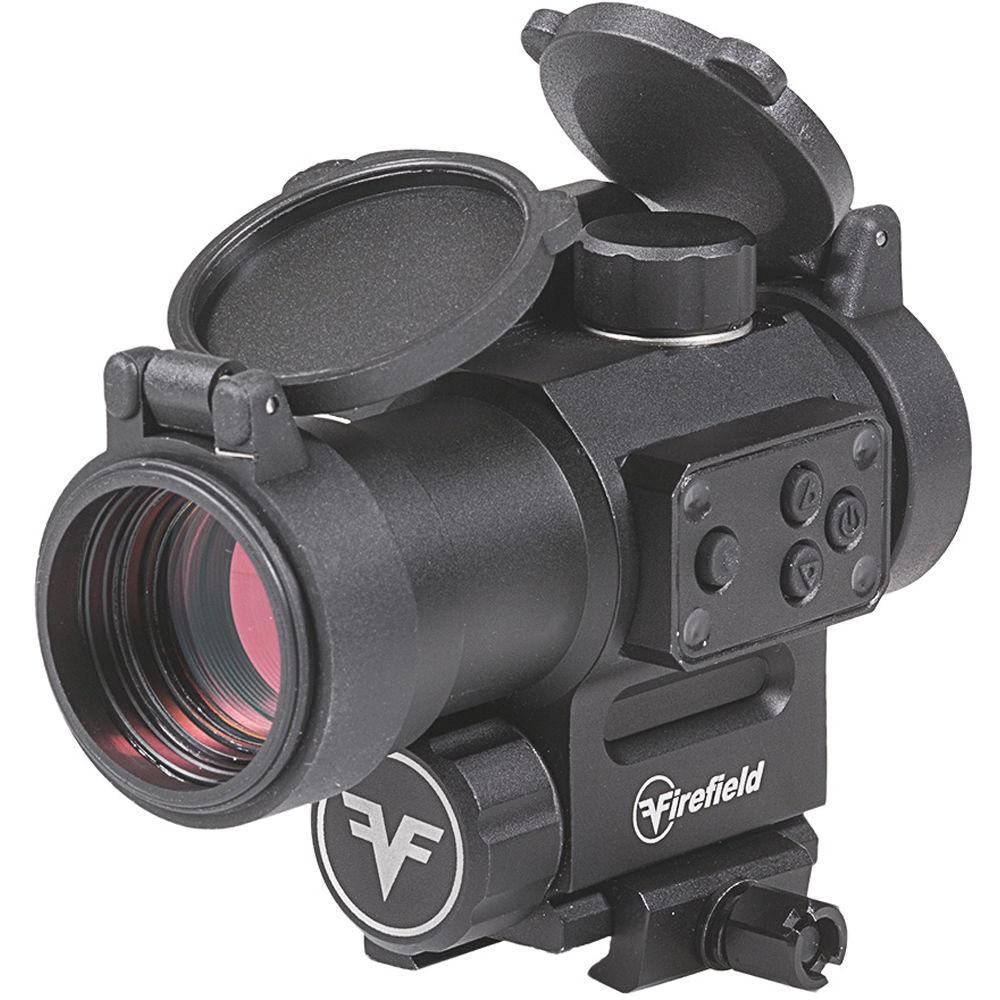

Get on target with the FireField 1x30 Impulse Red Dot Sight with Red Laser. This compact and robust device packs a 1x30 red dot sight, a red aiming laser, a Picatinny/Weaver mount, and flip-up lens caps in an integrated package. At the core of the optical system is a 3 MOA Red Dot reticle with six levels of brightness adjustment and a parallax-free range of 50 yards. You can further increase precision of your target acquisition by using the built-in red laser. It has 1 MOA dot and continuous beam stirring capability in two axes. This combination of the illuminated reticle and the aiming laser greatly improves precision of your targeting, while also reducing strain on the eyes.

The lightweight and durable 6061-T6 aluminum housing is impact and weather resistant. It offers knurled windage and elevation adjusters, a rubberized built-in digital control pad for the reticle, an integrated Picatinny/Weaver mount, and attached flip-up lens covers.
    Optical Performance
    • 1x magnification
    • 30mm objective diameter
    • Anti-reflective red coating
    • Parallax-free at 50 yd
      Reticle & Laser
      • 3 MOA Red Dot reticle
      • Six brightness levels
      • Integrated 5mW red laser with 1" spot at 100 yd
      • Beam direction is adjustable 300 MOA in two axes
        Use and Handling
        • 30mm exit pupil
        • Unlimited eye relief
        • Integrated digital control pad
        • 160 MOA windage and elevation adjustments with 1 MOA clicks
          Construction
          • 6061-T6 aluminum housing
          • Weather resistant, rated IP55
          • Integrated flip-up lens caps
          • Integrated Picatinny/Weaver mount
          • Accommodates one CR123A battery
          UPC: 812495021503 In the Box Firefield 1x30 Impulse Red Dot Sight with Red Laser (3 MOA Red Dot Illuminated Reticle, Matte Black)
        • CR123A Battery
        • Limited 3-Year Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Firefield 1x30 Impulse Red Dot Sight with Red Laser in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Firefield Impulse Specs

Magnification 1x
Objective Lens Diameter 30mm
Field of View Not provided by manufacturer
Exit Pupil Diameter 30mm
Mounting System Picatinny/Weaver
Windage/Elevation Adjustment 160 MOA
Impact Point Correction 1 MOA
Parallax-Free 50 yd / 45.7 m
Reticle 3 MOA Red Dot reticle
Laser Red, Class IIIA
632 - 650 nm
<5 mw
1" at 100 yd dot size
300 MOA continuous adjustments in two axes
Weatherproofing Weather resistant, rated IPX55
Battery / Runtime 1 x CR123A battery / 700 - 4300 hours
Material of Construction 6061-T6 aluminum
Shock Resistance Shock-resistant to 800 g
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions 3.7 x 3.1 x 2.4" / 95.0 x 80.0 x 60.0 mm
Weight 8.4 oz / 238.1 g
