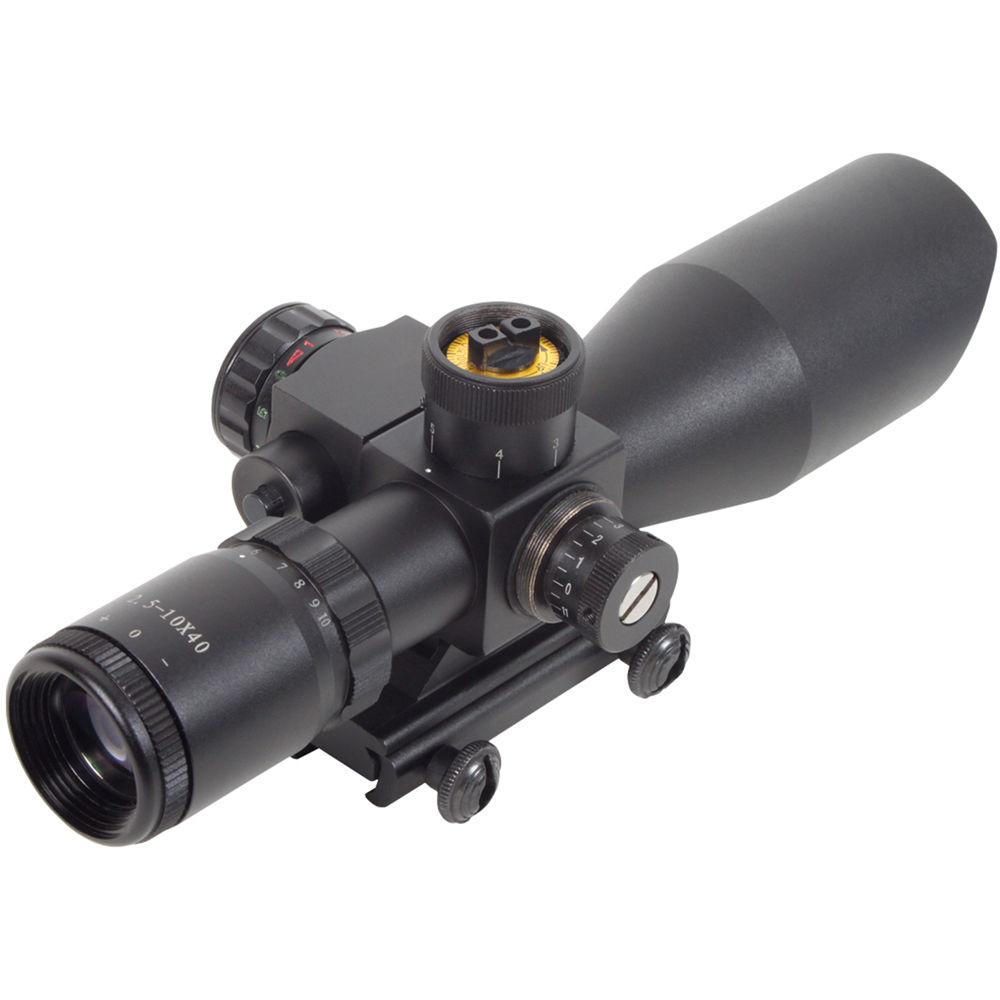

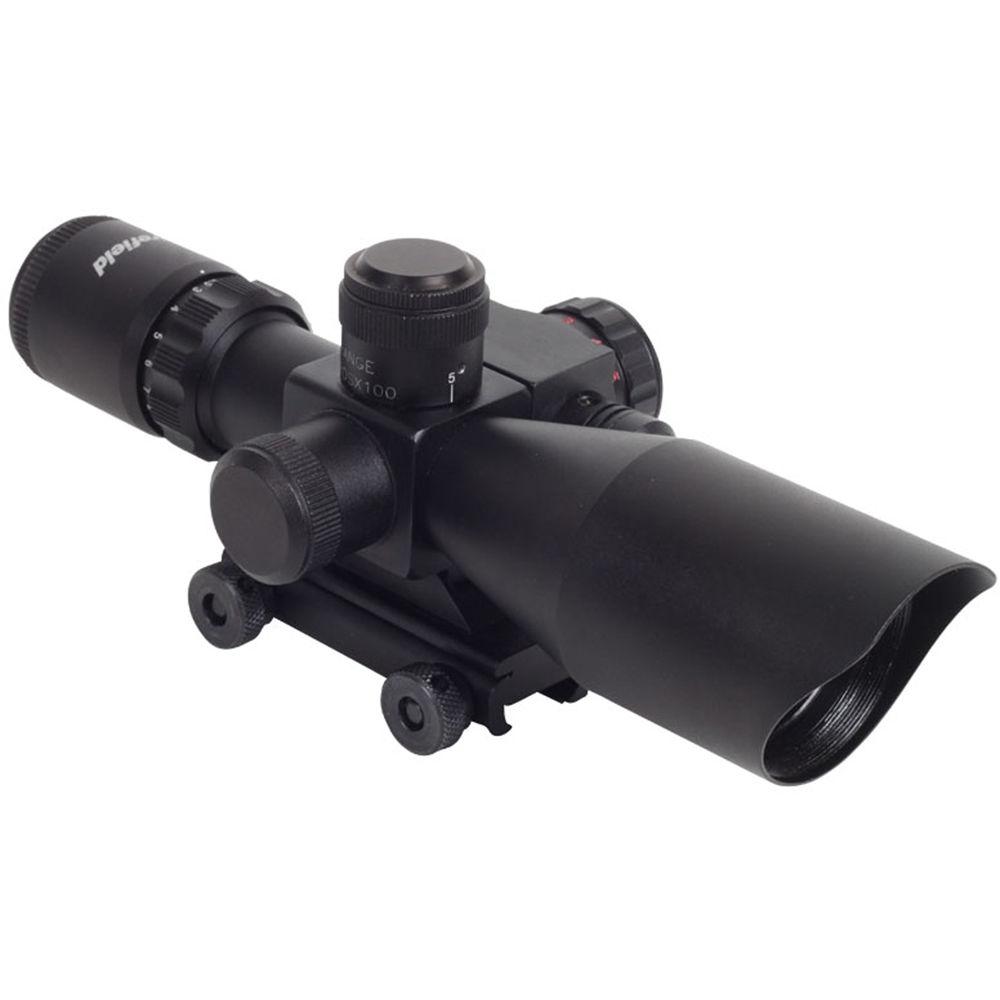

User Manual for Firefield 2.5-10x FF13011 Riflescope with Red Laser Click to enlarge the picture
Contents of the user manual for the Firefield 2.5-10x FF13011 Riflescope with Red
- Product category: Riflescopes Firefield
- Brand: Firefield
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Firefield Riflescopes
 |
User manual for the Firefield 2.5-10x FF13011 Riflescope with Red contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Firefield product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Firefield user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Firefield product will considerably shorten its lifespan!
|

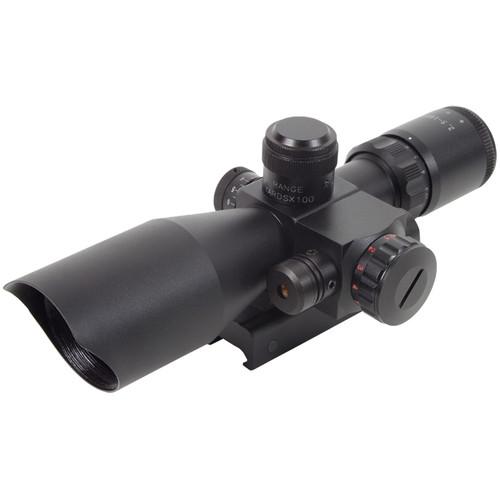

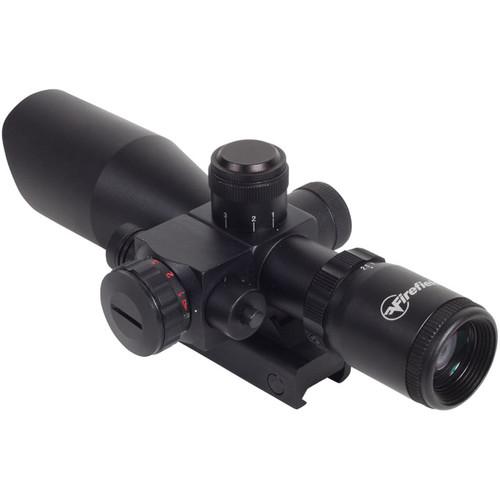

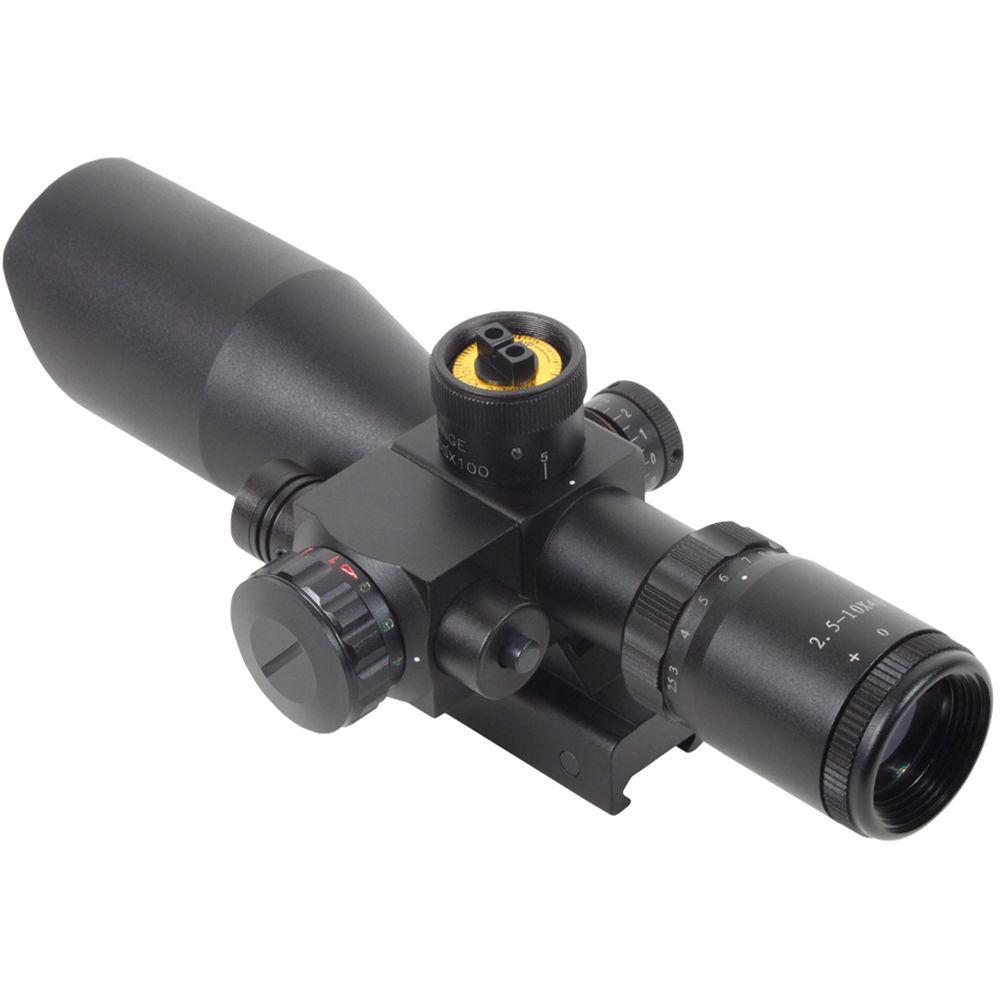

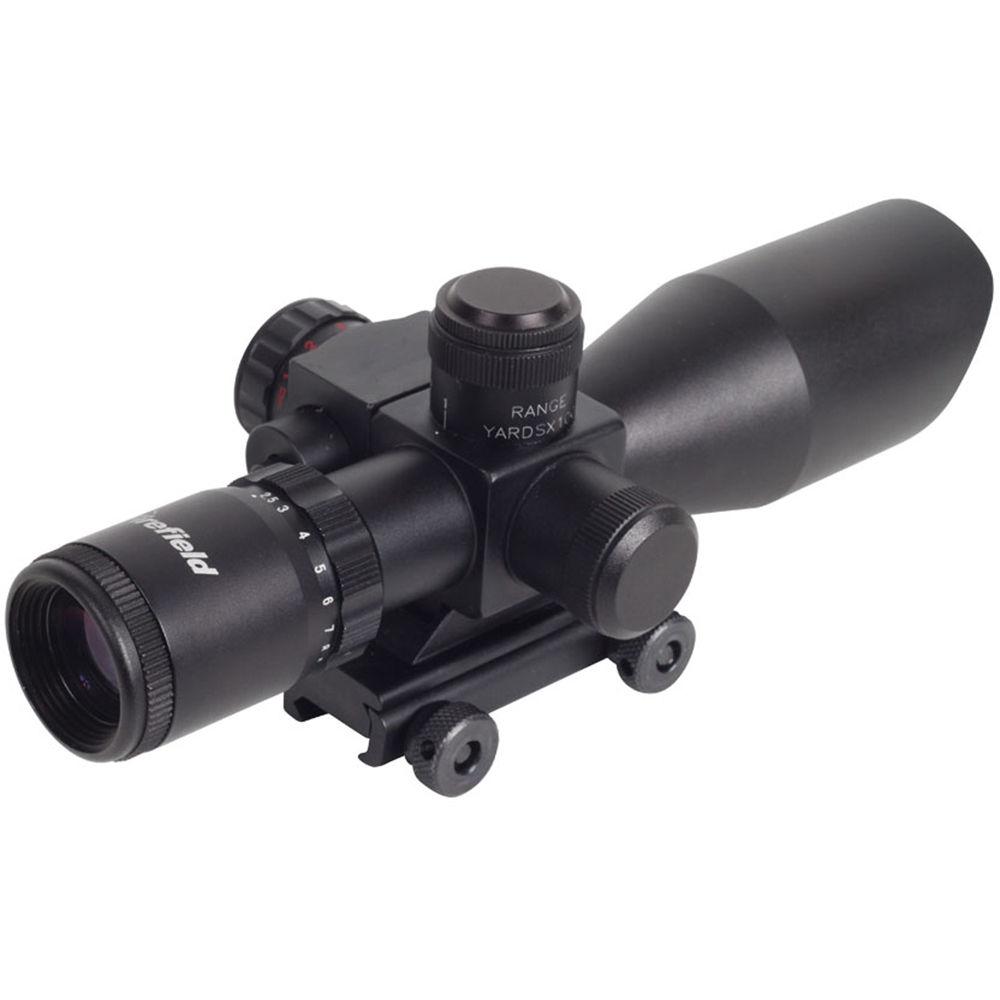

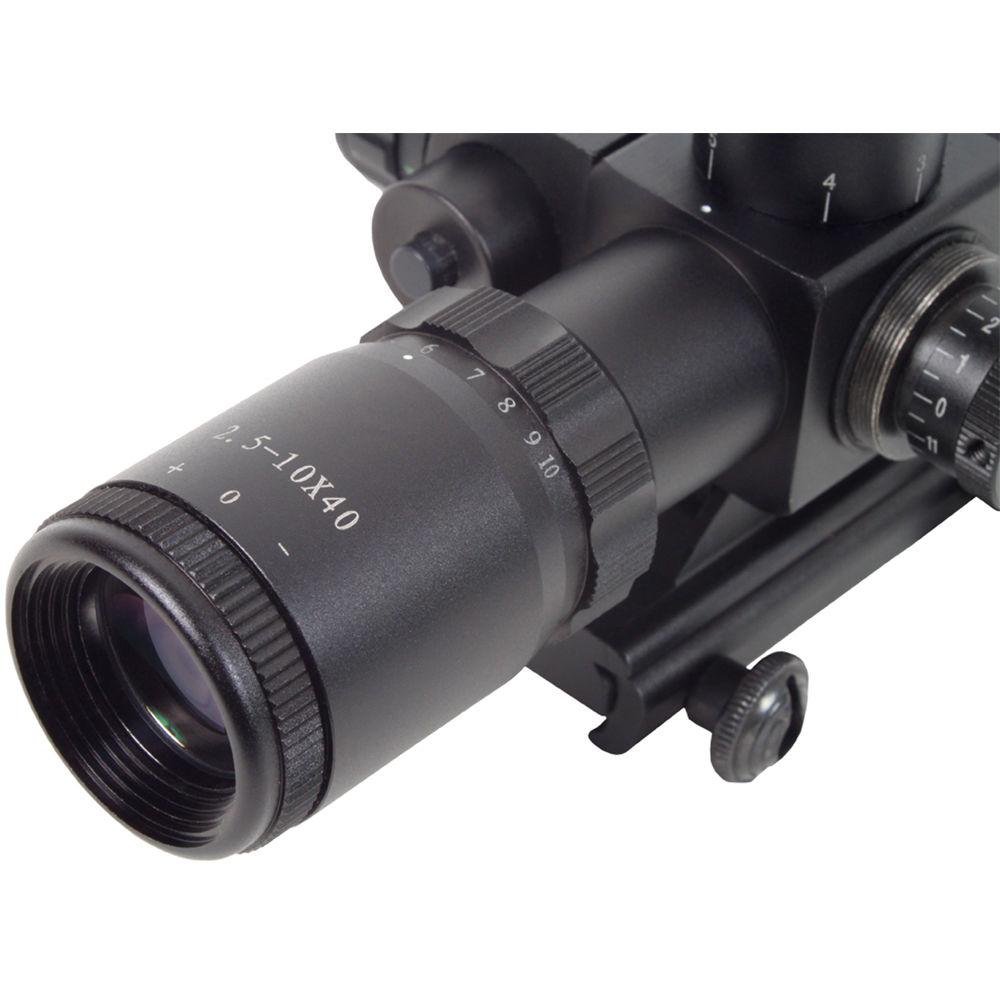

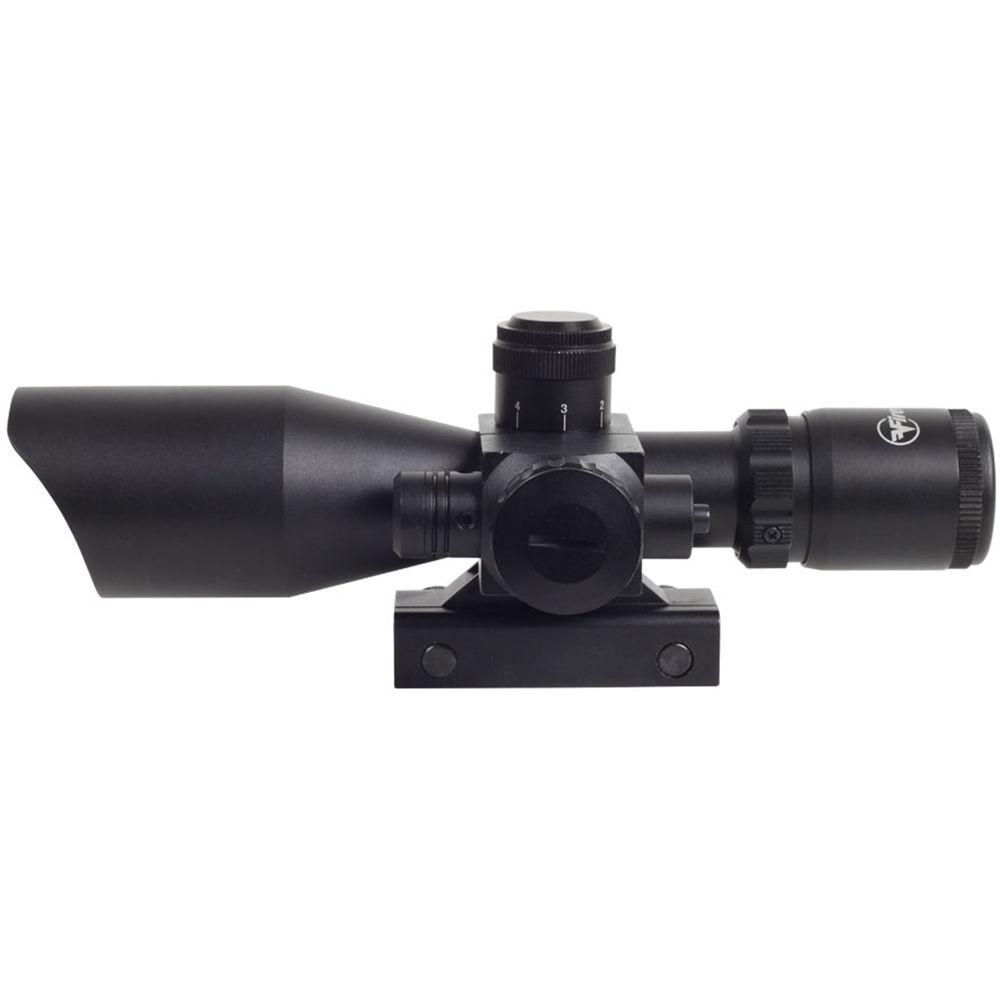

Product description The FF13011 Riflescope with Red Laser from Sightmark features a 2.5-10x magnification and a 40mm objective lens diameter that allows you to effectively target your subject in medium to long range distance. Further, a green / red illuminated mil-dot reticle helps for enhanced accuracy.
Equipped with a bullet drop compensator, the riflescope can compensate for the effect of gravity on 0.223 caliber bullets for distances ranging from 300' to 1500'. - Magnification power range - 2.5-10x
- 40mm objective lens diameter
- Allows you to effectively target your subject in medium to long range distance

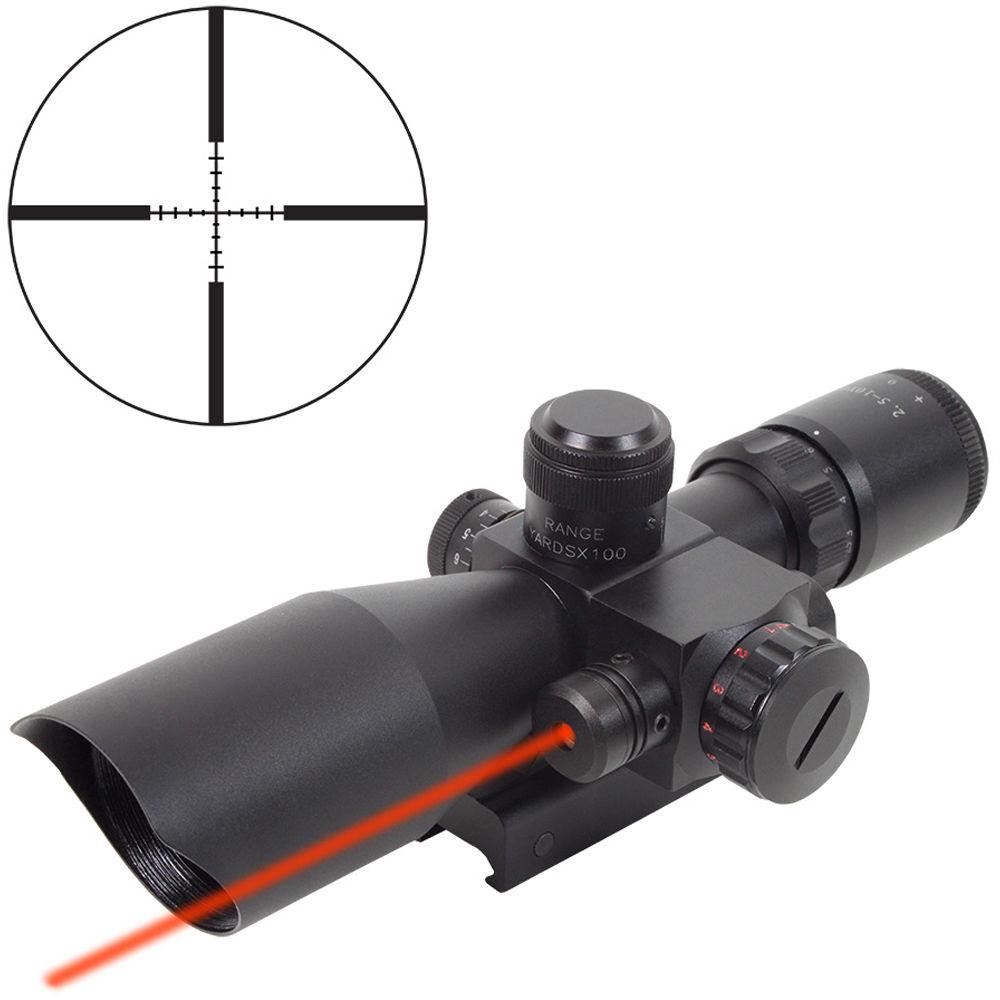

- Green / red illuminated mil-dot reticle for further assistance
- Bullet drop compensator compensates for the effect of gravity on 0.223 caliber bullets for distances ranging from 300' to 1500'

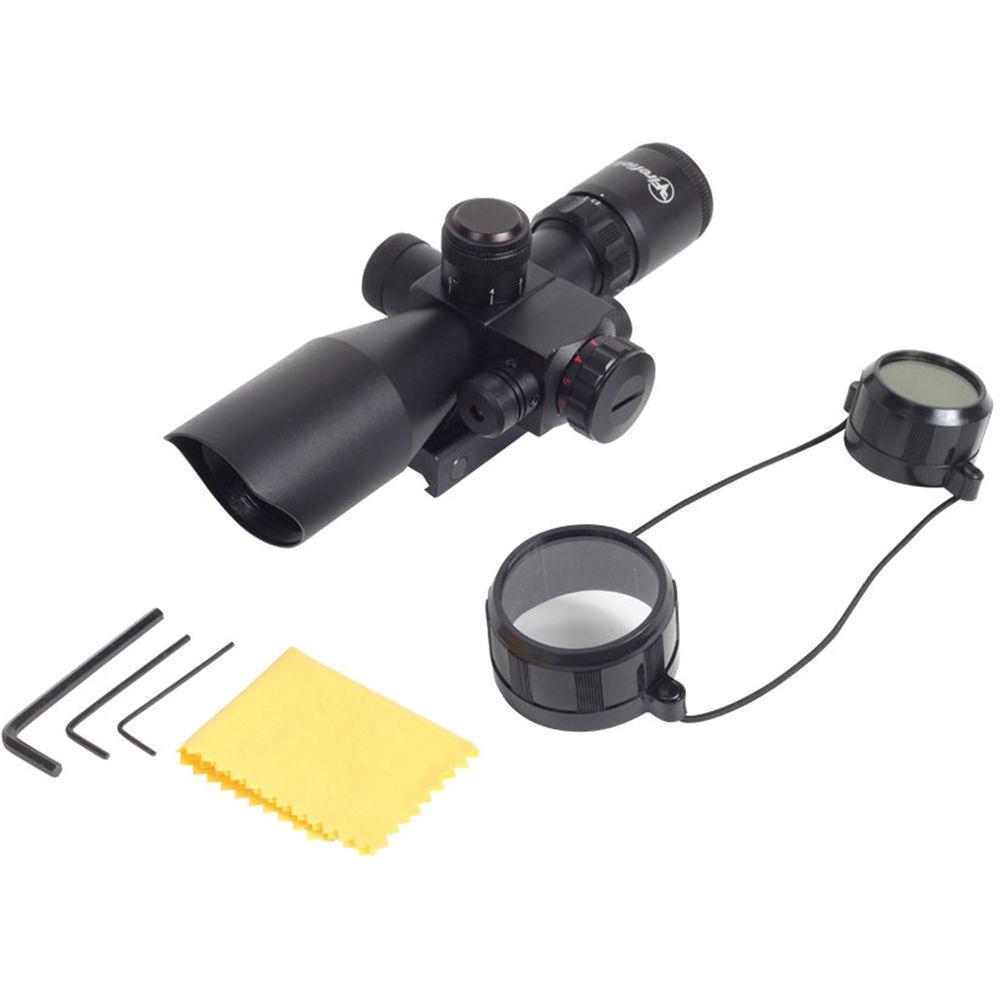

UPC: 810119013057 In the Box Firefield 2.5-10x FF13011 Riflescope with Red Laser CR2032 Battery for Powering the Reticle 2 x AG13 Batteries for Powering the Laser Lens Cover Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Firefield 2.5-10x FF13011 Riflescope with Red Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFirefield FF13011 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 40 mm | | Field of View | 2.5x: 34.9' @ 100 yd / 10.6 m @ 100 m
10x: 11.5' @ 100 yd / 3.5 m @ 100 m | | Eye Relief | 2 to 2.7" / 50 to 69 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | IR MIL Dot Reticle | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Mounting | Weaver | | Impact Point Correction | 1/4 MOA per Click | | | | Maintube Diameter | 30 mm | | Battery | Reticle: 1 x CR2032
Laser: 2 x AG13 | | Material | Aluminum | | Dimensions | Length: 8.5" / 21.5 cm
Height: 3.5" / 8.8 cm
Width: 3.1" / 8 cm | | Weight | 18.6 oz / 526.2 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.1 x 5.5 x 3.7" |
